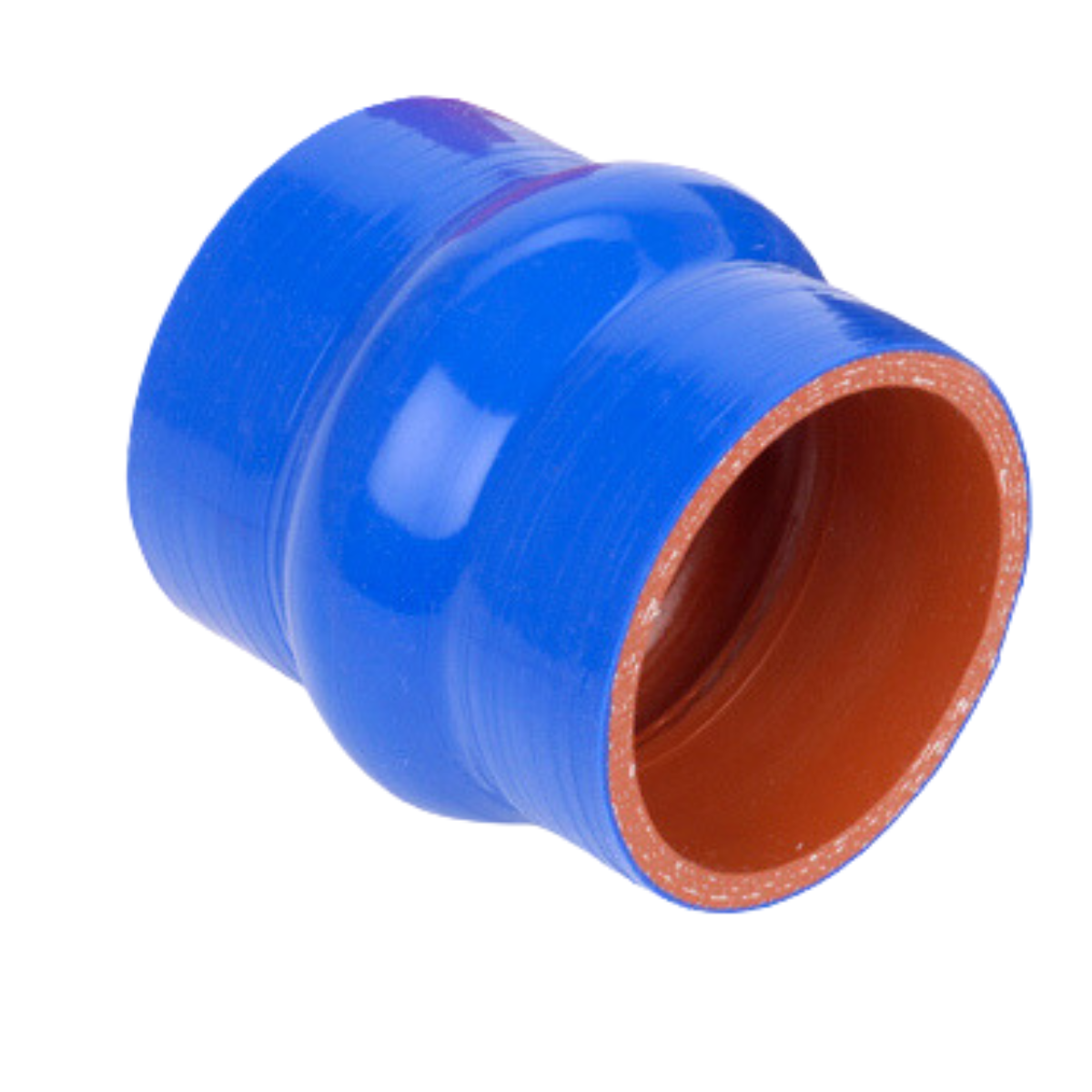

5.00in I.D. Blue Silicone Hump Hose | 3in Length
Where to Buy
Verify compatibility with your vehicle or equipment before ordering. Prices and availability may vary.
Affiliate Disclosure
Some links above are affiliate links — we may earn a small commission at no additional cost to you. This helps support our site.
Specifications:
| Wall Thickness | .17 -.22 |
| Burst PSI | 62 |
| I.D. 1 | 5.00 |
| I.D. 2 | 5.00 |
| Leg Length | N/A |
| Color | Blue |
| Overall Length | 3in |
| Vacuum Rating | N/A |
Product Series Specifications:
| Specification | Characteristics |
|---|---|
| Material | 5 Ply Silicone with Polyester Fabric Reinforcement |
| Resistance | Ozone & Oil Splash Resistant |
| Applications | Suitable For Heavy Duty Applications |
| Standards Compliance | Meets and Exceeds All Performance and Physical Requirements of: SAE J20 RI, RP 303B Class 1, Mil-Spec A-A-52426, OEM Heavy-Duty Vehicle Requirements |
| High-Temperature Option | Available with Meta-Aramid Fabric Reinforcement for Extreme High-Temperature (Upon Request) |
| Liner Options | Available with Fluorosilicone or Fluorocarbon Liner (Petroleum & Chemical Applications) |
| Vacuum Resistance | Available with Helical Wire Reinforcement for Vacuum Resistance |
| Temperature Range | -65°F to 350°F Continuous |
| Colors | Blue or Black |
| Leg Length | 10” Long Legs From Center of the Bend |
| Measurement | Leg Lengths Are Measured From The Centerline of the Hose |
