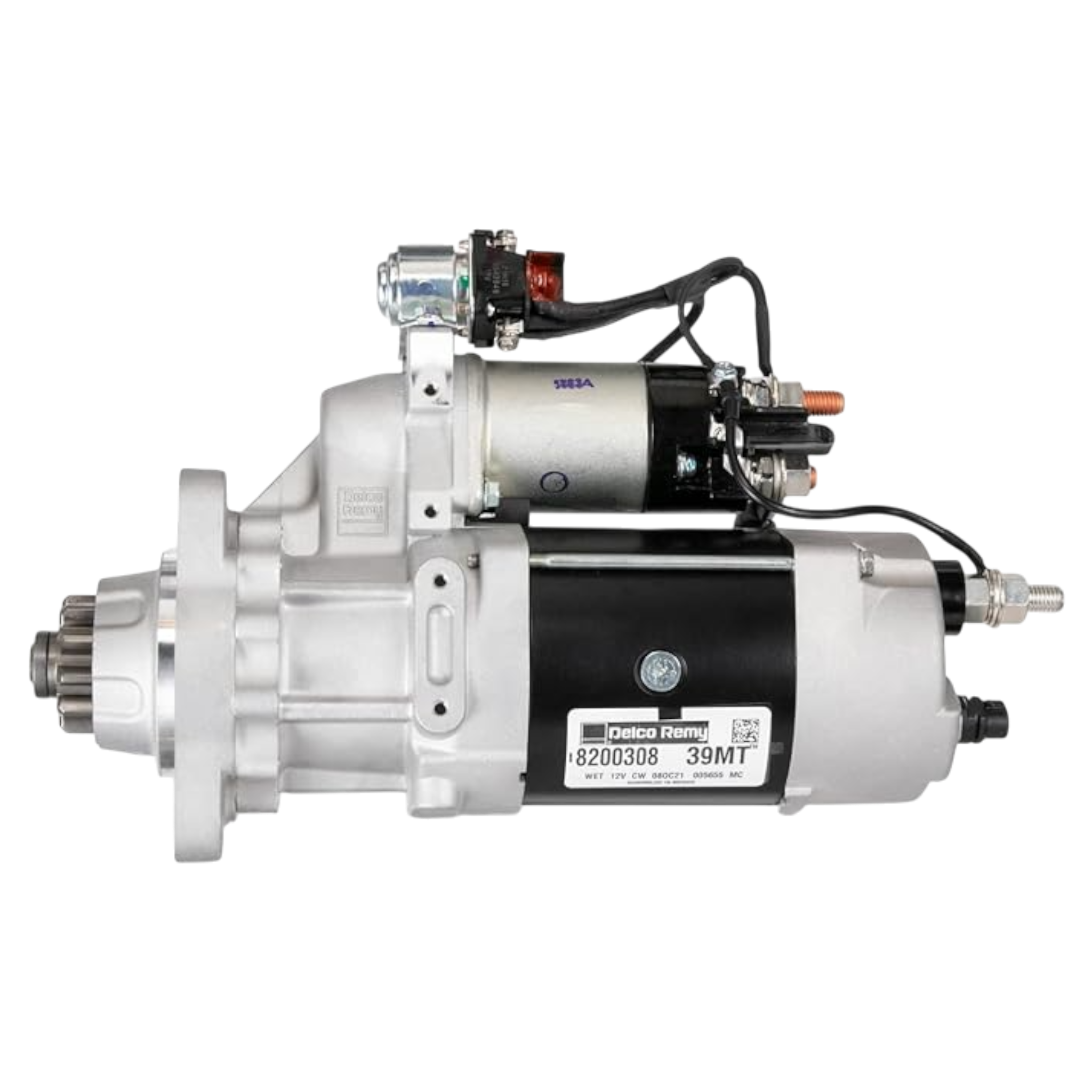

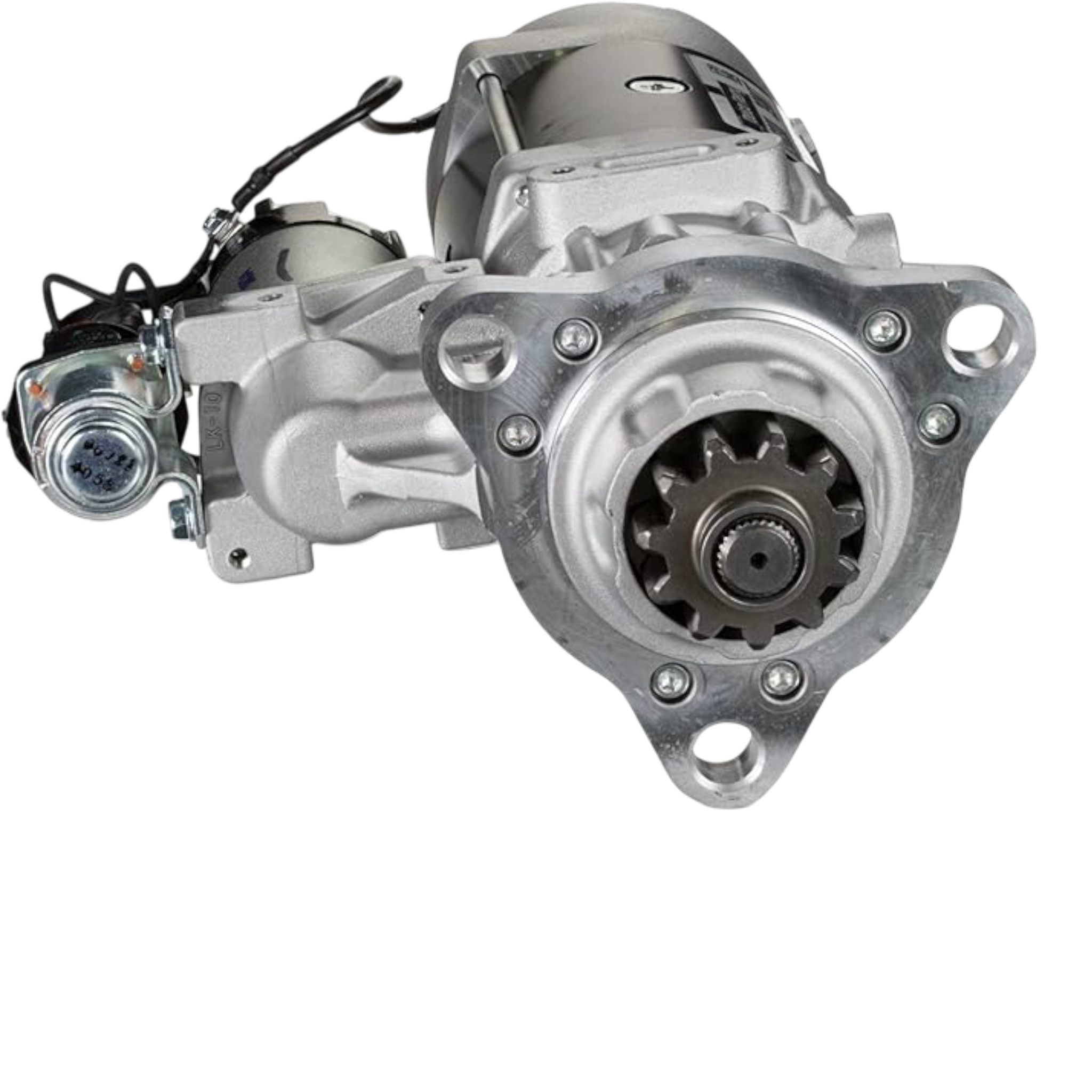

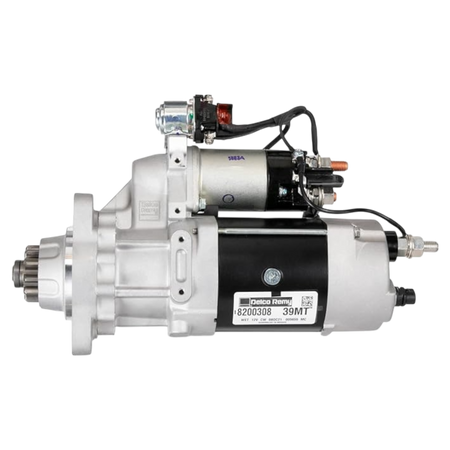

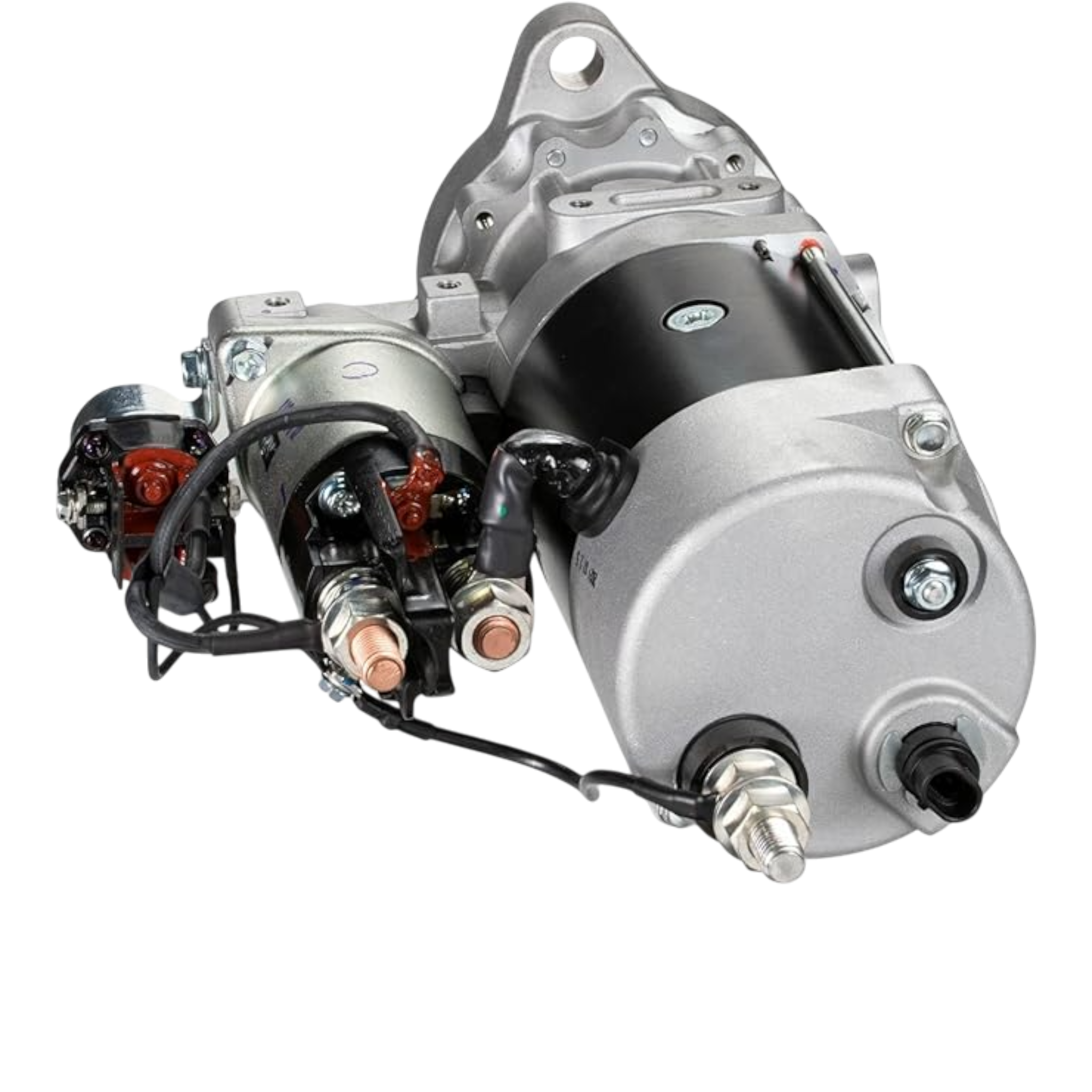

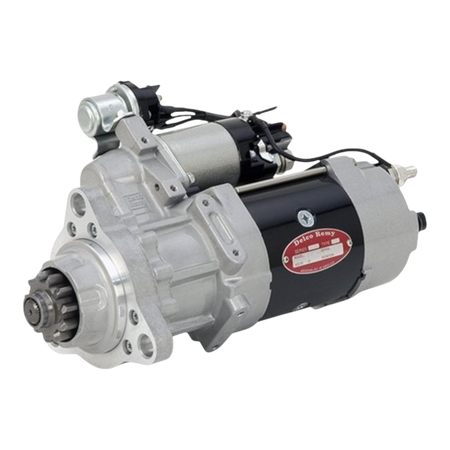

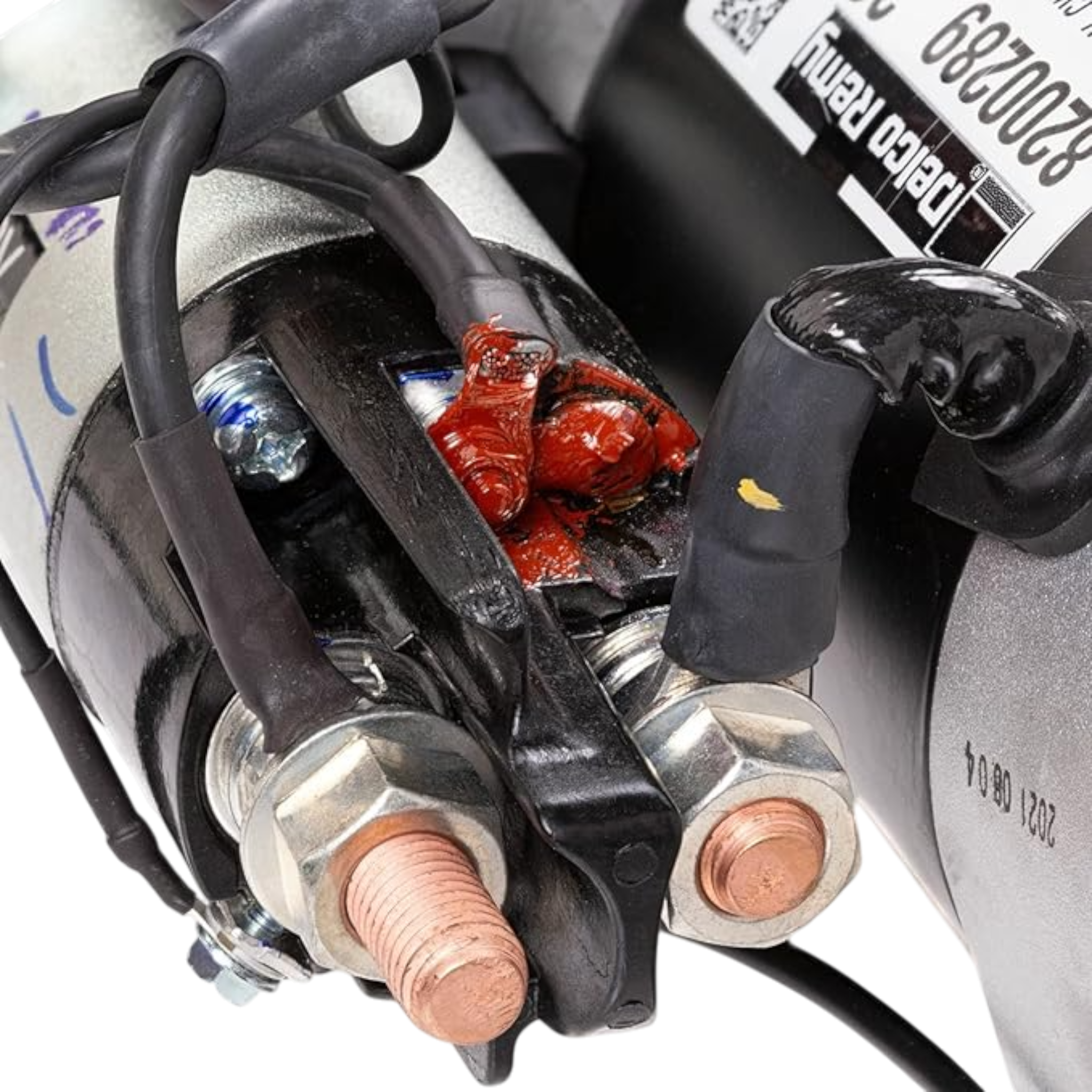

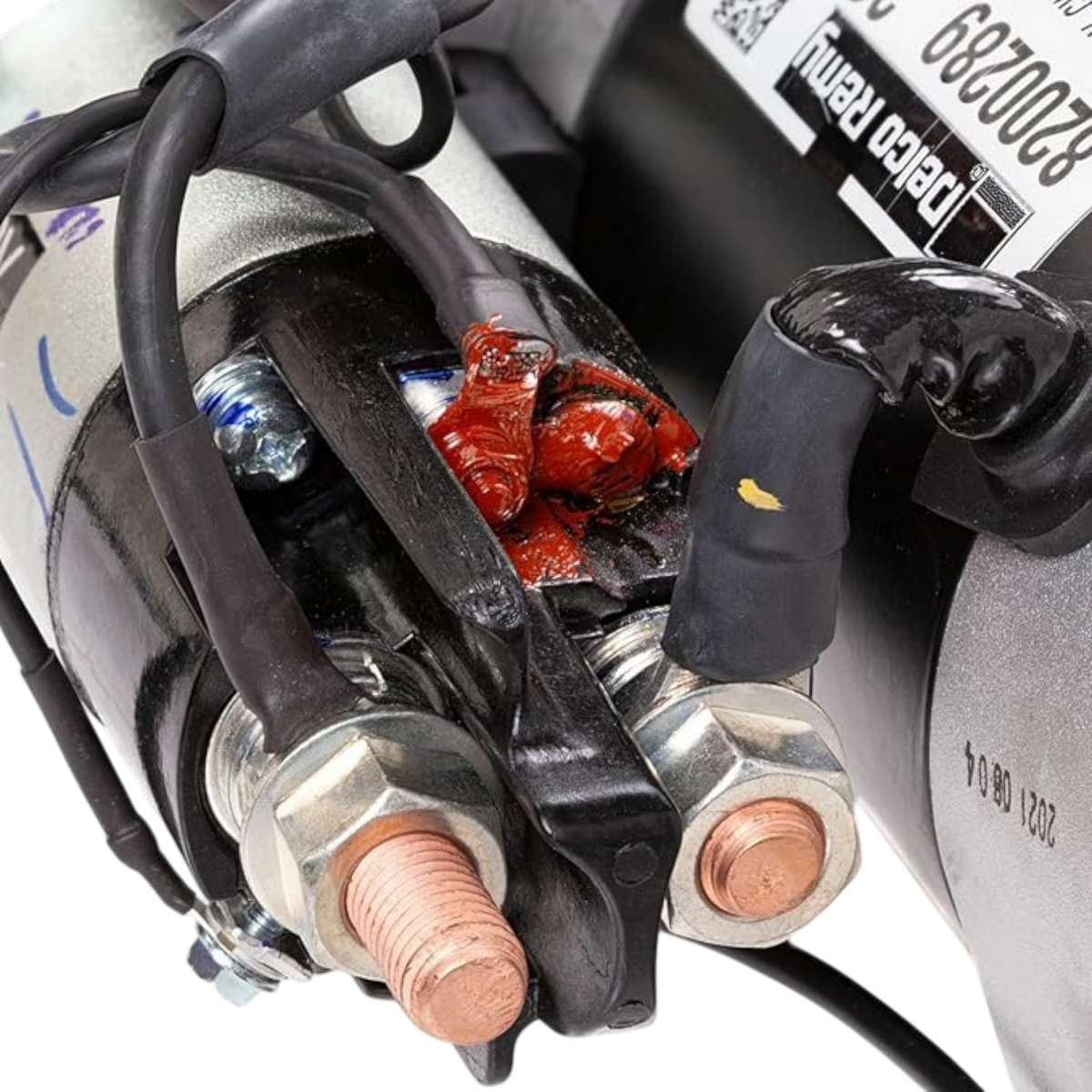

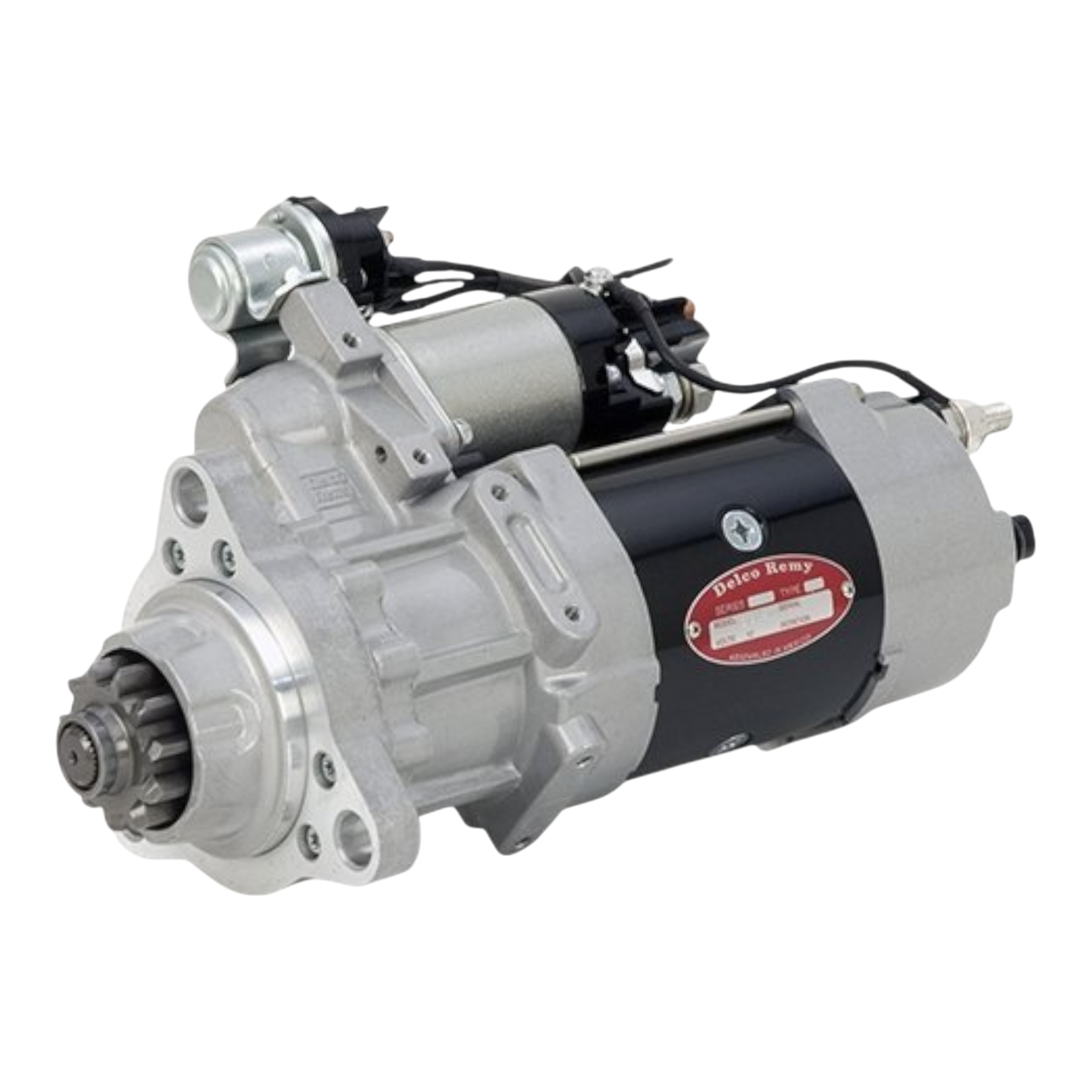

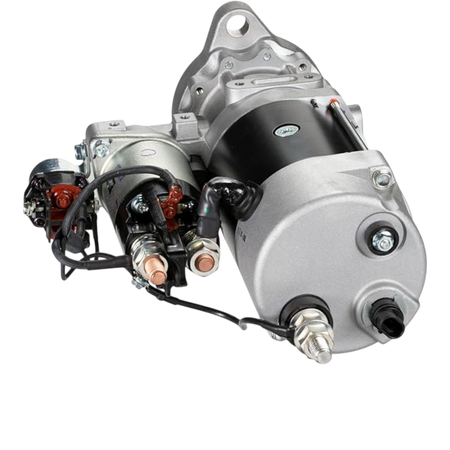

Delco Remy 8200308 39MT Starter Motor – Cummins ISX, CAT C15, Detroit Series 60

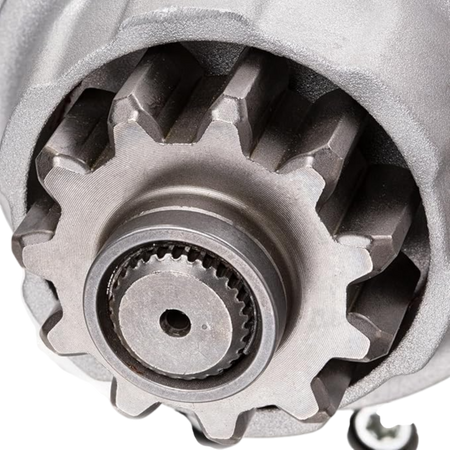

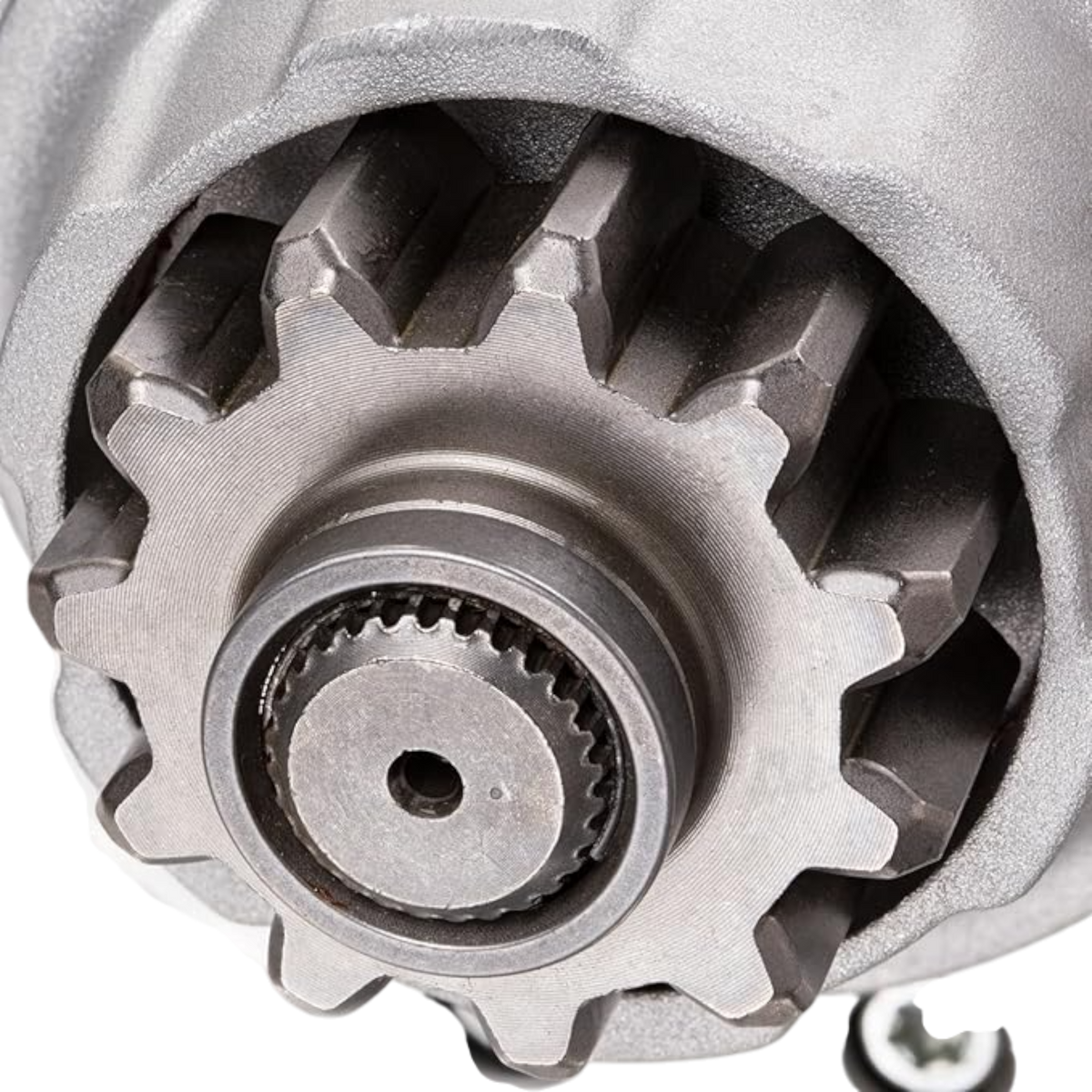

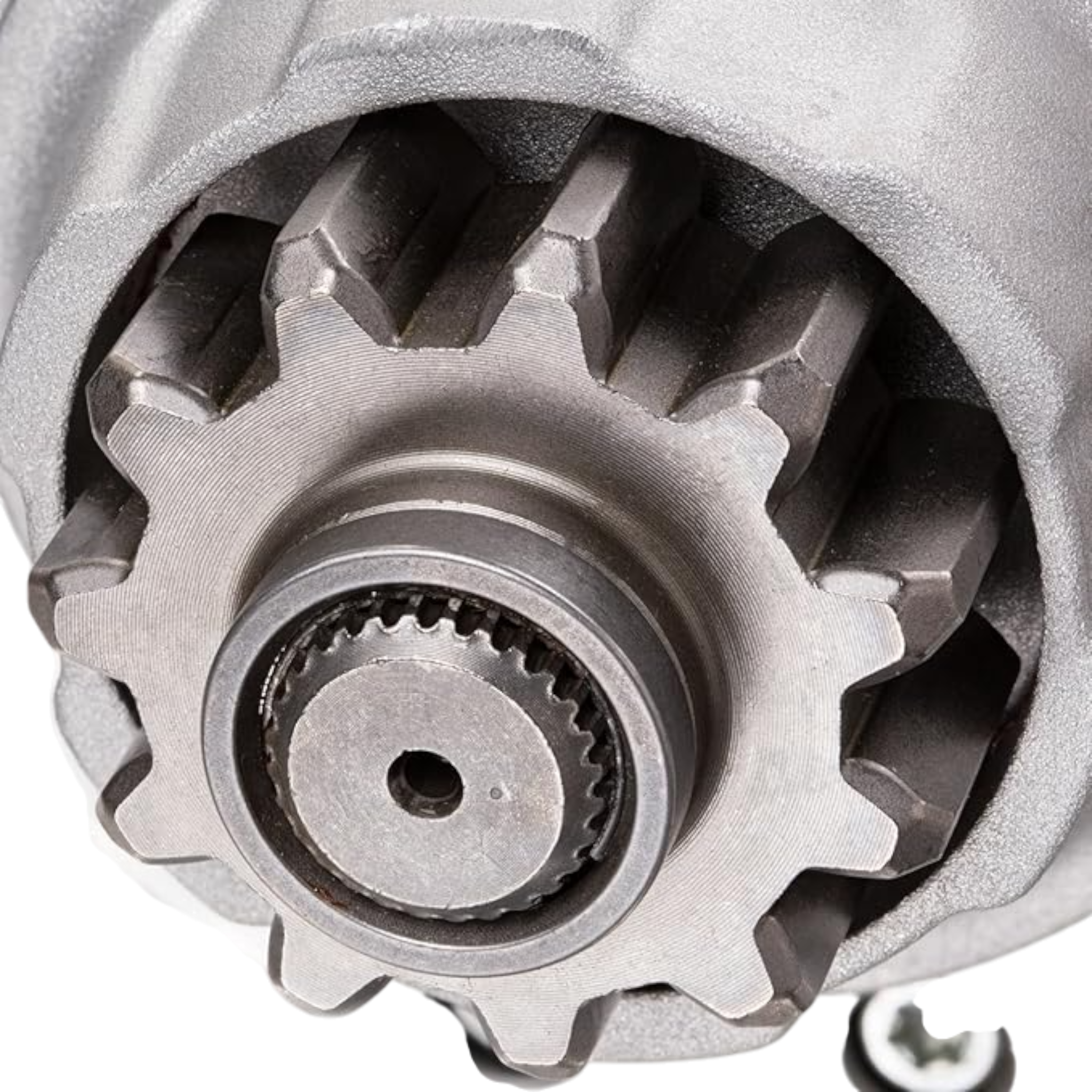

The Delco Remy 8200308 is a new 12-volt 39MT heavy-duty starter motor built for Class 8 on-highway trucks and severe-service applications produced from roughly 1985 through 2008. It is the standard starter for Caterpillar 3406, 3176, and C10 through C16 engines; Cummins L10, M11, N14, ISM, ISX, and Signature; Detroit Diesel Series 60; Mack E7 and EM7; Volvo VED12; and Ford L-series diesel engines, with SAE 3 mounting, an 11-tooth 6/8-pitch pinion, clockwise rotation, and 7.3 kW (9.78 HP) cranking power. Integrated over-crank protection, electrical soft-start technology, and a rotatable flange make it a direct service replacement wherever the older Delco Remy 8200090, 8200091, 8300009, or 8300019 was previously specified.

Signs You Need a New Starter Motor

• Slow or labored cranking, especially in cold weather
• Grinding or clicking when turning the key
• Starter engages intermittently or fails to engage
• Burning smell or smoke from the starter area
• Excessive current draw during cranking

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Delco Remy: 8200090, 8200091, 8200654, 8200657, 8200693, 8200829, 8201063, 8201079, 8201193, 8300009, 8300019, 10461318, 19011500, 19011505, 19011516, 19011521, 19011529, 19011530, 19011531
• Cummins: 3103304, 5284081, 5284082, CSP08779PX
• Mack: 8200037, 8MJ4172P1, 8MJ4172T, 8MJ4209, 8MJ4267M, 8MJ4267M2, 8MJ4298P3
• Volvo: 8200319, 8200662, 8200820, 8201078, 22398232
• Navistar / International: 2593562C91, 2593564C91, 3815734C91
• PACCAR: D61-6001-000, D61-6002-001, D61-6002-004, D61-6002-008, D61-6005-003
• Mitsubishi: M009T71478, M9T71478
• Mahle: IS1178, MS61, AZG4642, AZG4686, 11131094, 11131480
• Denso: 2820108
• Prestolite: M39308
• WAI: 6924N, 6867N, 6924R
• Lester: 6924
• Wilson: 91014759, 91014750
• Arrowhead: SDR0323, SDR0402, SDR0476, SDR0477
• Interstate McBee: MIB970777, MIB970975, FL0579, FL0777, FL0975

Applications

This 39MT starter fits the following on-highway diesel engine families:

• Caterpillar 3406 / 3406E (1986–1999)
• Caterpillar 3176 / 3176B
• Caterpillar C10, C11, C12 (1996–2007)
• Caterpillar C13, C15, C16 (2002–2010)
• Cummins L10 (1986–1992)
• Cummins N14 (1986–~2003)
• Cummins M11 (1994–~2002)
• Cummins ISM (1998–~2010)
• Cummins ISX / Signature (1999–~2014)
• Detroit Diesel Series 60 (12.7L and 14.0L, 1987–2011)
• Mack E7 / EM7 (1990s–2007)
• Volvo VED12 (1990s–2000s)
• Ford L-series diesel (1985–1998)

Representative trucks specified with these engines:

• Freightliner FL, FLC, FLD 112/120, Classic, Columbia, Century, Cascadia (1985–2008)
• Kenworth C500, T600, T800, T2000, W900 (1996–2007)
• Peterbilt 320, 330, 357, 379, 385, 387 (1996–2007)
• International 5000–5900, 7100–7700, 8100–8600, 9100–9900 Series (1990–2007)
• Mack CH, CL, CV, CX, Granite, RB, RD Series (2000–2009)
• Volvo VNL, VNM, VHD Series (with VED12)
• Western Star 4900 Series
• Sterling A-Line, L-Line
• Ford L6000, L7000, L8000, L9000 (1985–1998)

Verify your engine serial number, mounting configuration, and electrical connections before ordering to confirm fitment. The 8200308 is the 12-volt variant; for 24-volt applications, a different 39MT part number applies.
