Mack 16MB48DP25 Fuel Level Sender Replacement

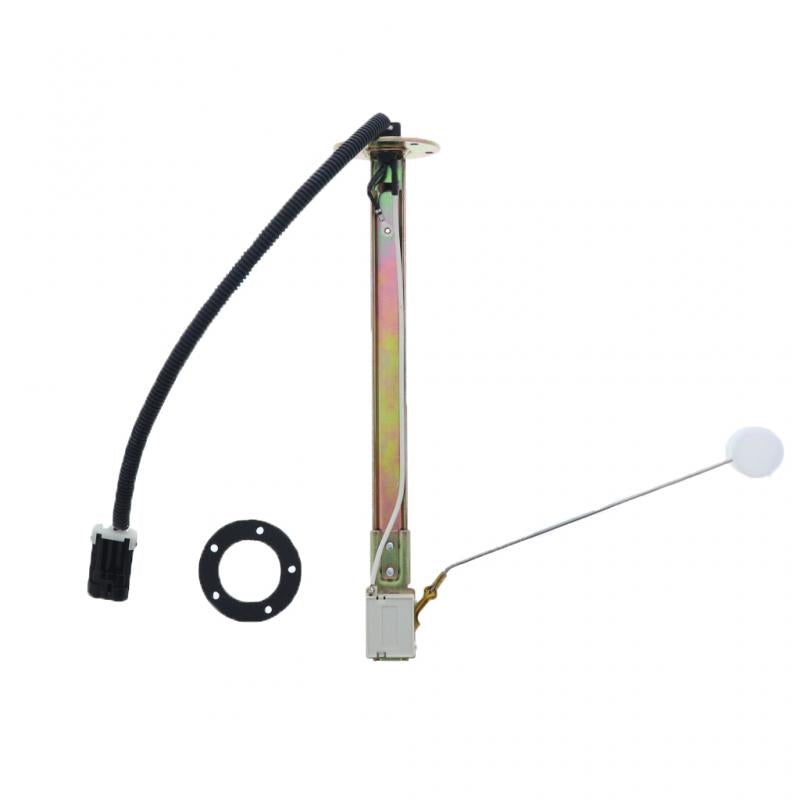

PAI FSU-0476 fuel-tank-mounted fuel level sender for Mack CV (Granite) chassis, 2002–2004 model years — a direct replacement for Mack OEM 16MB48DP25 and the related 16MB48AP25 / BP25 / CP25 dash-prefix family. 13.50 in overall length, 2-pin connector, sized to match the OEM tank-mount opening so the in-tank float arm reads correctly across the calibrated fuel-gauge range.

Signs You Need a New Fuel Level Sender

• Fuel gauge stuck on E or F regardless of actual tank level
• Erratic / jumping fuel gauge needle
• Reads correctly at one extreme (full or empty) but not the other
• No reading at all (open circuit) or pegged-high reading (short)

Specifications

Cross References

This fuel level sender replaces or is equivalent to the following Mack part numbers:

• Mack: 16MB48DP25, 16MB48CP25, 16MB48BP25, 16MB48AP25
• Mack: 25078546, 25078123, 25172995, 85134263

Applications

This fuel level sender fits the following Mack chassis:

• Mack CV (Granite) Series, 2002–2004 model years

Verify your tank, fuel-gauge calibration, and existing sender length (13.50 in) before ordering. Mack ran multiple sender lengths and float arm geometries across the CV / CT / CH families — senders within a model year are not always interchangeable.
