PAI FGG-0500 Dual Air Pressure Gauge – Mack R Model 7MT320RP2

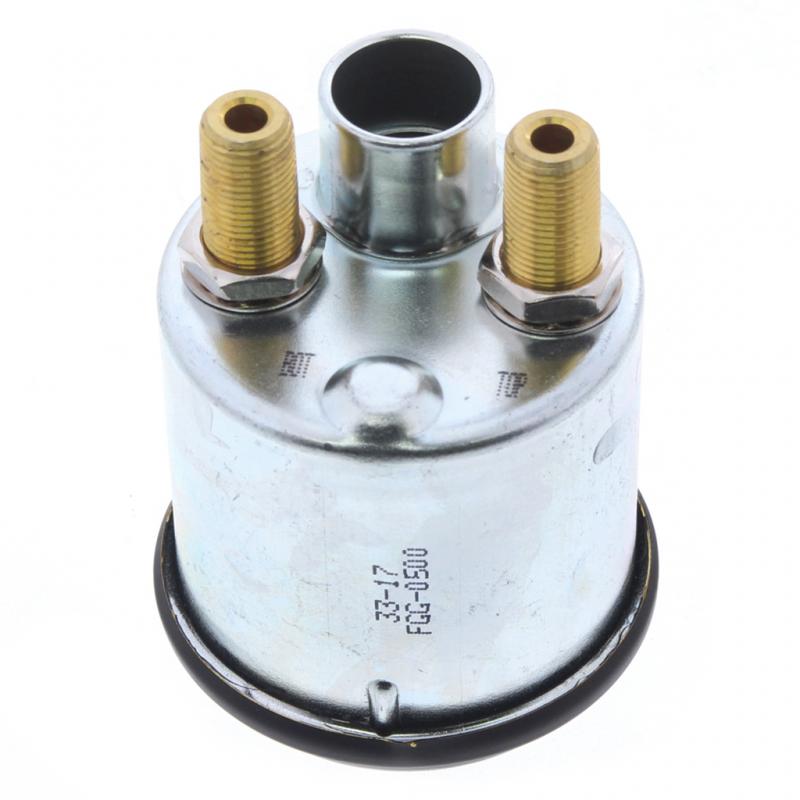

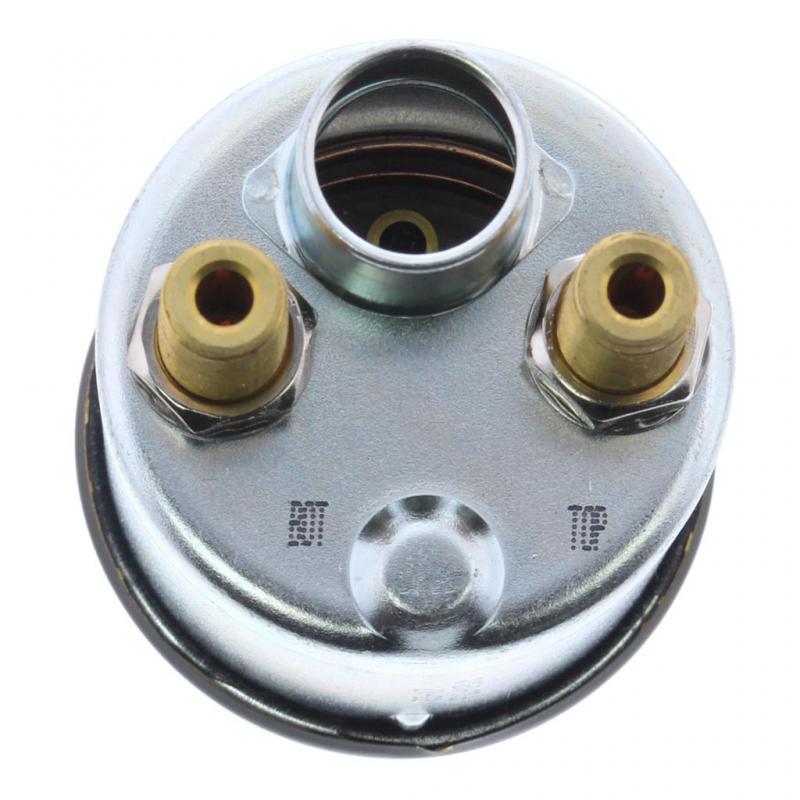

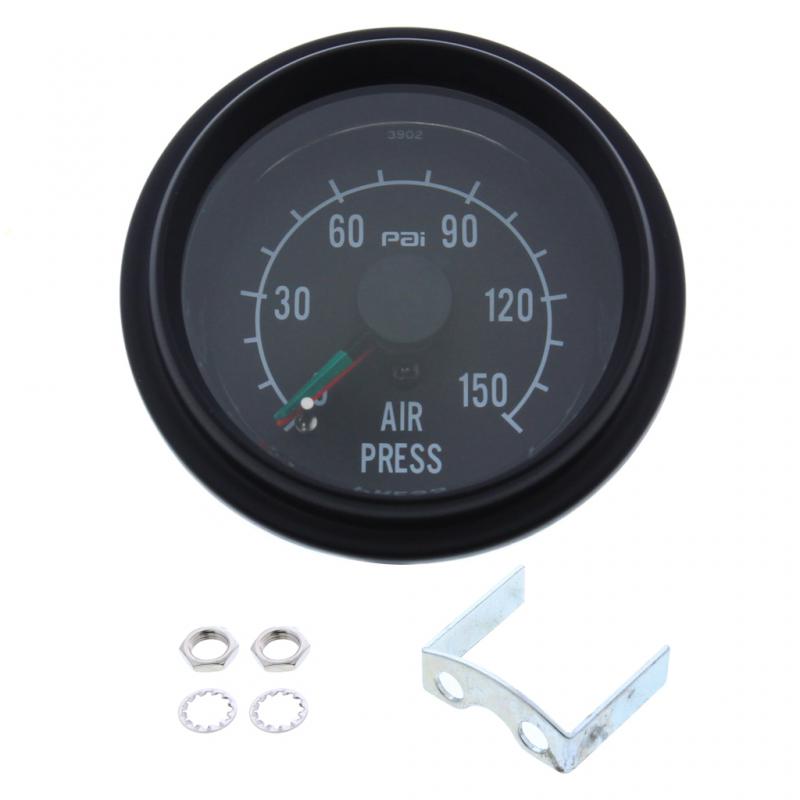

The PAI FGG-0500 is a premium aftermarket dual air pressure gauge designed for classic Mack R Model trucks. This mechanical gauge features two independent needles to simultaneously monitor primary and secondary air brake system pressures from 0-150 PSI. Built to meet OEM specifications, it's a direct replacement for Mack part number 7MT320RP2 and fits the standard 2-1/8" dashboard cutout found in Mack R series instrument panels. Includes mounting hardware for complete installation.

Signs You Need a New Air Pressure Gauge

• Gauge needle stuck or not moving when air system pressurizes
• Inaccurate pressure readings compared to known-good gauge
• Erratic needle movement or bouncing
• Cracked or fogged gauge lens obscuring visibility
• Gauge face faded or difficult to read
• Air leak at gauge connection or fitting
• One or both needles broken or missing

Specifications

Cross References

This gauge replaces or is equivalent to the following part numbers:

• Mack: 7MT320RP2, 7MT320P2, 25166143

Vehicle Applications

This dual air pressure gauge fits the following Mack truck models:

• Mack R Series (R600, R688, R690, etc.) (1967-1998)
• Mack RD Series (RD600, RD688, RD690, etc.)
• Mack RM Series
• Mack RW Superliner
• Mack DM Series
• Mack U Series

Understanding the Dual Air Pressure Gauge

Heavy-duty trucks use a dual-circuit air brake system for safety redundancy. The primary circuit (typically rear brakes) and secondary circuit (typically front brakes) each have their own air tanks and pressure readings. This dual-needle gauge allows the driver to monitor both circuits simultaneously on a single instrument. Under normal operation, both needles should read approximately the same pressure (typically 110-130 PSI when fully charged). If one needle drops significantly lower than the other, it indicates a leak or failure in that specific circuit, alerting the driver to a potential brake system problem before complete failure occurs.

Installation Notes

This is a mechanical gauge that connects directly to the air system via tubing or fittings. Ensure all air line connections are properly sealed to prevent leaks. The gauge mounts in a standard 2-1/8" round dashboard opening. When replacing the gauge, inspect the air lines and fittings for damage or deterioration. After installation, verify both needles track correctly as the air system builds pressure and that readings match expected values (typically 120-150 PSI when fully charged, with cut-out around 125 PSI and cut-in around 100 PSI depending on governor settings).

Verify your dashboard cutout size and OEM part number before ordering to confirm fitment. This gauge is designed for classic Mack R Model trucks with mechanical gauge clusters.
