Webtec RFIK200-S-6 Mechanical Hydraulic Tester – 4-54 GPM, 6000 PSI
Webtec RFIK200-S-6 Mechanical Hydraulic Tester – 4-54 GPM, 6000 PSI
Where to Buy
Verify compatibility with your vehicle or equipment before ordering. Prices and availability may vary.
Affiliate Disclosure
Some links above are affiliate links — we may earn a small commission at no additional cost to you. This helps support our site.

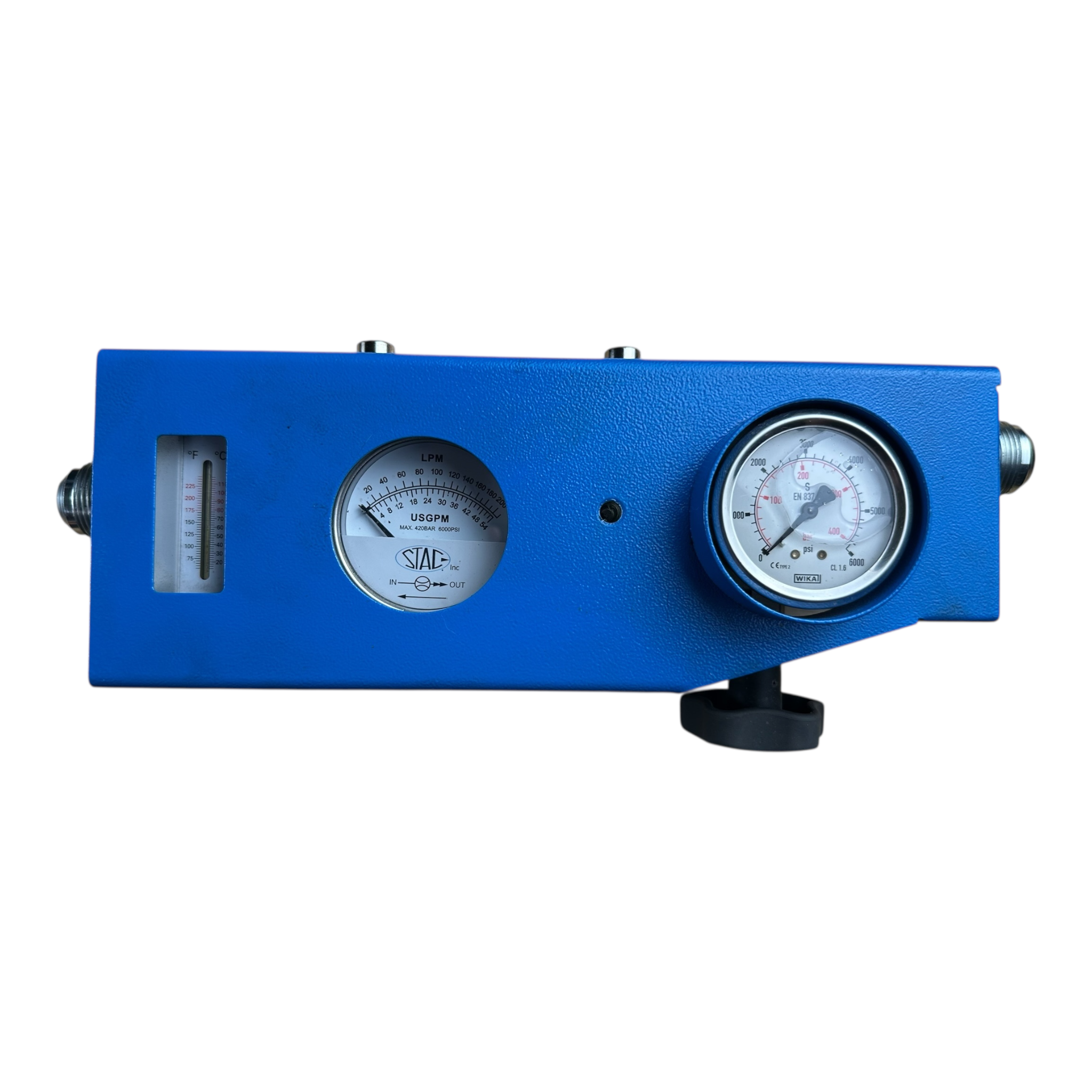

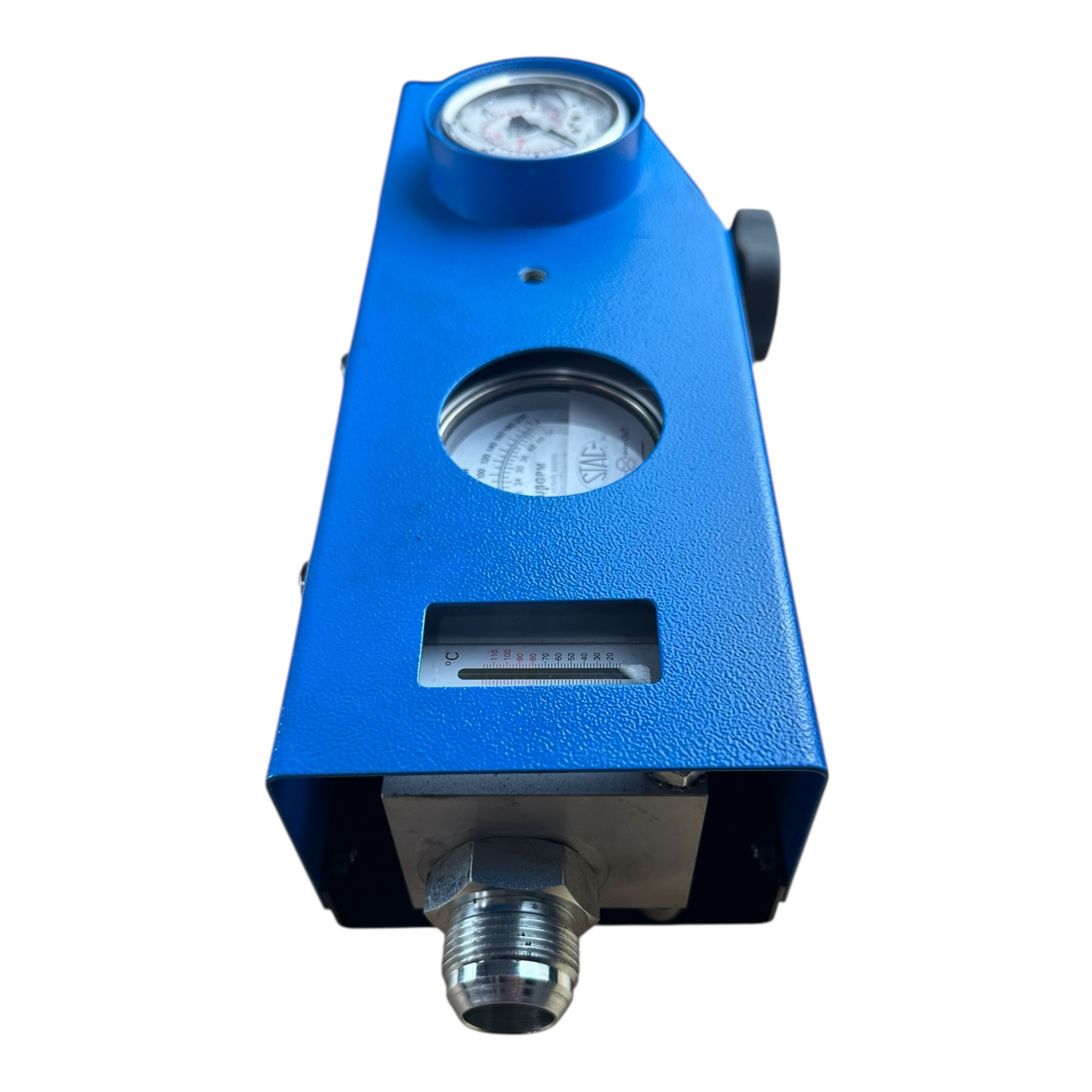

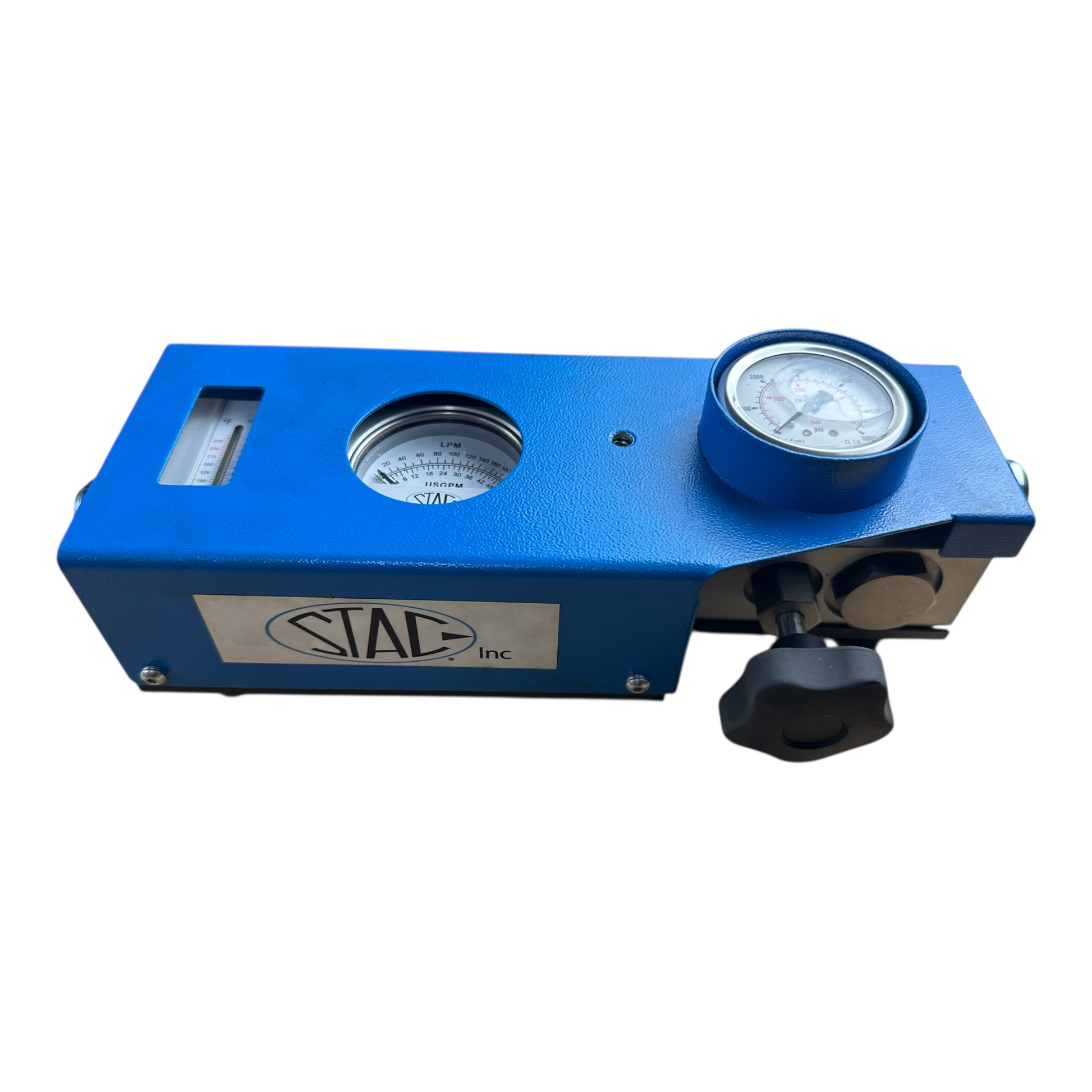

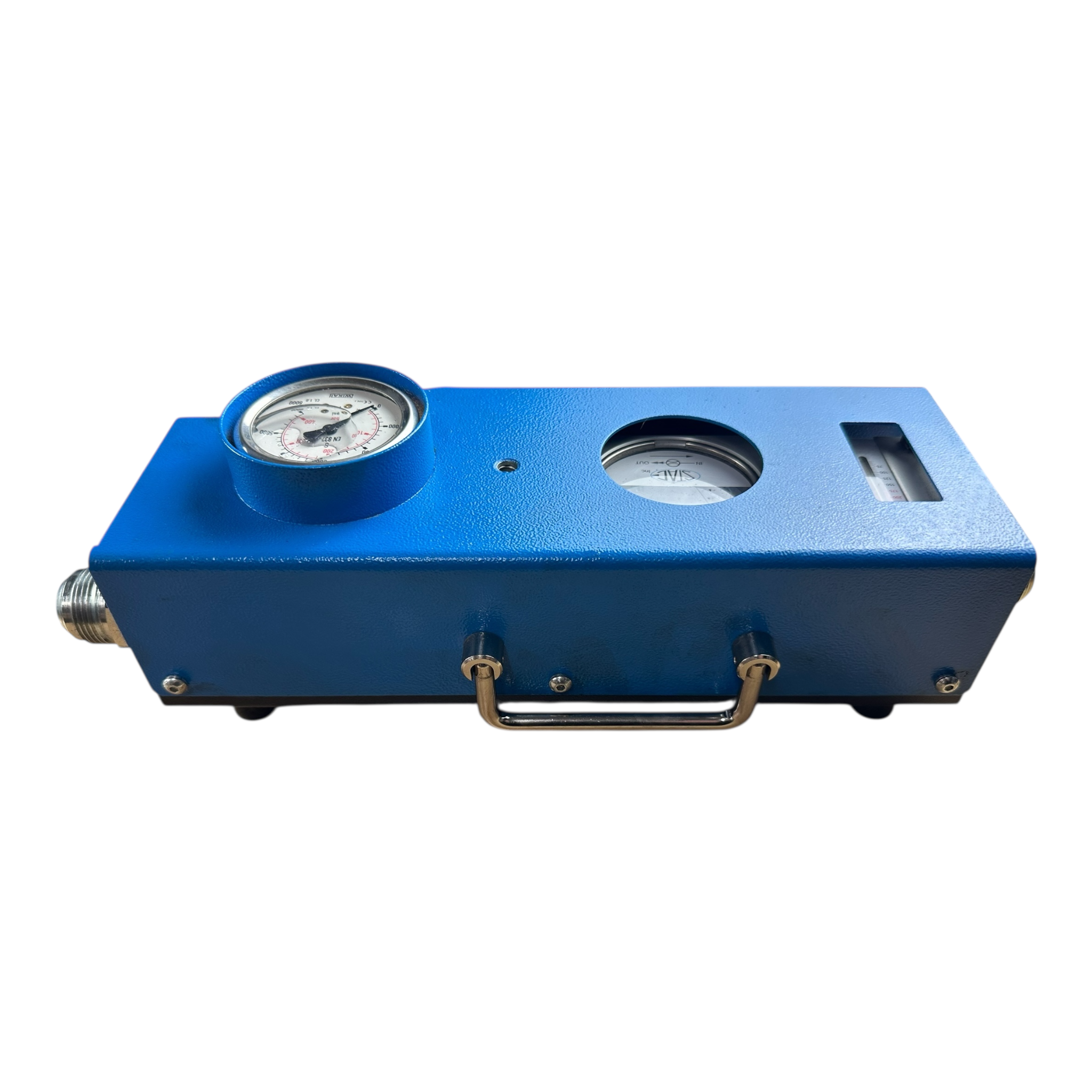

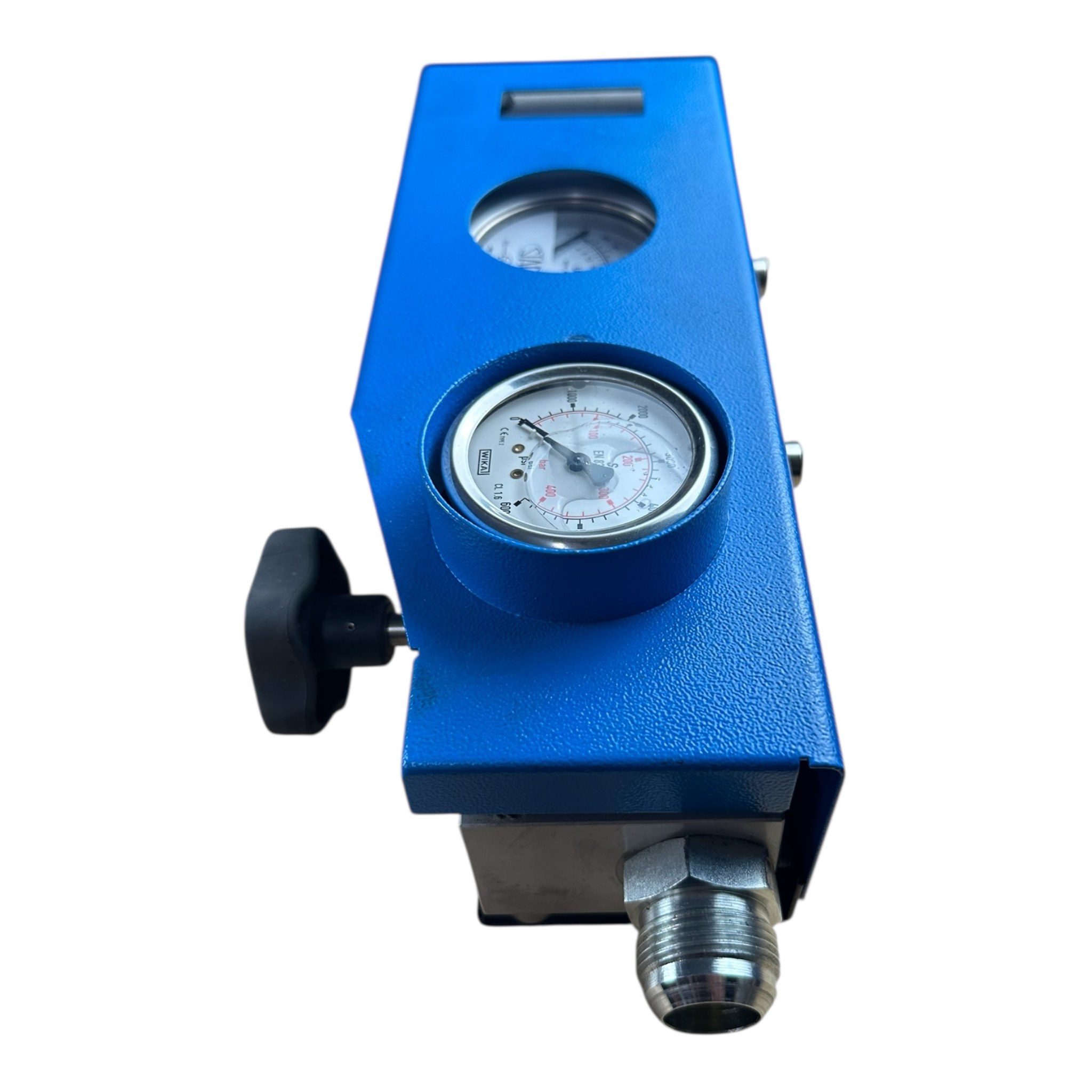

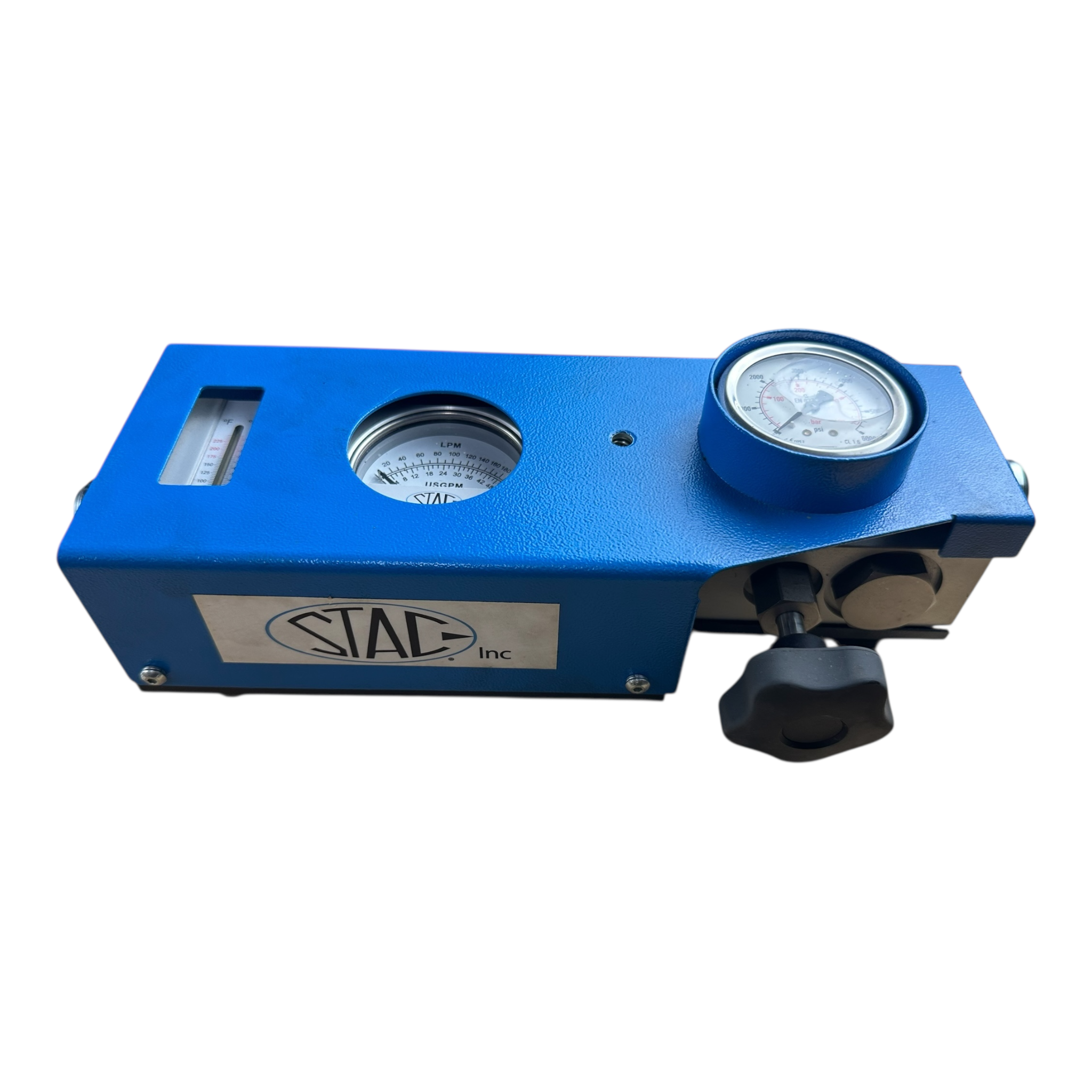

The Webtec RFIK200-S-6 is a self-contained mechanical hydraulic tester designed for servicing and commissioning hydraulic circuits on agricultural, mobile, and industrial machinery. This all-in-one diagnostic kit measures flow, pressure, and temperature simultaneously using large, easy-to-read analog dials — no external power or batteries required. It installs quickly into pressure or return lines and allows safe, progressive pressure loading for accurate performance testing of pumps, motors, valves, cylinders, and complete hydraulic systems.
Specifications

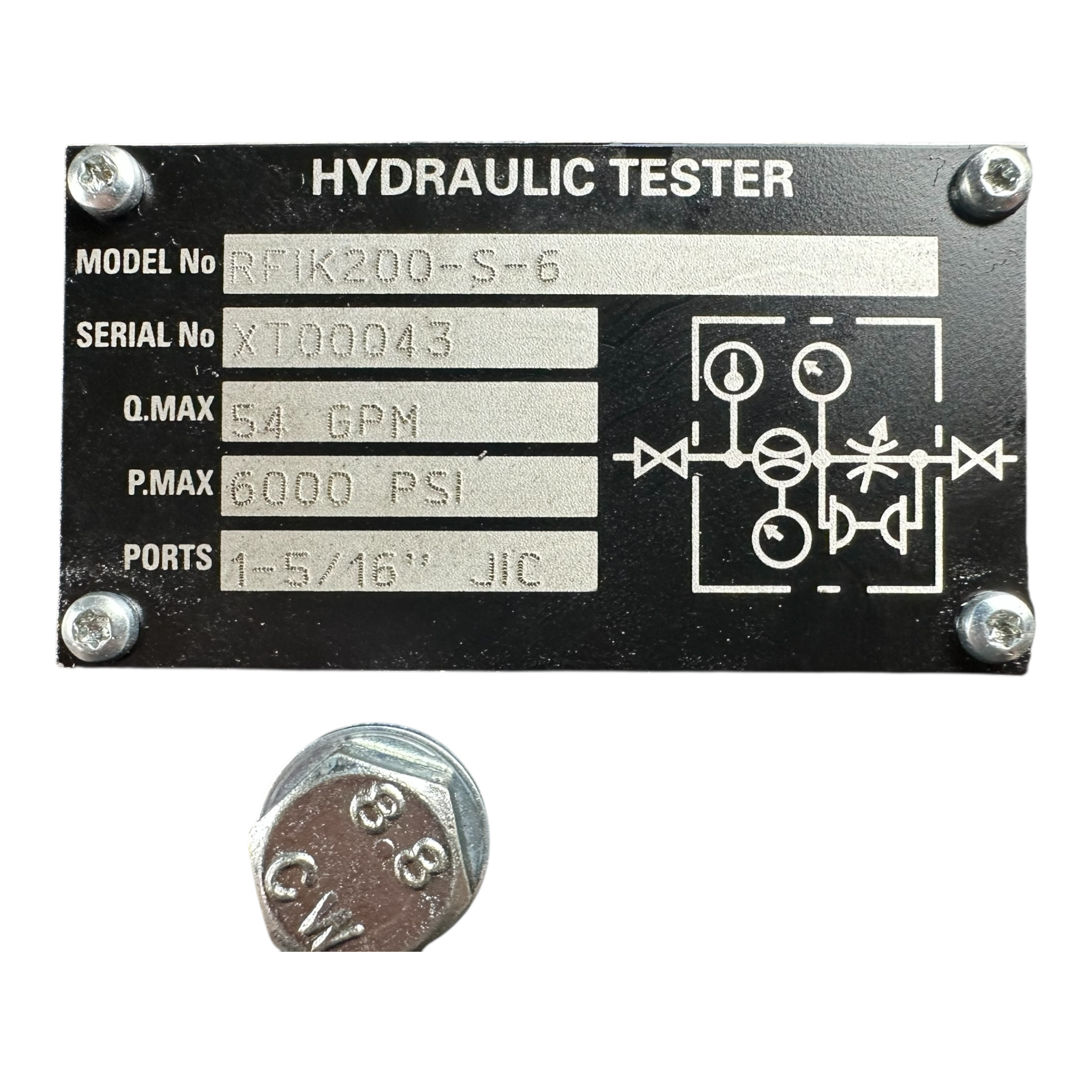

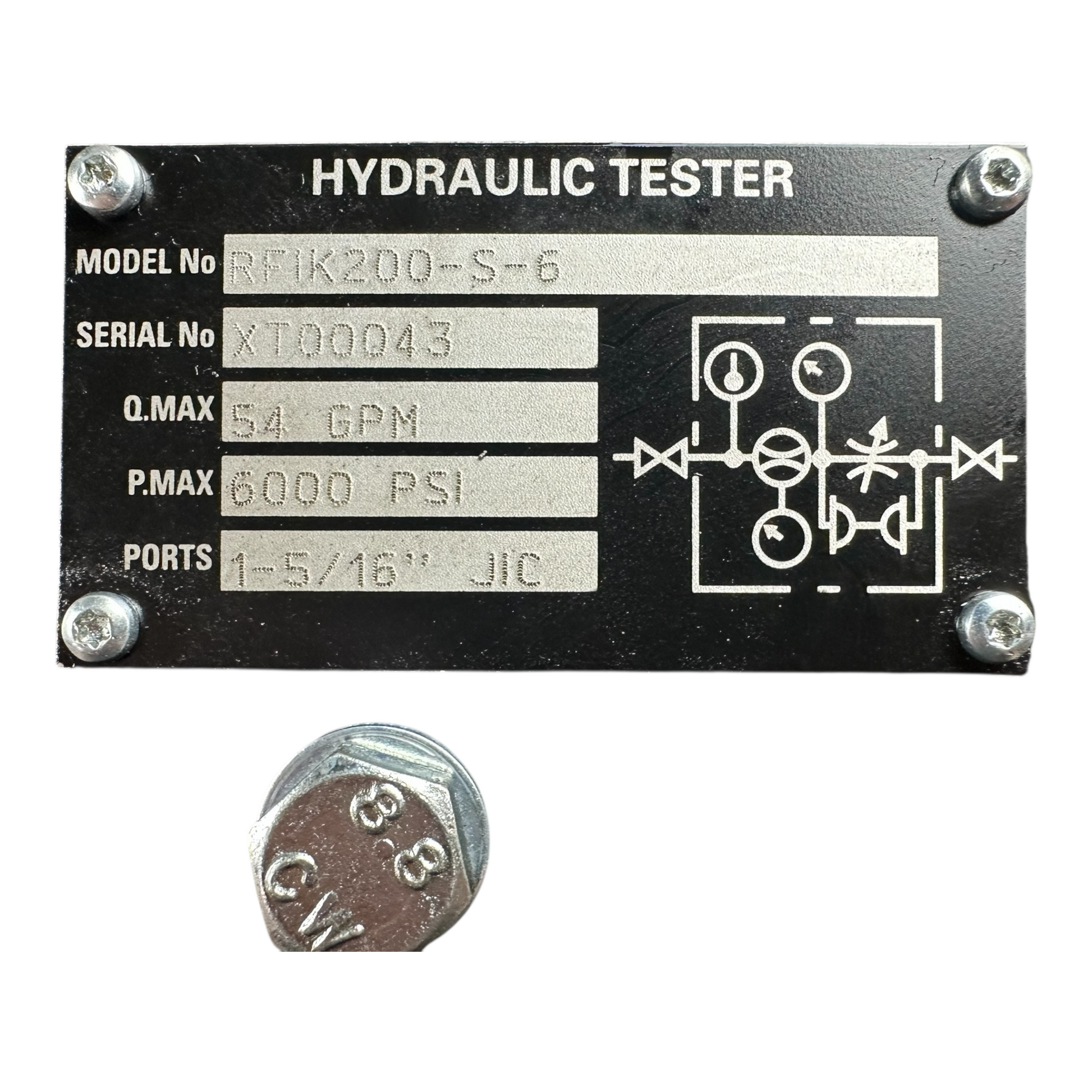

| Manufacturer | Webtec |
|---|---|
| Part Number | RFIK200-S-6 |
| Supplier Part Number | FT10040-12 |
| Part Type | Mechanical Hydraulic Tester |
| Calibrated Flow Range | 10–200 LPM / 4–54 US GPM |
| Flow Accuracy | ±4% of full scale |
| Maximum Pressure | 420 bar (6,000 PSI) |
| Pressure Accuracy | ±1.6% of full scale |
| Temperature Range (Continuous) | 68–176°F (20–80°C) |
| Temperature Range (Intermittent) | Up to 230°F (110°C) for less than 10 minutes |
| Temperature Accuracy | ±5°F (±2.5°C) |
| Inlet Fitting | 1-5/16" – 12UN JIC Male |
| Outlet Fitting | 1-5/16" – 12UN JIC Male |
| Displays | 2.5" (63 mm) pressure and flow dials; 2" thermometer |
| Seal Material | Viton |
| Fluid Type | Hydraulic oils |
| Calibration Fluid | ISO 32 mineral oil at 32 cSt |
| Safety System | Interpass® internal overpressure bypass |
| Case Material | Painted steel with removable lid |
| Dimensions | 12-1/4" × 4-1/8" × 4-7/8" (329 × 109 × 141 mm) |
| Weight | 14.5 lbs (6.6 kg) |
| Power Required | None |
| Made In | United Kingdom |
Cross References
This part is also known by the following part numbers:
- Webtec Supplier Code: FT10040-12
Applications
The Webtec RFIK200-S-6 is a universal hydraulic diagnostic tool suitable for testing any hydraulic circuit within its flow and pressure range, including:
- Agricultural equipment hydraulic systems
- Mobile machinery (excavators, loaders, skid steers)
- Industrial hydraulic power units
- Heavy-duty truck hydraulic circuits (PTO systems, wet-line kits, liftgates)
- Forestry and construction equipment

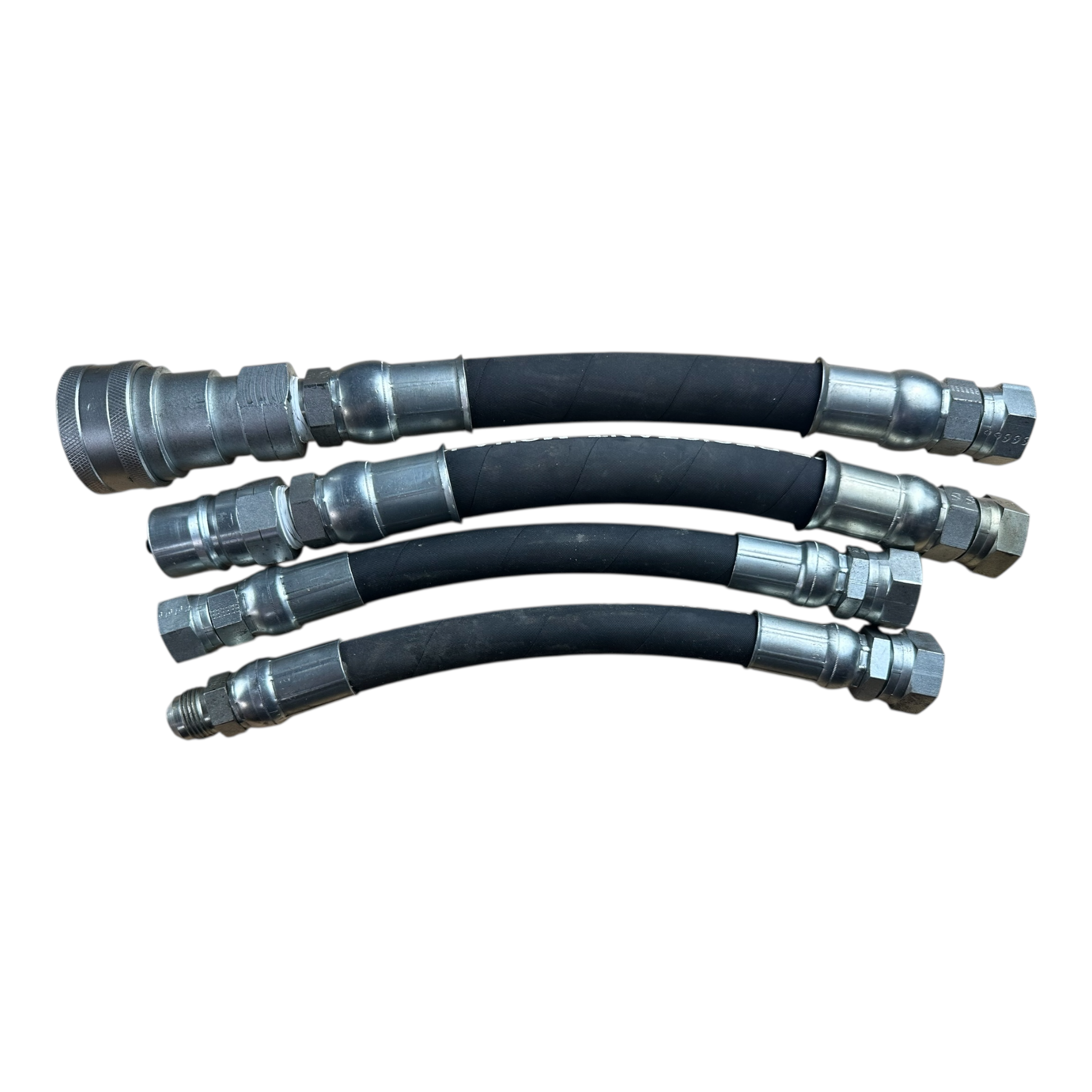

Recommended calibration interval is 12 months. Maximum period between calibrations is 36 months. Connect with flexible hoses of at least 1.5 ft (500 mm) in length. This unit is not designed for permanent installation.
