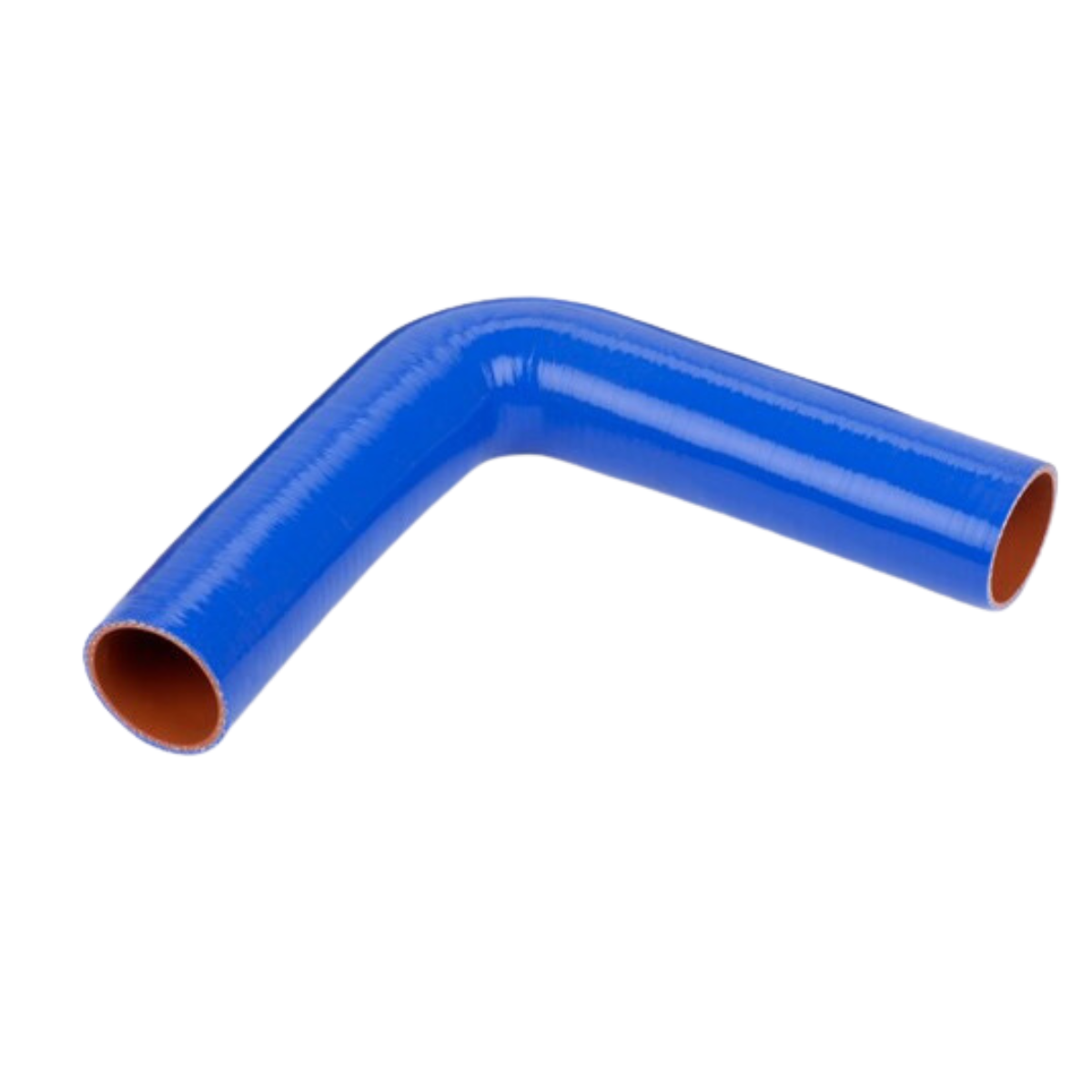

1.00in I.D. 90 Degree Preformed Coolant Hose | Blue With 10" Legs
1.00in I.D. 90 Degree Preformed Coolant Hose | Blue With 10" Legs
Regular price
$28.13
_
For bulk pricing or questions regarding availability please contact us.
Couldn't load pickup availability
Flex Technologies 90-100X10 preformed silicone coolant hose, 90° bend with 1.00 in inside diameter and 10 in legs measured from the centerline of the bend, in blue. 5-ply polyester-reinforced silicone construction with a 330 PSI burst rating — engineered as a service replacement for OEM molded coolant elbows on heavy-duty truck and industrial cooling systems where standard rubber hose will not handle the heat or routing.
Signs You Need a New Coolant Elbow
- Visible cracks, splits, or pinholes at the bend
- Soft, swollen, or oil-saturated rubber in the existing hose
- Coolant seepage at the clamp or weeping at the bend
- Hose collapsing under vacuum on the suction side of the water pump
Specifications
| Manufacturer | Flex Technologies |
|---|---|
| Part Number | 90-100X10 |
| Part Type | Preformed Silicone Coolant Elbow (90°) |
| Inside Diameter (both ends) | 1.00 in |
| Leg Length | 10 in (measured from centerline of the bend) |
| Wall Thickness | 0.18 – 0.23 in |
| Burst Pressure | 330 PSI |
| Material | 5-ply silicone with polyester fabric reinforcement |
| Temperature Range | −65°F to 350°F continuous |
| Resistance | Ozone & oil-splash resistant |
| Standards | SAE J20 R1, TMC RP 303B Class 1, Mil-Spec A-A-52426 |
| Color | Blue |
Applications
This 90° preformed silicone elbow fits the following positions:
- Coolant routing between the water pump, thermostat housing, radiator, surge tank, EGR cooler, and air-to-water aftercooler
- Heater core and turbo coolant return circuits where 1 in ID is required
- Heavy-duty trucks (Freightliner, Kenworth, Peterbilt, International, Volvo, Mack), buses, off-road equipment, marine and stationary diesel engines
Available high-temperature, fluorosilicone / fluorocarbon-lined, and helical-wire-reinforced versions of this hose family on request.
Cut hose clean and square at installation. Use silicone-rated worm-gear or T-bolt clamps; standard worm-gear clamps will eventually cut into silicone. Verify inside diameter and length match your application before ordering.
