1.25in I.D. 90 Degree Preformed Coolant Hose | Black With 10" Legs
1.25in I.D. 90 Degree Preformed Coolant Hose | Black With 10" Legs
Regular price
$29.99
_
For bulk pricing or questions regarding availability please contact us.
Couldn't load pickup availability

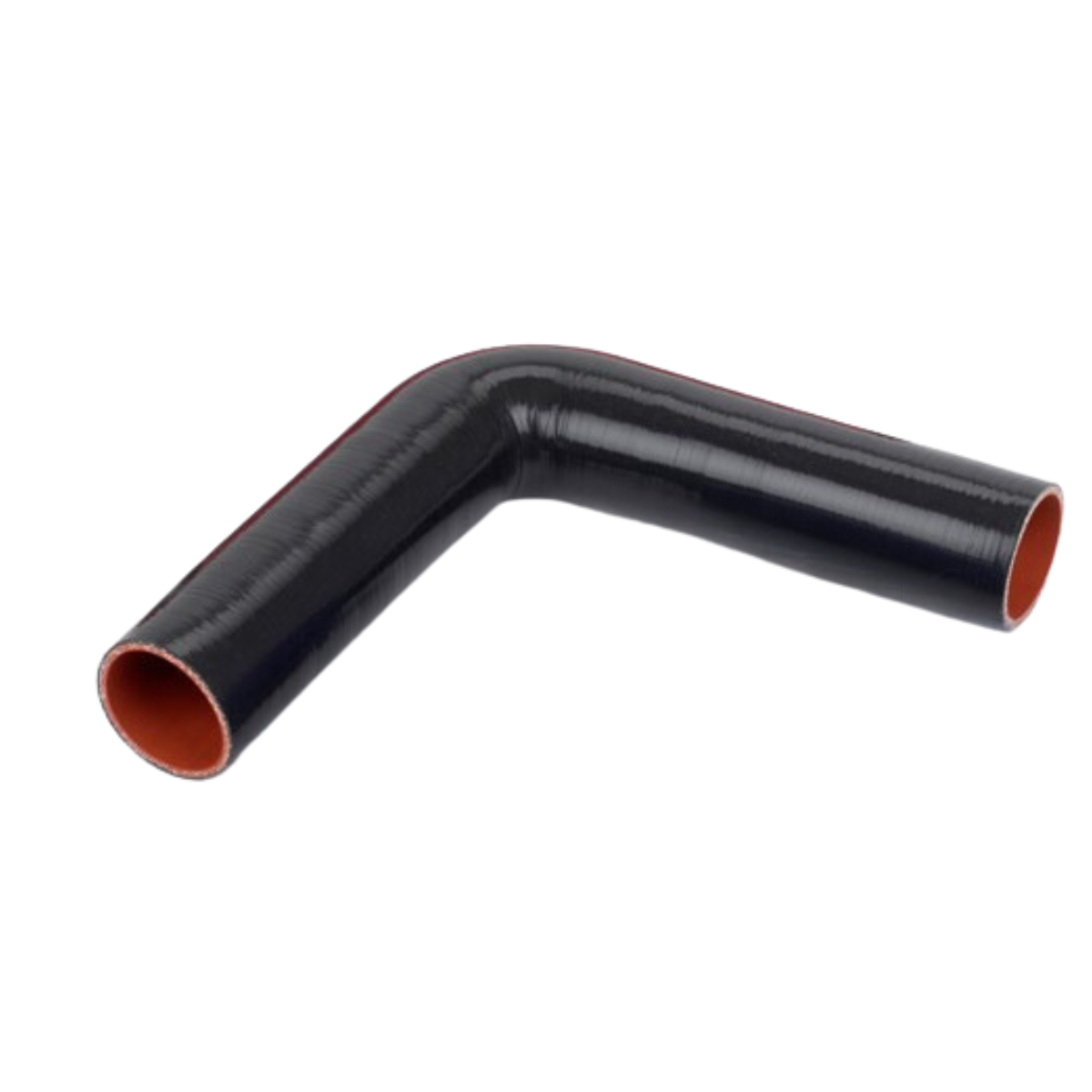

Flex Technologies 90° preformed silicone coolant hose, 1-1/4" (1.25") inside diameter, black, with 10" legs measured from the centerline of the bend. Five-ply silicone with polyester-fabric reinforcement, rated for engine-coolant service from -65°F to 350°F continuous.
Specifications
| Manufacturer | Flex Technologies |
|---|---|
| Part Type | 90° Preformed Silicone Coolant Hose |
| Inside Diameter | 1-1/4" (1.25") |
| Wall Thickness | 0.18"–0.23" |
| Leg Length | 10" from centerline |
| Burst Pressure | 277 psi |
| Color | Black |
| Construction | 5-Ply Silicone, Polyester Fabric Reinforced |
| Temperature Range | -65°F to 350°F Continuous |
| Standards | SAE J20 R1 Class A, TMC RP303B Class I, Mil-Spec A-A-52426 |
| Resistance | Ozone and oil-splash resistant |
Applications
Preformed silicone coolant elbows are used to connect 1-1/4" coolant ports where a hard bend is required and rubber EPDM hose would kink:
- Heavy-duty truck engines (Freightliner, Kenworth, Peterbilt, Volvo, Mack, International)
- School bus, transit bus, and motorcoach cooling systems
- Marine inboard cooling and exhaust elbow applications
- Construction, agricultural, and industrial diesel equipment
- Coolant pump, EGR cooler, turbo coolant return, and heater-core plumbing
Verify inside diameter, length, and hose orientation before installation. Use clamps rated for silicone hose; cut clean and square.
