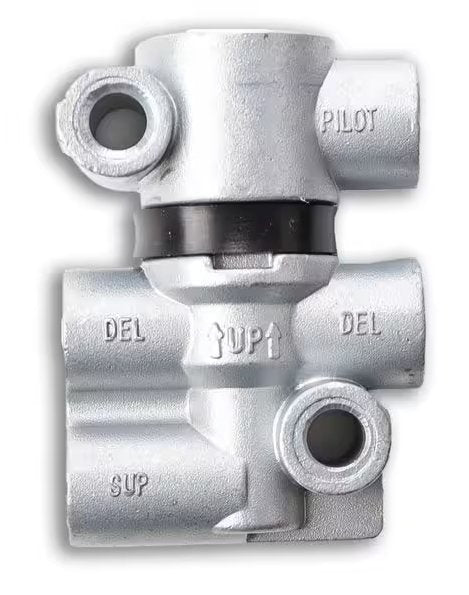

The OTR OTR401148 is a premium aftermarket rapid dump air suspension valve designed for heavy-duty truck and trailer air ride suspension systems. This normally open pilot-operated dump valve allows air to be exhausted from air springs when pressure is applied to the pilot port, lowering the suspension for trailer coupling/uncoupling, loading dock operations, or service work. The gold-colored body identifies this as a normally open valve. Includes 1/4" and 3/8" compression fittings with 1/8" NPT adaptors for versatile installation.
Signs You Need a New Dump Valve
- Suspension fails to dump when switch is activated
- Air leaks continuously from the valve body or ports
- Suspension dumps on its own without switch activation
- Slow or inconsistent suspension response when dumping or refilling
Specifications
| Manufacturer | OTR |
|---|---|
| Part Number | OTR401148 |
| Part Type | Rapid Dump Air Suspension Valve |
| Valve Type | Normally Open (Pilot-Operated) |
| Port Size | 1/8" NPT (All Ports) |
| Fittings Included | 1/4" and 3/8" Compression with 1/8" NPT Adaptors |
| Body Color | Gold (Identifies Normally Open) |
| Application | Type CR Height Control Valve Systems |
Cross References
This part replaces or is equivalent to the following part numbers:
- OTR: OTR401148
- Haldex: 90554335, 90554611, 3022873
- Midland: MID90554335
- HDX: HDX90554335
- Air Controls: AC202
- Other: 070-90554335, 024-39315
Applications
This rapid dump valve is used with Type CR height control valve systems on:
- Freightliner Cascadia, Columbia, Century, Coronado
- Kenworth T680, T880, W900, T660, T600
- Peterbilt 579, 389, 386, 379, 567
- International LT, LoneStar, ProStar
- Volvo VNL, VNR, VHD
- Mack Anthem, Pinnacle, Granite
- Western Star 4900, 5700XE
- Air ride trailers and tandem axle suspensions
How It Works
This normally open dump valve exhausts air from the suspension air springs when pilot pressure is applied to the control port. Typically activated via a dash-mounted switch (such as Haldex 90054088) that supplies pilot air pressure. When the switch is off, the valve closes and the height control valve maintains normal ride height. The gold body color distinguishes this normally open valve from the silver normally closed version (90554902).
Note: This is the dump valve only—it does not include the height control valve (sold separately as Haldex 90054007 or 90554334 with integrated dump valve). Verify your current valve type and port sizes before ordering. Apply thread sealant to all NPT connections during installation.
