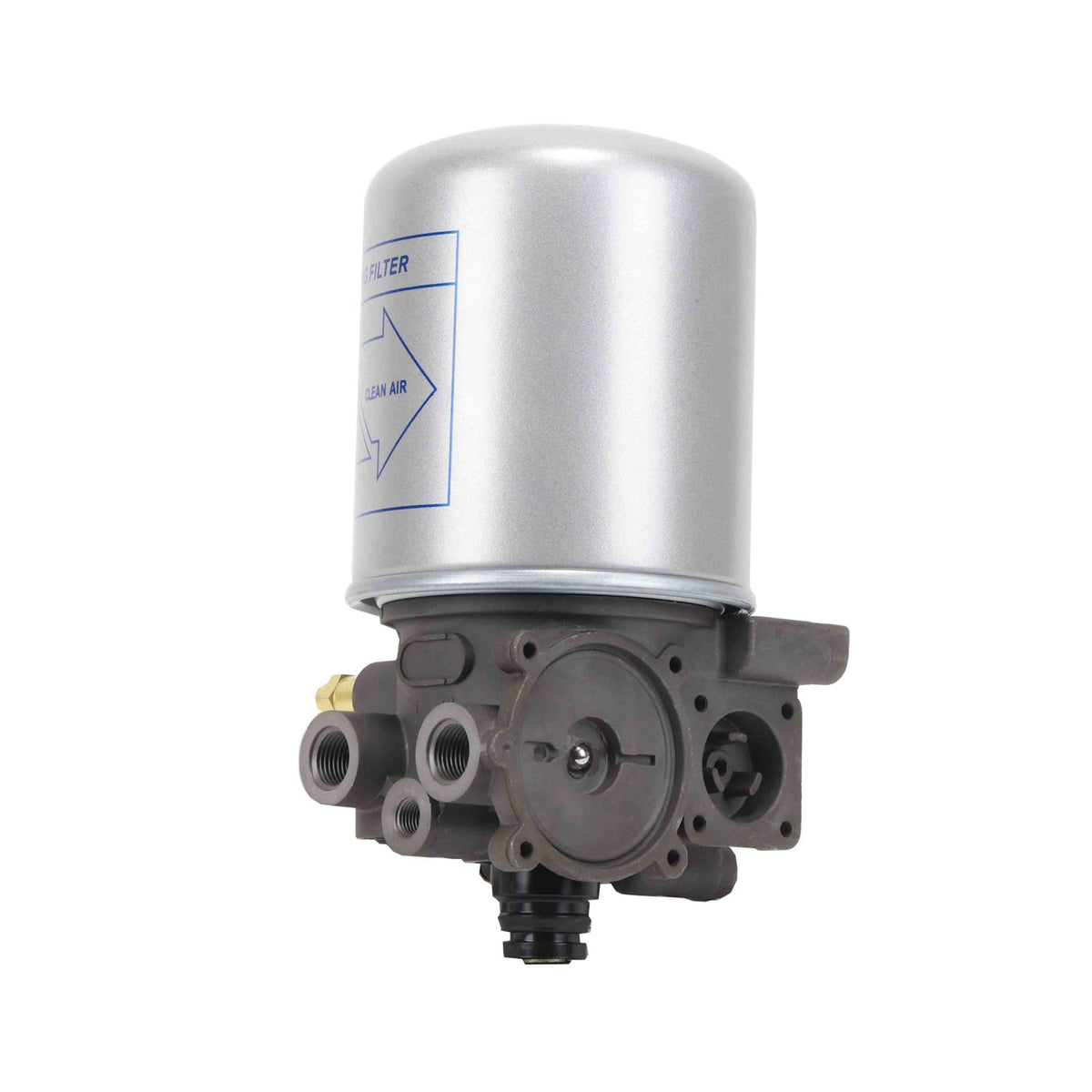

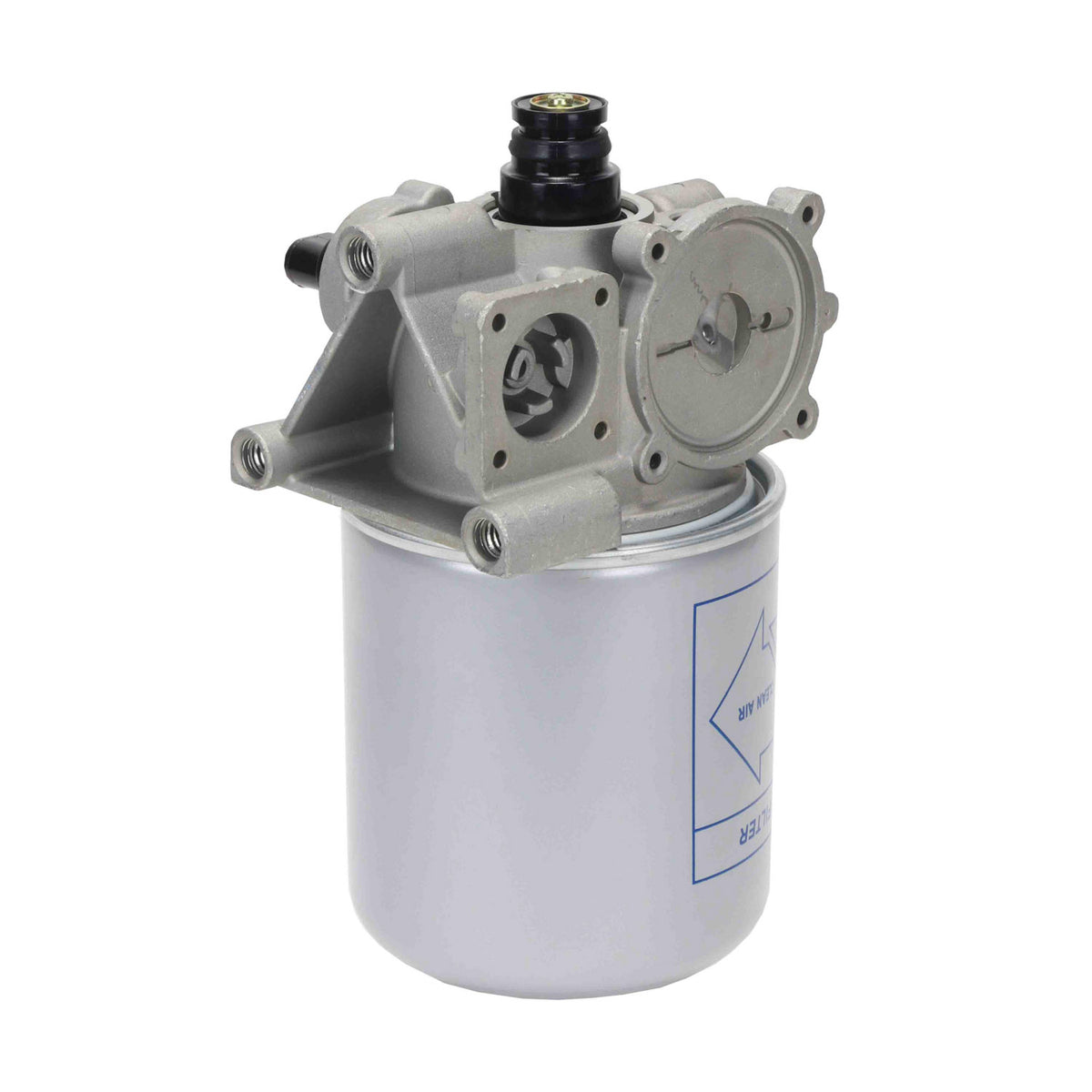

Predator HD R955082 Air Dryer Assembly | Meritor WABCO System Saver 1200UP | 12V Coalescing

Quality replacement oil-coalescing air dryer assembly for trucks originally fitted with the Meritor WABCO System Saver 1200UP. Supplied as a complete 12-volt unit with the coalescing desiccant cartridge installed. This is a new assembly, not a remanufactured exchange unit, so there is no core charge.

Signs You Need a New Air Dryer

• Water or grey oily sludge draining from the wet tank - the clearest sign a coalescing cartridge is saturated
• Continuous air leak or hiss from the purge valve, either while the compressor is loaded or through the whole unload cycle
• No purge blast at governor cut-out - the desiccant is no longer being regenerated
• Slow air build-up and a compressor that runs almost constantly, from a plugged or iced cartridge
• Truck builds air normally in mild weather but will not build at all below freezing - failed heater or thermostat
• Purge valve spitting far more often than normal, often a leaking outlet check valve at Port 21
• Contaminated brake valves, ABS faults or frozen air lines downstream

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Meritor: R955082
• WABCO / ZF (current number): 4324210330, S432 421 033 0
• Volvo: 85122949, 20935355
• Mack: 23036575, 6300-4324210330
• Freightliner: TDA R955082, TDAS4324210330
• Kenworth / Peterbilt: S432-421-033-0
• Automann: 170.955082
• Newstar: S-28164
• World American: WAR955082

Applications

This air dryer fits trucks originally equipped with the Meritor WABCO System Saver 1200UP oil-coalescing dryer, including Volvo, Mack, Freightliner, Western Star, Kenworth and Peterbilt applications.

Model-year coverage is not published by the manufacturer - verify against the number on the dryer you are removing, or by VIN. The UP suffix means this dryer uses a separate purge tank plumbed to Port 22 and the compressor discharge line for unloading; if your truck has no purge tank you need the 1200U version (R955210), and if it has a purge tank but no unloader line you need the 1200P coalescing version (R955079). Replace the coalescing cartridge every one to two years - Meritor R950068A, now WABCO 4329012482.
