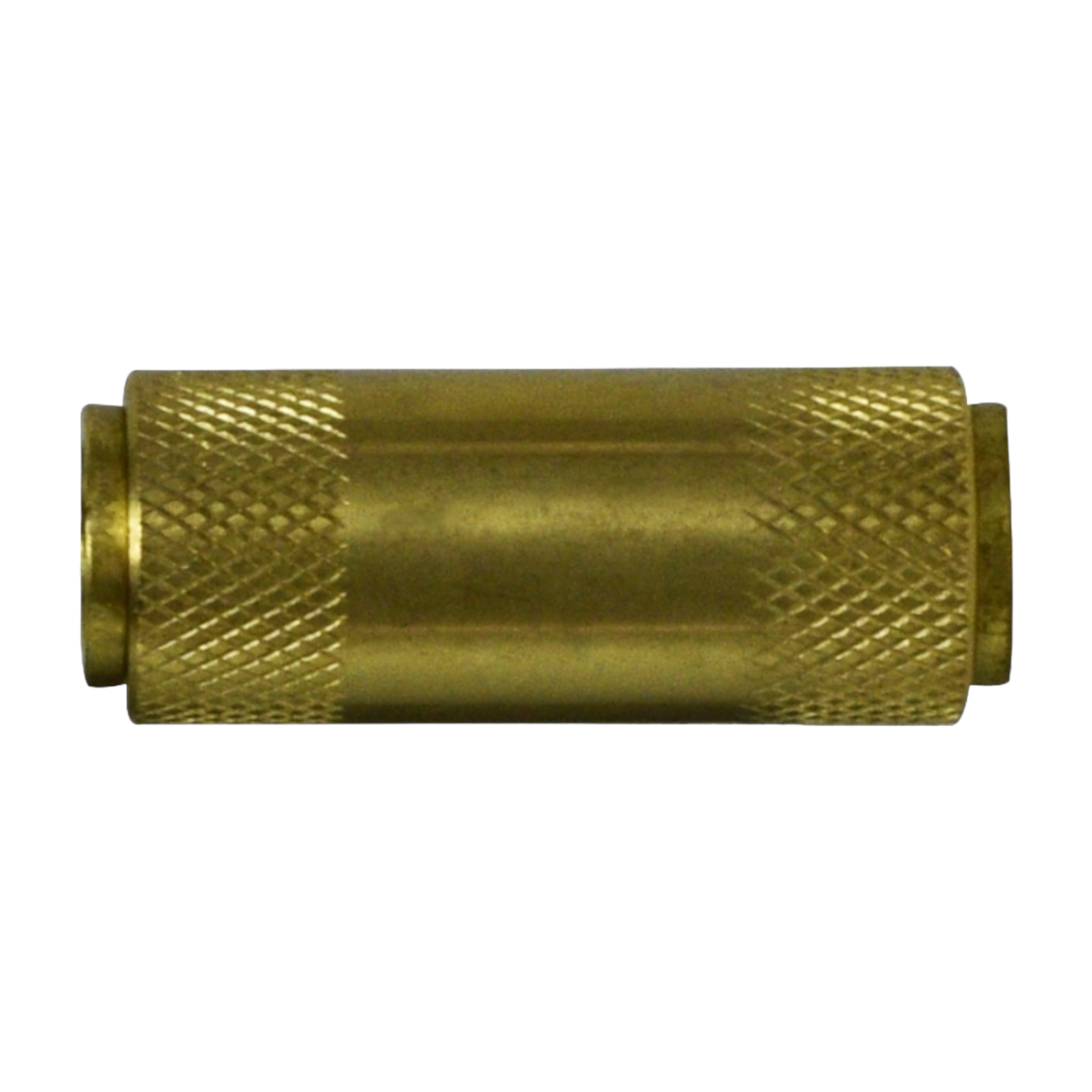

1/4" DOT Push In Nylon Air Brake Fitting For Nylon Tubing, Brass

1/4" DOT approved push to connect air brake fitting for nylon tubing. Airline repairs are quick, easy and cheap with push to connect fittings. These air brake fittings are manufactured to DOT and SAE specifications. Provides more flow area than conventional fittings with internal tube supports.

Benefits:

• quick assembly - takes 75% less time to assemble when compared to conventional compression fittings.
• reusable - can be connected and disconnected several times.
• reliable sealing - full sealing is guaranteed when using the correct tubing.
• easy disconnection - can be quickly disconnected by holding the collar with 2 fingers and pulling the tubing out.

Specifications:

• Tube Outer Diameter - 1/4"
• Material - Brass
• System - Air Brake
• Style - Push to connect Fitting
• DOT Approved - Yes

Cross References:

• Champion 02462-04
• AMC 262PPDOT-4
• 16640
• 1862x4
• 262PC-4
• 262PC4
• 51915K41
• 87035
• 94450304M
• 962-4
• AQ62-DOT-4
• DQ62-4
• DQ62DOT-4
• NP62-4
• PC1462-4
• PC14624
• PL1362-4
• S62PMT-4
