Spicer 210121-1X Polyurethane Carrier Bearing Replacement, ATRO CR00-67121

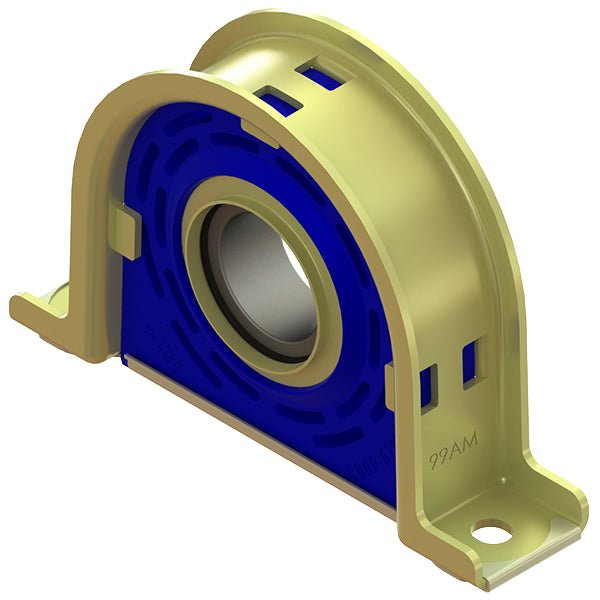

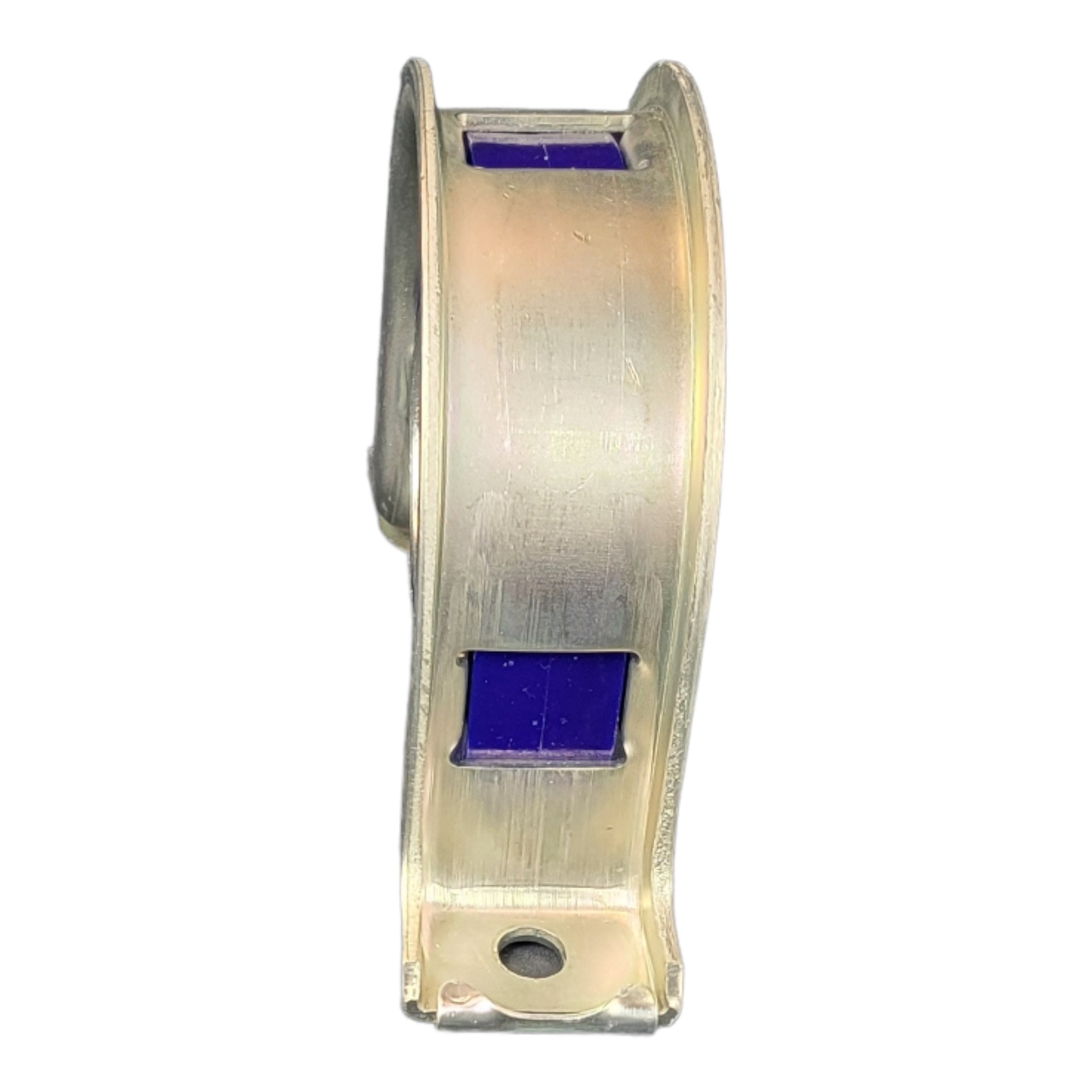

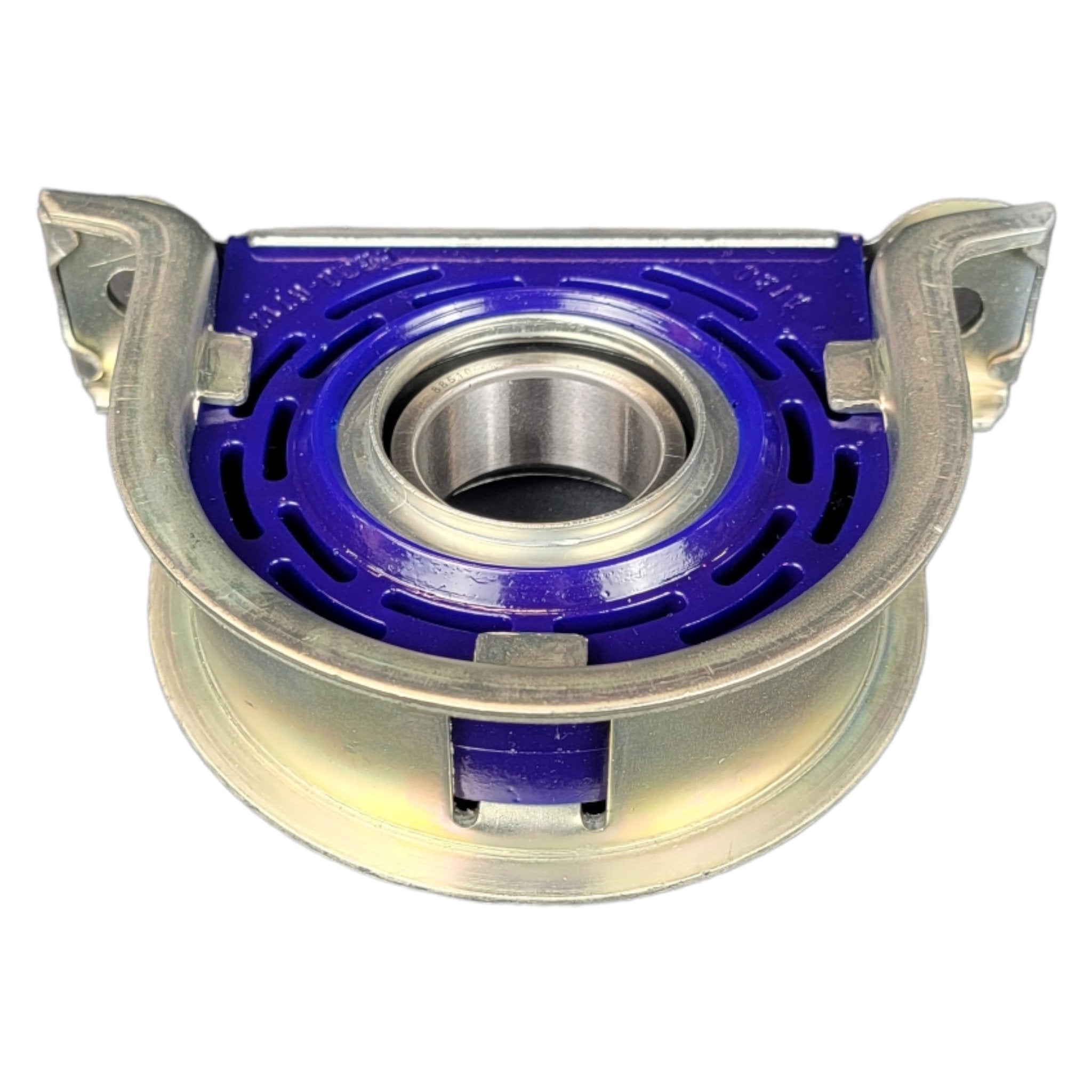

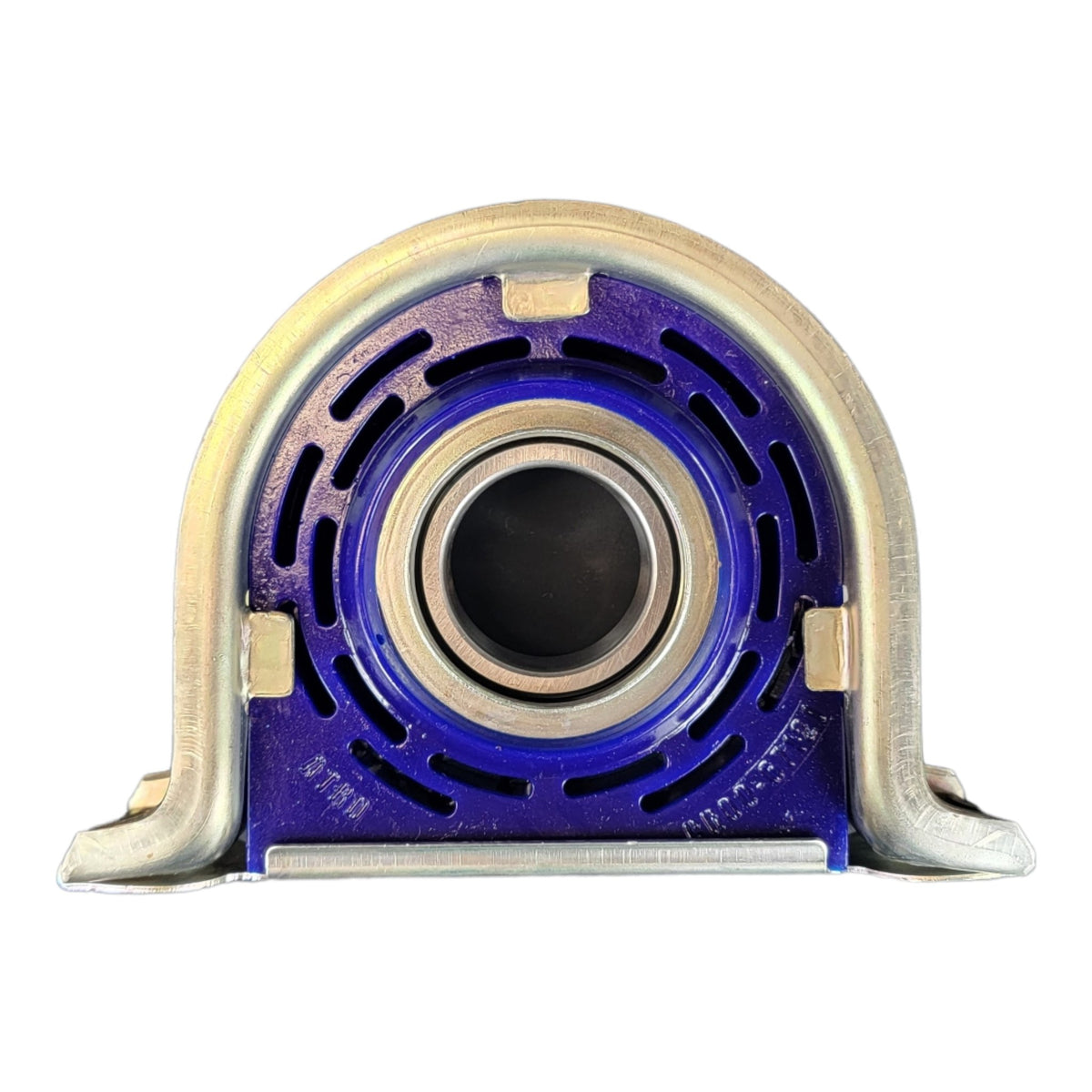

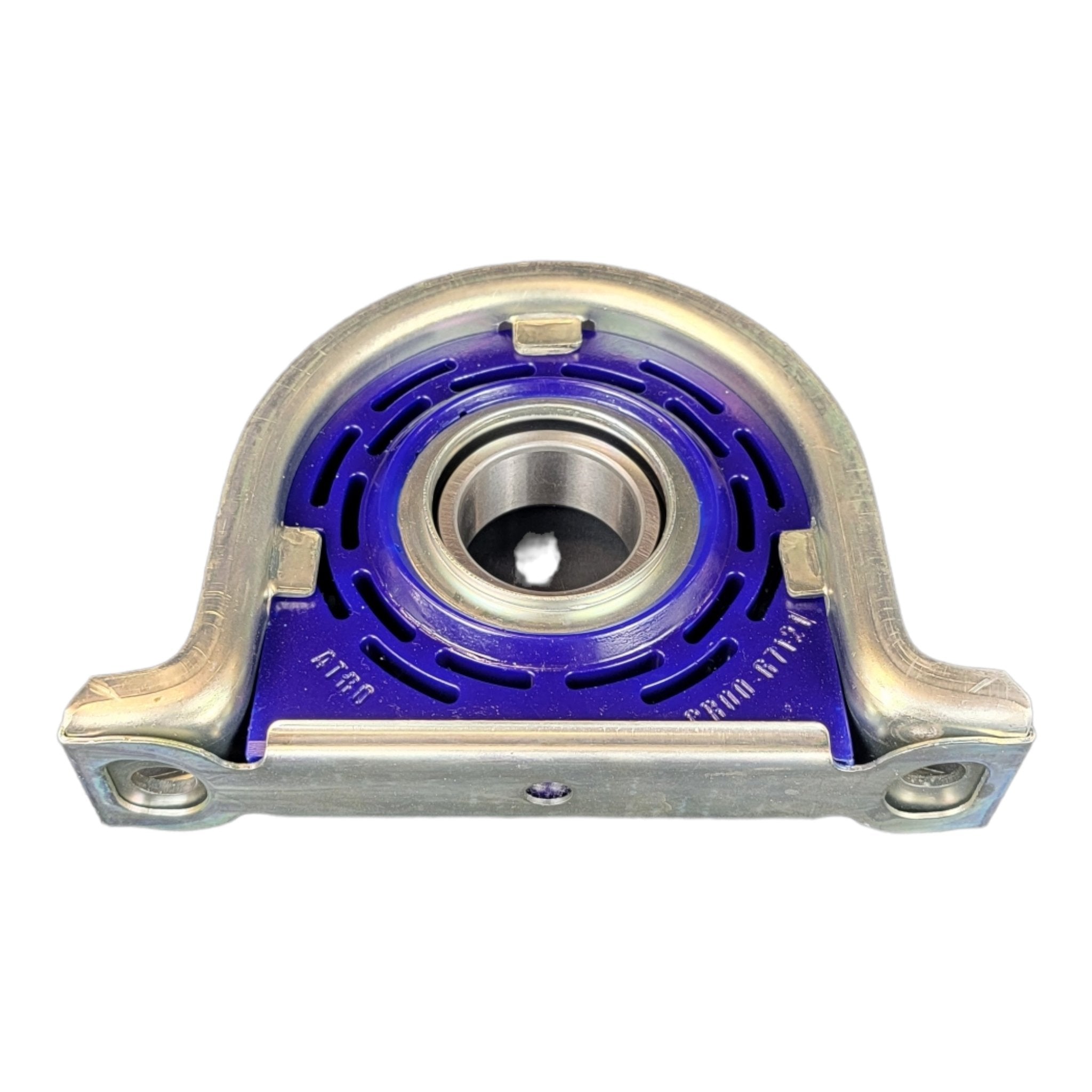

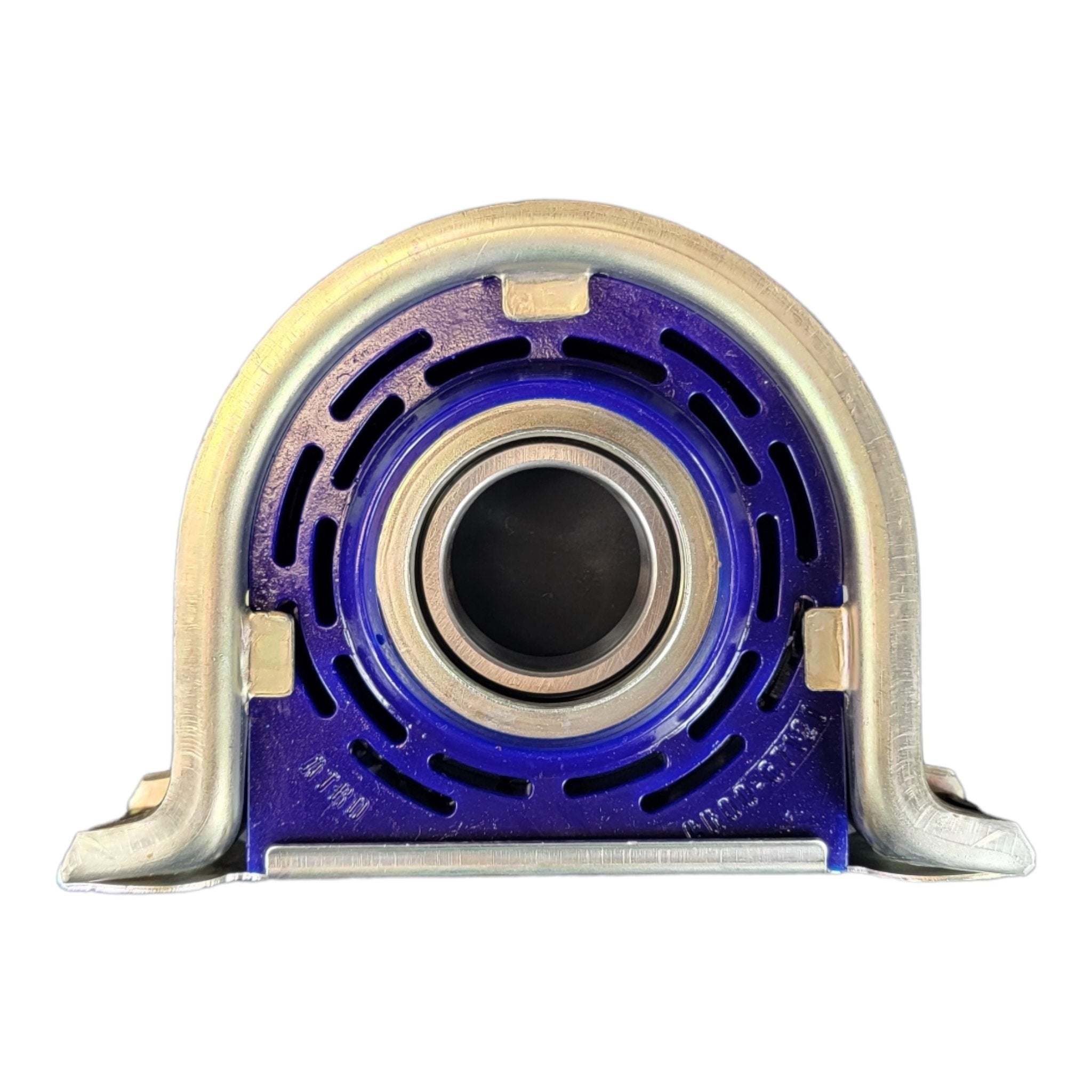

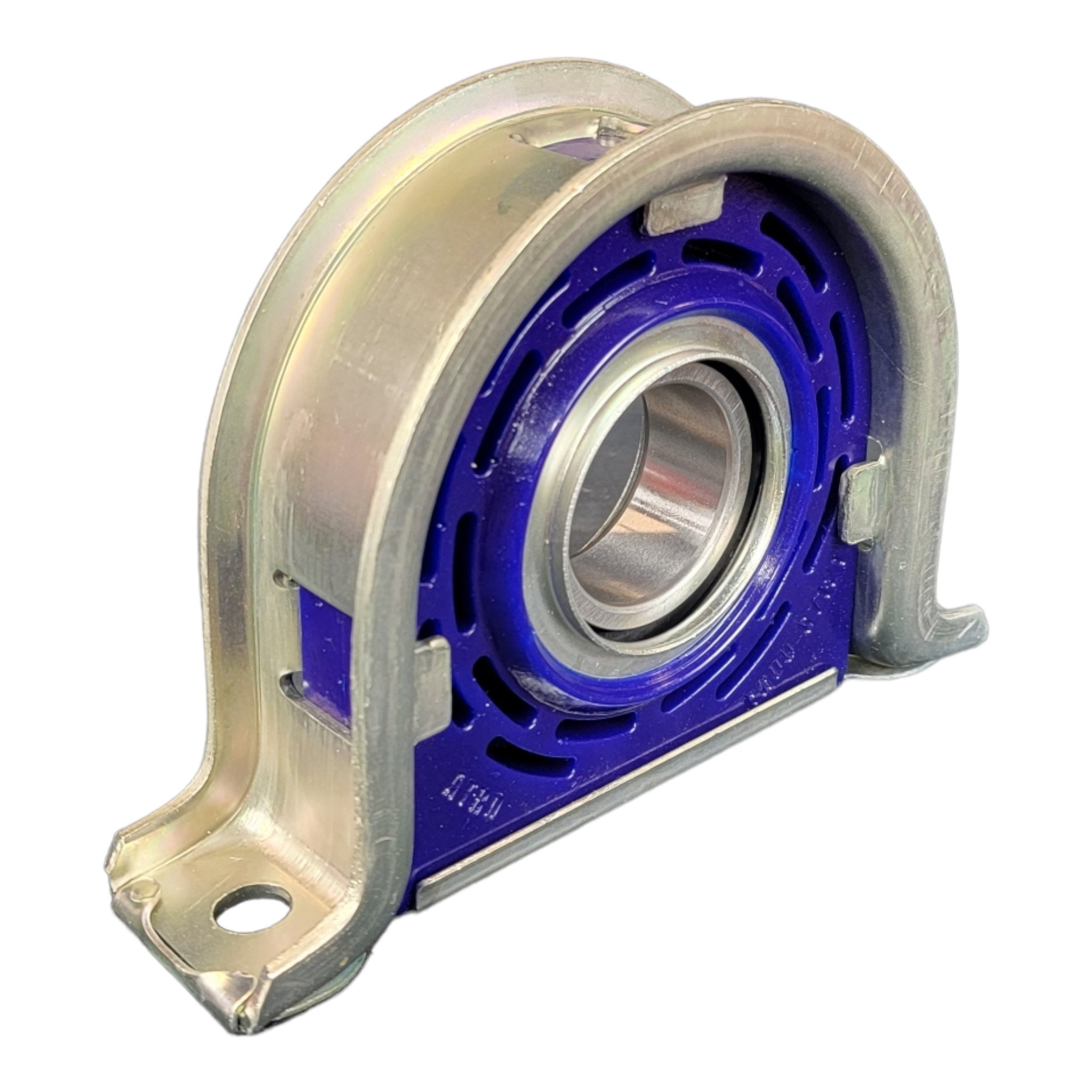

The ATRO CR00-67121 is a polyurethane driveline carrier (center) bearing assembly for Spicer 1710 series driveshafts, replacing Spicer 210121-1X across HD truck and bus chassis. 50 mm (1.9685") inside diameter; 7-5/8" mounting bolt center-to-center on a 10-gauge steel bracket; sealed bearing in ATRO’s proprietary polyurethane isolator. Bolt-in OE-style fit on Autocar, Freightliner, International, Kenworth, Mack, Meritor / Spicer, Peterbilt, Volvo and other Class 7–8 chassis using the 210121-1X.

Signs You Need a New Carrier Bearing

• Driveline vibration or shudder above 35–45 mph
• Audible whine, growl, or squeal under throttle that changes with road speed
• Visible cracking, separation, or oil-soaked rubber in the existing isolator
• Excess driveshaft droop or "play" at the carrier when the truck is parked
• Bracket cracks or bolts fretting / loosening in the crossmember

Specifications

Cross References

This carrier bearing replaces or is equivalent to the following part numbers:

• Spicer: 210121-1X, KCB121, 81-5010
• Meritor: 210121-1X, CCB206, CCB213
• Mack: 35MUA31, 35MUA32P1, 210121-1X
• International: 2101211X
• Kenworth: 210121-1X
• Peterbilt: 210121-1X
• Volvo: 210121-1X
• Freightliner: SP2101211X
• Autocar: 210121-1X
• Ford: D4TZ-4800G, C8HA-4800B
• GMC: 2406989, 15616328
• Bluebird: 108533
• Euclid: E4001776
• Newstar: S-1980
• Gaff: GAFF40075
• Automann: 750.210121RB (housing only)

Applications

This carrier bearing fits Spicer 1710 driveshafts on:

• Autocar, Mack, Volvo Class 7–8 conventionals
• Freightliner, Kenworth, Peterbilt, International HD on-highway tractors and vocational chassis
• Bluebird and similar HD bus chassis using 1710 driveline
• Heavy-duty Ford and GMC medium / vocational platforms specifying the 210121-1X envelope

Installation Notes

Remove the OE dust shield and do not reinstall it — reusing it can cause noise and clearance issues. Clean all mating surfaces. Hand-tighten the bracket bolts to seat the carrier bearing, then torque to the chassis manufacturer’s specification (varies by truck).

Verify driveshaft series (1710), inner-bore diameter (50 mm), and bracket bolt spacing (7-5/8") before ordering — other Spicer driveshaft series use a different carrier bearing envelope.
