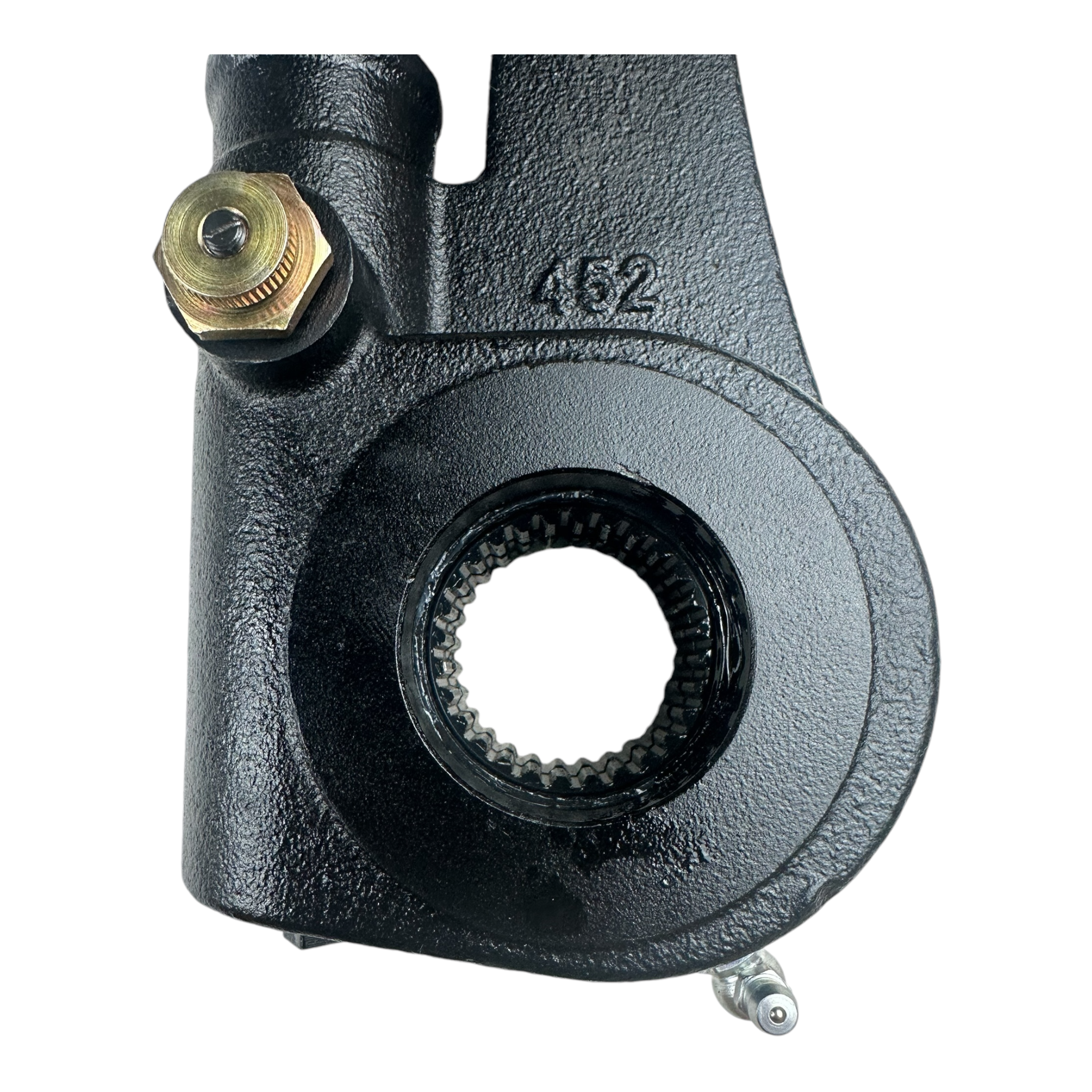

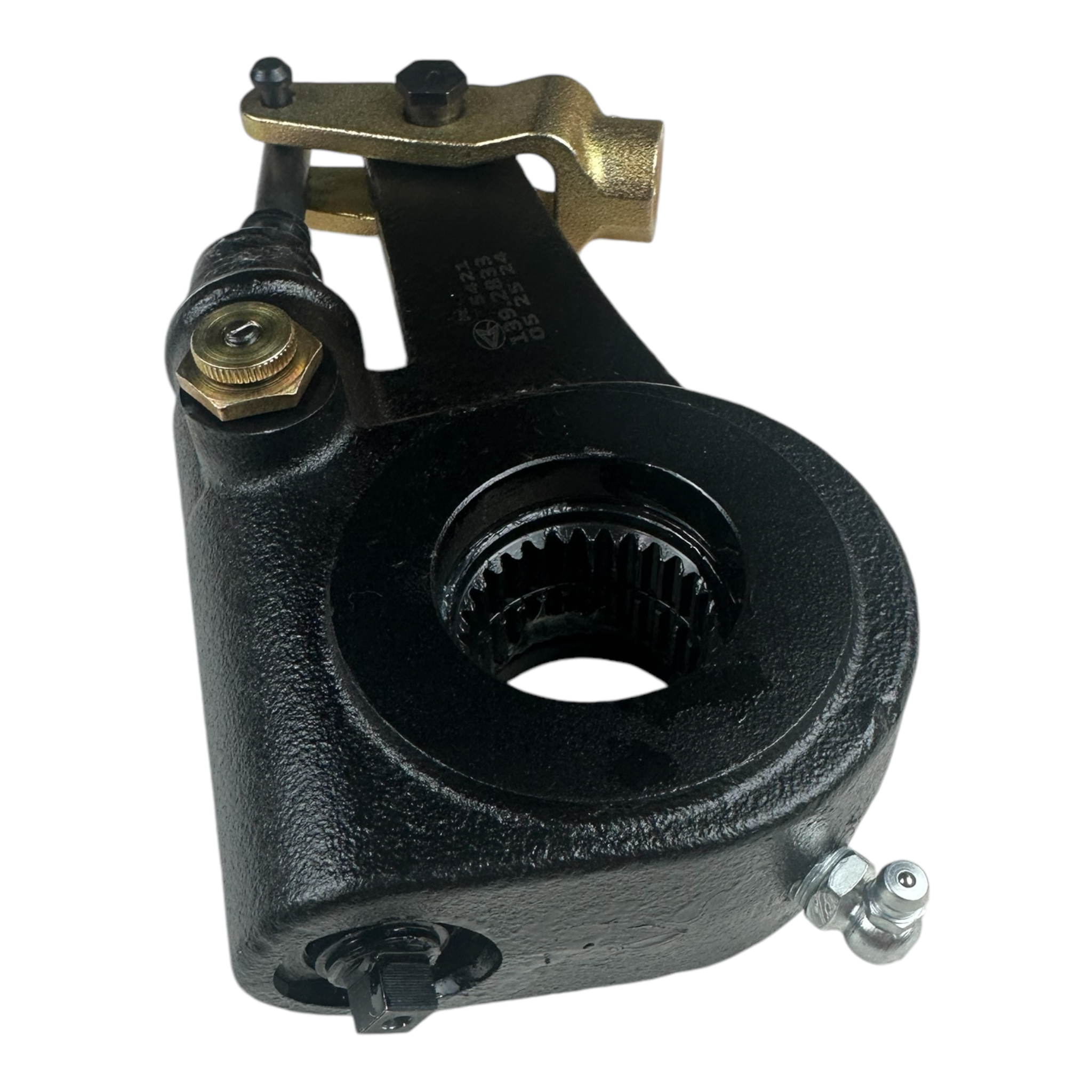

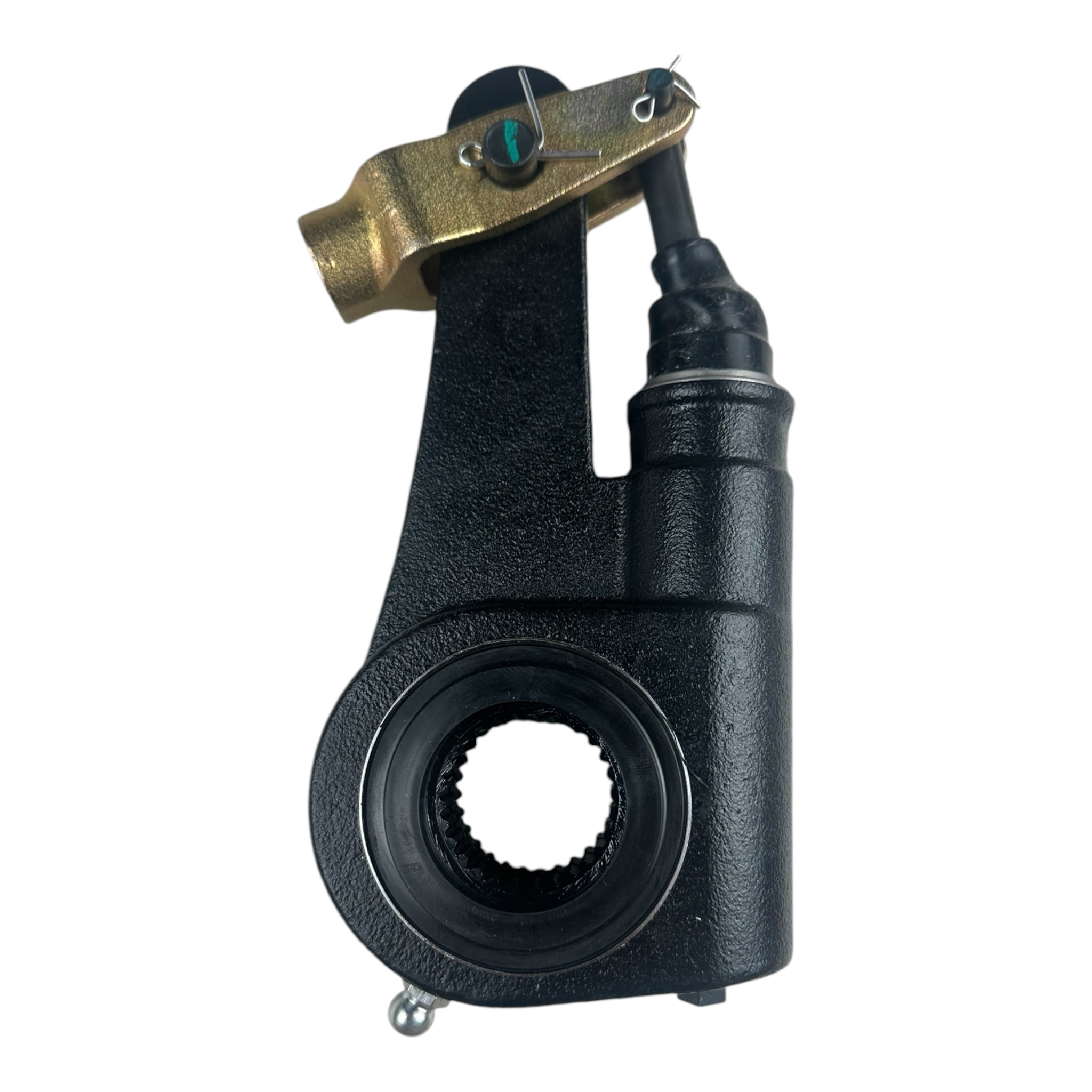

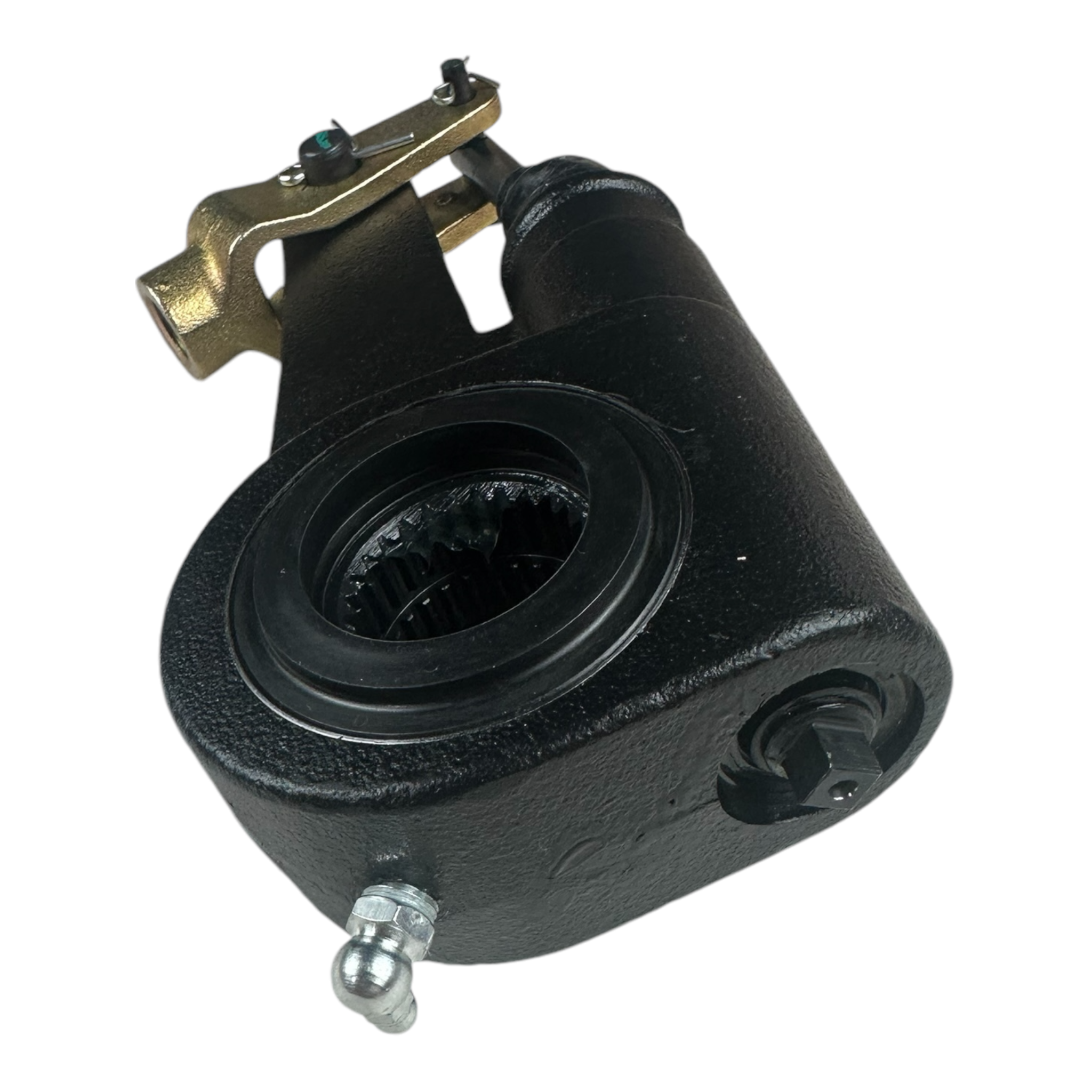

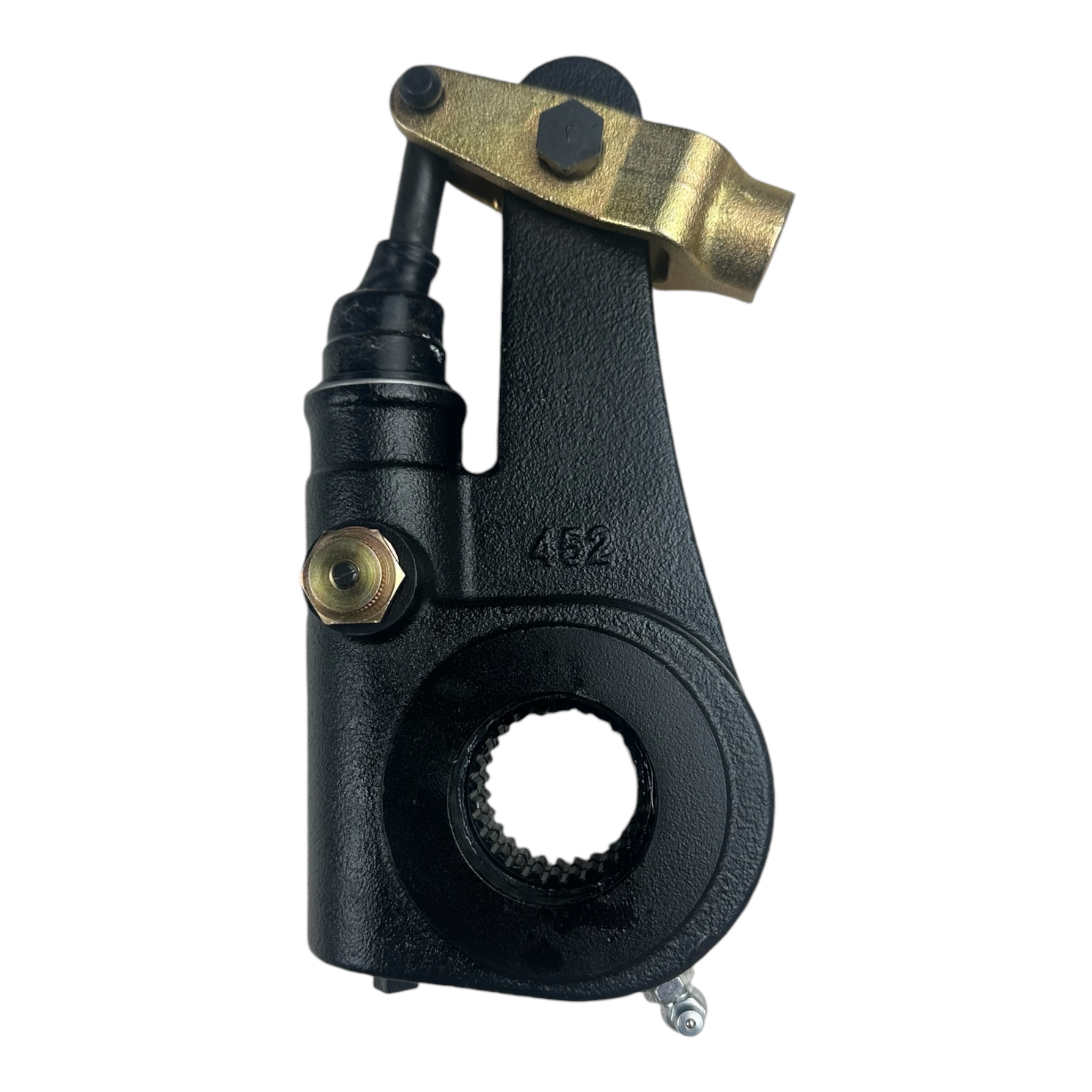

Automann 139.2833 Automatic Slack Adjuster – 1-1/2" 28 Spline, 5.5" Arm, Meritor Type

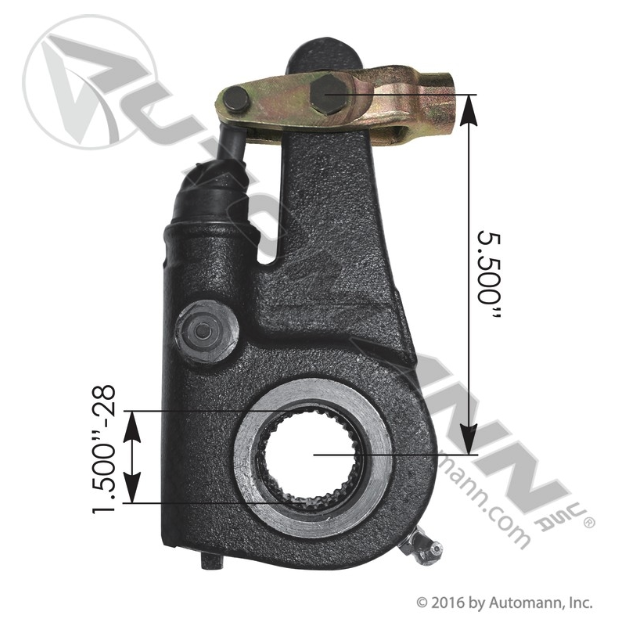

Automann 139.2833 is a stroke-sensing Meritor Type B automatic slack adjuster with a 5-1/2" arm and 1-1/2" 28-spline input — a direct replacement for Meritor R802447 / R803049. The yellow-piston design holds shoe-to-drum clearance automatically across service intervals, and the unit ships complete with the 179.YK5005 clevis kit (5/8"-18 thread). Use on Class 6–8 tractors, vocational trucks, and air-braked trailers with Meritor drum-brake foundations.

Signs You Need a New Slack Adjuster

• Brake pushrod stroke exceeding chamber adjustment limits
• Visible cracks, corrosion, or impact damage to the body
• Loose arm or worn S-cam splines
• Adjuster fails to hold clearance after manual reset
• Seized or stripped manual-adjustment hex
• DOT out-of-adjustment citation on the air-brake foundation

Specifications

Cross References

This slack adjuster replaces or is equivalent to the following part numbers:

• Meritor: R802447, R803049, R802445, R802649, R803047, R803053, A413275A1145, A353275A1145, A473275A1145, A583275A1145
• Euclid: E-11418, E-11418A
• Mack: 8235-R803049, TDAR803049
• Dayton Parts: 05-3631

Applications

Fits Class 6–8 tractors, vocational trucks, and air-braked trailers with Meritor drum-brake foundations using a 1-1/2" 28-spline S-cam:

• Freightliner Cascadia, Columbia, Century, Coronado, M2
• Kenworth T680, T880, T800, W900
• Peterbilt 579, 389, 567, 365
• International LT, LoneStar, ProStar, 4400
• Mack Anthem, Pinnacle, Granite, CHU, CXU
• Volvo VNL, VNR, VHD
• Western Star 4900, 5700
• Air-braked trailers with Meritor drum-brake axles

Replace slack adjusters in axle pairs. Confirm spline diameter, spline count, arm length, and clevis thread before ordering. Measure the existing slack to verify match.
