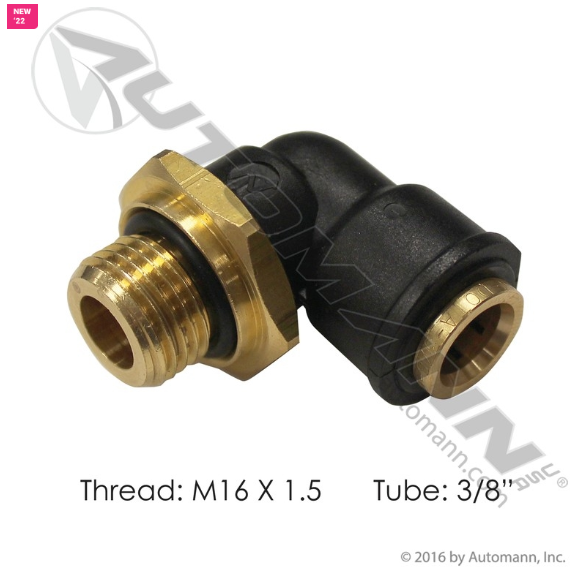

Automann 177.V20999390 Composit 90 Degree PTC Air Fitting 3/8 Tube X M16X1.5 Thread
Automann 177.V20999390 composite 90° swivel push-to-connect air-line fitting for Volvo air-brake systems — 3/8 in nylon tube on the PTC end and a male M16 x 1.5 metric thread on the other. Direct replacement for Volvo 20999390 in air-brake supply, delivery, and gladhand routing where a tight 90° turn is needed at a manifold or component port.
Specifications
| Manufacturer | Automann |
|---|---|
| Part Number | 177.V20999390 |
| Part Type | Composite 90° PTC Male Elbow Air Fitting |
| Tube End | 3/8 in OD push-to-connect (PTC), nylon tube |
| Thread End | M16 x 1.5 male metric |
| Pivoting | Rigid swivel (90°) |
| Body Material | Composite |
| Collet Material | Brass |
| Approval | DOT |
| Condition | New |
Cross References
This fitting replaces or is equivalent to the following part numbers:
- Volvo: 20999390
- Automann: 177.V20999390
Applications
This composite swivel elbow is used on:
- Volvo VHD, VNL, VNM, VNR, VNX air-brake plumbing calling for the 20999390 fitting
- Other heavy-duty air-brake assemblies needing a 3/8 in PTC to M16 x 1.5 male 90° elbow
Match the tube OD (3/8 in) and thread (M16 x 1.5 male metric — not 9/16-18 SAE) of the existing fitting before ordering. The 177.V20999388 (3/4 in PTC x M22 x 1.5) and 177.V20566049 series fittings look similar but use different tube and thread sizes.
