Automann 180.10680 PSI Oil Hub Cap – Meritor TN/TQ & Hendrickson HN Axles

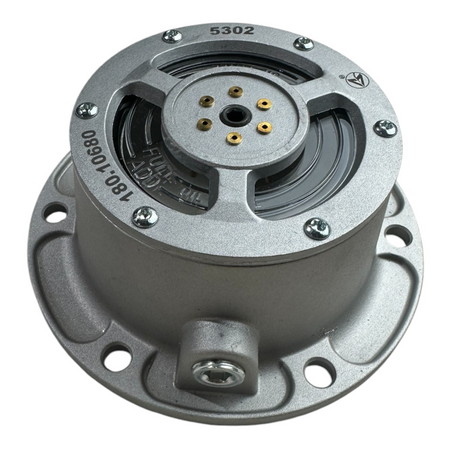

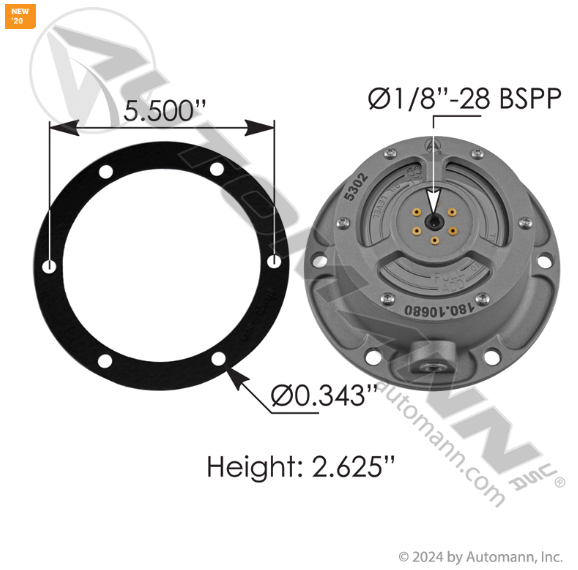

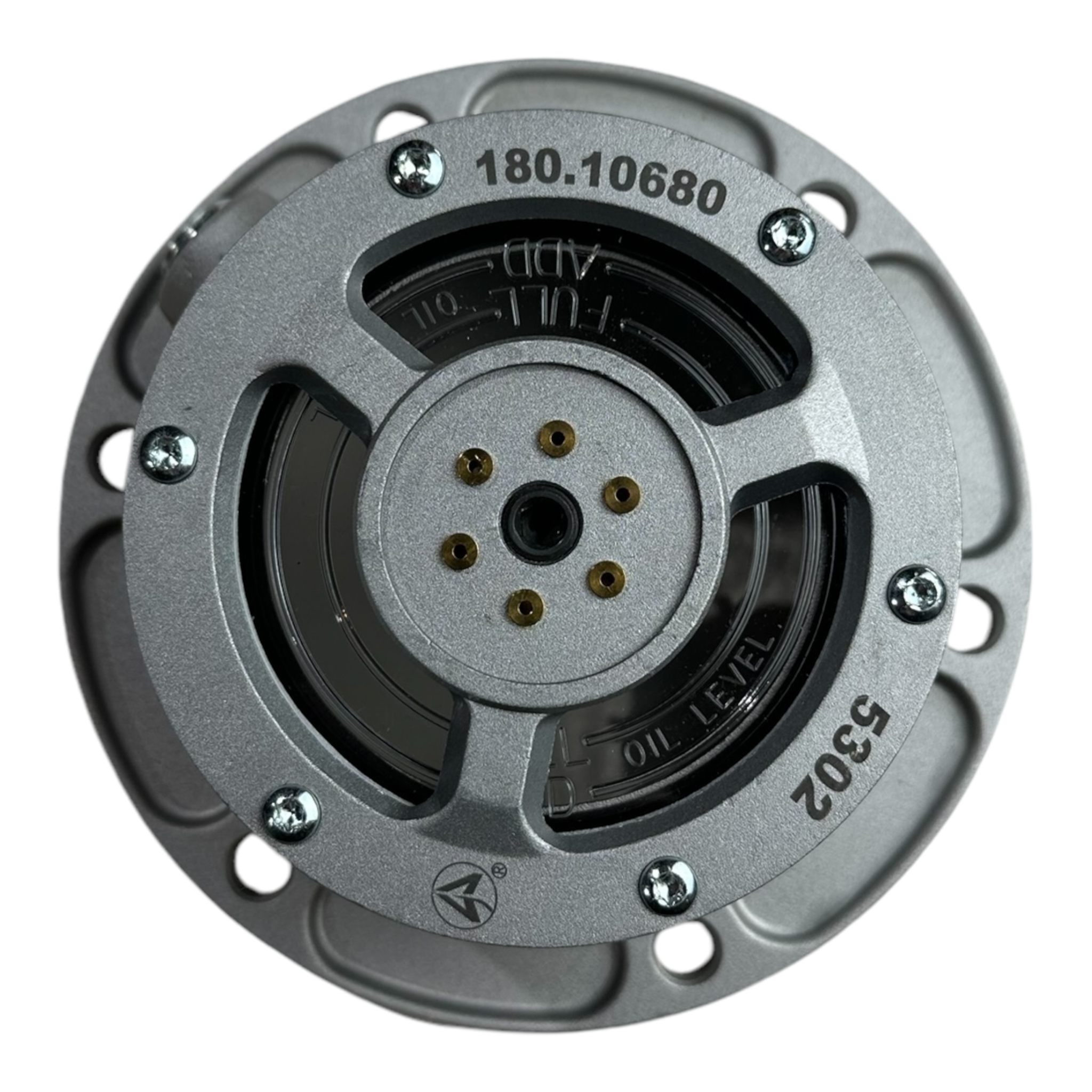

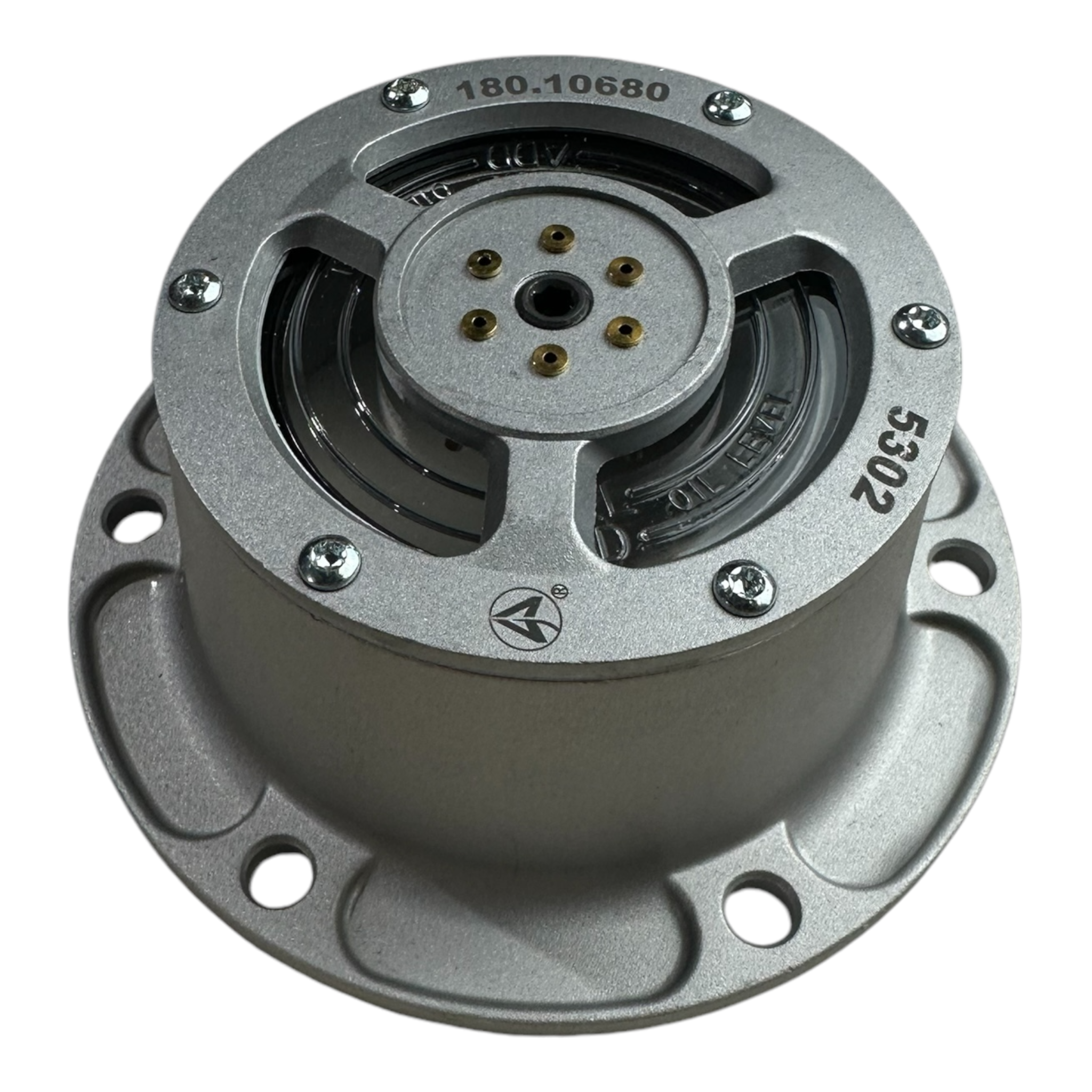

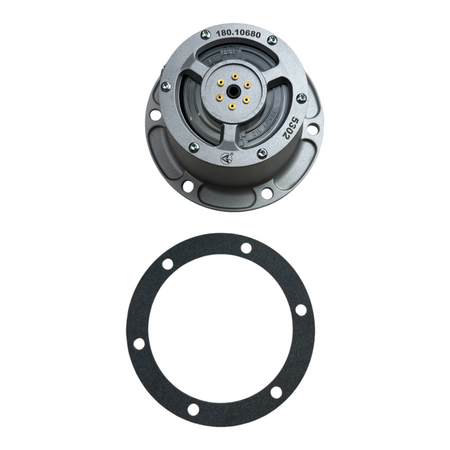

Aftermarket PSI-ready oil hub cap (Automann 180.10680) for Meritor TN/TQ and Hendrickson HN trailer axles running the Meritor Tire Inflation System (MTIS). Cast aluminum with a center port for the PSI tee/flapper, a side fill plug, and a transparent oil-level window with fill lines. Replaces Stemco 343-4370 and Meritor 31427-00.

Signs You Need a New Hub Cap

• Oil weeping past the gasket, fill plug, or PSI port
• Fogged, cracked, or oil-stained window blocking oil-level checks
• Stripped or damaged PSI tee port preventing a sealed inflation connection
• Bent flange or damaged bolt holes after a curb strike or wheel-end impact

Specifications

Cross References

This hub cap replaces or is equivalent to the following part numbers:

• Stemco: 343-4370, 3434370
• Meritor: 31427-00, 3142700, A3262J1180, 3228300
• PSI: M-5217
• Globetech: GT-4370S, GT4370S
• SKF: 1943

Applications

This PSI oil hub cap fits the following trailer axle families equipped with Meritor MTIS or PSI tire inflation:

• Meritor TN series trailer axles
• Meritor TQ series trailer axles
• Hendrickson HN series trailer axles

These axles are commonly found on Class 8 trailers from Great Dane, Wabash, Utility, Hyundai Translead, Vanguard, and Stoughton.

The PSI tee fitting and flapper valve are not included. This is the oil-bath version (343-4370 equivalent) with side fill plug and transparent window. For grease applications, use the 340-4370 equivalent. Verify your axle type and lubrication method before ordering.
