Automann 562.459 Mud Flap Hanger Kit – 45° Angled, Spring-Loaded, Black, 2.5" Bolt Spacing

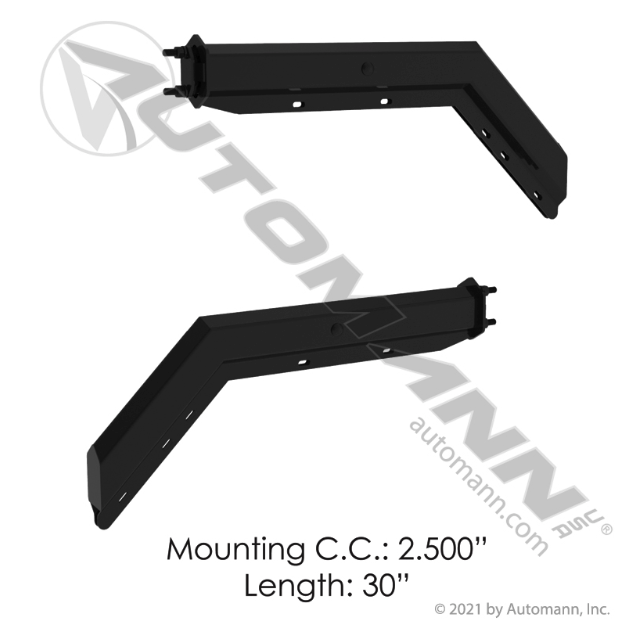

Spring-loaded 45° mud flap hanger kit, 30 in long with 2.5 in center-to-center bolt spacing, finished in black painted steel. The pair drops into Class 8 truck and trailer fenders that use the wider 2.5 in bolt pattern, keeping flaps aligned and reducing sway from road debris contact.

Signs You Need New Mud Flap Hangers

• Mud flaps dragging, sagging, or hanging unevenly due to broken or fatigued internal springs
• Cracked, bent, or corroded hanger arms from road debris impact or winter salt exposure
• Excessive mud flap swing or rotation causing contact with tires or frame components
• Failed DOT inspection due to missing, damaged, or non-functional splash guard mounting

Specifications

Kit Includes

• Mud flap hanger arm, 30 in, 45° angle, spring-loaded — Automann 562.459 (qty 2)

Related Automann Hanger Kits

Automann offers several mud flap hanger configurations. Verify your bolt spacing and style preference before ordering:

• 562.458: 45° Angle, Black, 2.000 in bolt spacing, no tape
• 562.459: 45° Angle, Black, 2.500 in bolt spacing, no tape (this kit)
• 562.459FS: 45° Angle, Black, 2.500 in bolt spacing, with frame seat
• 562.418: 45° Angle, Chrome, 1.125 in bolt spacing, with conspicuity tape
• 562.411: Straight, Black, 1.125 in bolt spacing, with conspicuity tape

Applications

This mud flap hanger kit is a universal fit for Class 8 heavy-duty trucks and trailers using a 2.5 in center-to-center mounting bolt pattern, including:

• Freightliner Cascadia, Columbia, Century, FLD
• Kenworth T680, T880, W900, T800
• Peterbilt 389, 579, 567, 379
• Volvo VNL, VNR
• Mack Anthem, Pinnacle, Granite
• International LT, LoneStar, ProStar
• Western Star 4900, 5700XE

Measure your existing mounting bolt spacing center-to-center before ordering. This kit uses 2.500 in spacing — not compatible with 1.125 in or 2.0 in bolt pattern brackets.
