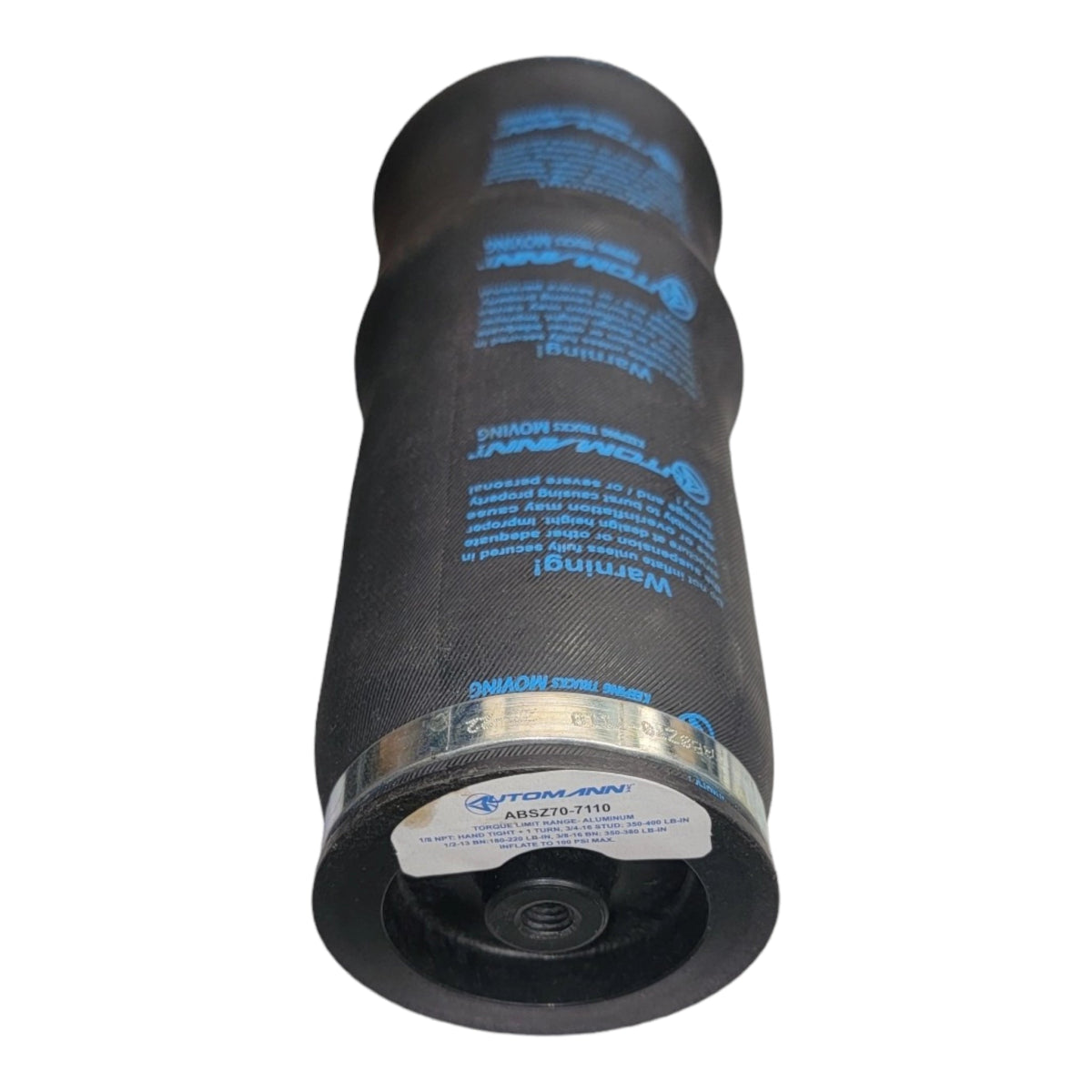

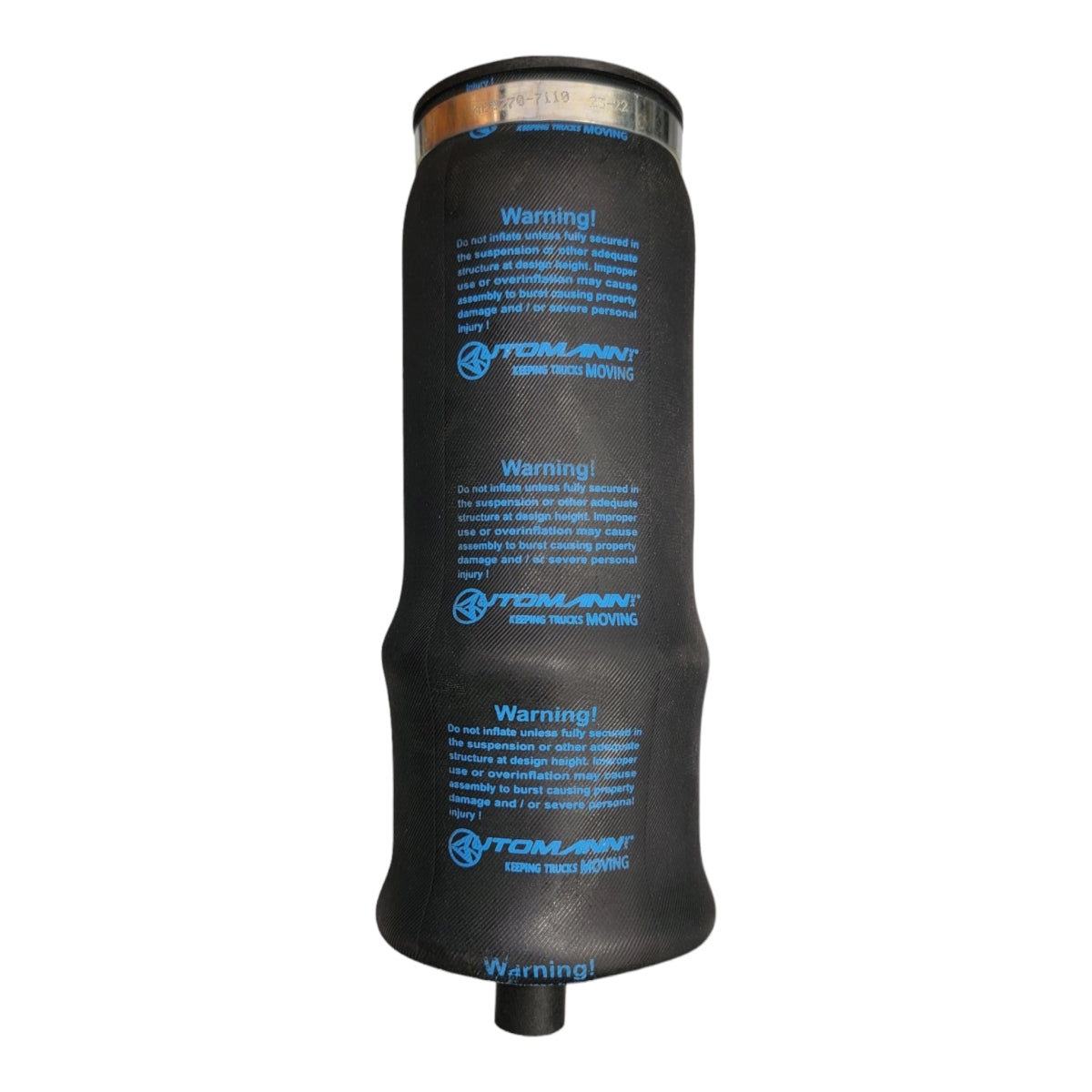

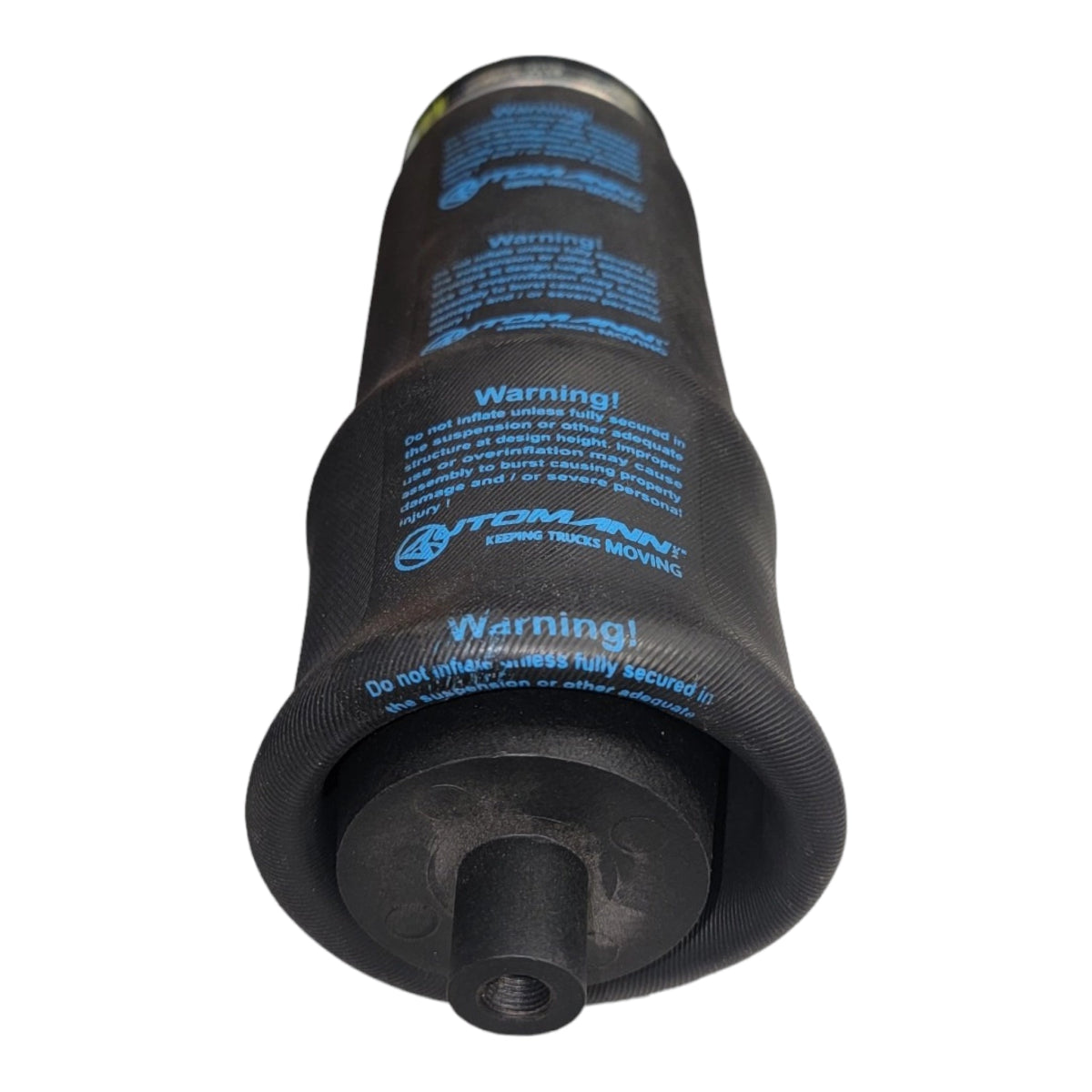

Automann ABSZ70-7110 Cabin Air Spring Replacement For PACCAR R81-8002

Automann ABSZ70-7110 Cabin Air Spring Replacement For PACCAR R81-8002

Cross Reference:

Contitech SC29-B110, Firestone 7110, Firestone W023587110, Firestone W02-358-7110, Firestone W026007110, Firestone W02-600-7110, Goodyear 1S5152, Goodyear 1S5-152, IHC 2588760C1, IHC 2591920C1, IHC 2602754C1, Kenworth R811002, Kenworth R81-1002, Kenworth T2000

Specifications

• Type - Sleeve
• Brand - Automann Phoenix
• Load (Lbs) @80 PSI - 883 lbs
• Load (Lbs) @100 PSI - 1106 lbs
• Natural Freq. (CPM) - 102
• Design Height (In) - 3.75 in
• Top Plate Hole/Stud Qty - 1
• Top Plate Dia. (A)  - 2.99 in
• Top Plate C to C Dia. (B) -  N/A
• Bottom Plate Hole/Stud Qty  - 1
• Bottom Plate Dia. (C)  - 2.23
• Bumper - No
• Min. Height - 2.20 in
• Max. Height - 7.50 in
• Max. Dia. - 6.00 in
