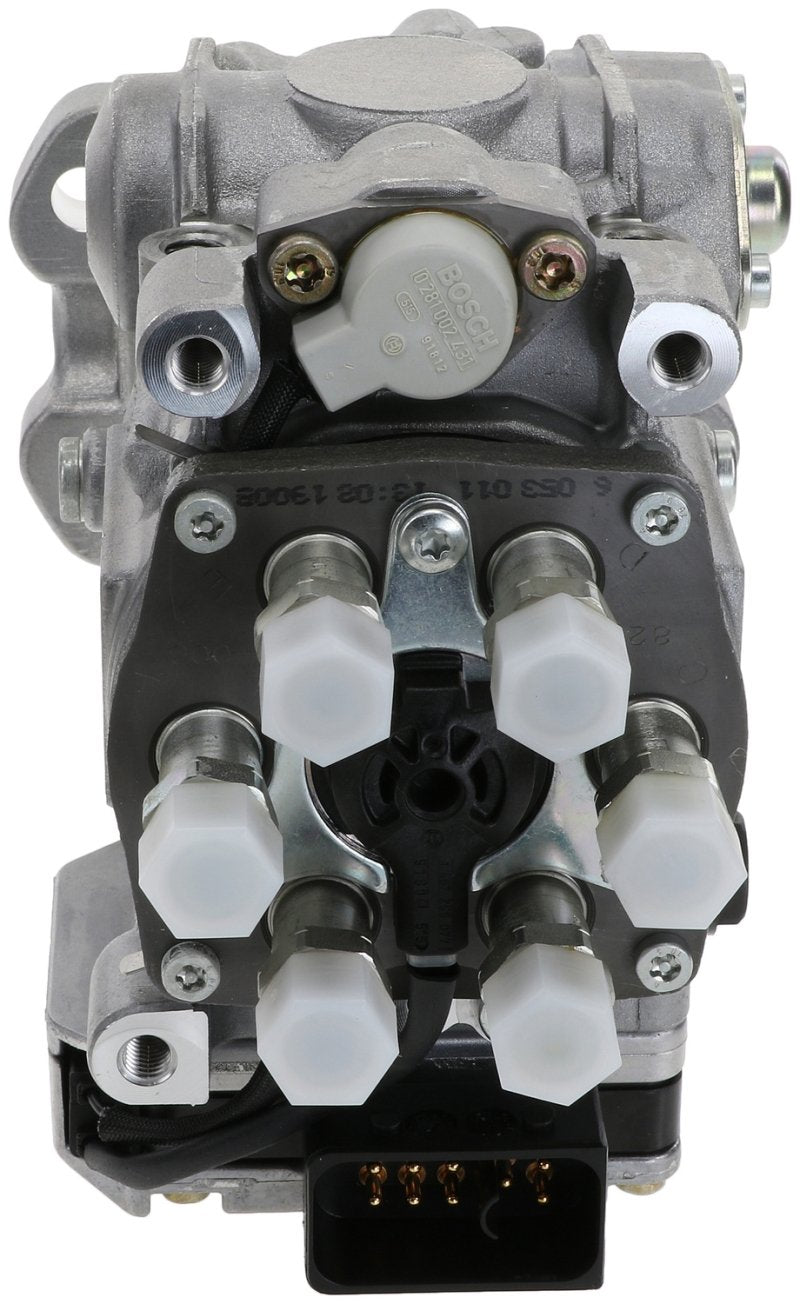

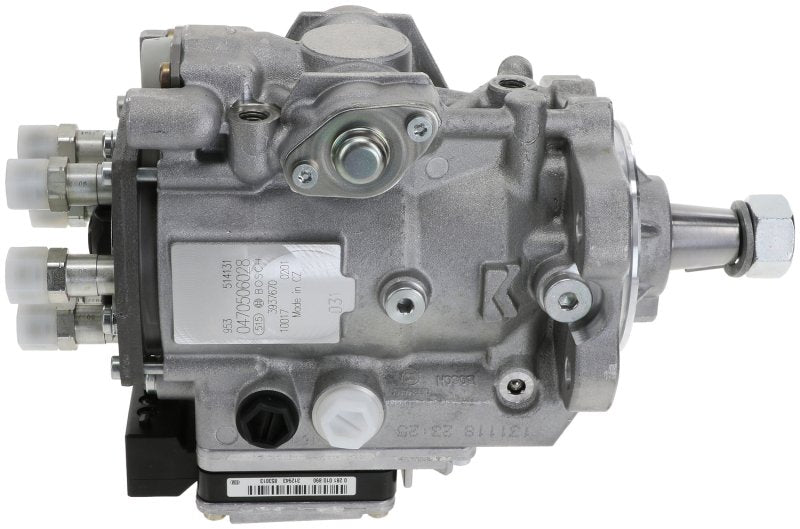

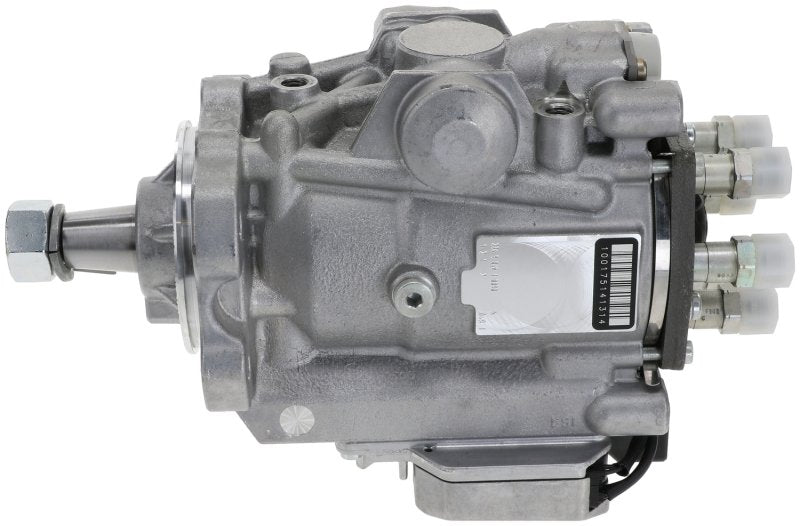

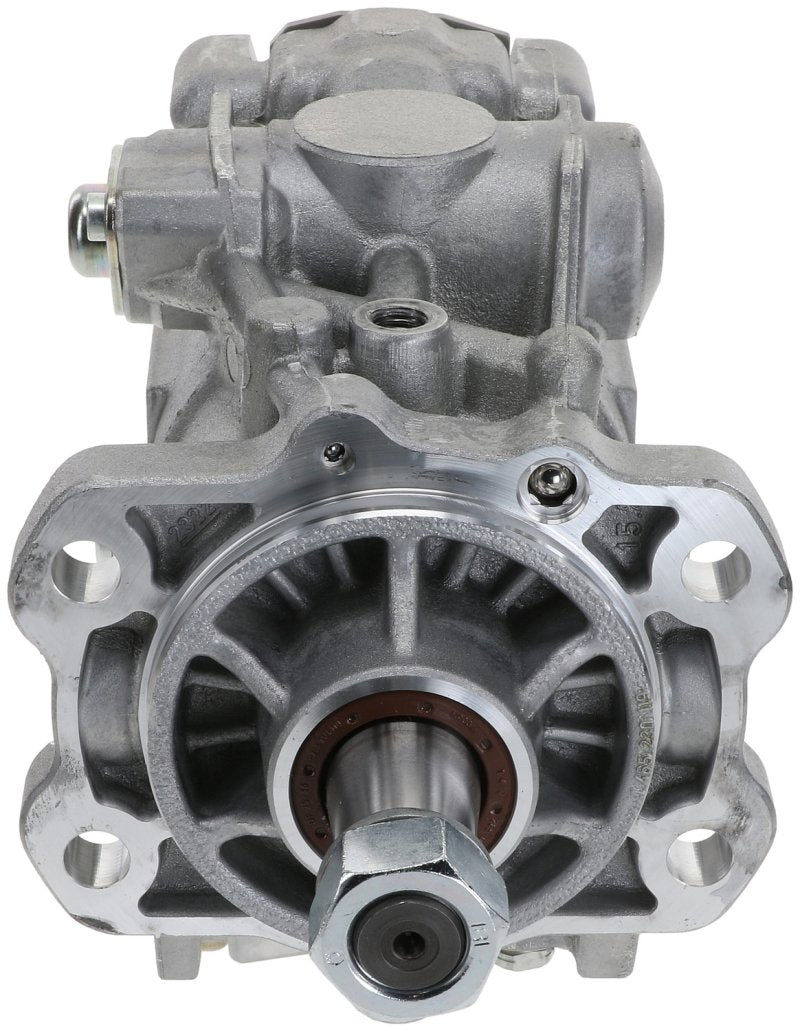

The Bosch 0470506028 is a remanufactured VP44 rotary fuel injection pump for the 2000-2002 Dodge Ram 2500/3500 equipped with the 5.9L Cummins 24-valve turbo diesel engine. This is the High Output (HO) 245 horsepower version designed specifically for trucks with the NV5600 6-speed manual transmission. Bosch is the original equipment manufacturer of the VP44 injection pump, and this unit is remanufactured using genuine Bosch parts and calibrated to current OEM specifications. The VP44 generates the high injection pressures required for proper fuel atomization and controls both fuel metering and injection timing via its integrated electronic PSG module.
Signs You Need a New VP44 Injection Pump
- Hard starting or extended cranking, especially when cold or after sitting
- Significant loss of power under load, towing, or acceleration
- Engine stalling, surging, or "dead pedal" with no throttle response
- Check engine light with P0216 (injection timing) or P0251/P1688 codes
Specifications
| Manufacturer | Bosch |
|---|---|
| Part Number | 0470506028 |
| Part Type | VP44 Rotary Fuel Injection Pump |
| Engine Compatibility | 5.9L Cummins ISB 24-Valve (245HP High Output) |
| Transmission Compatibility | NV5600 6-Speed Manual Only |
| Model Years | 2000-2002 |
| Horsepower Rating | 245HP (High Output) |
| Condition | Remanufactured |
Cross References
This part replaces or is equivalent to the following part numbers:
- Bosch: 0470506028, 0470506021, 0470506014, 0986444017, 0986444023, 0986444024, IPVR17X, IPVR14X
- Dodge/Chrysler: 5018495AA, 5019657AA, 5019657AB, 5019657AC, 5019657AD, R5018495AA, R5019657AA, R5019657AB, R5019657AC, R5019657AD
- Cummins: 3937159, 3937670, 3937687, 3946370, 3947031, 3947159
Applications
This VP44 injection pump fits the following vehicles:
- 2000-2002 Dodge Ram 2500 5.9L Cummins 24V – 245HP High Output with 6-Speed Manual
- 2000-2002 Dodge Ram 3500 5.9L Cummins 24V – 245HP High Output with 6-Speed Manual
Important Installation Notes
- Always replace the lift pump and fuel filter when installing a new VP44—low lift pump pressure is the leading cause of VP44 failure
- Verify lift pump maintains minimum 10-14 PSI at all engine speeds before installation
- Wire tapping the pump for aftermarket performance modules will void warranty
- Proper injection timing must be set during installation
This pump is specifically for 245HP High Output trucks with 6-speed manual transmissions. For 215/235HP trucks with automatic or 5-speed manual transmissions, see Bosch 0470506027. Verify your engine horsepower rating and transmission type before ordering.
