Caterpillar 2244536 Injector Pressure Sensor Replacement

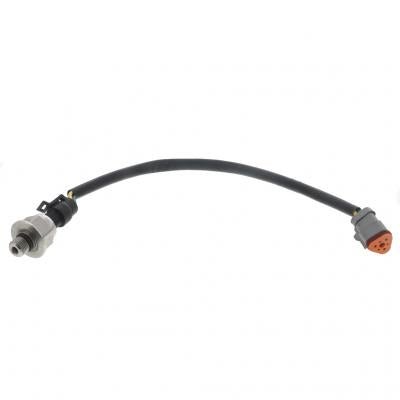

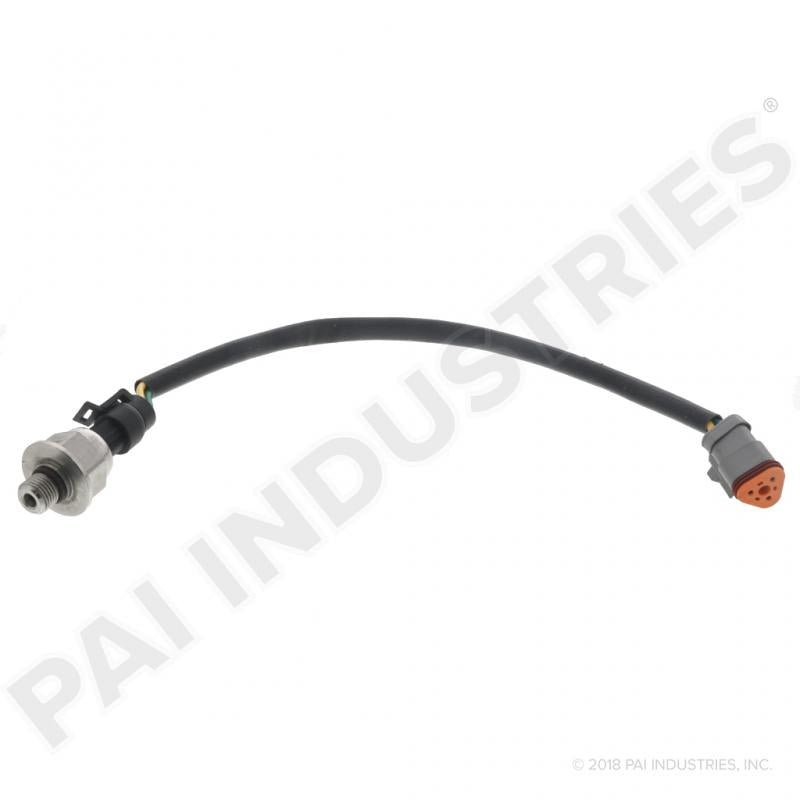

Aftermarket replacement injection actuation pressure (ICP) sensor for Caterpillar HEUI-injected engines — 3126, 3126B, 3126E, C7, C9, and the 3056E / 3524B industrial variants. Replaces Cat 224-4536 and the earlier 141-4122, 167-1708, and 194-6726 numbers it superseded. 3-pin Cat triangular Deutsch-style connector, 1/2″-20 thread, 16.75 in pigtail. The sensor monitors high-pressure oil at the HEUI rail; failure causes hard starts, intermittent stalls, and cylinder-cut codes.

Signs You Need a New Injection Actuation Pressure Sensor

• Hard start or no start when the engine is hot
• Active fault codes for ICP / injection actuation pressure (CID 164, etc.)
• Low power, derate, or cylinder cut-out under load
• Engine stumbles or stalls at idle
• Rough running with no obvious mechanical cause

Specifications

Cross References

This sensor replaces or is equivalent to the following part numbers:

• Caterpillar: 224-4536, 2244536, 194-6726, 1946726, 167-1708, 1671708, 141-4122, 1414122
• Also known as: 3PP6-1, 236-6220

Applications

This injection actuation pressure sensor fits the following Caterpillar HEUI engines:

• Caterpillar 3126, 3126B, 3126E (1998–2003 on-highway and industrial)
• Caterpillar C7 (on-highway, 2004+ — ACERT and pre-ACERT)
• Caterpillar C9 (on-highway and industrial)
• Caterpillar 3056E industrial
• Caterpillar 3524B off-highway truck

Representative trucks and equipment using these engines:

• Freightliner Business Class M2 with 3126 / C7
• International / Sterling medium-duty with C7
• School and transit buses with 3126 / C7
• Caterpillar wheel loaders 928G, 966D, 966E, 966F
• Caterpillar telehandlers TH series with 3056E

Replace the sealing washer at the sensor port and check for clean engine oil before installing — a contaminated HEUI rail will damage a new ICP sensor quickly.
