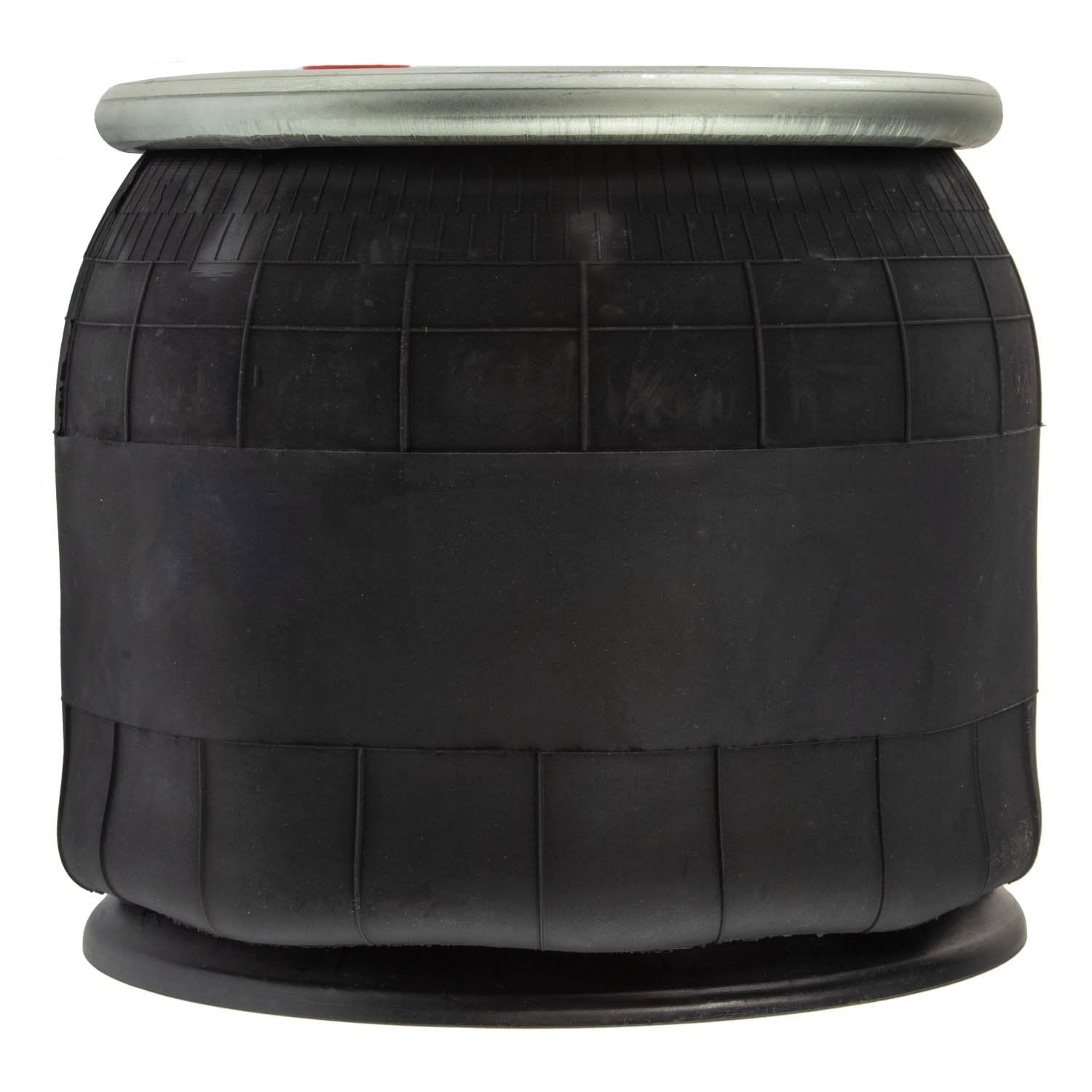

Good Year 1R12-1204 Air Spring ⎪Replaces Peterbilt C81-6000

World American Air Spring WA01-8813C

Model/Style: Rolling Lobe
Bottom Plate Alignment: Parallel
Bottom Plate Center to Center Diameter: 2.25 (Inch)
Bottom Plate Diameter: 9.53 (Inch)
Bottom Plate Hole Quantity: 1
Bottom Plate Type: A
Design Height: 11.5 (Inch)
Load Rating at 100 PSI: 7160 (Pound)
Load Rating at 80 PSI: 5710 (Pound)
Maximum Diameter: 12.6 (Inch)
Maximum Height: 18.9 (Inch)
Minimum Height: 7.1 (Inch)
Natural Frequency: 71
Spring Type: Rolling Lobe
Top Plate Center to Center Diameter: 6.2 (Inch)
Top Plate Diameter: 9 (Inch)
Top Plate Hole Quantity: 2

Cross Reference:

• Automann:  AB1DK23I-8813
• Airglide: 380
• Continental-ContiTech: 65990
• Continental-ContiTech: 9 10-14 P 577
• Continental-ContiTech: 91014P577
• ContiTech: AS8813
• Euclid: E-FS8813
• Firestone: 8812
• Firestone: 8813
• Firestone: 8814
• HDValue: HDV8813
• Firestone: W01-358-8813
• Meritor: FS8813
• Paccar Parts: C81-1003
• Paccar Parts: C81-1012
• Peterbilt: C81-6000
