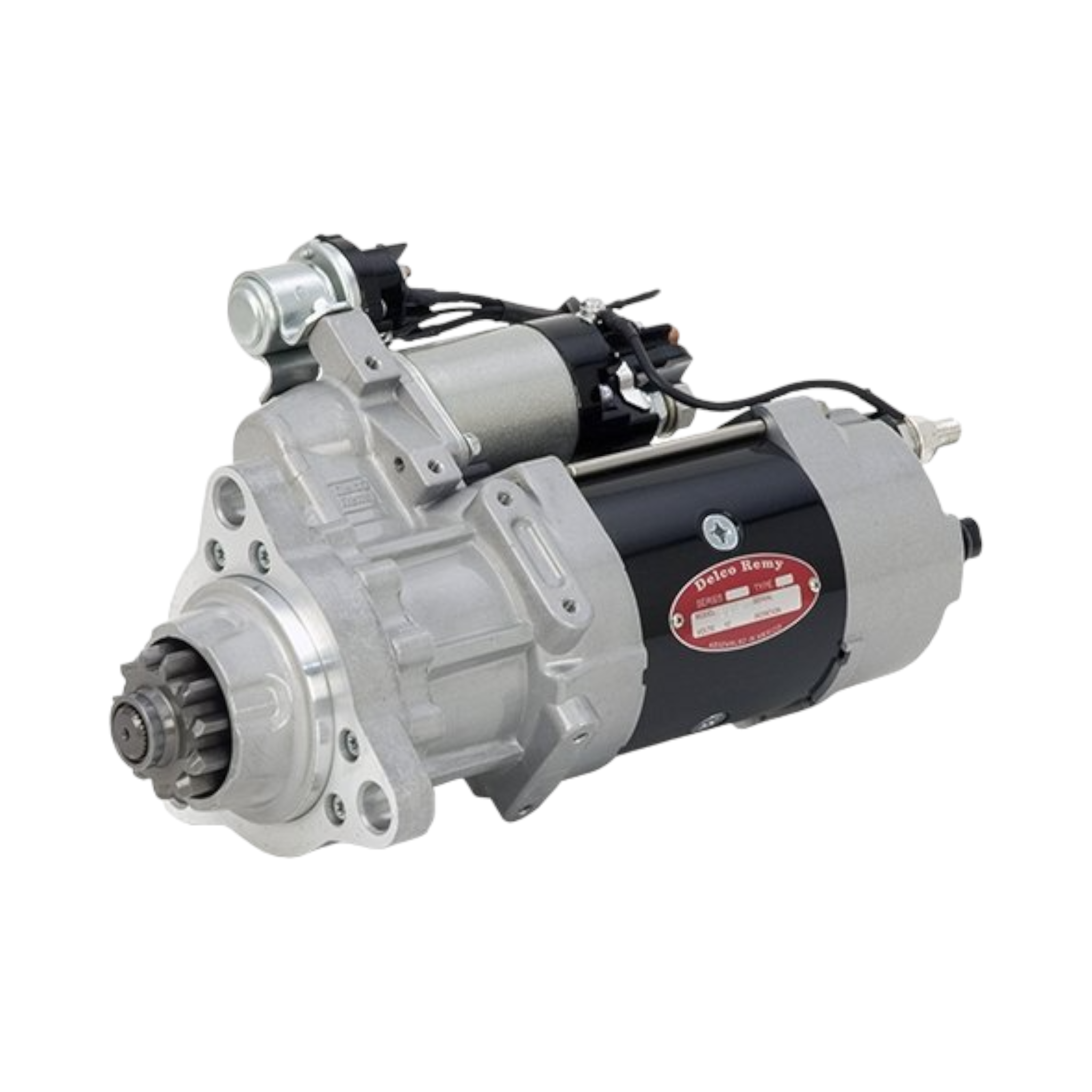

Delco Remy 8200434 39MT Starter 12V with OCP – Detroit DD13/DD15/DD16

Delco Remy 8200434 is a new 39MT starter motor with integrated Over-Crank Protection (OCP) for Detroit Diesel DD13, DD15, and DD16 engines (GHG14 and earlier, 2015 and older — 160-tooth ring gear) and the Mercedes-Benz MBE4000. The 12V, 7.3 kW unit features a rotatable mounting flange, electrical soft-start that engages the pinion before energizing the motor, and a sealed solid-link solenoid that resists contact welding under low-voltage conditions.

Signs You Need a New Starter

• Slow or labored cranking, especially in cold weather
• Single click when turning the key with no engine engagement
• Intermittent no-start or delayed starter response
• Grinding noise indicating worn pinion or ring gear
• Starter stays engaged after the engine starts (solenoid sticking)
• Smoke or burning smell during cranking

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Delco Remy: 8200082, 8200084, 8200287, 8200298, 8200329, 8200671, 8200690, 8200771, 8201022, 8300084, 19011514, 19011525
• Denso / Mitsubishi: 428000-4450, 428000-4451, 428000-8690, M009T70189, M009T71179, M110601, M125600
• Freightliner / Mack: FL0189, FL0379, FL1179, MIB971179, 2478FL0189
• International / Navistar: 3574175C91, 3574176C91
• Leece-Neville: MS2-530, MS2-531
• WAI: 6919N
• Wilson: 91-01-4761N

Applications

This starter fits the following engines:

• Detroit Diesel DD13 12.8L (2008–2015, 160-tooth ring gear)
• Detroit Diesel DD15 14.8L (2008–2015, 160-tooth ring gear)
• Detroit Diesel DD16 15.6L (2011–2015, 160-tooth ring gear)
• Mercedes-Benz MBE4000

Representative vehicles using these engines:

• Freightliner Cascadia (2008–2015)
• Freightliner 108SD, 114SD, 122SD (2012–2015)
• Freightliner Coronado (2010–2015)
• Freightliner M2 112 (2011–2015)
• Western Star 4700, 4800, 4900, 5700 EX, 6900 (2010–2015)
• Sterling A9500, L9500
• Pierce Manufacturing fire apparatus

Important: Not compatible with 2016 and newer Detroit DD13/DD15/DD16 — those use Delco Remy 61008898. Verify your model year and ring-gear tooth count (160) before ordering.
