PAI 641283 Oil Pan Kit – Detroit Diesel Series 60 (Front Sump, 40 Qt, with Gasket & Isolators)

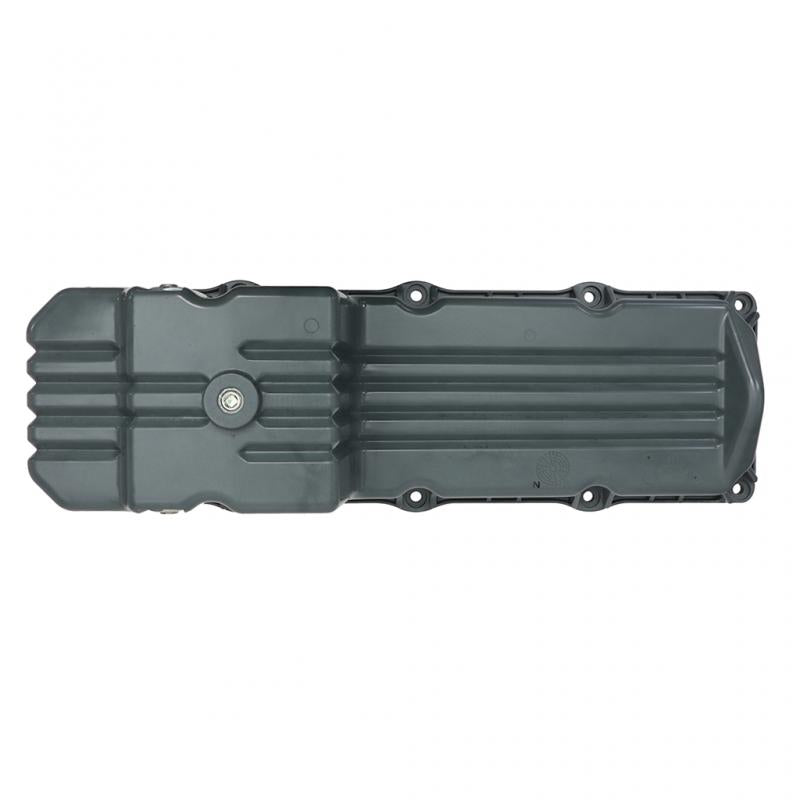

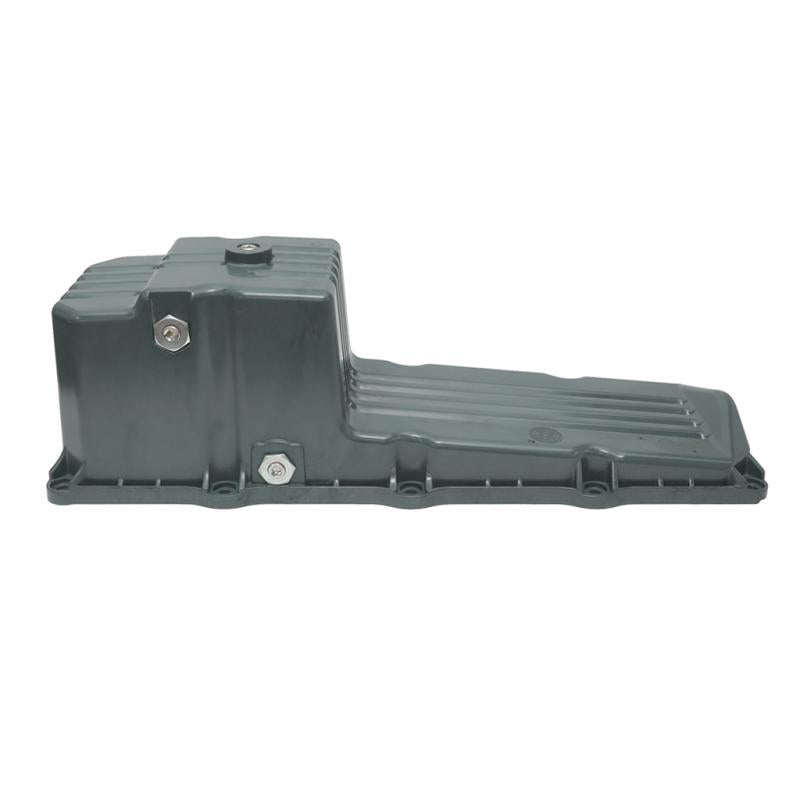

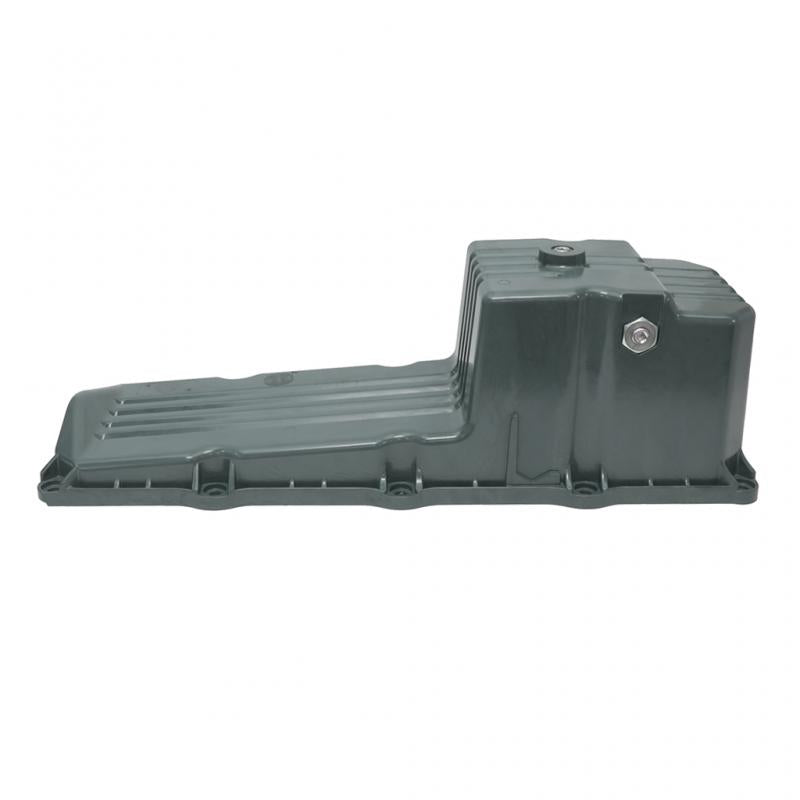

The PAI 641283 is a premium aftermarket oil pan kit for Detroit Diesel Series 60 engines with front sump configuration. This complete kit includes the oil pan, gasket, and all 10 isolator bolt assemblies needed for installation. Manufactured from durable glass-filled plastic (sheet molding compound), this oil pan provides excellent strength while reducing weight compared to steel alternatives. PAI Industries has been manufacturing quality heavy-duty truck parts in the USA since 1973 and backs this kit with a 2-year unlimited mileage warranty.

Signs You Need a New Oil Pan

• Visible oil leaks from the pan sealing surface
• Cracks or impact damage to the pan body
• Stripped or damaged drain plug threads
• Worn or deteriorated isolator mounts causing vibration
• Warped sealing flange causing persistent gasket leaks
• Oil pan gasket replacement requiring pan removal

Specifications

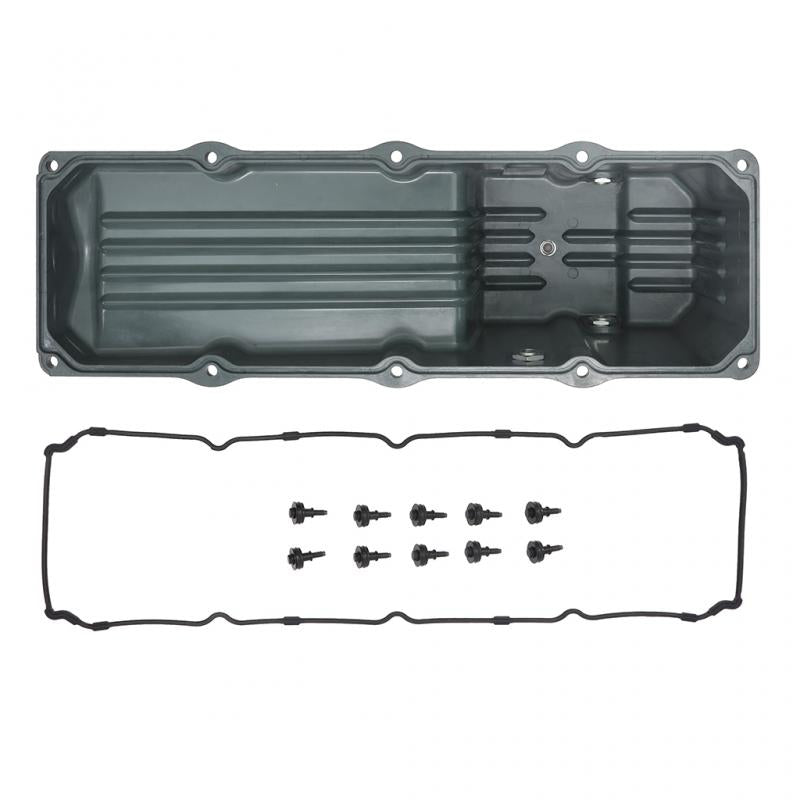

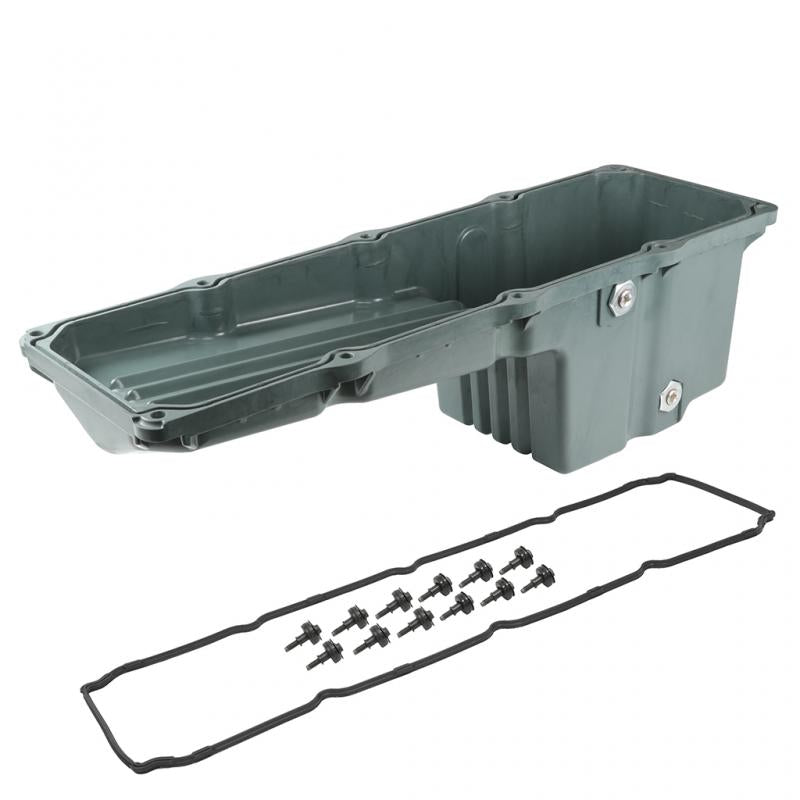

Kit Contents

• (1) Oil Pan – Front Sump, 40 Quart Capacity

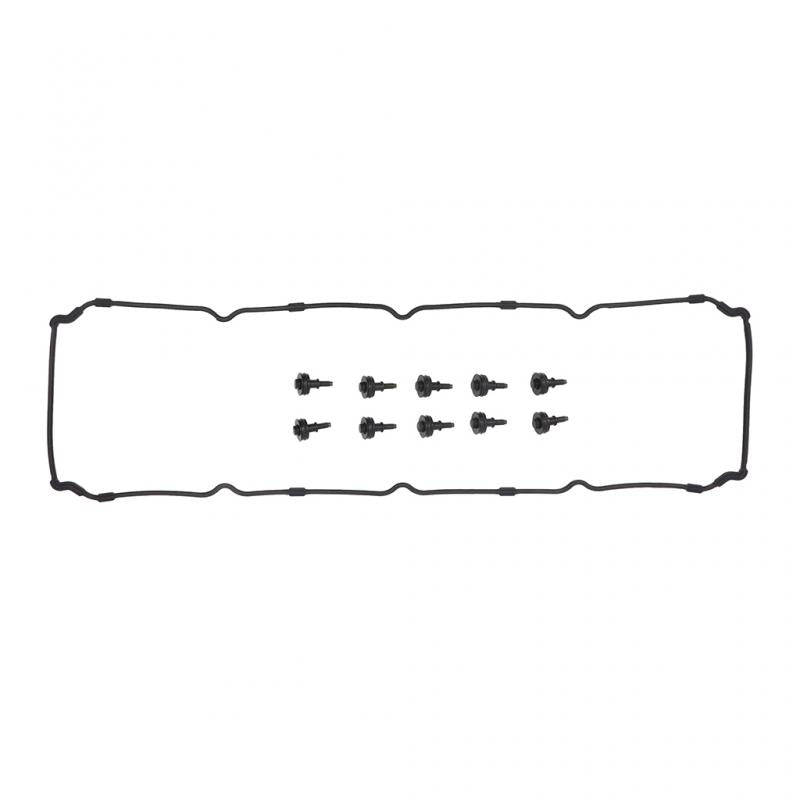

• (1) Oil Pan Gasket – PAI 631261 (Detroit 23522279)
• (10) Isolator Bolt Assemblies – Vibration-dampening mounts

Cross References

This part replaces or is equivalent to the following part numbers:

• Detroit Diesel: 23522282, 23521170, 23504160

Related PAI Parts

• PAI 641280: Oil Pan with Gasket (no isolators)
• PAI 641280E: Oil Pan Only (no gasket or isolators)
• PAI 631261: Oil Pan Gasket (Detroit 23522279)
• PAI 641282: Rear Sump Oil Pan Kit

Applications

This oil pan kit fits Detroit Diesel Series 60 engines (12.7L and 14L) with front sump configuration in:

• Freightliner: Columbia 112/120 (2001-2017), Century 112/120 (1997-2011), Cascadia 113/125 (2008-2014), Classic 120/XL 132 (2002-2010), Coronado 132 (2004-2014), Argosy (1999-2015), FLC112/120 (1995-2005), FLD112/120 (1995-2005)
• International: 9200i, 9400i (1999-2010)
• Western Star: 4900SA and other Series 60-equipped models
• Sterling: Series 60-equipped models

Installation Notes

This complete kit includes everything needed for oil pan replacement. The isolator bolt assemblies dampen engine vibration and should always be replaced when servicing the oil pan. Clean all mating surfaces thoroughly before installation. Torque oil pan bolts to Detroit Diesel specifications in the proper sequence. Fill with appropriate oil quantity and grade per manufacturer specifications. Verify front sump vs. rear sump configuration before ordering.

Verify your engine serial number and sump configuration before ordering to confirm fitment. Front sump and rear sump pans are not interchangeable.
