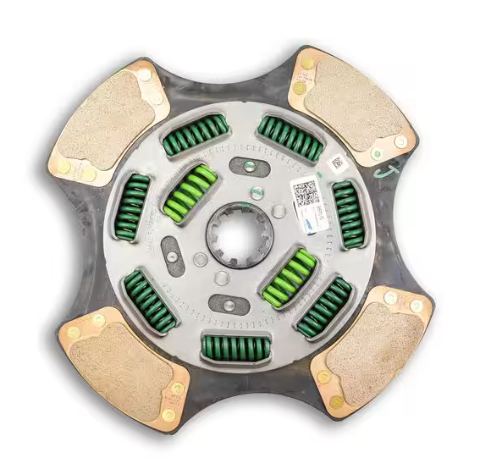

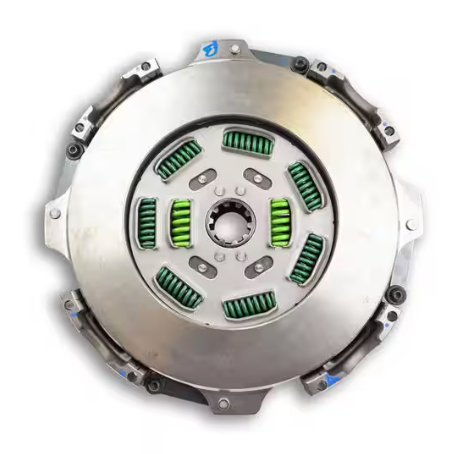

Eaton 309701-51 Advantage Self-Adjust Clutch | 15.5" 2-Plate 1650 lb-ft | New, No Core
Genuine OEM Advantage Self-Adjust clutch assembly from Eaton, built to original equipment specification for Mack and Volvo 11L and 13L engines. Fifteen and a half inch, two-plate, 1650 lb-ft, with the OE-design release bearing included. This is a new unit, not remanufactured, and it carries no core charge.
Signs You Need a New Clutch
- Clutch slips under load - engine RPM rises without road speed, worst in top gear on a grade
- Burnt friction odor in the cab after a pull
- Shudder or chatter on engagement from a standstill
- Hard to get into gear, or grinding on shifts, from failure to fully release
- Free play that will no longer hold adjustment, or a pedal gone soft
- Release bearing whine or growl with the pedal down
- Driveline rattle at idle from broken damper springs
- Dragging caused by intermediate plate seizure
Specifications
| Manufacturer | Eaton |
|---|---|
| Part Number | 309701-51 |
| Clutch Size | 15.5 in |
| Overall Diameter | 17 in |
| Torque Rating | 1650 lb-ft |
| Input Spline | 2.00 in, 10 spline |
| Disc Count | 2 - dual disc |
| Friction Pads | 4 |
| Damper Springs | 9 |
| Pre-Damper | No |
| Flywheel Pilot Bore | 10 in |
| Release Bearing | Included - OE design, three grease zerks, 50,000 mile lube interval |
| Weight | 134 lb - ships LTL |
| Condition | New - no core charge |
| Warranty | 12 months |
Cross References
This part replaces or is equivalent to the following part numbers:
- Illinois Auto Truck: NMU7010544M
- Remanufactured version: 309701-51MO
Applications
Eaton specifies this clutch for Mack and Volvo 11L and 13L engines with a 10-inch flywheel pilot bore and a 2.00-inch 10-spline input shaft.
Do not substitute 309701-82 for this clutch. The -82 is the same size and spline but carries 7 damper springs and a 1700 lb-ft rating; the spring package is matched to the engine's torsional characteristics, which is why the 9-spring -51 is the Mack and Volvo 11L-13L call-out. Match the flywheel and spline before ordering.
