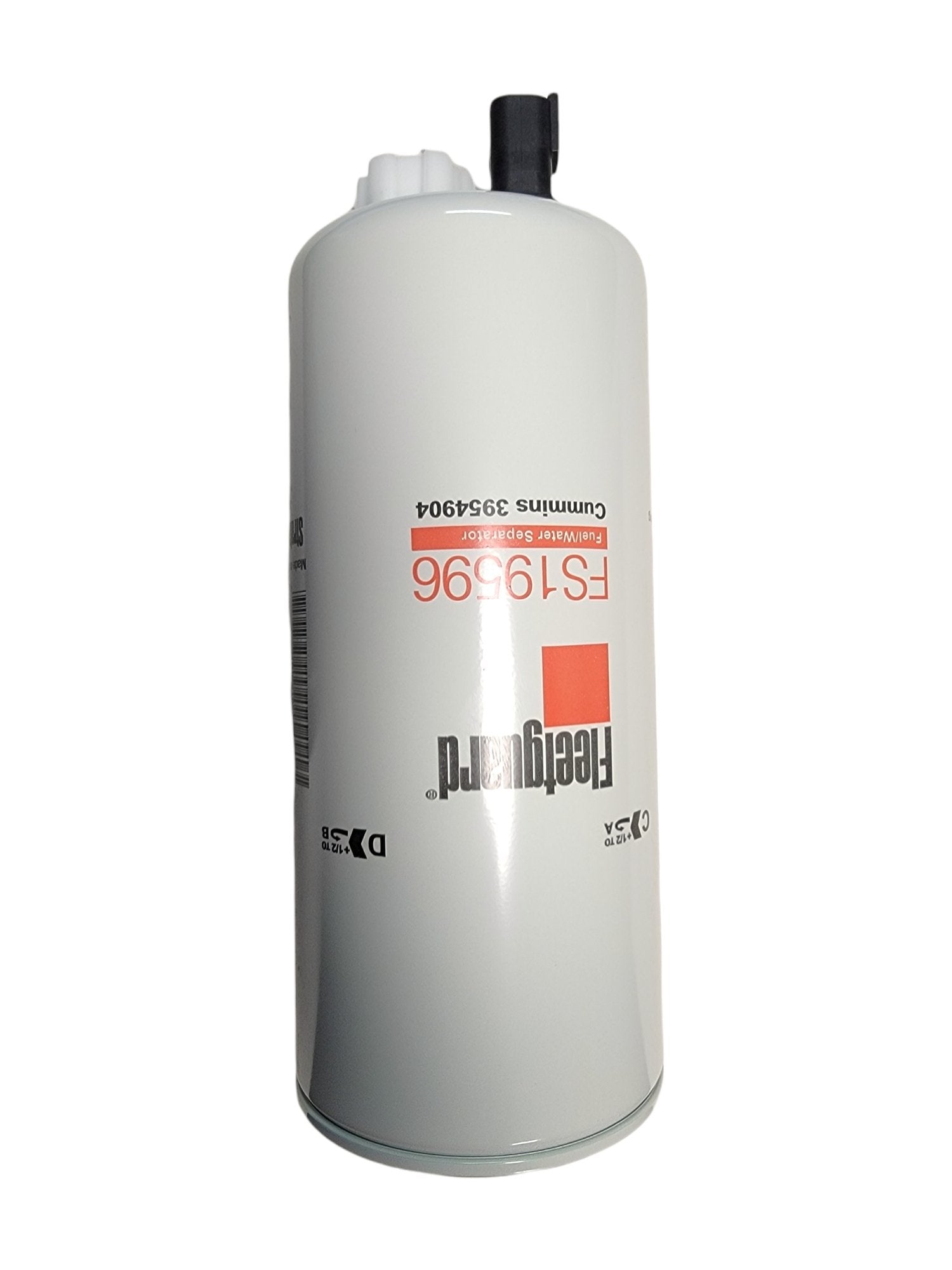

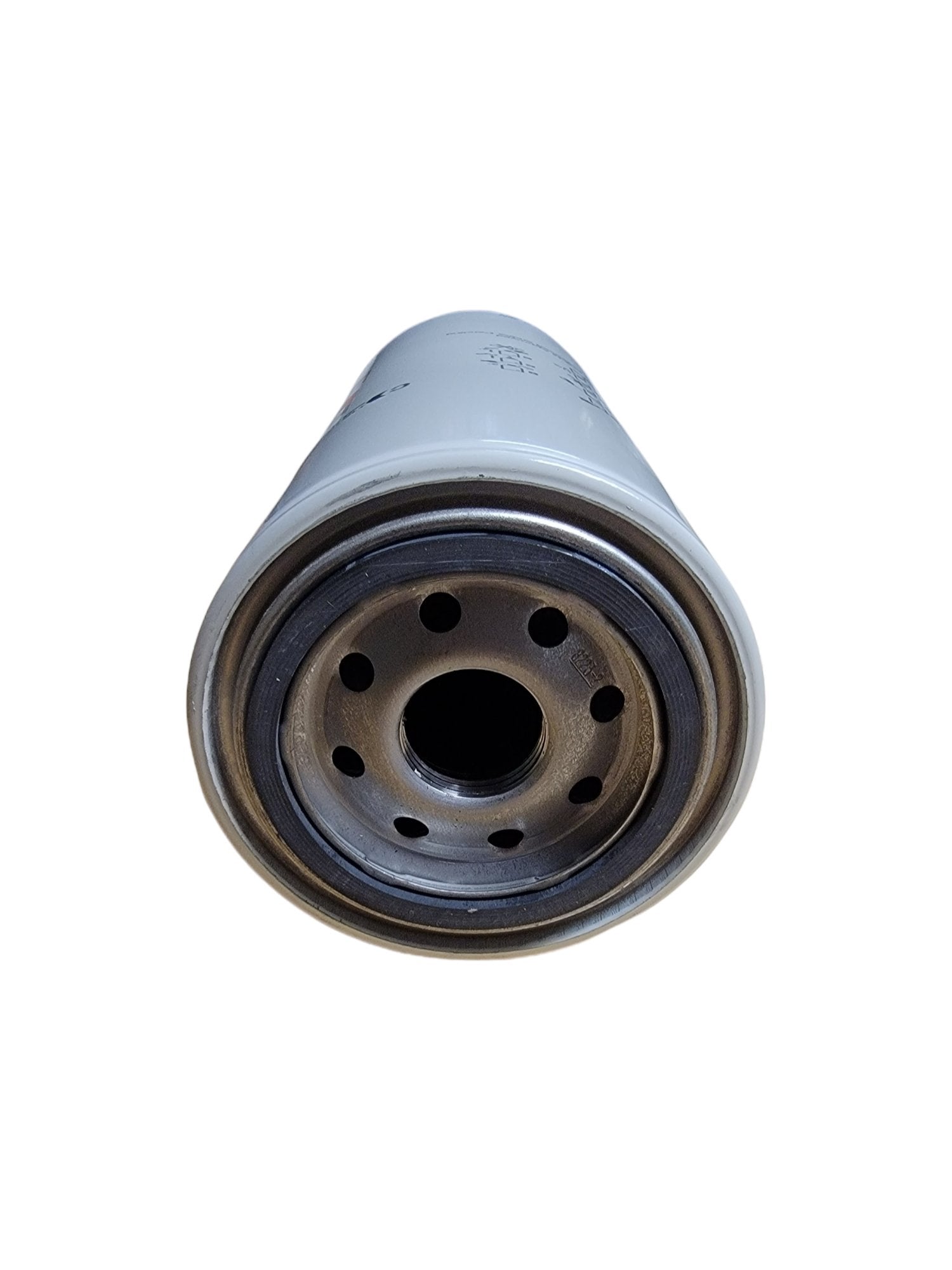

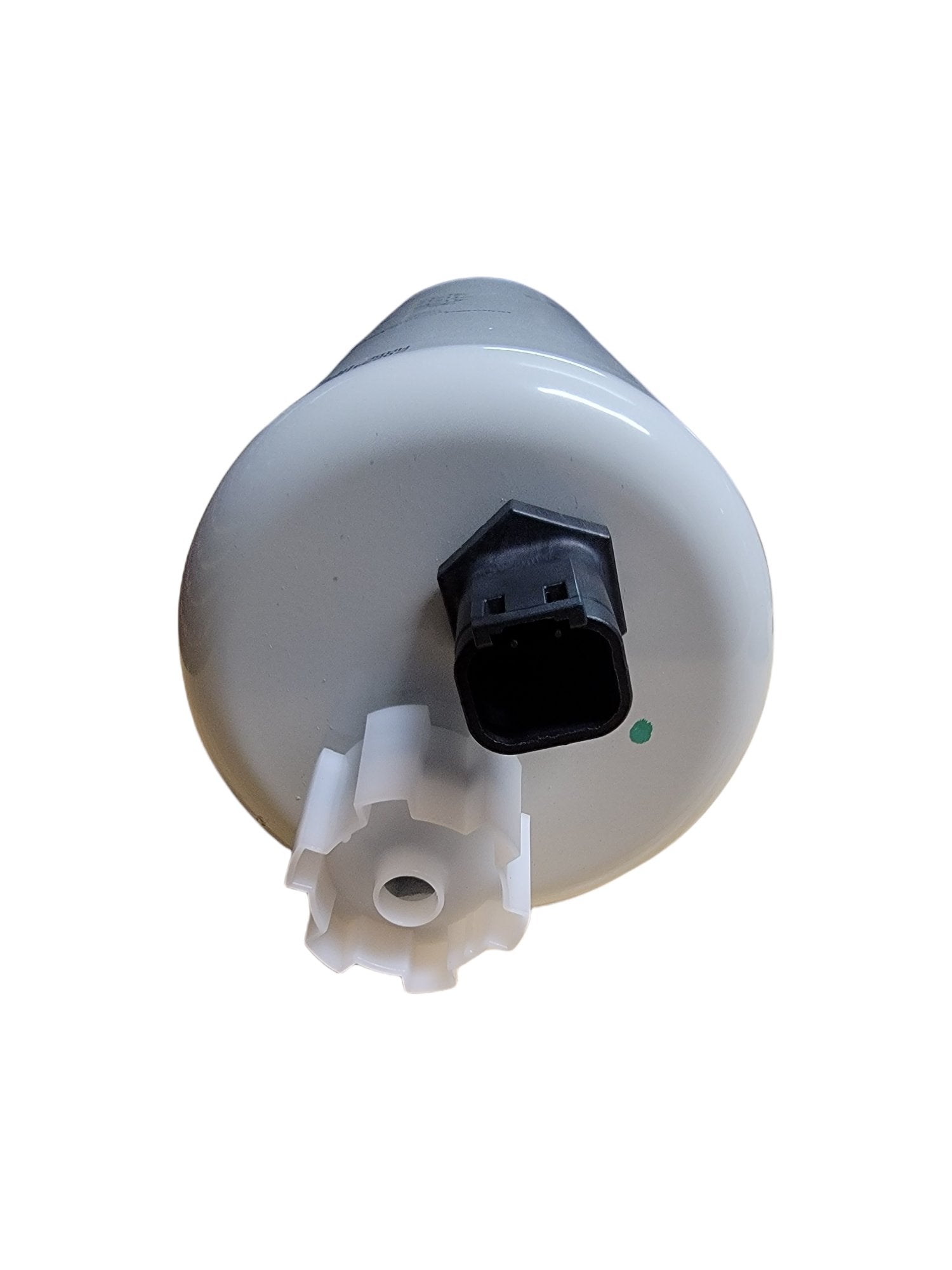

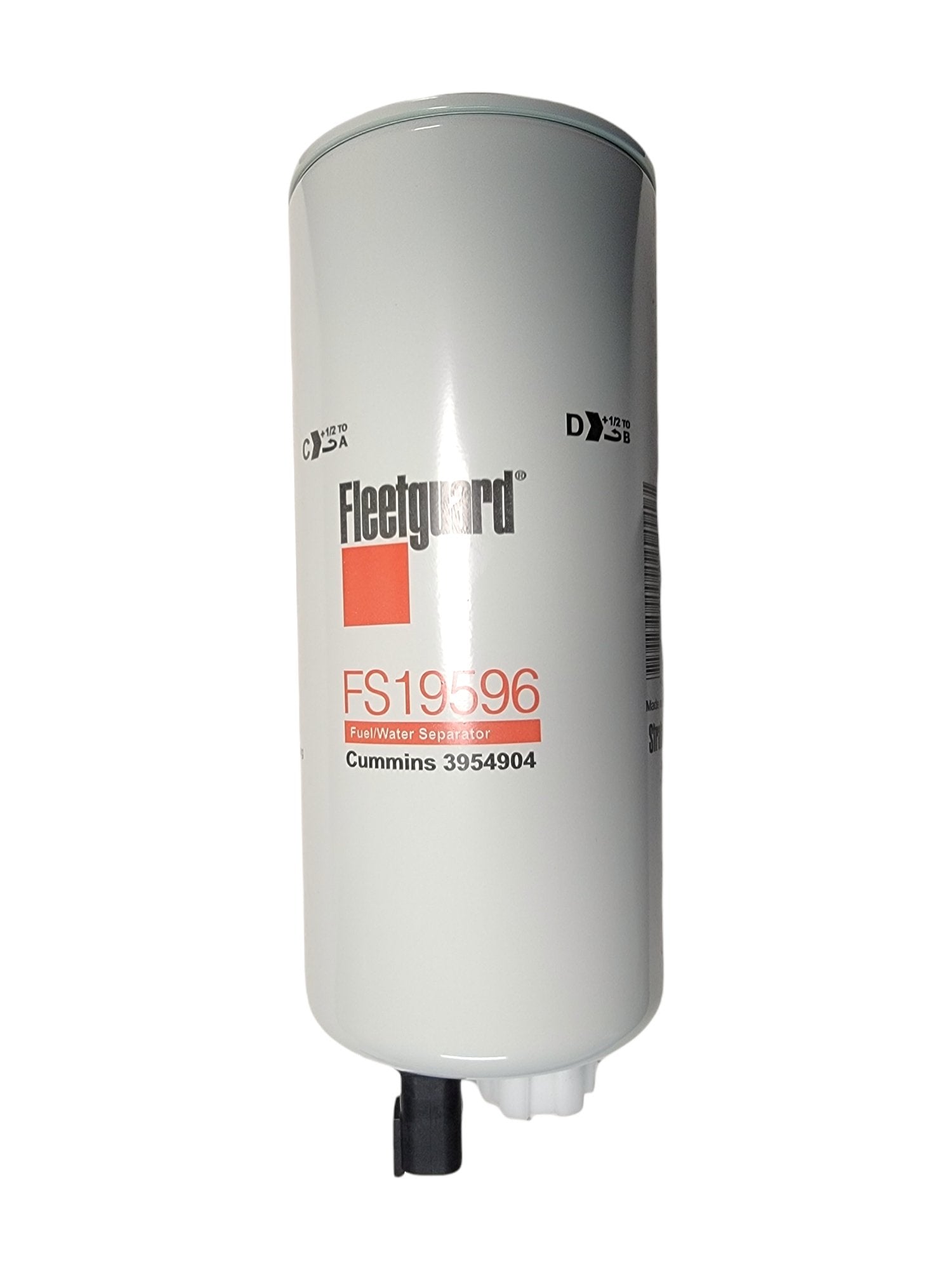

Fleetguard FS19596 Fuel Filter Upgraded Version Of Fleetguard FS1003

Fleetguard FS19596 is the StrataPore upgrade of the original FS1003, a spin-on fuel/water separator with integrated WIF sensor port for Cummins B-series, ISB, QSB, and 4BT 3.9 applications. The 7-micron StrataPore media delivers 98.7% efficiency per SAE J1985 (versus 10-micron on the FS1003), with 95% emulsified water separation. It replaces Cummins 3954891 with the same 1-14 UNS-2B thread, 9.78 in length, and 3.69 in OD as the OE filter.

Signs You Need a New Fuel Filter

• Loss of power under load or extended cranking on cold start
• Water-in-fuel light illuminated
• Engine hesitation, surging, or rough idle
• Reduced fuel economy
• Service interval reached (typically 250–500 hours / one season)

Specifications

Cross References

This filter replaces or is equivalent to the following part numbers:

• Cummins: 3954891, 3954904
• Baldwin: BF1293-SPS
• Donaldson: P551103
• Wix: 33604XE
• Napa Gold: 3604XE
• Luber-Finer: LFF1003
• Atlas Copco: 5580010914
• Ingersoll-Rand: 22637904
• Fleetguard family: FS1003 (10-micron predecessor)

Applications

This fuel/water separator fits the following engines:

• Cummins 4BT 3.9L (industrial / agricultural)
• Cummins 6BT 5.9L 12V / 24V (1989–2002)
• Cummins ISB 5.9L (mechanical and electronic, 1998–2007)
• Cummins QSB 5.9L / 6.7L (industrial / marine)

Representative vehicles and equipment using these engines:

• Industrial gensets and air compressors with B / 4BT power (Atlas Copco, Ingersoll-Rand)
• Case / New Holland tractors and skid steers with B-series Cummins
• Cummins-powered marine pleasure craft and patrol boats with QSB
• Stationary irrigation and pump-set engines

The FS19596 fits the same housing as FS1003 with finer filtration. Verify the WIF sensor configuration on your filter head before ordering.
