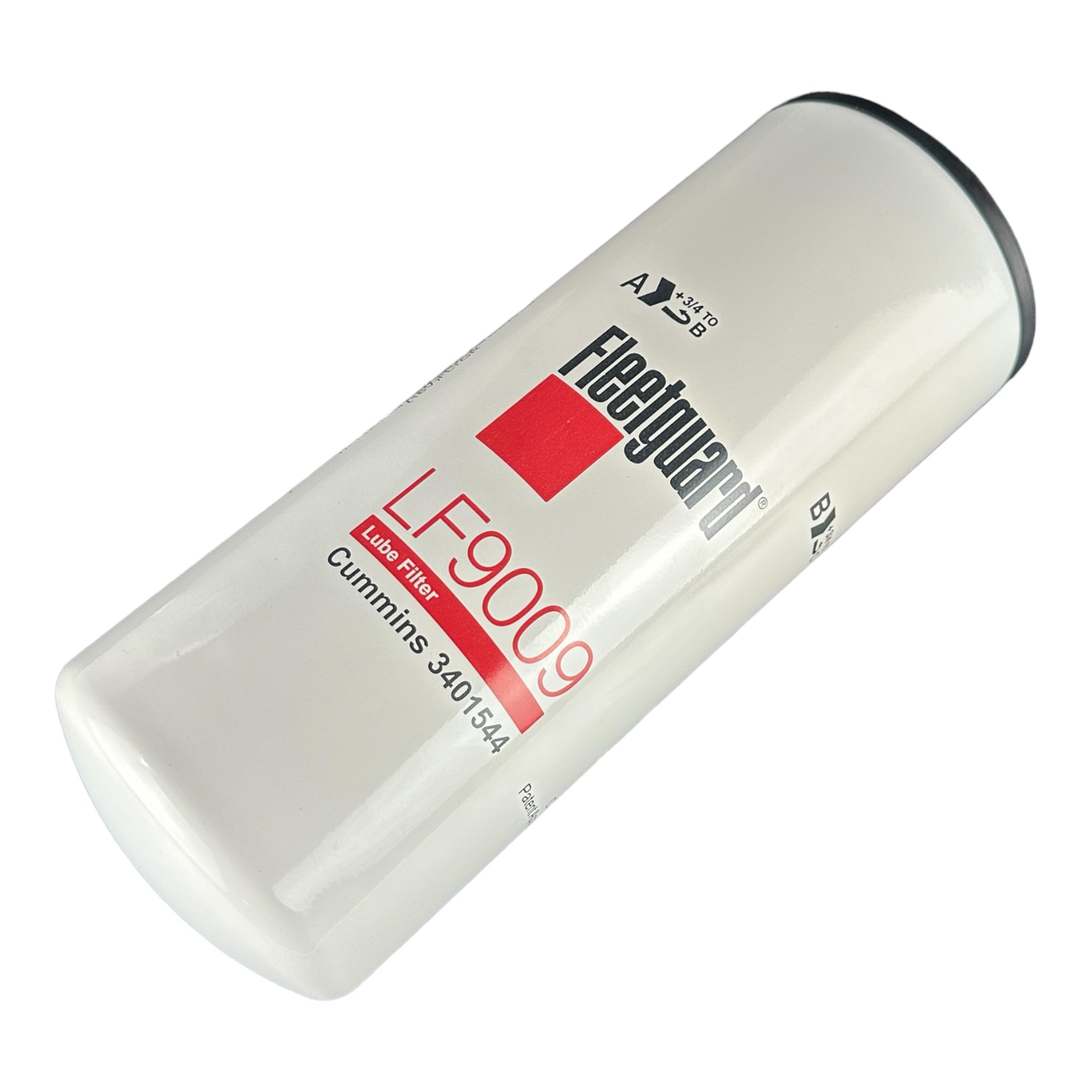

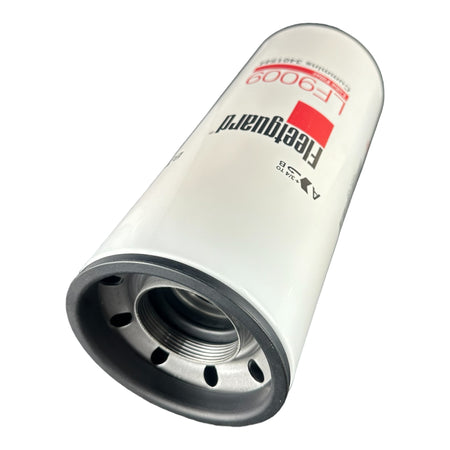

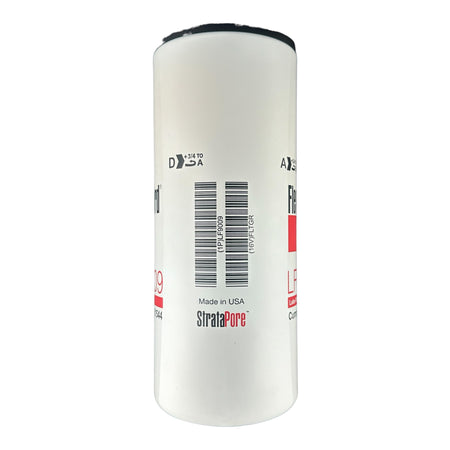

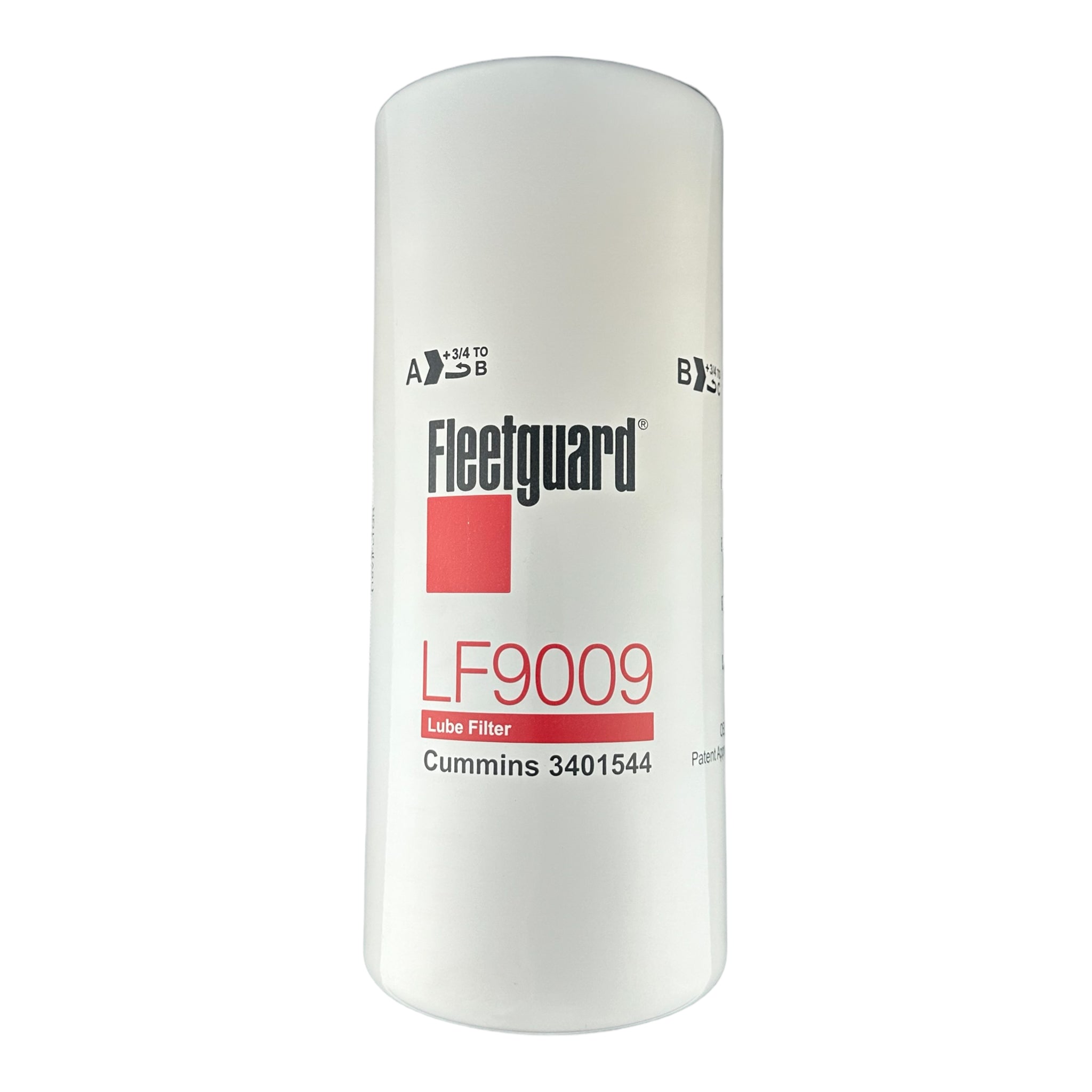

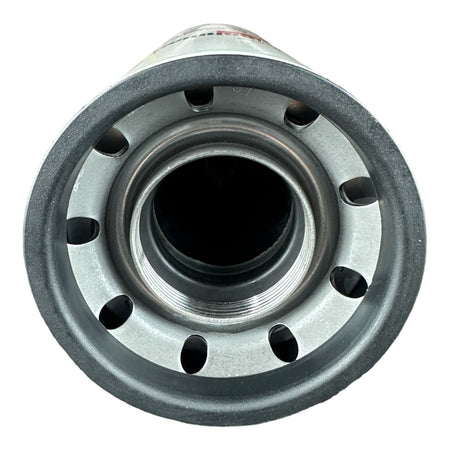

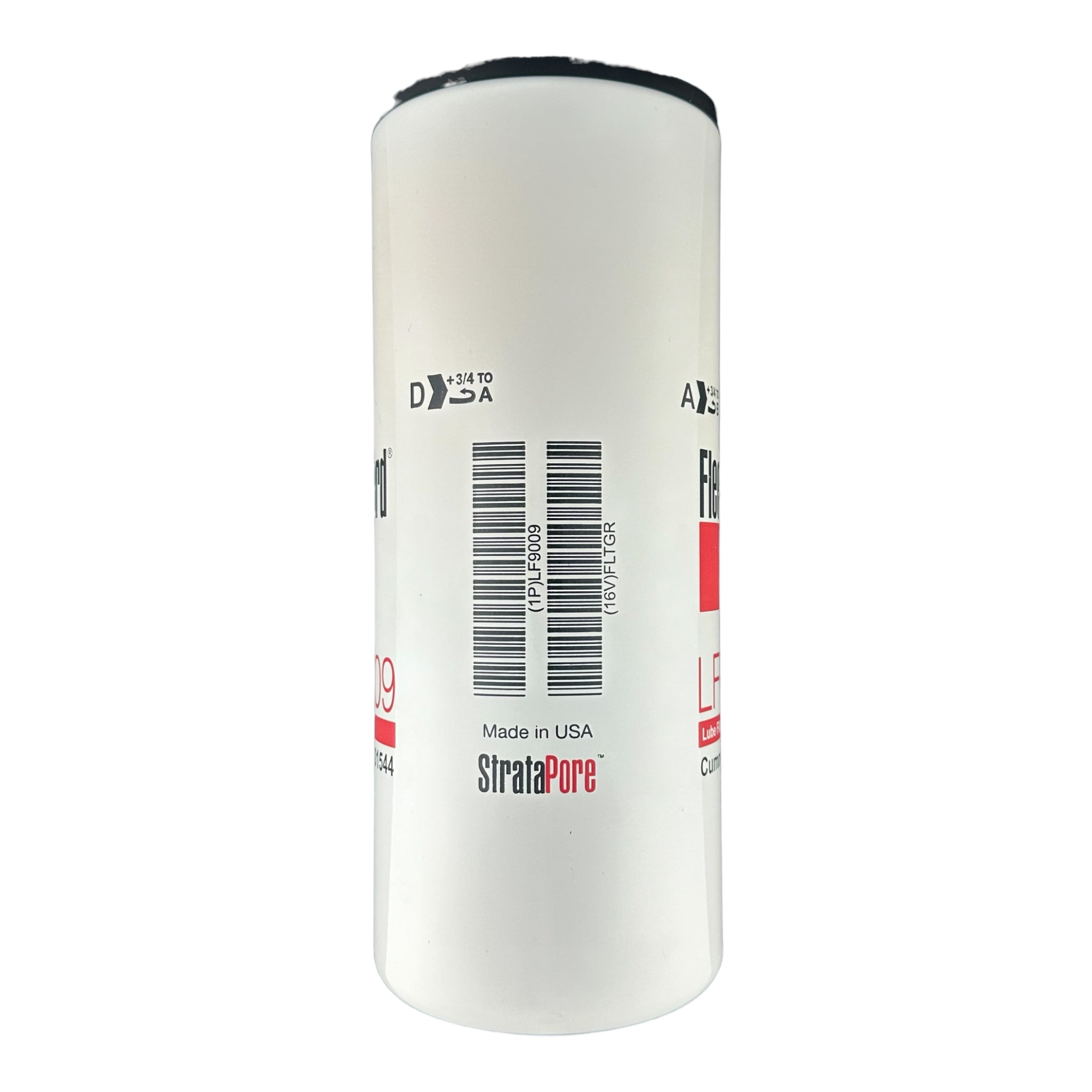

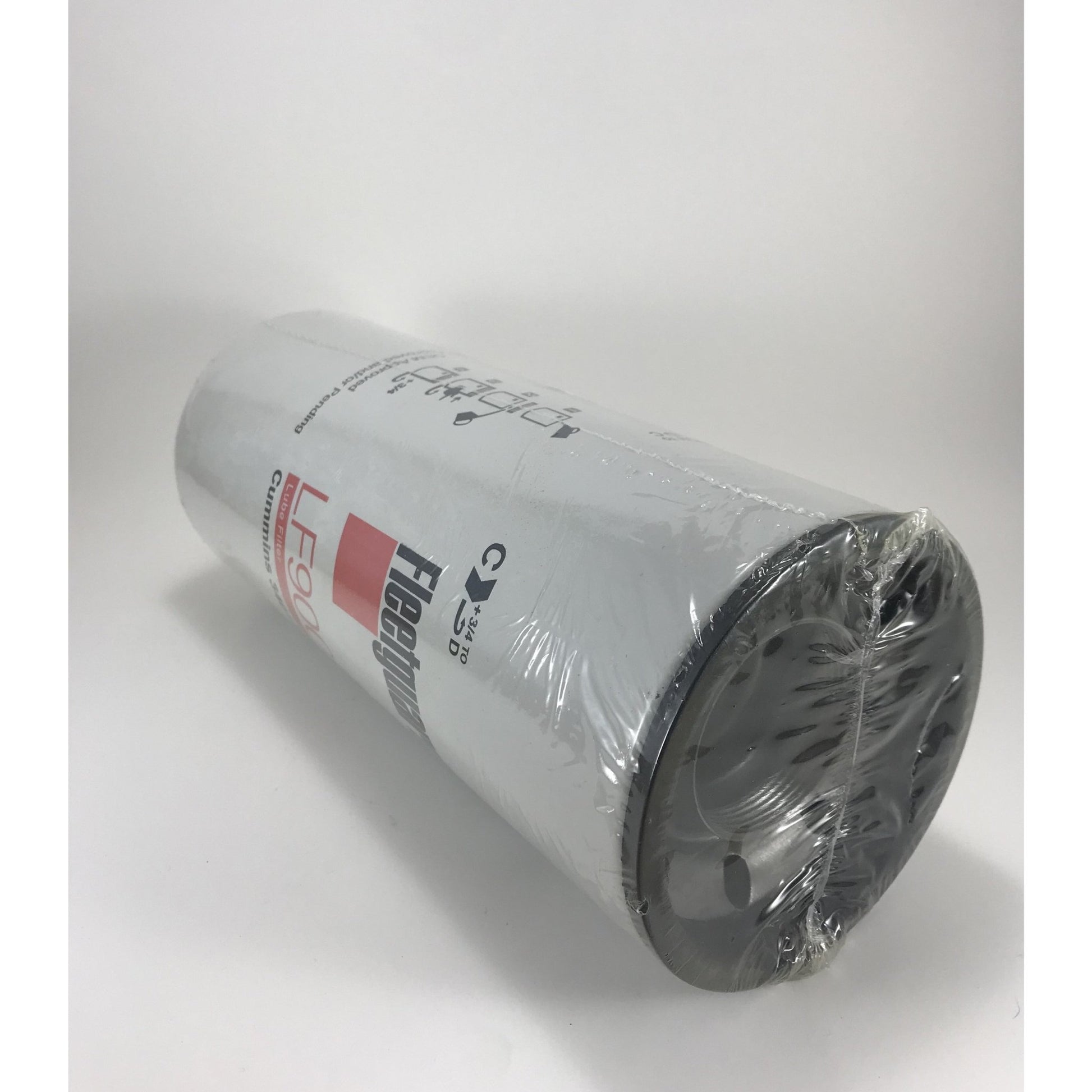

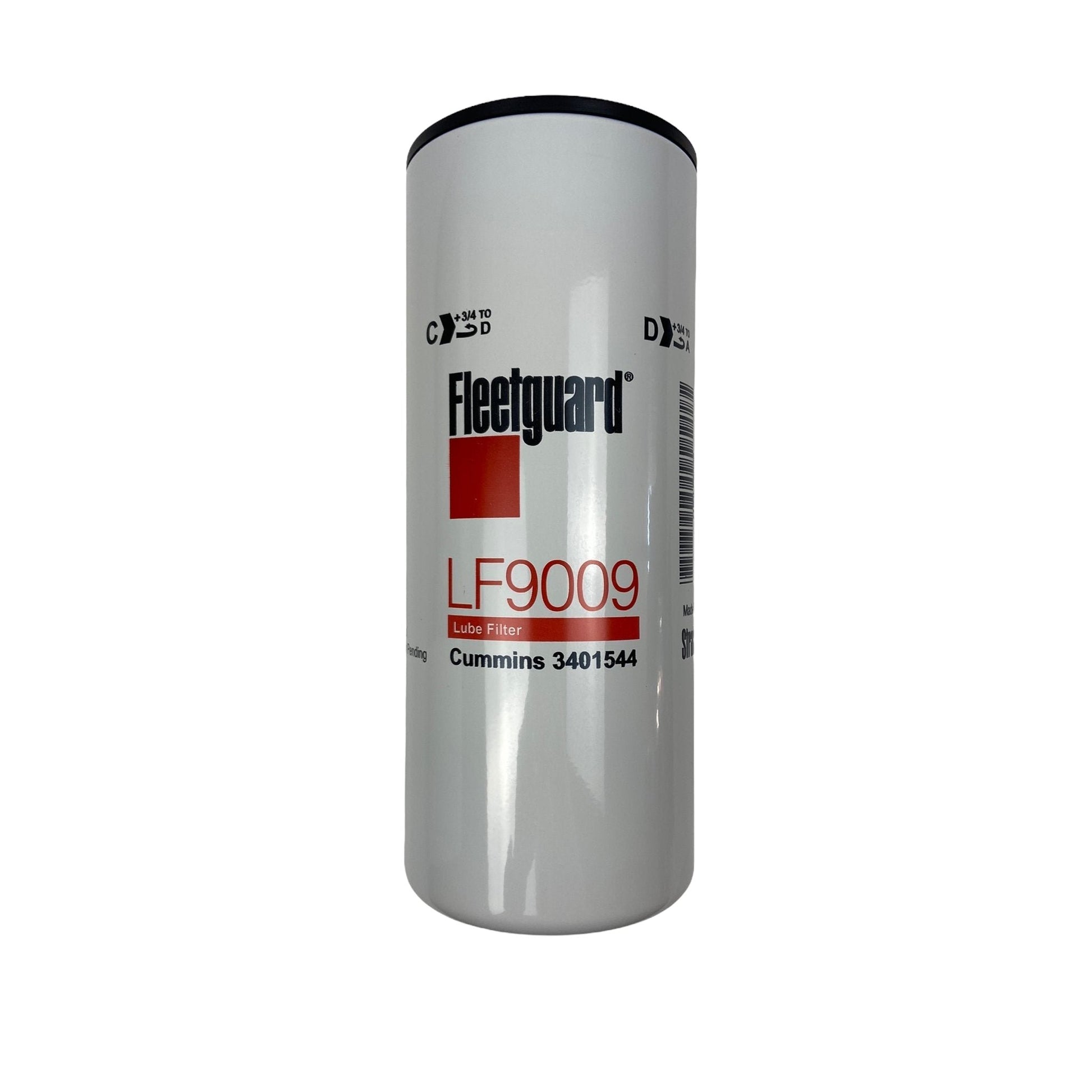

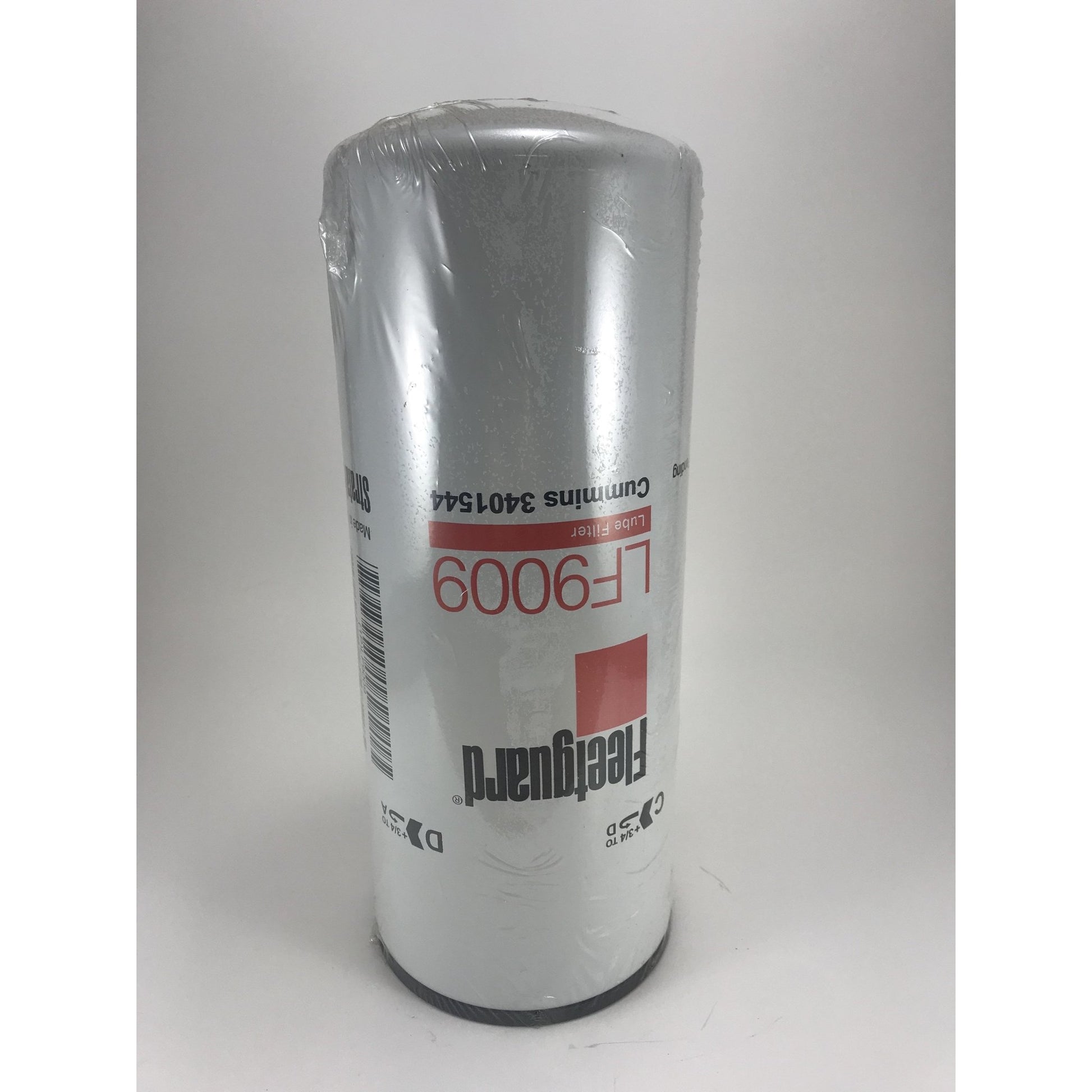

Fleetguard LF9009 Oil Filter, Replaces LF3000 with Stratapore/Venturi Technology

The Fleetguard LF9009 oil filter replaced the LF3000 oil filter with Fleetguard's patented Stratapore / Venturi combo that allows for 3 times more contaminant removal than full flow filtration. The patented Venturi nozzle creates a low-pressure zone to help oil flow efficiently through the stacked-disc section, then the nozzle diffuser maximizes the flow through Stratapore filter media for minimum total-filter restriction. Maximizing oil flow is key when it comes to protecting your engine.

We also care the LF14009, the upgraded version of the LF9009.

If you notice overheating, low oil pressure and your due for a service a good place to start is checking out your oil filter(s). It could be any number of issues, one of them being a clogged oil filter. A comparatively cheap, simple solution can turn in to a costly fix. Cummins Filtration Fleetguard is the OEM manufacturer of filtration for Cummins engines.

LF9009 Specs:

Largest OD - 4.66 inch
Gasket Inside Diameter - 4.01 inch
Seam OD - 4.68 inch
Length - 11.88 inch
Gasket OD - 4.68 inch
Efficiency - 0.987

LF9009 Cross References:

Baldwin BD7309
Cummins 3401544
Napa 7500
Wix 51748XD
Fleetguard LF3000 (Older version of LF9009)
Fleetguard LF14009NN(Nanonet upgrade of the LF9009)
Cummins 5476383
Cummins 3401544
Cummins 5297157
Cummins 5586832
Cummins XLF75000
Jcb 2910965
Zhengzhou Yutong Group 101200146
Manitou A104130
Manitou 4136530
Terex / Terex Advance 6002338
Terex / Terex Advance 15500272
Cummins Power Generation 1220856
Guangxi Liugong Machinery 53C0053
New Holland 84465096
New Holland 441703A1
New Holland 73188091
New Holland 76194691
Dongfeng Automobile Company JLX350C
Agco 72516560
Atlas Copco 2653161527
Atlas Copco 5580006641
BMC Trucks 9P911099
Bomag 31710199
Daewoo 47400023
Daewoo 65055105023
Doosan 65055105023B
Doosan 974000233
Dressta 851011975
Dynapac 945948
FIAT HITACHI 76194691
Ford BG2X6731CA
Furukawa 3381644H1
Hitachi 4470720
Hitachi E0A000080
Hyster 1513759
Hyundai 11NA70110
Hyundai YUBP00302
Ingersoll-Rand 22177737
Ingersoll-Rand 53161527
Ingersoll-Rand 57521098
John Deere AT193242
John Deere PMLF9009
Kassbohrer 83121050030
King Long 299006635
Komatsu 21M0111510
Komatsu 6742014540
Komatsu CULF9009
Liebherr 10015462
Mc Cormick 707154A1
Orenstein & Koppel 1487676
Ppm V2650585
Ppm X6350551
Sennebogen 157835
Sisu 1216400561
Solaris Bus 120390054
Tata 220018139901
Tec-Fil PSL909
Versatile 86029587
Volkswagen 2T0115561
Volvo 14503824
Volvo 22497303
Wirtgen 195743
Scania 2059778
Miller 21.41068

LF9009 Applications:

Cummins ISC 8.3L
Cummins ISL 9.0L
Cummins ISM
Cummins N14
Cummins QSL 9.0L
Cummins NTA 855
Cummins M11
