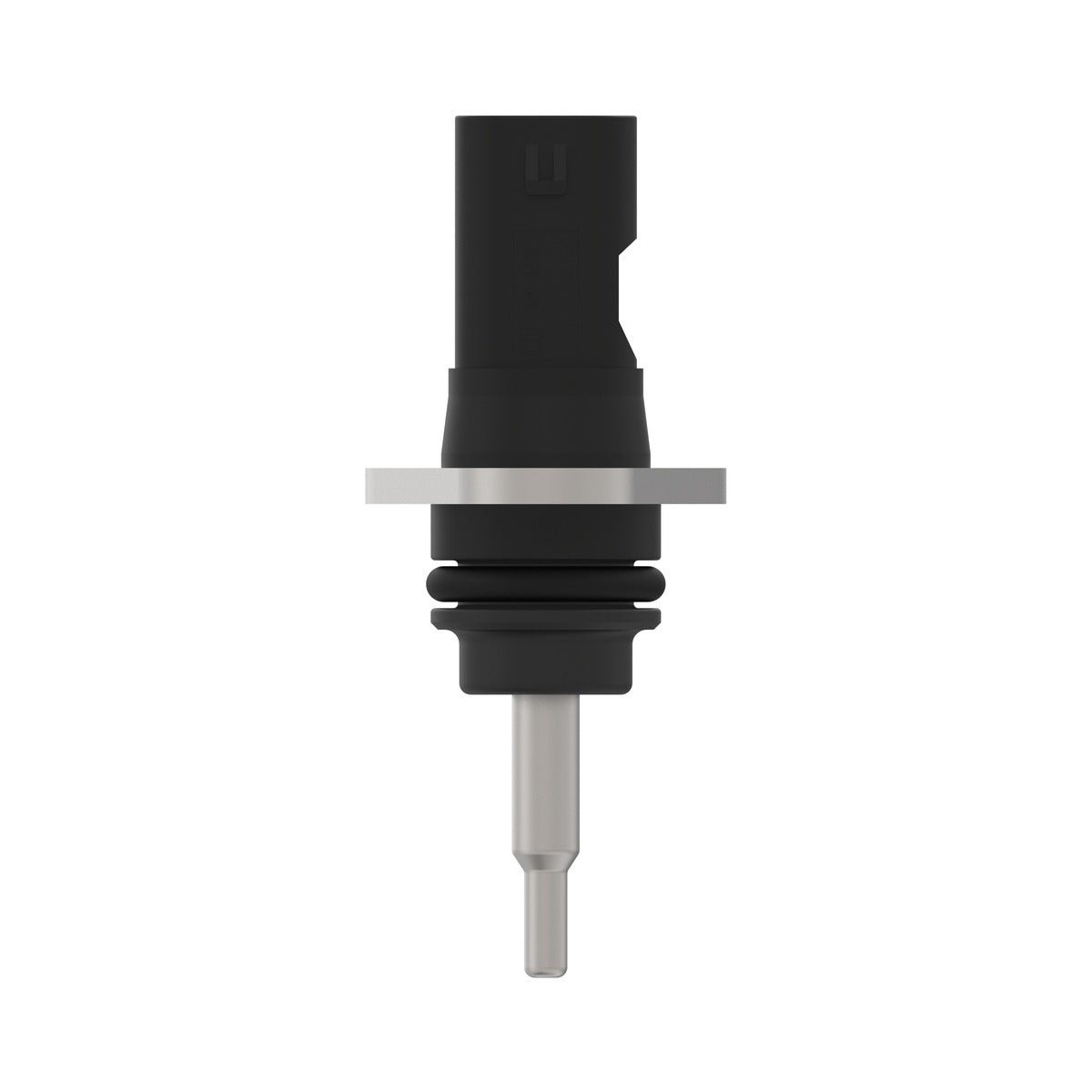

Freightliner A0111536728 Intake Air Temperature Sensor – DD13 DD15 DD16

The Freightliner A0111536728 is a genuine OEM intake air temperature (IAT) sensor designed for Detroit Diesel DD13, DD15, and DD16 engines. This critical sensor monitors the temperature of air entering the intake manifold and transmits real-time data to the Engine Control Module (ECM). The ECM uses this information to optimize air/fuel mixture ratios, adjust ignition timing, and manage turbocharger boost pressure for maximum engine efficiency, performance, and emissions compliance across EPA07, EPA10, and GHG17 emission standards.

Signs You Need a New Intake Air Temperature Sensor

• Check engine light with intake manifold temperature fault codes (SPN 1636)
• Engine derate or reduced power condition
• Poor fuel economy or excessive fuel consumption
• Rough idle or hesitation during acceleration
• Black smoke from exhaust indicating rich fuel mixture
• Hard starting, especially in cold weather
• Erratic temperature readings in diagnostic software
• Engine running too rich or too lean

Specifications

Cross References

This intake air temperature sensor replaces or is equivalent to the following part numbers:

• Detroit Diesel / Freightliner: A0111536728, DDE A0111536728, A0091538928 (superseded)

Engine Applications

This IAT sensor fits the following Detroit Diesel engines:

• Detroit Diesel DD13 – 12.8L, EPA07, EPA10, GHG14, GHG17
• Detroit Diesel DD15 – 14.8L, EPA07, EPA10, GHG14, GHG17
• Detroit Diesel DD16 – 15.6L, EPA07, EPA10, GHG14, GHG17

Vehicle Applications

These engines are found in the following vehicles:

• Freightliner Cascadia – 2008-2024
• Freightliner Coronado – 2013-2020
• Freightliner 122SD – Select models with DD13/DD15
• Western Star 5700XE – 2016-2022
• Western Star 4900 – Select models with DD13/DD15/DD16
• Western Star 49X – Select models with DD13/DD15/DD16

How the Intake Air Temperature Sensor Works

The intake air temperature sensor is a thermistor-based sensor that changes electrical resistance based on the temperature of the air flowing through the intake manifold. As air temperature increases, the sensor's resistance decreases, sending a corresponding voltage signal to the ECM. The ECM uses this data along with other sensor inputs to:

• Optimize Fuel Injection: Adjusts fuel delivery based on air density – cooler air is denser and requires more fuel for proper combustion
• Control Boost Pressure: Manages turbocharger output based on intake air conditions
• Manage EGR System: Coordinates exhaust gas recirculation with intake air temperature for emissions compliance
• Protect Engine Components: Triggers derates or warnings if intake temperatures exceed safe limits

Common Fault Codes

A failing intake air temperature sensor may trigger the following diagnostic trouble codes:

• SPN 1636 FMI 3: Intake Manifold Temperature Circuit Failed High
• SPN 1636 FMI 4: Intake Manifold Temperature Circuit Failed Low
• SPN 1636 FMI 10: Intake Manifold Temperature Sensor Signal Erratic

Installation Notes

• Disconnect battery before removing the old sensor
• Locate the IAT sensor on the intake manifold
• Disconnect the electrical connector and remove the sensor
• Install new sensor and torque to specification
• Reconnect electrical connector – plug-and-play design requires no wiring modifications
• Clear fault codes with diagnostic software after installation
• Verify proper sensor operation with live data readings

Verify your engine serial number and emissions certification level before ordering to confirm fitment. Sensor part numbers may vary between EPA07, EPA10, and GHG17 engine builds.
