Genuine Williams Controls 340000 Throttle Position Sensor Kit

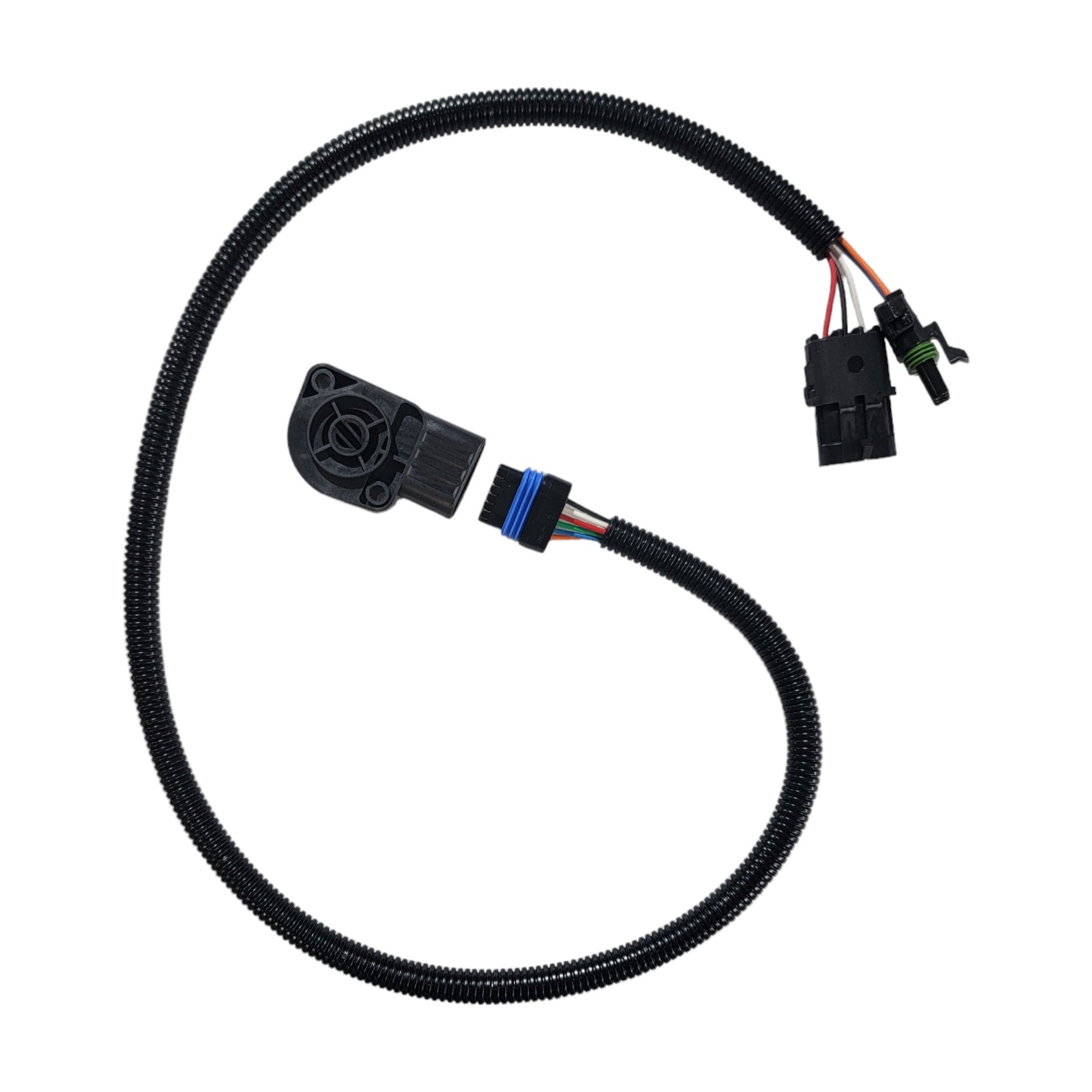

Genuine Williams Controls 340000 is the current OEM throttle position sensor kit for Williams Air Controls electronic throttle pedals 351375, 351376, and 351377 (pre-1998 Cummins applications), replacing the legacy Williams Controls 133313 sensor. The kit ships with the integrated sensor (Williams 131040) plus the wire harness and clamp needed to retrofit a sensor-only failure without changing the entire pedal assembly.

Specifications

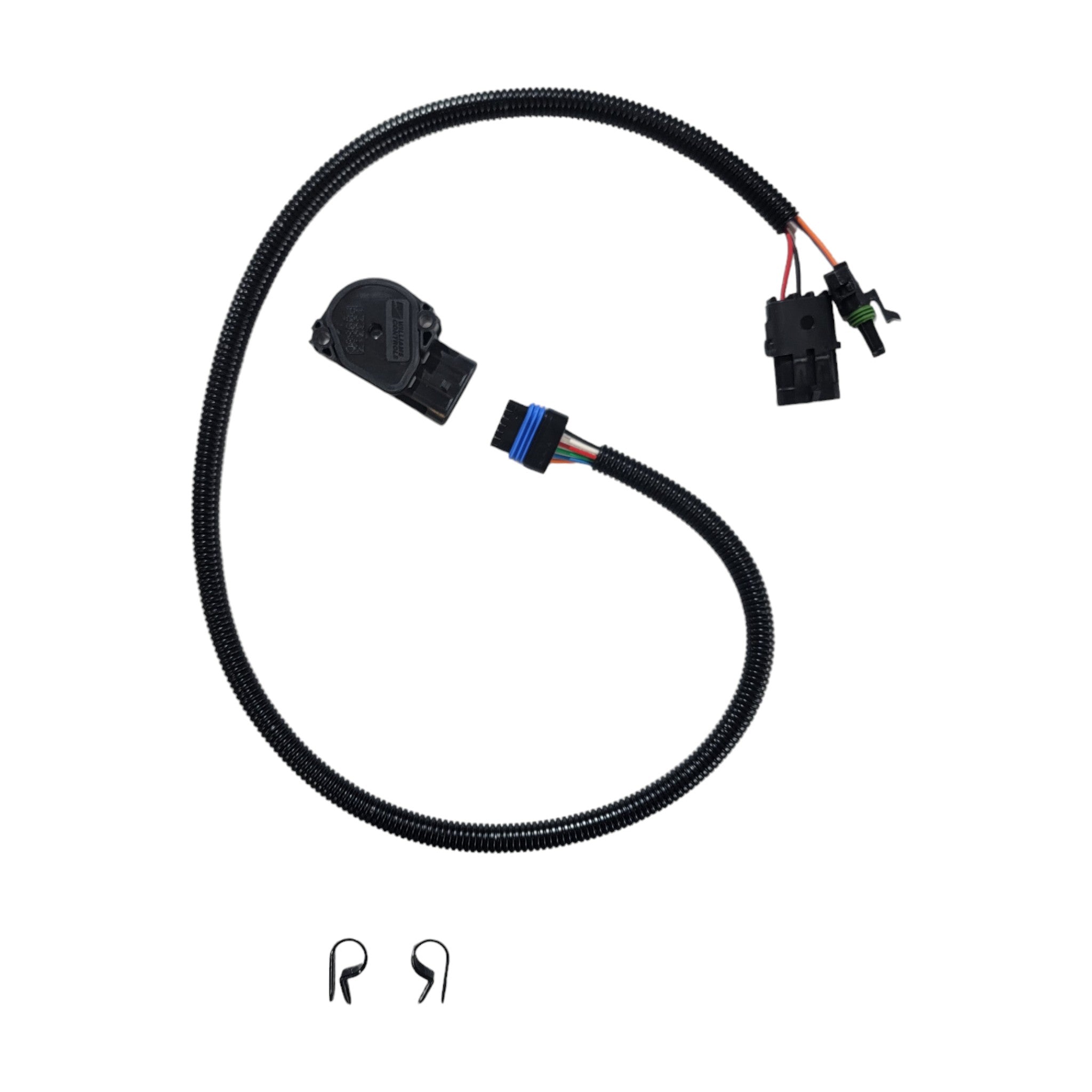

Kit Includes

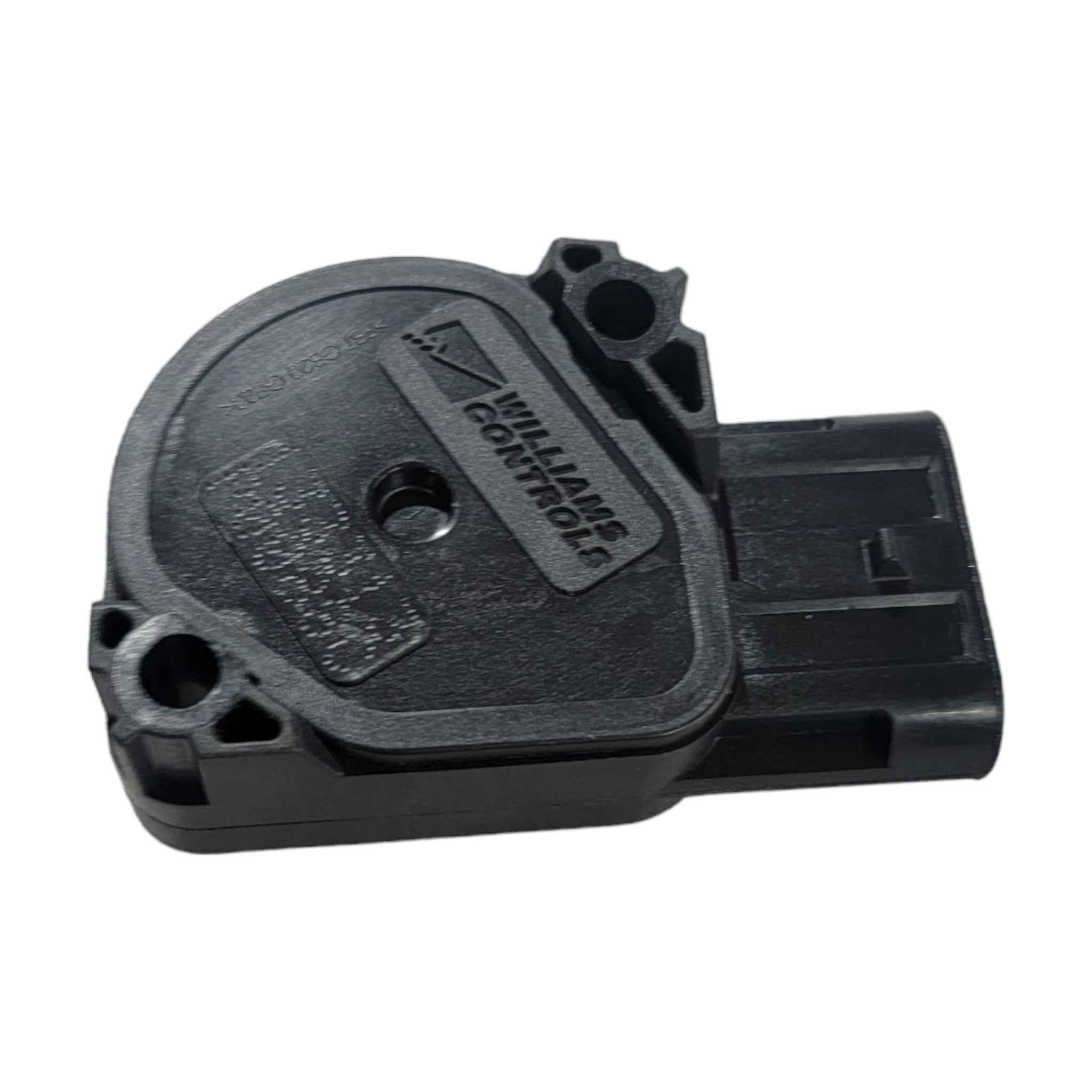

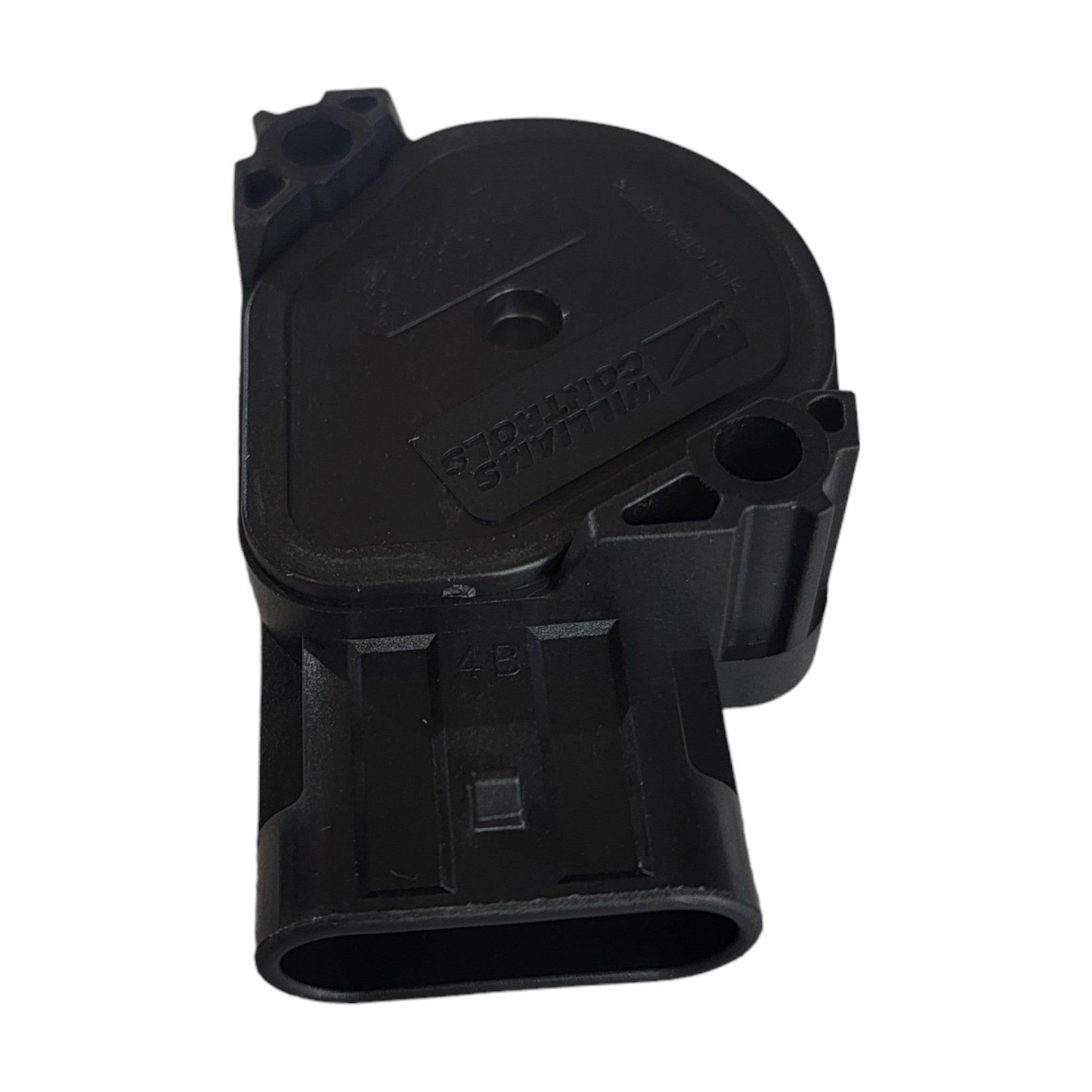

• Throttle position sensor — Williams 131040 (qty 1)
• Wire harness with clamp (qty 1)
• Mounting bracket and hardware (qty 1 set)

Cross References

This TPS kit replaces or is equivalent to the following part numbers:

• Williams Controls (Current): 340000
• Williams Controls (Superseded): 133313
• Navistar / Other: N8888447

Applications

This TPS kit fits the following Williams Air Controls electronic throttle pedal assemblies:

• Williams Air Controls 351375 (electronic foot pedal)
• Williams Air Controls 351376 (electronic foot pedal)
• Williams Air Controls 351377 (electronic foot pedal)
• Pre-1998 Cummins (Celect / Celect Plus) chassis using the Williams 351375 / 376 / 377 pedal

Verify your pedal assembly part number (cast on the side of the pedal body) and the existing sensor part number before ordering. The 340000 kit is a sensor-only service replacement and does not include the pedal arm or housing.
