Haldex 2" Hinged Clutch Brake⎪BK313

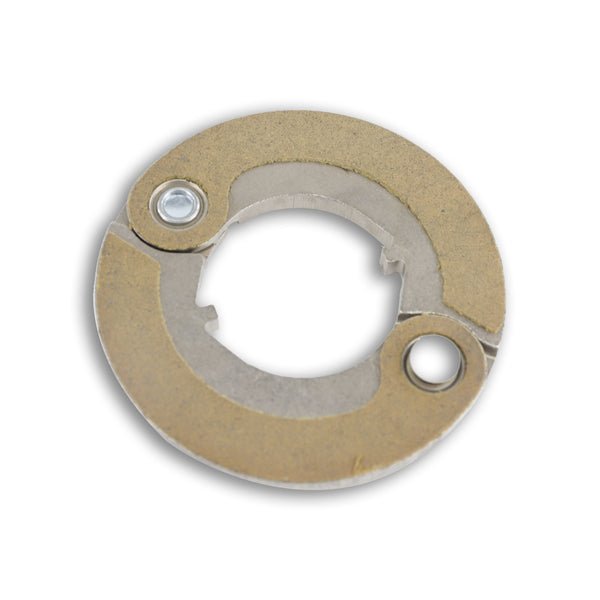

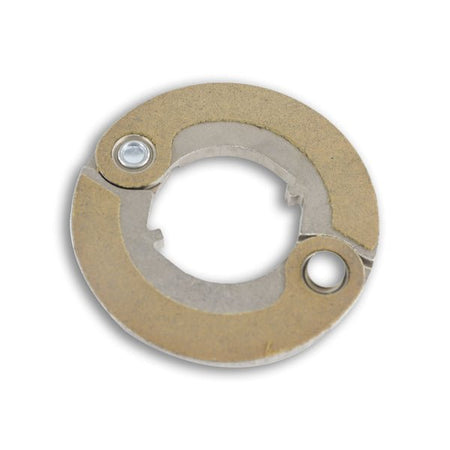

2-inch input-shaft hinged clutch brake for Eaton Fuller heavy-duty transmissions. The Haldex BK313 uses a split, two-piece hinge design so it can be wrapped around the transmission input shaft without separating the transmission from the clutch — a major labor saver versus a one-piece replacement. Replaces Eaton 127760, 127175, 127200, 12720020, and the 311/312/313/1393 service number family.

Signs You Need a New Clutch Brake

• Hard or impossible engagement into 1st or reverse from a standstill
• Gear clash on engagement after the clutch pedal is fully depressed
• Premature wear on synchronizers / blocking rings
• Driver reports that the truck "won't go into gear" with engine idling

Specifications

Cross References

This clutch brake replaces or is equivalent to the following part numbers:

• Eaton / Fuller: 127760, 127175, 127200, 12720020, 1393, 311, 312, 313
• Power Products: 313P, 313PS, SB200, BK313, BK311, BK312
• Midland: BK313, MIDBK313
• Phillips / TT: TT-537, A537, A537BP

Applications

This clutch brake fits Eaton Fuller manual transmissions with a 2" input shaft, including:

• Class 7-8 on-highway tractors with Eaton RT/RTO/RTLO/RTOO 9-, 10-, 13-, and 18-speed transmissions
• Vocational and severe-service trucks running 2"-input Eaton manual gearboxes

Confirm the input shaft diameter (1-3/4" vs 2") before ordering. The two-piece hinged design installs through the throw-out bearing window — release bearing must be retracted for installation.
