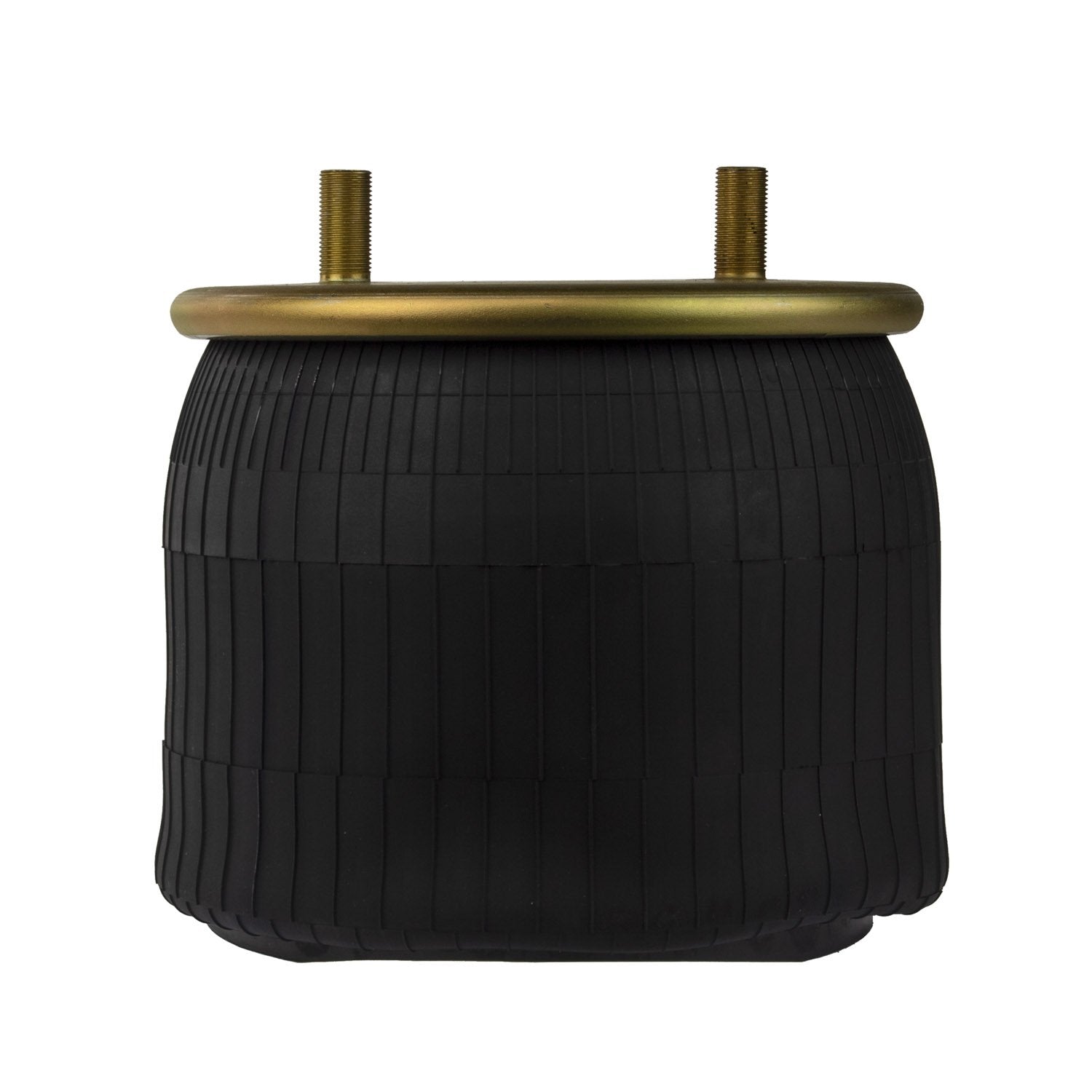

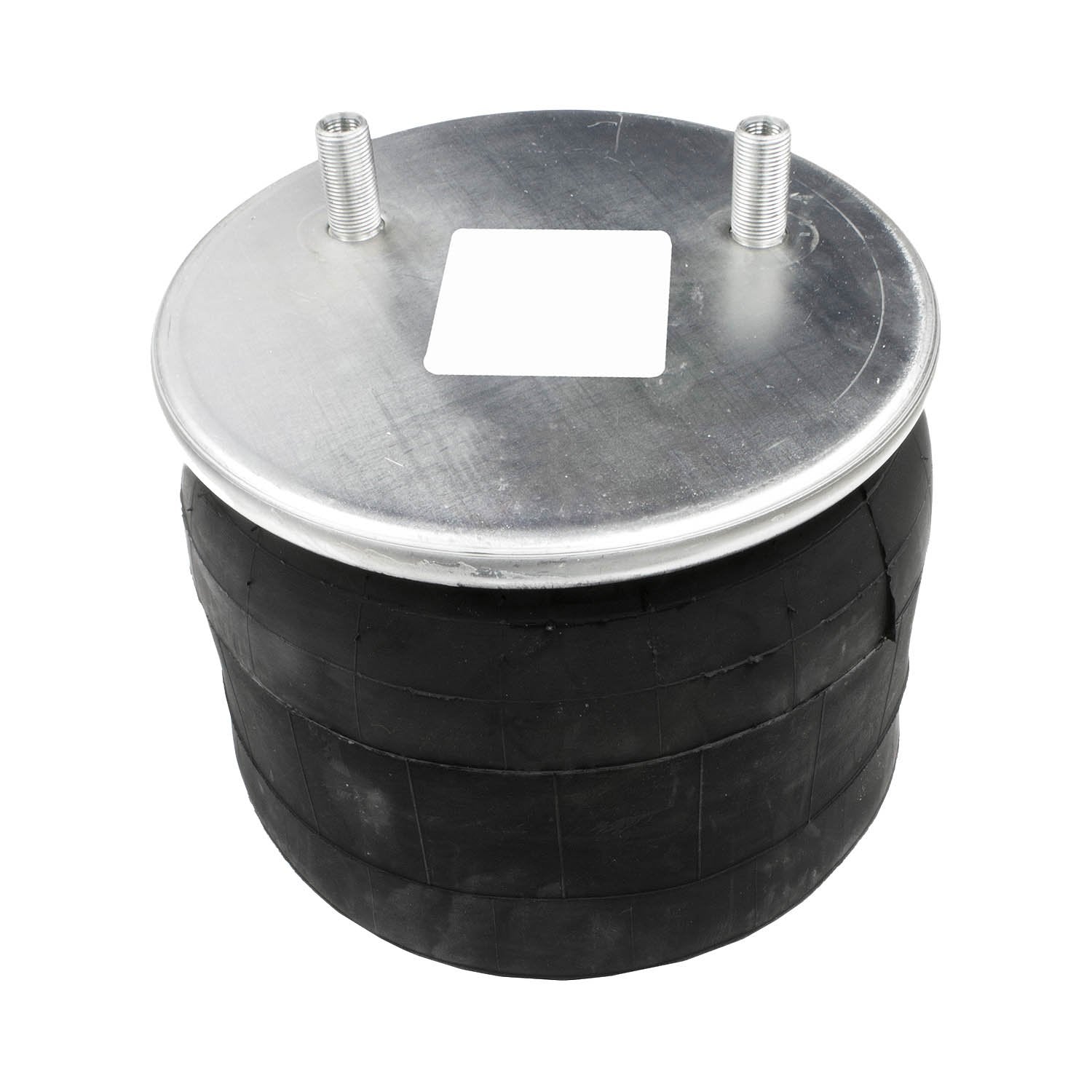

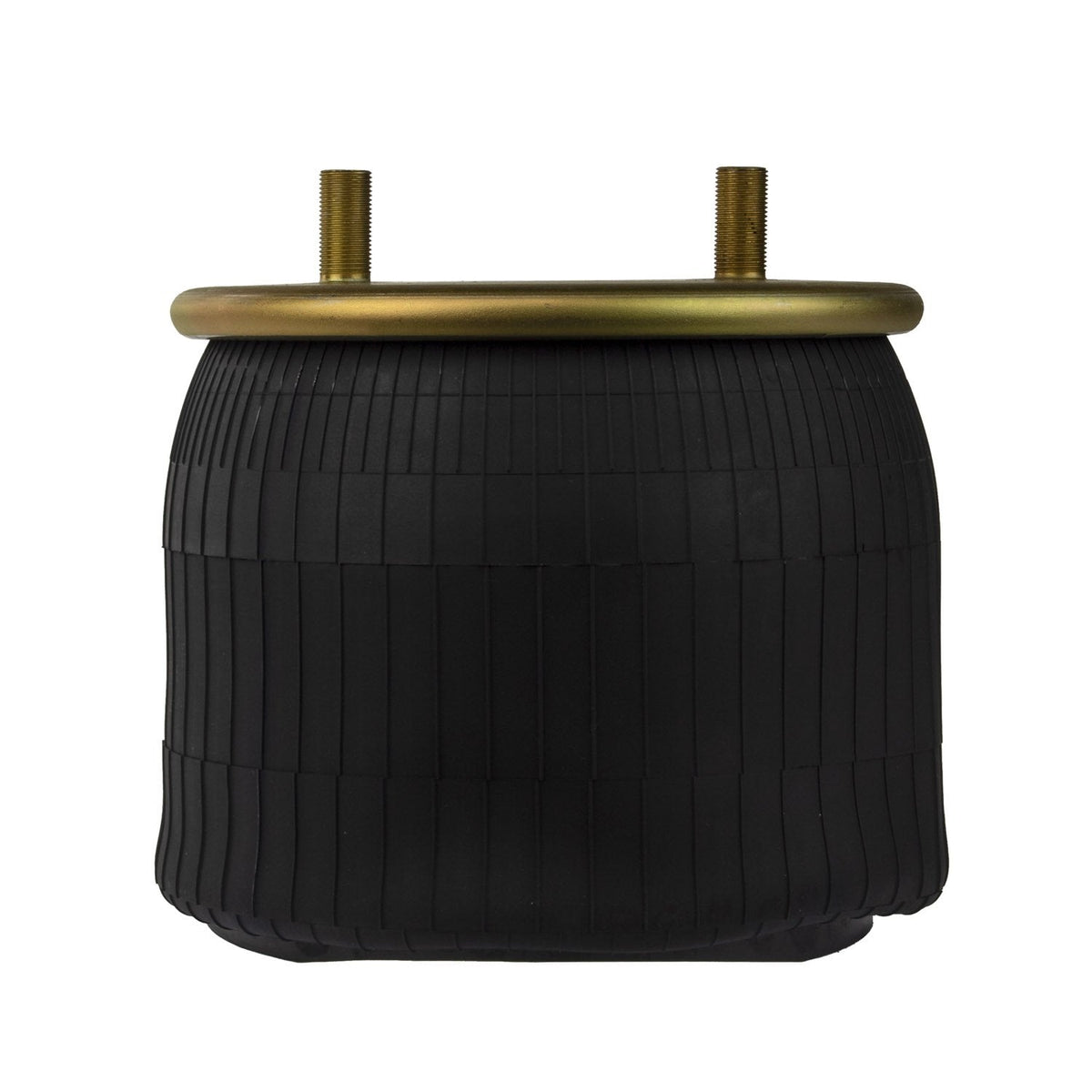

HD Value HDV8709⎪Replaces ContiTech AS8709 ^Sale

World American Air Spring WA01-8709C

Model/Style: Rolling Lobe
Bottom Plate Alignment: Parallel
Bottom Plate Center to Center Diameter: 2.25 (Inch)
Bottom Plate Diameter: 9.17 (Inch)
Bottom Plate Hole Quantity: 1
Bottom Plate Type: A
Design Height: 10 (Inch)
Load Rating at 100 PSI: 9250 (Pound)
Load Rating at 80 PSI: 7400 (Pound)
Maximum Diameter: 13.9 (Inch)
Maximum Height: 19.3 (Inch)
Minimum Height: 4.9 (Inch)
Natural Frequency: 81
Spring Type: Rolling Lobe
Top Plate Center to Center Diameter: 5.5 (Inch)
Top Plate Diameter: 10.2 (Inch)
Top Plate Hole Quantity: 2

Cross Reference:

• Automann:  AB1DK25A-8709
• Batco: 10-98709
• Continental-ContiTech: 10 10.5-15 P 460
• Continental-ContiTech: 64645
• Continental-ContiTech: 101015S453
• ContiTech: AS8709
• Dayton Parts: 352-8709
• Euclid: E-FS8709
• Firestone: W01-358-8709
• Firestone: 8709
• Firestone: W01-358-8751
• Goodyear: 1R13-159
• HDValue: HDV8709
• Hendrickson: HKA180
• Hendrickson: S-20900
• Hendrickson: S-21800
• Hendrickson: S-22045
• Hendrickson: S21800
• Meritor: FS8709
• Triangle Air Springs: 8453
• Triangle Air Springs: AS-8453
