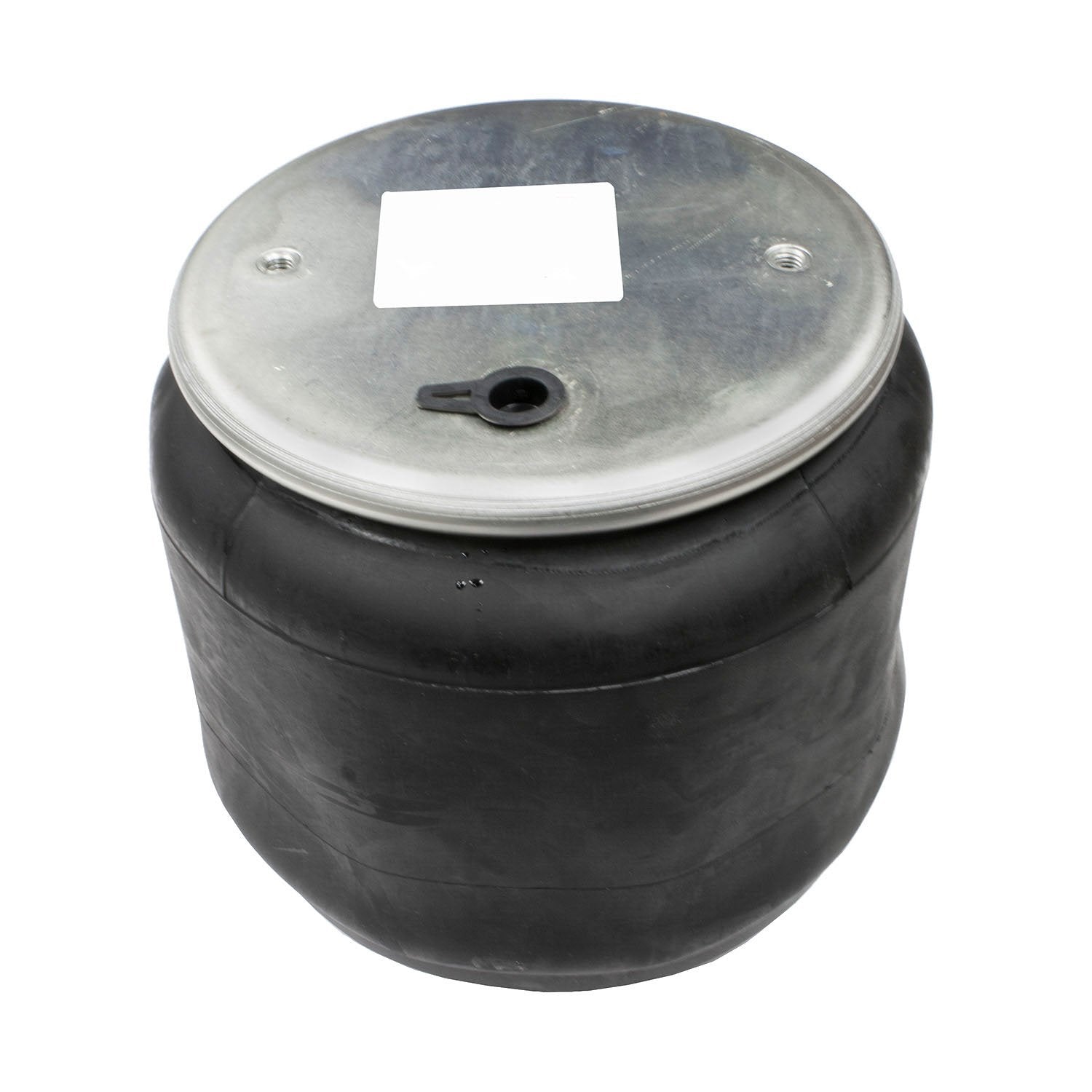

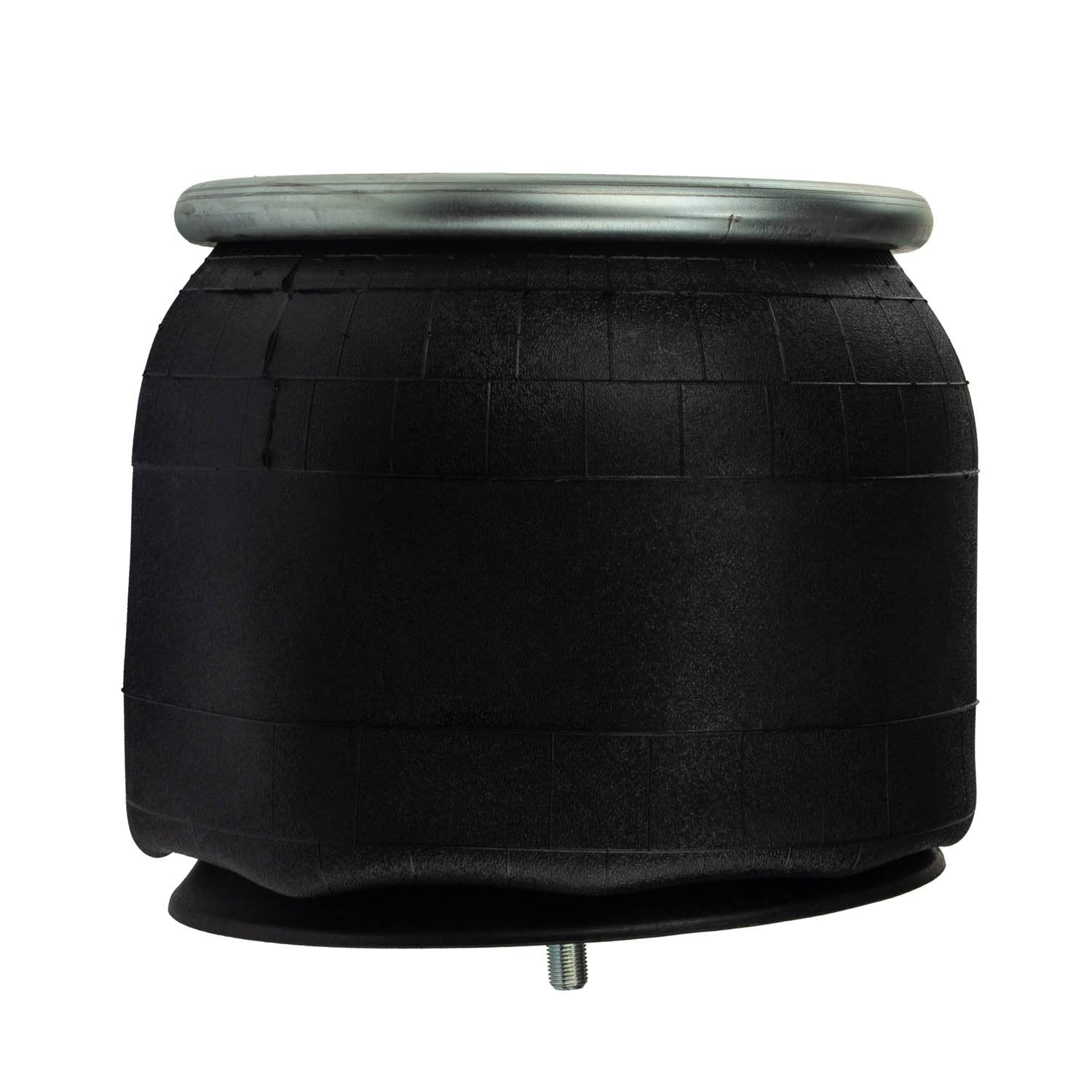

HD Value HDV9069 Air Spring ⎪Replaces Peterbilt 03-01649

Out of stock
SKU: HDV9069
(0)
Regular price $111.39
This product ships for FREE!
For special pricing and additional availability please contact us.



World American Air Spring Wa01-9069C

Model/Style: Rolling Lobe
Bottom Plate Alignment: Parallel
Bottom Plate Center to Center Diameter: 2.25 (Inch)
Bottom Plate Diameter: 9.53 (Inch)
Bottom Plate Hole Quantity: 1
Bottom Plate Type: A
Design Height: 11.5 (Inch)
Load Rating at 100 PSI: 7000 (Pound)
Load Rating at 80 PSI: 5570 (Pound)
Maximum Diameter: 12.6 (Inch)
Maximum Height: 18.9 (Inch)
Minimum Height: 7.6 (Inch)
Natural Frequency: 71
Spring Type: Rolling Lobe
Top Plate Center to Center Diameter: 6.2 (Inch)
Top Plate Diameter: 9 (Inch)
Top Plate Hole Quantity: 2



Cross Reference:

  • Automann  AB1DK23I-9069
  • Batco 10-99069
  • Continental-ContiTech 9 10-14 P 312
  • Continental-ContiTech 91014P312
  • Continental-ContiTech 64274
  • ContiTech AS9069
  • Dayton Parts 352-9069
  • Euclid E-FS9069
  • Firestone 9069
  • Goodyear 1R12-069
  • Goodyear 1R12-669
  • Goodyear 1R12-676
  • HDValue HDV9069
  • Hendrickson S-13031
  • Holland 57009069
  • Leland Brake & Wheel Parts SC2034
  • Meritor RFS9069
  • Meritor FS9069
  • Navistar 554764C1
  • Peterbilt 301649
  • Peterbilt 03-06746
  • Peterbilt 03-02456
  • Peterbilt 03-04759
  • Peterbilt 03-07112
  • Peterbilt 03-10042
  • Peterbilt 23-10042
  • Peterbilt 03-02038
  • Peterbilt 03-01649
  • Ridewell Corp 1003589069C
  • Triangle Air Springs AS-4324
  • Triangle Air Springs 4324
  • Volvo Truck 3130497
  • Watson & Chalin AS-0077
