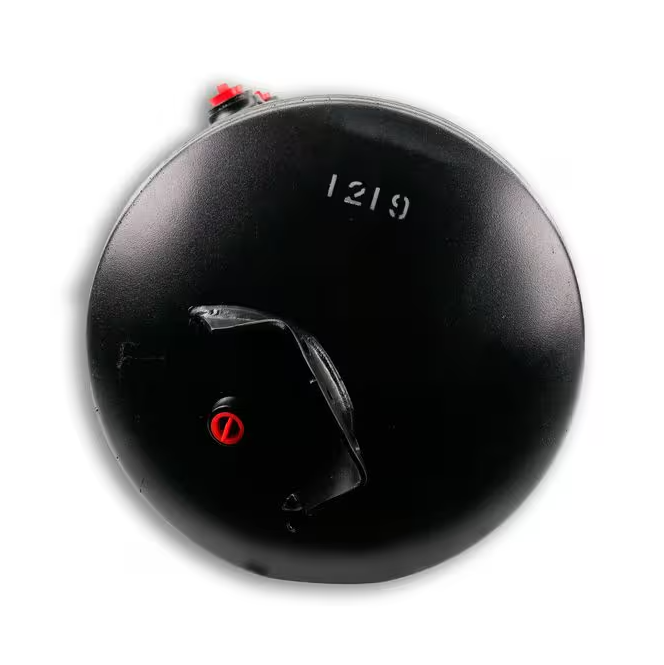

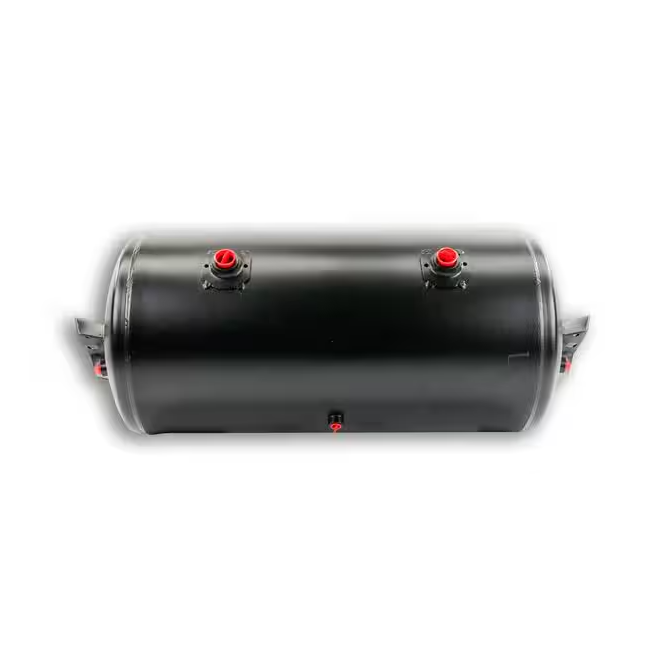

Power Products HT1219 Air Tank – 12" Diameter x 29.5" Steel Air Brake Reservoir

The Power Products HT1219 is a premium aftermarket steel air tank designed for heavy-duty truck and trailer air brake systems. This 12-inch diameter reservoir provides 2850 cubic inches of air storage capacity, ensuring consistent air pressure for reliable braking performance. Featuring durable steel construction with corrosion-resistant coating and integrated mounting brackets, this air tank meets DOT requirements and provides a direct replacement for worn or damaged reservoirs on Class 8 trucks and commercial trailers.

Signs You Need a New Air Tank

• Visible rust, corrosion, or pitting on the tank exterior
• Air leaks detected around ports, welds, or tank body
• Slow air pressure build-up in the brake system
• Excessive moisture or oil contamination from the drain valve
• Failed DOT inspection due to tank condition
• Damaged or broken mounting brackets

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Fontaine Trailer: 51475005
• Automann: 172.2007
• Sirco: AT1219
• Dayton Parts: 12-285019
• New Life: 1010332, HT1219
• Hoosier Tank: HT1219
• Velvac: AT1219

Applications

This air tank is a universal replacement for various heavy-duty truck and trailer applications:

• Semi-Trailers: Flatbed, dry van, refrigerated, tanker trailers requiring 12" diameter reservoir
• Fontaine Trailers: Various models using 51475005
• Class 8 Trucks: Primary, secondary, or auxiliary air reservoir replacement
• Buses & Motor Coaches: Air brake system reservoirs
• Vocational Trucks: Dump trucks, concrete mixers, refuse trucks

How Air Tanks Work

Air tanks (reservoirs) store compressed air supplied by the engine-driven compressor to operate the air brake system, suspension, and accessories. The stored air allows for instant brake response without waiting for the compressor to build pressure. Federal Motor Vehicle Safety Standard (FMVSS) 121 requires trucks and buses to have total reservoir volume of at least 12 times the combined volume of all service brake chambers, while trailers require 8 times the brake chamber volume. This ensures multiple controlled brake applications remain possible even after air supply is lost.

Installation Tips

When replacing an air tank, inspect all connected valves, fittings, and air lines for damage or leaks. Use thread sealant rated for air brake systems on all port connections. After installation, perform a complete air system leak test and verify proper pressure build-up. Drain the tank regularly to remove moisture accumulation that can cause internal corrosion and contaminate brake system components.

Important: Verify tank dimensions and port configuration match your existing reservoir before ordering. Measure diameter, mounting hole center-to-center distance, and port sizes/locations to ensure proper fitment. Always use DOT-compliant components in air brake systems.
