IFJF FS1098 Fuel Water Separator – Cummins B6.7, L9 Engines (Replaces Fleetguard FS1098)
IFJF FS1098 Fuel Water Separator – Cummins B6.7, L9 Engines (Replaces Fleetguard FS1098)
Where to Buy
Verify compatibility with your vehicle or equipment before ordering. Prices and availability may vary.
Affiliate Disclosure
Some links above are affiliate links — we may earn a small commission at no additional cost to you. This helps support our site.

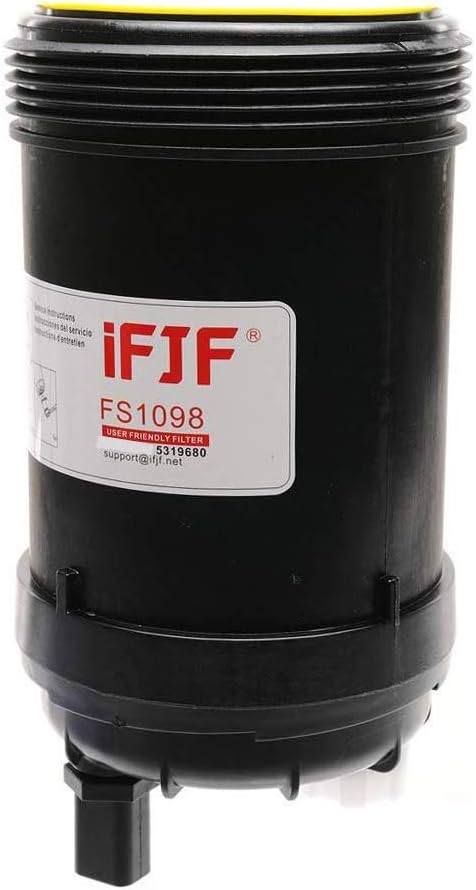

The IFJF FS1098 is an aftermarket fuel water separator designed as a direct replacement for the Fleetguard FS1098 on Cummins B6.7, ISB6.7, QSB6.7, ISL8.9, and L9 series diesel engines. This spin-on separator uses synthetic filter media rated at 10 microns with 99% water separation efficiency, protecting your fuel injection system from contaminants and water damage. Compatible with the FH21462 filter housing.
Signs You Need a New Fuel Water Separator
- Hard starting or extended cranking before the engine fires
- Water-in-fuel warning light illuminated on the dash
- Loss of power or rough idle under load
- Visible water or sediment in the filter bowl
- Exceeded recommended service interval
Specifications
| Manufacturer | IFJF |
|---|---|
| Part Number | FS1098 |
| Part Type | Fuel Water Separator |
| Filter Style | Spin-On |
| Filter Media | Synthetic (StrataPore-equivalent) |
| Micron Rating | 10 Micron |
| Water Separation Efficiency | 99% |

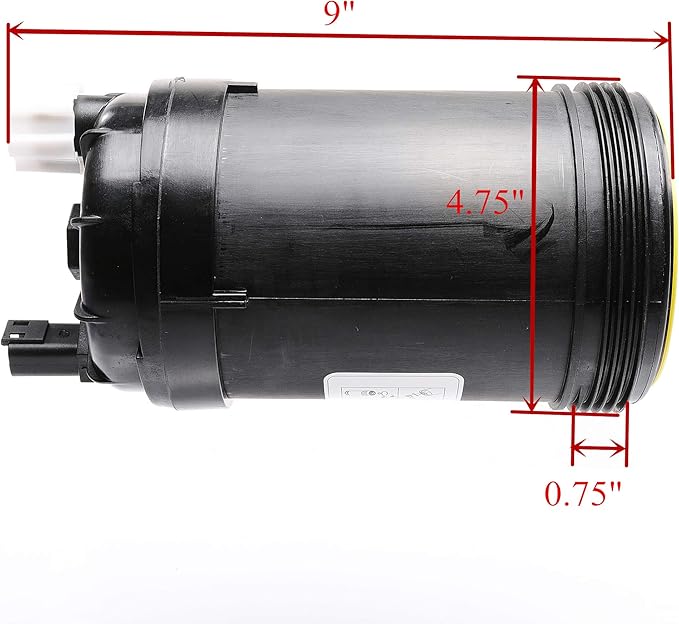

| Overall Height | 9.02" (229 mm) |
| Outside Diameter | 4.72" (120 mm) |
| Thread Diameter | 4.685" (119 mm) |
| Compatible Housing | FH21462 |

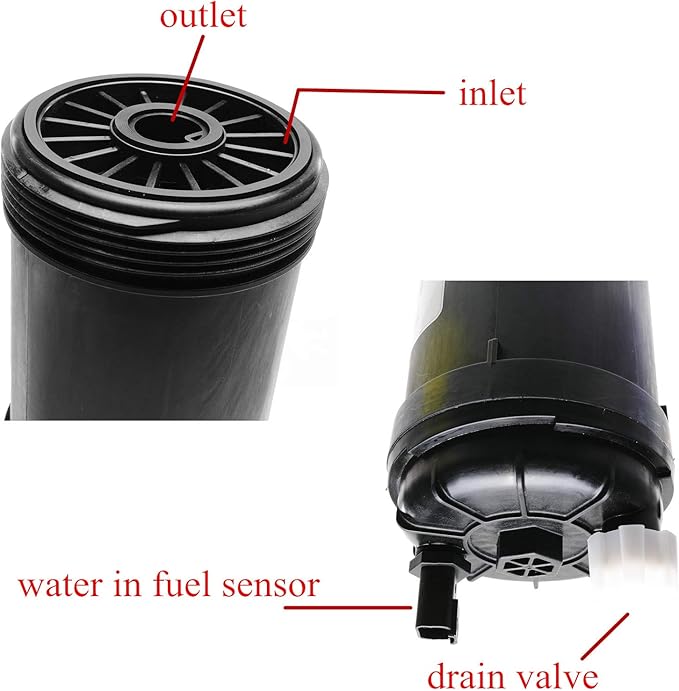

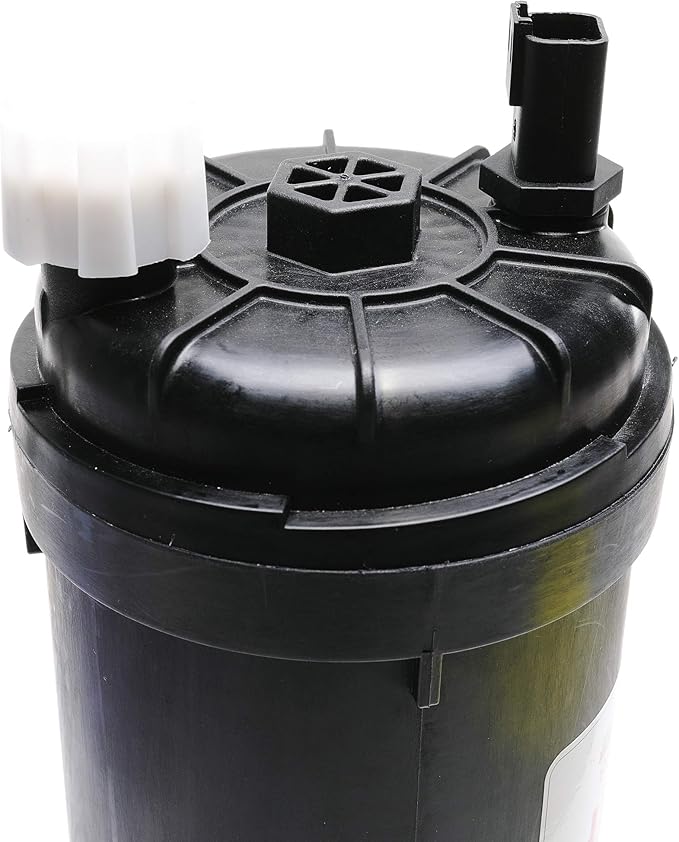

| Features | PCV valve, drain valve, sensor port |
| Engine Compatibility | Cummins B6.7, ISB6.7, QSB6.7, ISL8.9, QSL9, L9 |
| Sold As | Each |
Cross References
The IFJF FS1098 replaces or is equivalent to the following part numbers:
- Fleetguard: FS1098, FS20038
- Cummins: 5319680, 5308722
- Baldwin: BF46160-SPS
- Luber-Finer: LFF1098
- Wix: WF10716
- Napa: 601052
- Carquest: 96830
Applications
This fuel water separator fits Cummins B6.7 and L9 series engines found in:
- Freightliner M2 106 (2018–2020) – B6.7
- Mack MD6 (2020–2021) – B6.7
- Autocar Xpeditor (2017+) – L9
- Autocar Xpert (2018+) – B6.7, L9
- Autocar Xspotter (2017+) – B6.7
Also fits Cummins QSB6.7 and QSL9 engines in off-highway and industrial equipment including Wirtgen W100CFI, W120CFI, W130CFI cold milling machines, Hyundai excavators, and JCB equipment.
Related Products
Pre-fill the filter with clean diesel fuel before installation. Verify your engine serial number and filter housing (FH21462) before ordering to confirm fitment.
