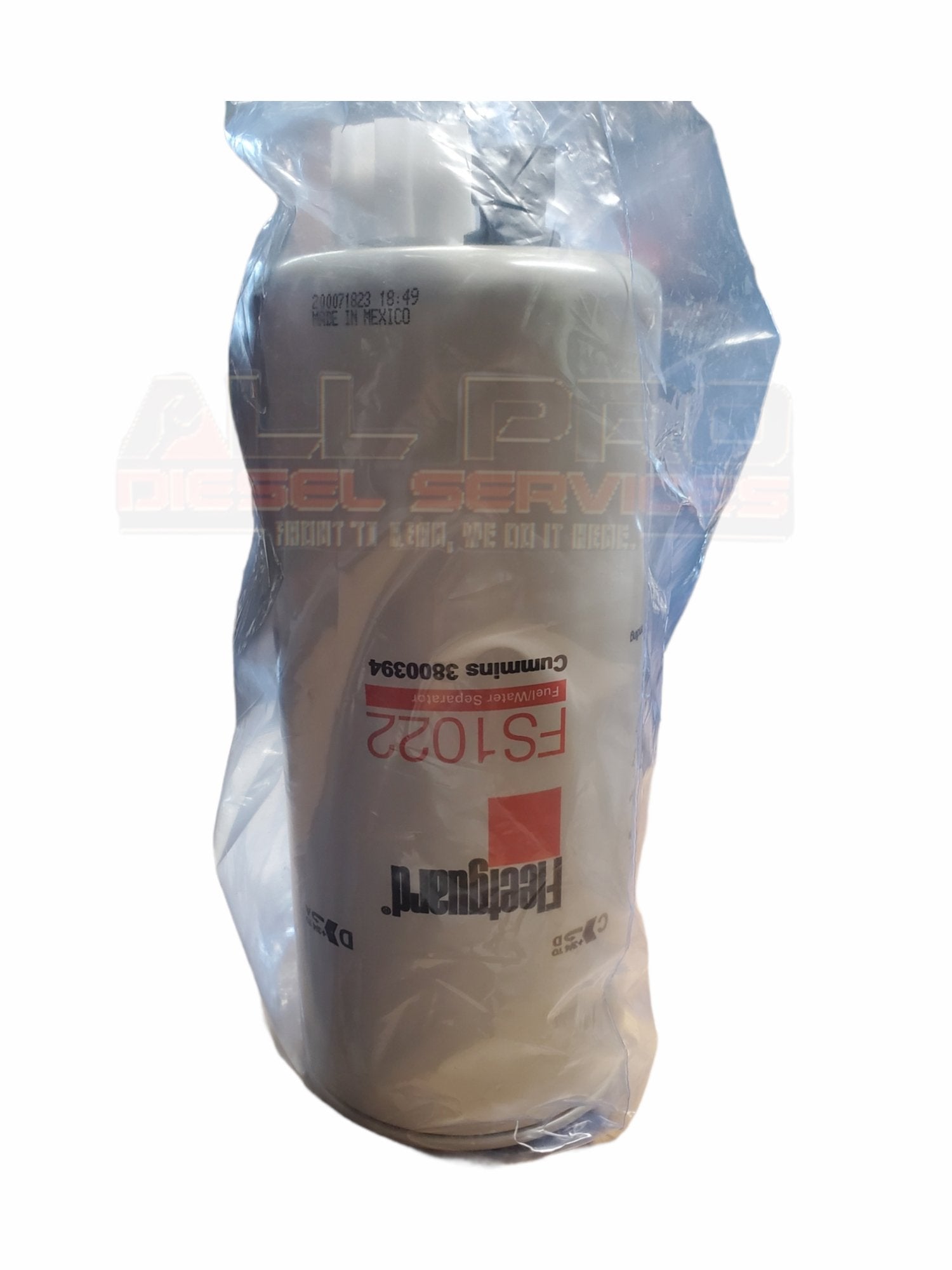

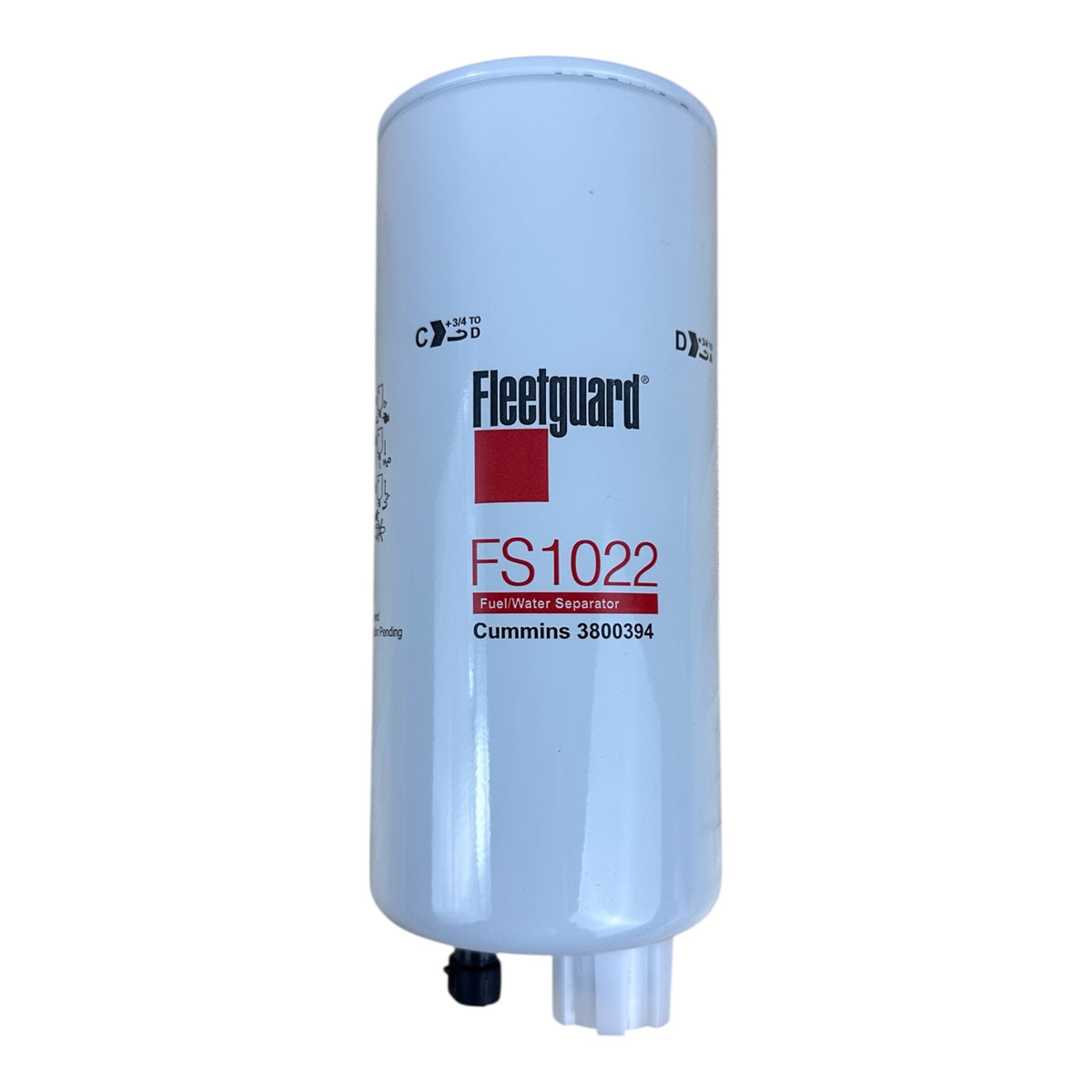

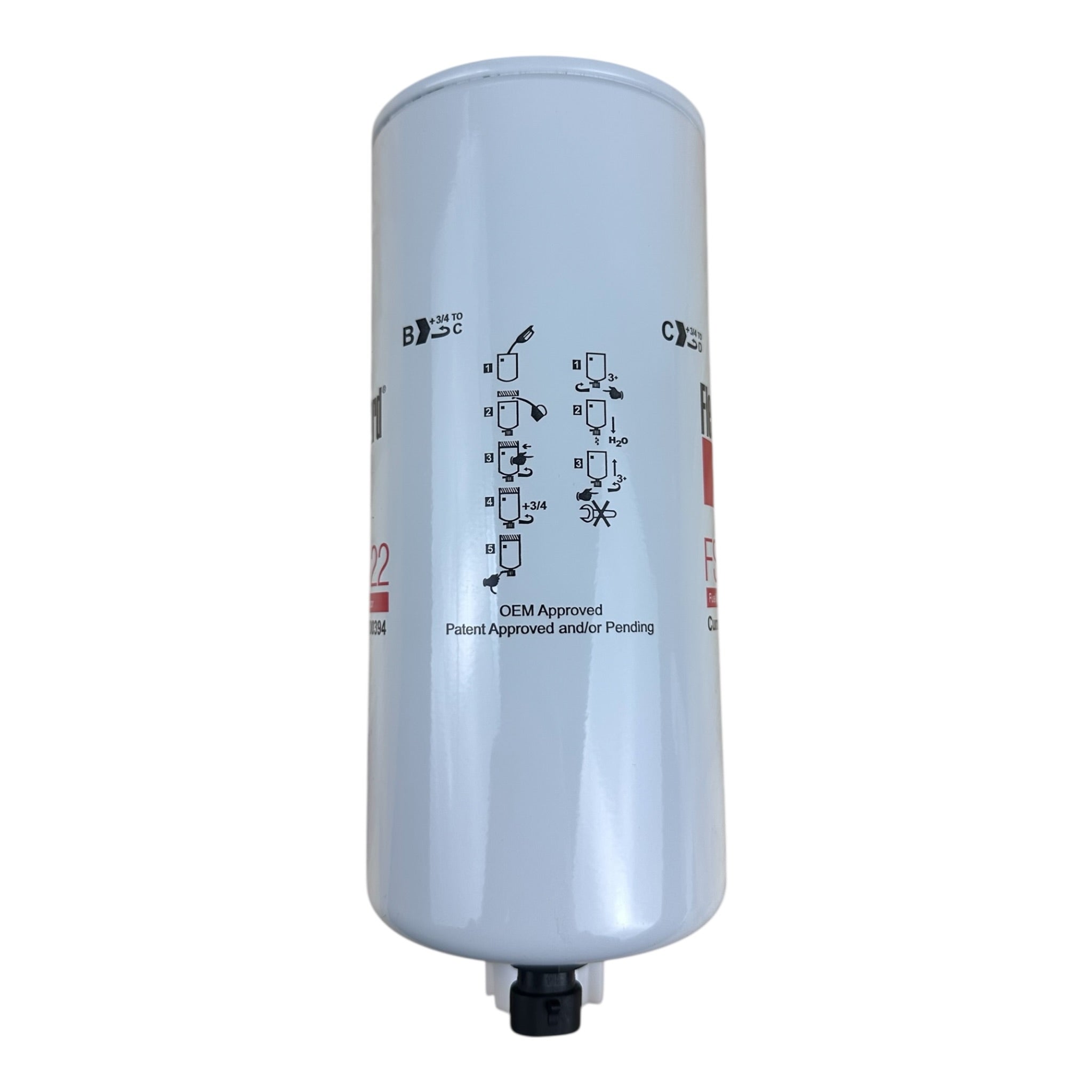

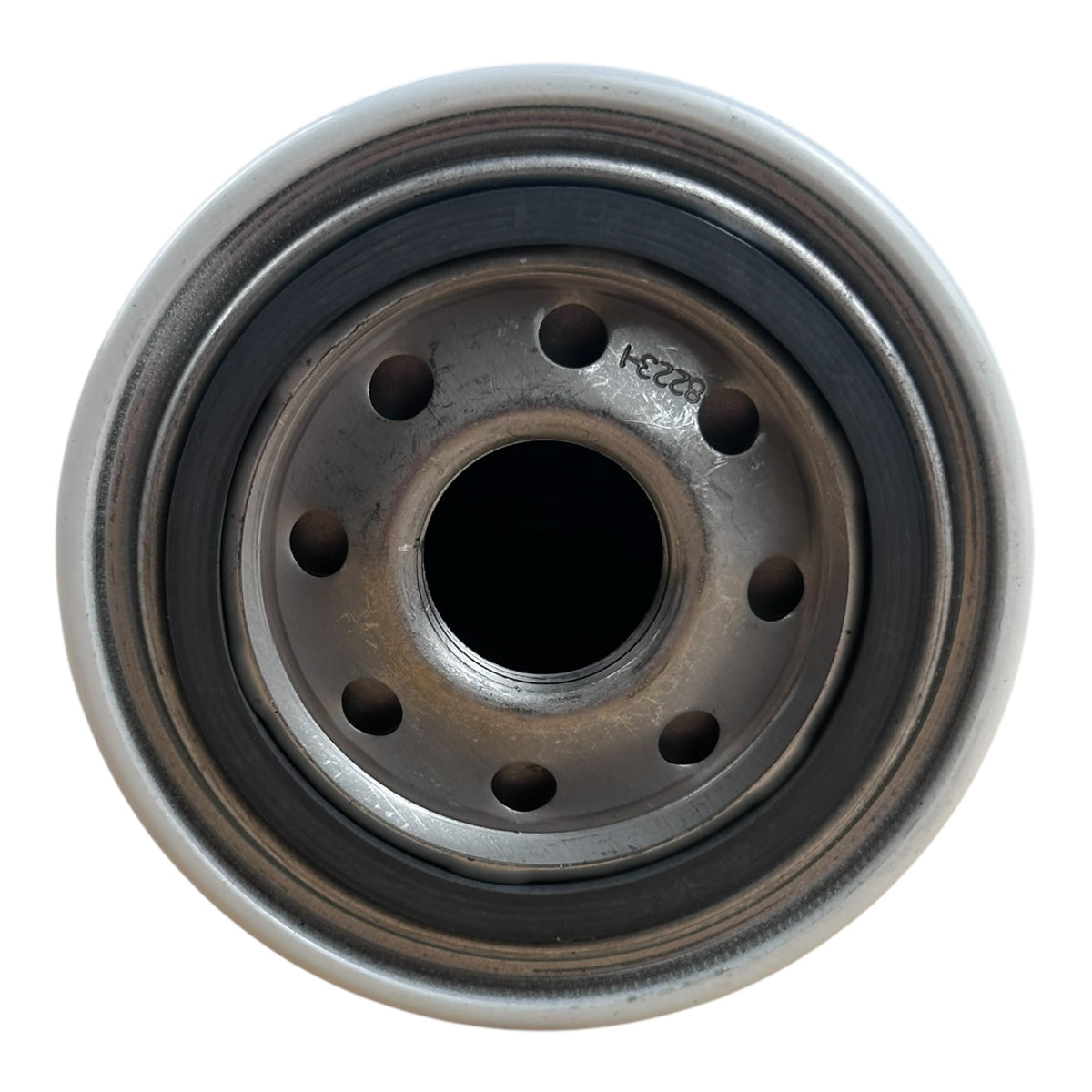

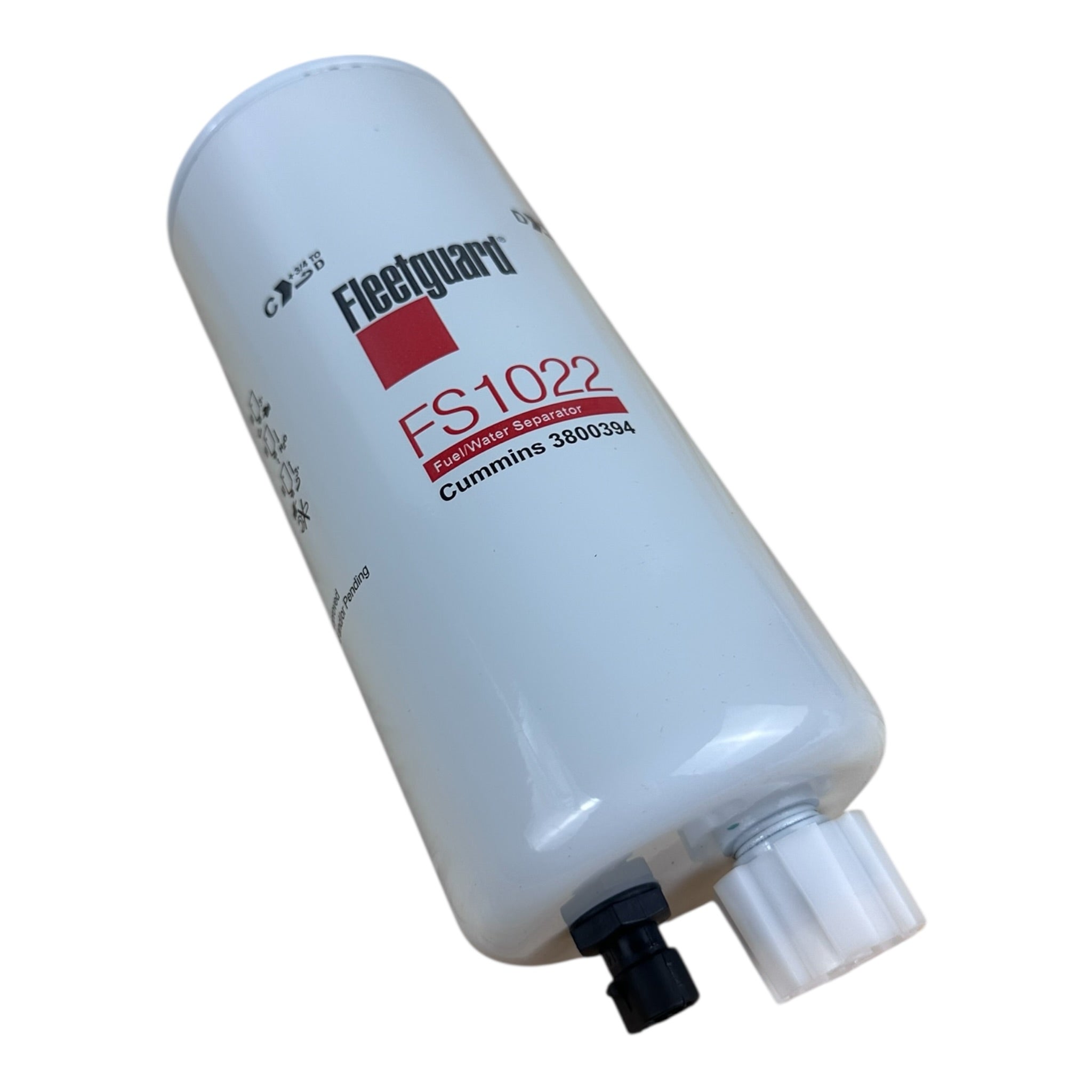

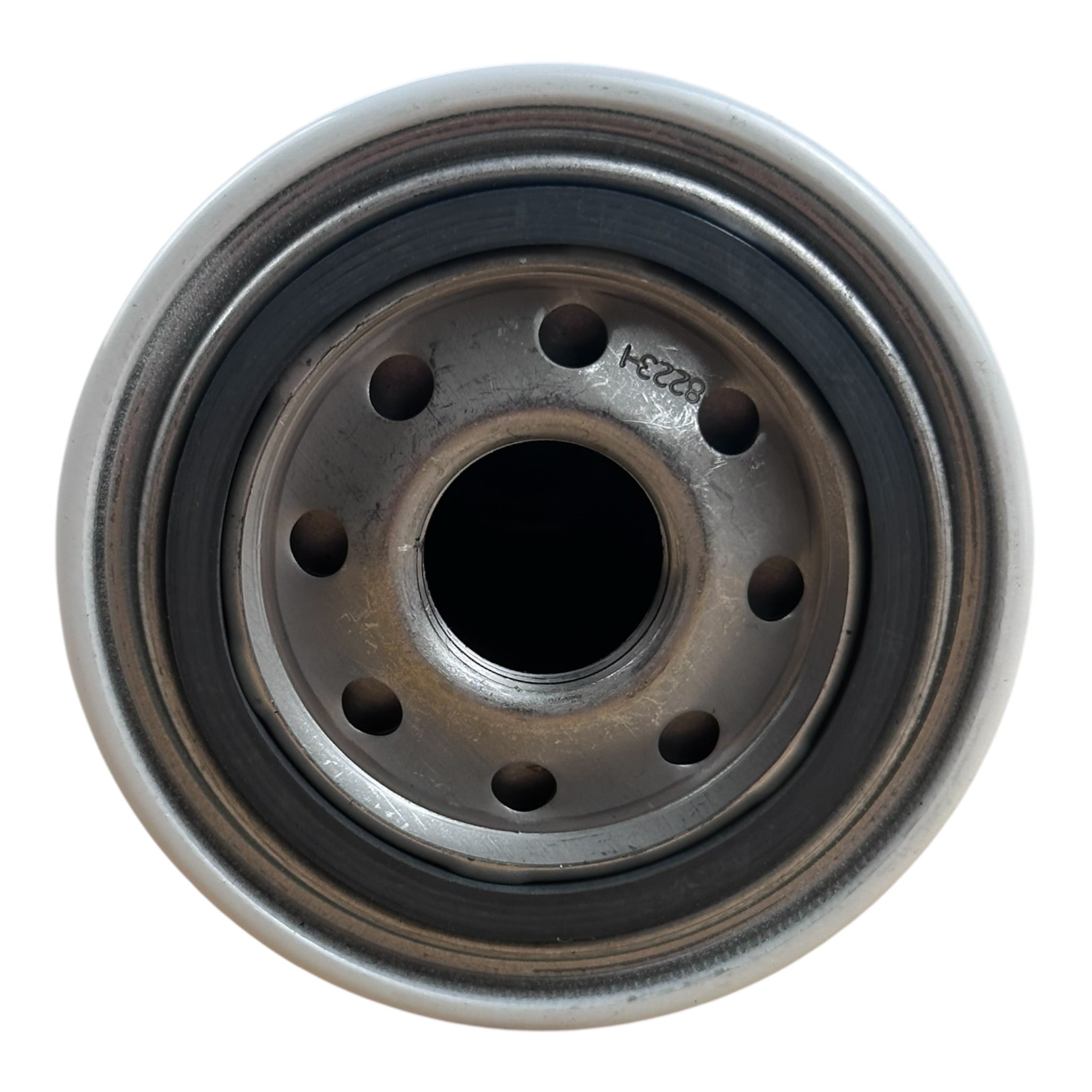

Fleetguard FS1022 Fuel Water Separator – Cummins ISC ISL ISM ISB

The Fleetguard FS1022 is a genuine spin-on fuel water separator designed for Cummins ISC, ISL, ISM, and ISB diesel engines found in medium-duty trucks, buses, motorhomes, and construction equipment. This filter features Fleetguard's advanced StrataPore media technology delivering 10-micron filtration efficiency and 95% water separation to protect modern high-pressure fuel injection systems from damaging contaminants and water. Fleetguard is the OEM filtration supplier for Cummins engines, ensuring this filter meets or exceeds original equipment specifications.

Signs You Need a New Fuel Water Separator

• Water-in-fuel (WIF) warning light illuminated on dash
• Engine hard starting, especially in cold weather
• Rough idle or engine misfires
• Loss of power or reduced acceleration
• Excessive smoke from exhaust (white or black)
• Poor fuel economy or decreased performance
• Visible water or contamination when draining filter
• Service interval reached (typically 15,000-25,000 miles or as conditions require)
• Check engine light with fuel system fault codes

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Fleetguard: FS1022
• Cummins: 3800394, 3945066, 3944269
• Baldwin: BF1272-SP, BF1272-SPS
• Donaldson: P551022
• Wix: 33422
• NAPA: 3422
• Fram: PS8689
• Luber-Finer: LFF1022
• Carquest: 86422
• Case: J800394
• Komatsu: 6744-71-6040
• Hyundai: 11NA-70010
• AGCO: 72511906

Engine Applications

This fuel water separator fits Cummins medium-duty diesel engines:

• Cummins ISC 8.3L: 250-350 HP (1998-2007)
• Cummins ISL 8.9L: 260-425 HP (2004+)
• Cummins ISL9: Current production L9 engines
• Cummins ISM: 10.8L engines
• Cummins ISB: Select 5.9L and 6.7L applications
• Cummins QSC 8.3L: Off-highway/industrial applications
• Cummins 6CTA 8.3L: Mechanical C-Series engines

Vehicle Applications

Common applications for vehicles equipped with Cummins ISC, ISL, ISM, and ISB engines:

• Medium-Duty Trucks: Freightliner M2, International 4000/DuraStar series, Kenworth T270/T370, Peterbilt 325/330/337/348
• School Buses: Blue Bird, Thomas Built, IC Bus with Cummins power
• Transit Buses: Municipal transit applications
• Motorhomes/RVs: Class A diesel pushers with Cummins ISC 8.3L or ISL 8.9L (Holiday Rambler, Monaco, Newmar, Tiffin, etc.)
• Ford Commercial: E-250, E-350, E-450, F-650, F-750 (2005-2007 with Cummins ISB)
• Construction Equipment: Excavators, loaders, and equipment with QSC engines
• Fire and Emergency: Fire apparatus with Cummins ISL power

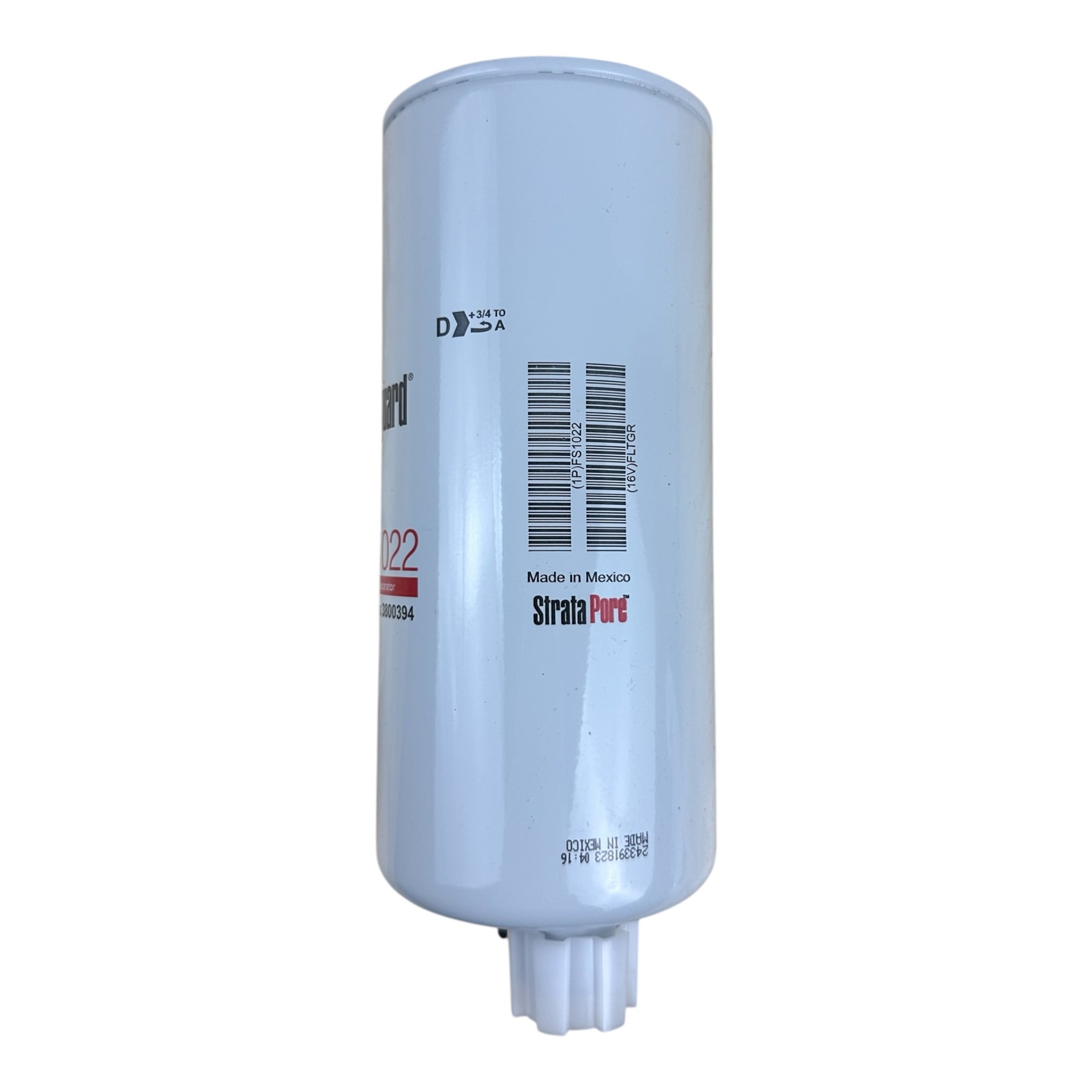

StrataPore Media Technology

Fleetguard's StrataPore media is a synthetic filtration material that provides superior particle capture and water separation compared to conventional cellulose media. The 10-micron rating protects sensitive high-pressure common-rail (HPCR) fuel injection systems from wear caused by fine particulates. Modern diesel fuel systems operate at pressures exceeding 29,000 PSI with injector tolerances measured in microns, making advanced filtration essential for long injector and fuel pump life.

Water-in-Fuel Sensor

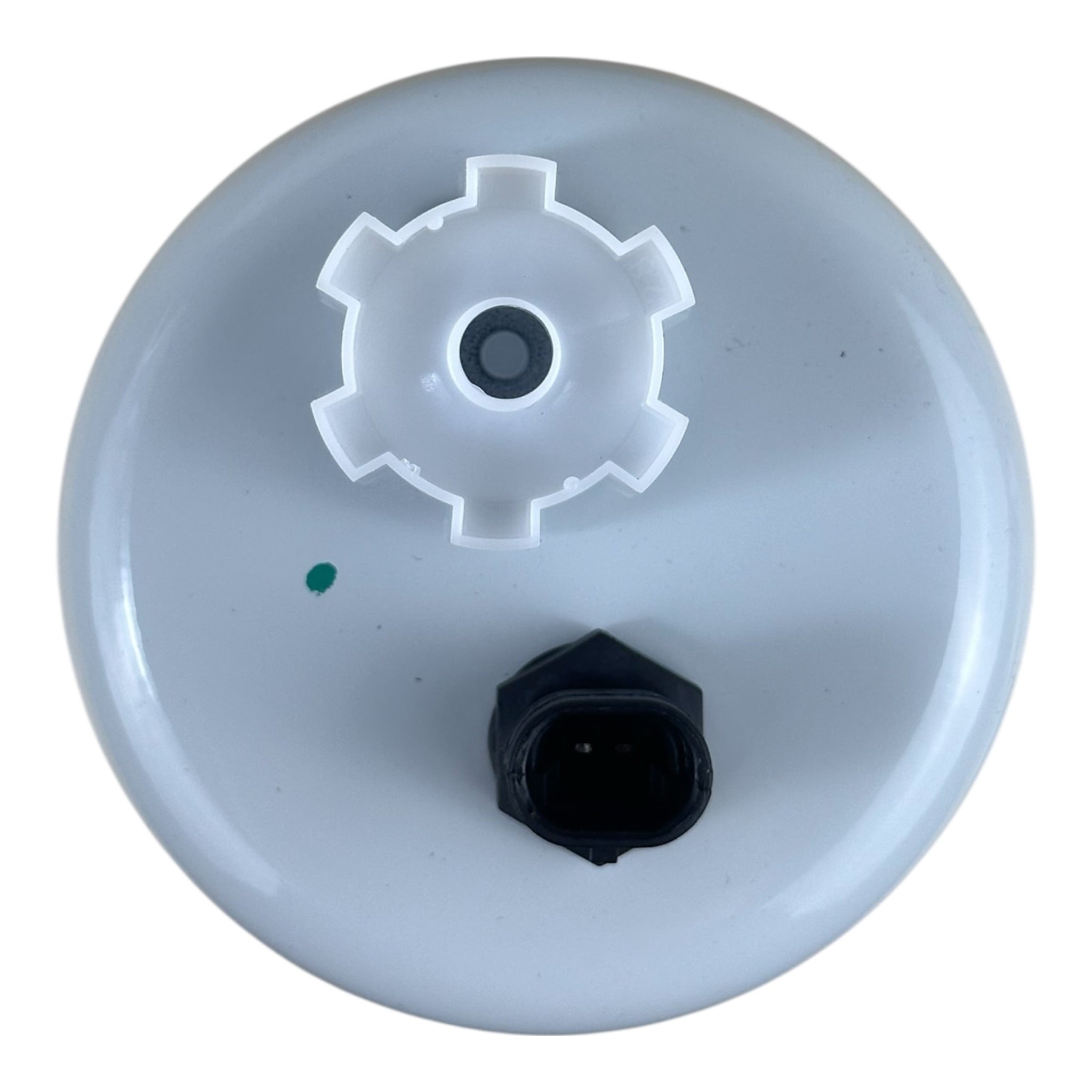

This filter includes a port for the water-in-fuel (WIF) sensor (Cummins 3953517S). The WIF sensor monitors water accumulation in the filter bowl and illuminates a warning light on the dash when water needs to be drained. Always drain accumulated water from the filter at regular service intervals or when the WIF light illuminates to prevent water from reaching the fuel injection system.

Used with filter head 3914857S (ISC engine) or 3962018S. Verify engine serial number and fuel system configuration to confirm fitment. Replace per manufacturer service intervals or when WIF indicator activates.
