Kenworth Q21-1041 Air Pressure Sensor

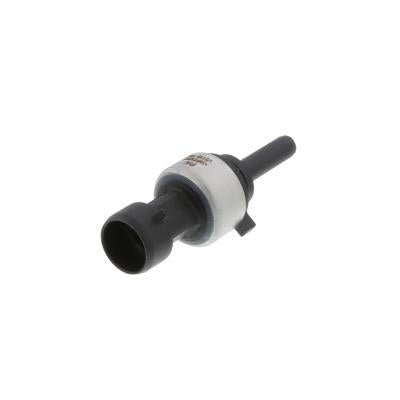

The Kenworth/Peterbilt Q21-1041 is a 150 PSI air pressure sensor used as the primary air system pressure transducer on Class 7 and 8 Paccar trucks, with a three-pin circular connector and 2.64 in overall length. PAI 730397 is the aftermarket equivalent and crosses directly to Mack 745-5005758, Navistar 2505669C91, and Peterbilt 17109AM, providing the air pressure feedback the dash gauge and ECM use to monitor brake system reservoir pressure.

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Kenworth: Q21-1041
• Peterbilt: Q21-1041, 17109AM
• Mack: 745-5005758, 745-5008677, 4333-2505669C91
• Navistar / International: 2505669, 2505669C91
• PAI Industries: 730397

Applications

This air pressure sensor is a multi-application part used as the primary air system transducer on:

• Kenworth T660, T680, T800, T880, W900 (multiple model years)
• Peterbilt 379, 386, 389, 567, 579 (multiple model years)
• Mack CH, CHU, CXU, Granite, Pinnacle, MRU (multiple model years)
• International ProStar, LoneStar, 9200, 9400 (multiple model years)

Verify connector style and thread on your existing sensor before ordering. Some chassis use a separate dual-gauge dash sensor — confirm by part number rather than position.
