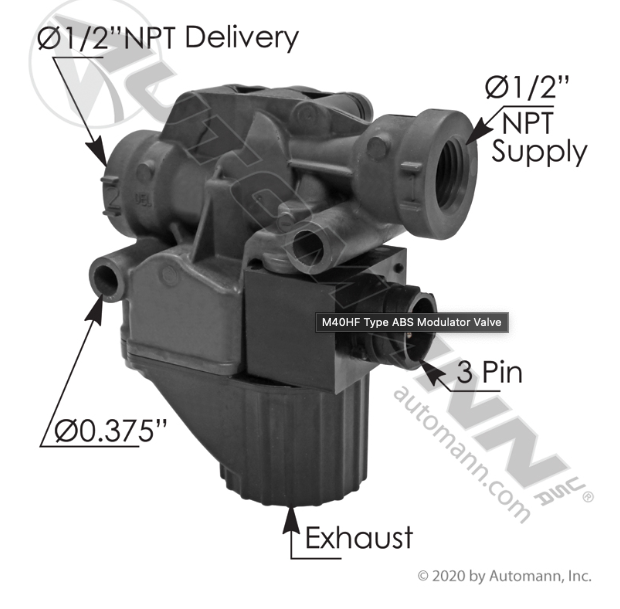

Automann 170.K128913OR M-40HF ABS Modulator Valve – Bendix K056040 Cross Reference

Quality replacement Bendix M-40HF ABS modulator valve from Automann. The 170.K128913OR is an aftermarket replacement for the Bendix K056040 original equipment modulator valve used in heavy-duty truck ABS systems. This high-flow (HF) modulator regulates air pressure to the brake chambers, ensuring precise anti-lock braking performance on Class 7 and Class 8 commercial vehicles from Freightliner, Volvo, Mack, Peterbilt, and other major truck manufacturers.

Signs You Need a New ABS Modulator Valve

• ABS warning light illuminated on the dash
• Wheels locking up during hard braking on slippery surfaces
• Uneven braking or pulling to one side under ABS activation
• Audible air leaks from the modulator valve body
• Fault codes stored in the ABS ECU related to modulator circuit

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Bendix (OE): K056040
• Bendix (Service New): K128913SC
• Bendix (Aftermarket Reman): K128913OR, K128913ORX
• Bendix (Superseded): K079665, 801665, 300387
• Volvo: 85153115, 20422044, 20414105, 22853050, 21077060
• Mack: 85153115
• Automann: 170.801665
• Also known as: BW801665, BEN801665, ZAC801665, 745-K128913OR, 745-801665, 6MN41AM2

Applications

This M-40HF ABS modulator valve fits heavy-duty trucks equipped with Bendix ABS systems, including:

• Freightliner Cascadia, Columbia, Century, and other models with Bendix ABS
• Volvo VNL, VNR, VNM, VHD series trucks
• Mack Pinnacle, Anthem, Granite, and CXU series trucks
• Peterbilt 579, 389, 567, and other models with Bendix ABS
• Kenworth T680, T880, W900, and other models with Bendix ABS

Verify your existing modulator valve part number, connector type, and voltage before ordering to confirm fitment. It is recommended to replace modulators on both sides of the axle at the same time.
