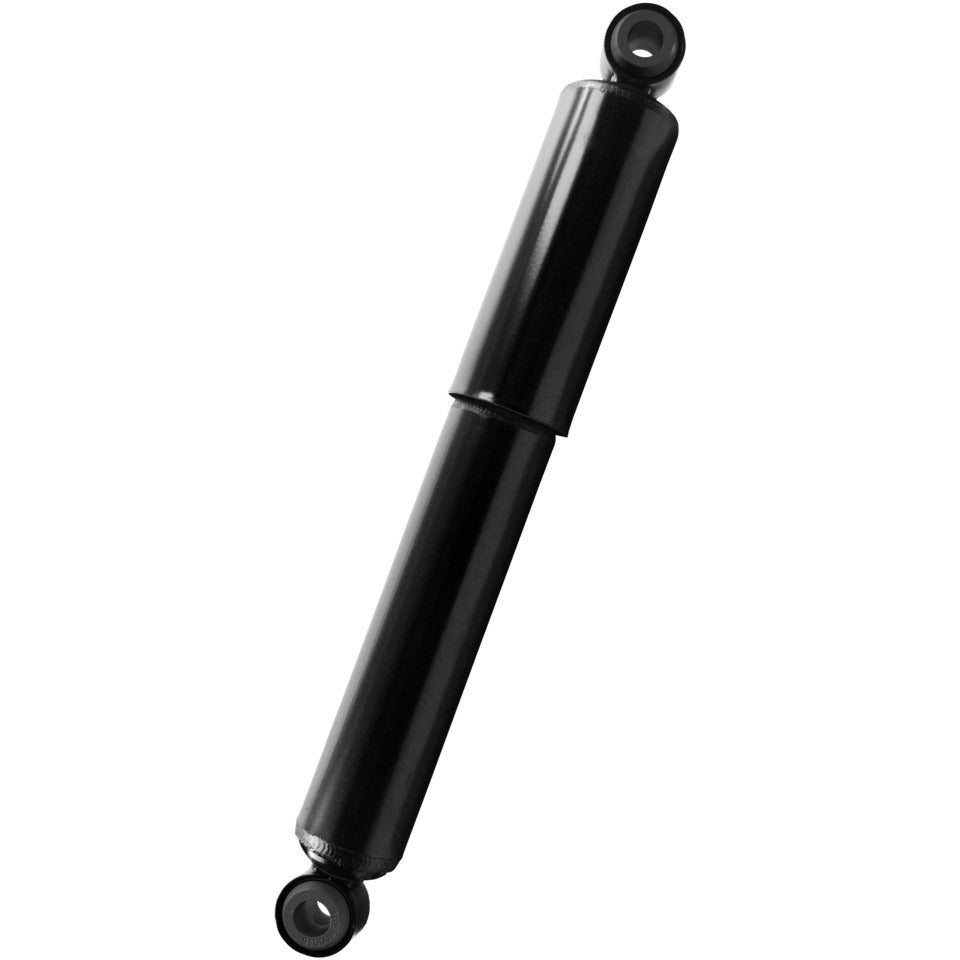

The Monroe 65101 is a Magnum-series gas-charged twin-tube shock absorber for the front axle of Peterbilt Class 8 conventionals (320, 357, 365, 367, 375–389, 520, 567, 579, 587). 19.67" extended / 12.69" compressed with 6.98" of travel, 18 mm shaft, 1.75" bore; loop-bushing mounts on both ends (3/4" ID x 1-9/16" OAL). Aftermarket replacement for Peterbilt 02-02737 / 02-02742 / 680261, Volvo SA5062, and Gabriel 85062.
Signs You Need a New Shock Absorber
- Excessive cab or front-end bounce after a bump or expansion joint
- Visible oil weeping or wet streaks on the shock body
- Cupped or scalloped front tire wear
- Nose-dive on hard braking; excessive sway in turns
- Rattling or knocking from the front suspension over rough pavement
Specifications
| Manufacturer | Monroe Magnum |
|---|---|
| Part Number | 65101 |
| Part Type | Twin-Tube Gas Shock Absorber (Front) |
| Extended Length | 19.67 in (499.7 mm) |
| Compressed Length | 12.69 in (322.3 mm) |
| Travel | 6.98 in (177.4 mm) |
| Bore | 1.75 in (44.5 mm) |
| Shaft Diameter | 18 mm |
| Upper Mount | Loop bushing — 3/4" ID x 1-9/16" OAL (code L3) |
| Lower Mount | Loop bushing — 3/4" ID x 1-9/16" OAL (code L3) |
| Construction | Twin tube, gas-charged |
| Adjustable Damping | No |
| Dust Shield | Yes (metal) |
| Finish | Painted black |
| Quantity per Vehicle | 2 (front pair) |
Cross References
This shock replaces or is equivalent to the following part numbers:
- Peterbilt: 02-02737, 02-02737-2, 02-02737PLUS, 02-02737PLUS-2, 02-02742, 02-02742-2, 02-01787, 0201787, 0202737, 0202737PLUS, 0202737PLUS2, 0202742, 02027372, 02027422, 680261, 680261-2, 6802612, 665655, 665928, B71-6007, B71-6009, B71-6011, B716007, B716009, B716011
- Kenworth: 02-02737-2, 02-02737PLUS, 02-02737PLUS-2, 02-02742-2, 0202737PLUS, 665928, 680261, 680261-2, B71-6007, B71-6011, B716007, B716011
- Volvo / Volvo Truck: SA5062, 83176224, 3919932, RC SA5062
- Meritor: M85062
- TRP: HS 85062
- Dayton Parts: 441-85062
- Gabriel: 85062, PROSH85062
- Monroe: 65101, 66535
- KYB: 341613
- Sachs: 315558
- Koni: 88-1560
- Marathon Industries: 58099-MB
- FCS: F347227
- Fleetline Shock: 89408
- Fleetrite: AMS650101
- PRT: 925119
- Bulldog: HD1215-0032
- Alliance Truck Parts: ABP N32 G900019, ABP N32 O900019
- Truckmaster Design: 665928, 680261
- Gold: 9160095, 8160938
Applications
This shock fits the front axle on the following Peterbilt models (qty 2 per vehicle):
- Peterbilt 320 (1987–2018)
- Peterbilt 357 (1986–2008)
- Peterbilt 365 (2008–2018)
- Peterbilt 367 (2008–2018)
- Peterbilt 375 (1987–1996)
- Peterbilt 376 (1988–1999)
- Peterbilt 377 (1987–2001)
- Peterbilt 378 (1988–2007)
- Peterbilt 379 (1986–2007)
- Peterbilt 384 (2008–2016)
- Peterbilt 385 (1996–2007)
- Peterbilt 386 (2006–2016)
- Peterbilt 387 (2000–2011)
- Peterbilt 388 (2008–2015)
- Peterbilt 389 (2008–2018)
- Peterbilt 520 (2017–2020)
- Peterbilt 567 (2014–2023)
- Peterbilt 579 (2013–2020)
- Peterbilt 587 (2011–2018)
Also fits Kenworth and Volvo chassis specifying the SA5062 / 02-02737 envelope on the front axle.
Replace shocks in pairs (left and right). Verify mount type (loop bushing, 3/4" ID) and extended / compressed length against the worn part before ordering — rear or air-ride positions on the same chassis use a different shock.
