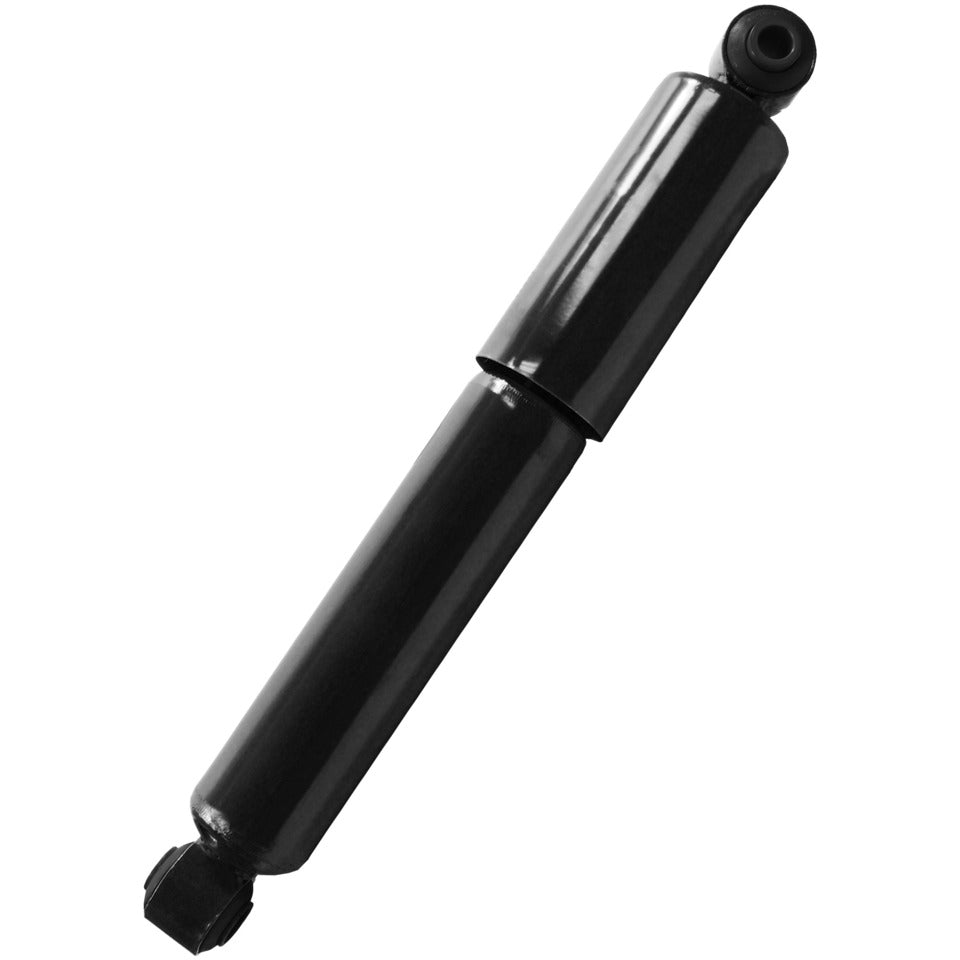

Monroe 65147 Gas Magnum Shock Absorber – International 9100i 9200i 9400i 9900i Front

The Monroe 65147 Gas Magnum shock absorber is a heavy-duty, nitrogen gas-charged front shock specifically designed for International 9-Series Class 8 trucks with tapered leaf spring front suspensions. Featuring a large 1-3/4 inch bore and 2-3/8 inch reserve tube, this shock delivers superior damping control and consistent performance for demanding over-the-road and vocational applications. Monroe's 10-stage valving is tuned specifically for heavy truck front axle suspensions rated at 12,000-14,000 lbs.

Signs You Need New Front Shock Absorbers

• Excessive front-end bounce or floating sensation over bumps
• Severe nose diving during braking
• Wandering or poor steering response
• Uneven or cupped front tire wear patterns
• Oil leaking from shock body or seals
• Visible damage to shock body, bushings, or mounts
• Driver fatigue from harsh ride quality
• Increased stopping distance

Specifications

Cross References

This shock absorber replaces or is equivalent to the following part numbers:

• International/Navistar: 3581106C1, 3581106C2, 3581106C3, 3581106C4, 3581107C1, 3581107C2, 3581107C3, 3581109C1, 3584535C1, 3584535C3, 3584535C4, 6127705C1
• Gabriel: 85924, 89457
• Meritor: M85924, M89457
• KYB: 341623
• Sachs: 315547
• Monroe (Alternate): 12323
• NAPA: 65147
• Automann: A85924
• Dayton Parts: 44185924
• Gold: 9180137
• FCS: F347221
• Bulldog HD: HD1215-003

Vehicle Applications

This front shock absorber fits the following International trucks with 12,000-14,000 lb tapered leaf spring front suspension:

• International 9100i SBA – 2000-2003
• International 9200i – 2002-2003
• International 9200i SBA – 2000-2011
• International 9400i – 2000-2010
• International 9400i SBA – 2000-2011
• International 9900i – 1999-2018
• International 9900ix – 2000-2009

Gas Magnum 65 Features

Monroe Gas Magnum 65 shocks are the first gas-charged, large bore shocks specifically designed for heavy-duty commercial vehicle suspensions. The nitrogen gas charge provides fast response essential for today's heavy truck suspension systems, maintaining tire-to-road contact for improved ride and handling by reducing aeration and shock fade. Key features include:

• 10-Stage Valving: Tuned specifically to each vehicle application for optimal damping control
• Large Bore Design: 1-3/4" bore provides more efficient damping control
• Increased Fluid Capacity: 2-3/8" reserve tube holds more fluid for improved performance
• Nitrocarburized Piston Rod: 5/8" diameter rod provides durability and corrosion resistance
• PTFE-Coated Bearing: Reduces friction between rod and guide for longer service life
• Robust Hydraulic Lock-Out: Prevents over-extension and protects seal assembly
• 360° Arc Welds: Up to 15,000 lbs tensile strength for maximum durability
• Shouldered & Bonded Bushings: Protects against bushing walkout

Verify your front axle suspension rating (12,000-14,000 lb) and OEM part number before ordering. Different Monroe part numbers may be required for other suspension configurations or axle ratings.
