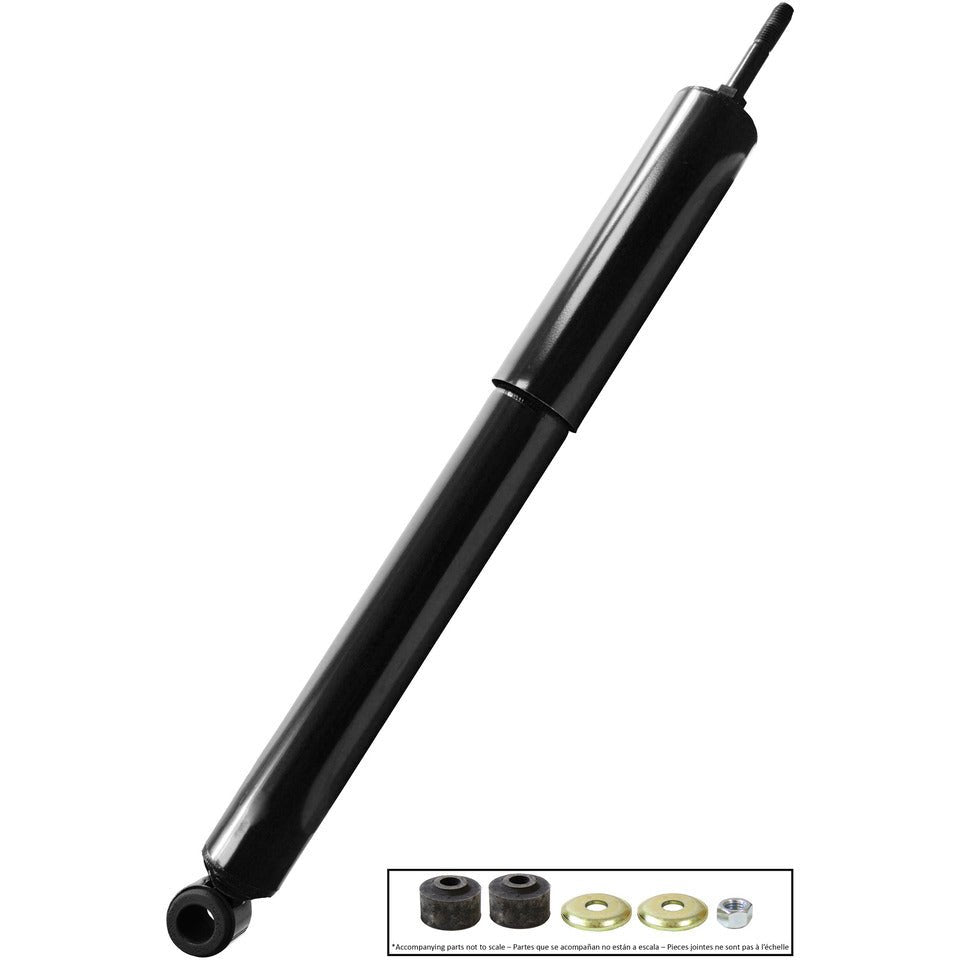

Monroe 65400 Gas Magnum Shock Absorber – Peterbilt Kenworth Mack

Monroe 65400 Gas Magnum 65 is a nitrogen gas-charged heavy-duty shock absorber for Class 6–8 air-spring and taper-leaf suspensions, replacing Peterbilt 307423 / 306084, Mack 650400, Volvo 3919946, and Gabriel 85033 / 89427. The shock uses a 1-3/4 in bore with a 2-3/8 in reserve tube and 10-stage valving tuned for heavy-truck damping, with 17.375 in compressed / 26.750 in extended length and a 9.375 in stroke.

Signs You Need New Shock Absorbers

• Excessive bouncing or floating sensation over bumps
• Nose diving during braking or squatting during acceleration
• Uneven or cupped tire wear patterns
• Vehicle swaying or poor handling in crosswinds
• Oil leaking from shock body or seals
• Visible damage to shock body, bushings, or mounts
• Increased stopping distance

Specifications

Cross References

This shock absorber replaces or is equivalent to the following part numbers:

• Peterbilt: 307423, 306084, 305384, 305106, 665633, 03-07423, 03-06084, 03-05384
• Kenworth: 0306085PLUS, 03-0742
• Paccar: 665633, 307423, 306084
• Mack: 650400
• Volvo / White / GMC: 3919946, SA5033
• International / Navistar: AMS650400
• Gabriel: 85033, 89427
• Meritor: M85033, M89427
• KYB: 341620, 341621
• Sachs: 315549
• Neway: 57365400
• Monroe (Alternate): 650400
• Haldex: SA65400
• Fleetrite: AMS650400
• Alliance: ABP N32 G900039, ABP N32 O900039
• Bulldog: HD1215-0037, HD1215-003, HD1214-0612
• Dayton Parts: 441-85033, M65400
• FCS: F346598, F346599, F343368, F344355, F344353
• NAPA: 65400
• Automann: A85033

Applications

This shock fits the rear suspension of the following heavy-duty trucks:

• Peterbilt 357 (1990–2008)
• Peterbilt 362 (1981–2006)
• Peterbilt 372 (1989–1997)
• Peterbilt 375 (1987–1996)
• Peterbilt 376 (1988–1999)
• Peterbilt 377 (1987–2001)
• Peterbilt 378 (1988–2007)
• Peterbilt 379 (1986–2007)
• Peterbilt 330 / 384 / 385 / 386 / 387 / 587 (select years with compatible suspension)
• Kenworth — select models with compatible Paccar suspension
• Mack — select models with compatible suspension
• Volvo / White / GMC — select heavy-duty models
• International / Navistar — select models

Verify your suspension type and vehicle specifications before ordering. Some applications may require different Monroe part numbers depending on suspension configuration (Neway, FlexAir, Air Trac, Haulmaax, etc.).
