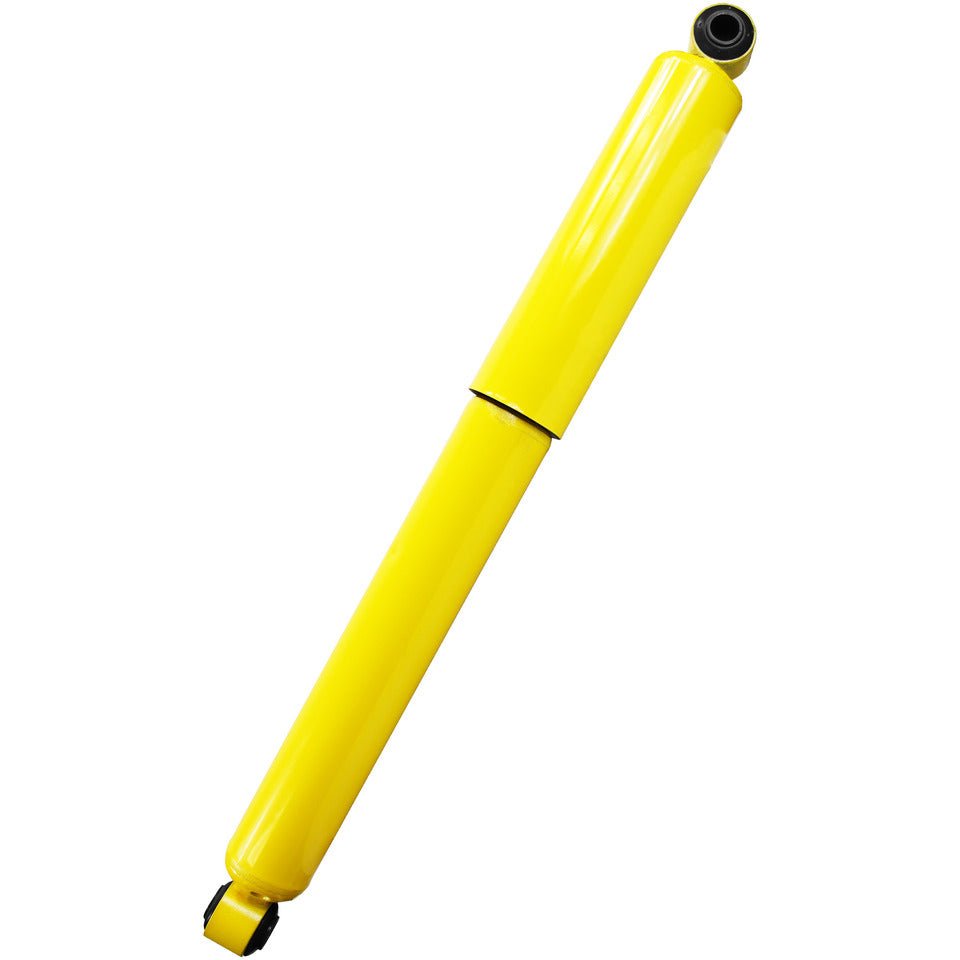

The Monroe 65411 Gas Magnum shock absorber is a heavy-duty, nitrogen gas-charged shock designed for Class 6-8 trucks with air spring and taper leaf suspensions. This versatile shock fits front applications on Peterbilt conventional trucks and Mack vocational models, as well as rear applications on Kenworth trucks. Featuring a large 1-3/4 inch bore and 2-3/8 inch reserve tube, it delivers superior damping control and consistent performance for demanding over-the-road and vocational applications.
Signs You Need New Shock Absorbers
- Excessive bouncing or floating sensation over bumps
- Nose diving during braking or squatting during acceleration
- Wandering or poor steering response
- Uneven or cupped tire wear patterns
- Oil leaking from shock body or seals
- Visible damage to shock body, bushings, or mounts
- Driver fatigue from harsh ride quality
- Increased stopping distance
Specifications
| Manufacturer | Monroe |
|---|---|
| Part Number | 65411 |
| Series | Gas Magnum 65 |
| Part Type | Shock Absorber (Front/Rear) |
| Compressed Length | 16.375 in (41.6 cm) |
| Extended Length | 26.5 in (67.3 cm) |
| Travel Length | 10.125 in (25.7 cm) |
| Bore Diameter | 1-3/4 in (44.6 mm) |
| Reserve Tube | 2-3/8 in (60.3 mm) |
| Gas Charge | Nitrogen |
| Valving | 10-Stage |
| Upper Mount | Loop Bushing w/ Sleeve (3/4" ID x 1-3/4" OAL) – LS54 |
| Lower Mount | Loop Bushing w/ Sleeve (3/4" ID x 1-3/4" OAL) – LS54 |
| Dust Shield | Yes (Metal) |
| Hydraulic Lockout | Yes |
| Warranty | Limited Commercial Warranty / 90-Day Risk-Free Ride |
Cross References
This shock absorber replaces or is equivalent to the following part numbers:
- Peterbilt: 0201759, 0202142, 0202740, 201759, 202142, 202740
- Kenworth: 201759
- Paccar: 665783
- Mack: 14QK366, 14QK366P1, 14QK366P2, 14QK366P3, 14QK366P4, 14QK2100P6, 14CK366P1, 25625151, 5625151, 650411, 650411MT
- Ford: E9HS18045AA, F1HT18045AA
- Volvo/White/GMC: 3919956, SA5036
- International/Navistar: AMS650411
- Hendrickson: 4790219, 4790220, 573241, 6067513, 60665025, 60665025L
- Gabriel: 85036, 89405
- Meritor: M85036, M89405
- KYB: 341613, 341624, 345614, 345615
- Sachs: 410025
- Neway: 57365411
- Monroe (Alternate): 650411, 66661, 70310
- Haldex: SA65411
- NAPA: 65411
- Automann: A85036
- Dayton Parts: 441850365411, M65411
- Gold: 8160907, 9180125
- FCS: F347200, F347307
- Blue Bird: 14605
Vehicle Applications
This shock absorber fits the following trucks:
Front Axle Applications
- Peterbilt 357 – 1986-2008
- Peterbilt 362 – 1981-2006
- Peterbilt 375 – 1987-1996
- Peterbilt 376 – 1988-1992, 1994-1996, 1999
- Peterbilt 377 – 1987-2001
- Peterbilt 378 – 1988-2007
- Peterbilt 379 – 1986-2007
- Peterbilt 384 – 2008-2016
- Peterbilt 385 – 1996-2007
- Peterbilt 386 – 2006-2016
- Peterbilt 387 – 2000-2011
- Peterbilt 388 – 2008-2015
- Peterbilt 389 – 2008-2018
- Peterbilt 587 – 2011-2015
- Mack MR – 1981-2007
- Mack R – 1981-1991
- Mack RB – 1989-2005
- Mack RD – 1981-2004, 2007
- Mack U – 1981-1989
- Mack CV – 2001-2008
- Ford F-600 – 1989-1994
- Ford F-700 – 1989-1994
- Ford F-800 – 1990
- Ford FT900 – 1990-1993
Rear Axle Applications
- Kenworth W900 – 1981-2018
- Kenworth T800 – 1987-2020
- Kenworth T600A – 1986-2007
- Kenworth K300 – 1993-2005
- Kenworth T300 – 1995-2008
- Mack GU7 – 2008-2018
- Mack GU8 – 2008-2018
- Mack TD700 – 2010-2017
- Autocar Xpert – 2020
Gas Magnum 65 Features
Monroe Gas Magnum 65 shocks are the first gas-charged, large bore shocks specifically designed for heavy-duty commercial vehicle suspensions. The nitrogen gas charge provides fast response essential for today's heavy truck suspension systems, maintaining tire-to-road contact for improved ride and handling by reducing aeration and shock fade. Key features include:
- 10-Stage Valving: Tuned specifically to each vehicle application for optimal damping control
- Large Bore Design: 1-3/4" bore provides more efficient damping control
- Increased Fluid Capacity: 2-3/8" reserve tube holds more fluid for improved performance
- Hydraulic Lockout: Prevents over-extension of the suspension and protects seal assembly
- PTFE-Coated Bearing: Reduces friction between rod and guide for longer service life
- Nitrocarburized Piston Rod: Provides durability and corrosion resistance
- 360° Arc Welds: Up to 15,000 lbs tensile strength for maximum durability
- All-Weather Fluid: Special additives assist with extreme temperatures and reduce oil breakdown
Verify your suspension configuration, axle position (front/rear), and OEM part number before ordering. Different Monroe part numbers may be required depending on your specific truck model, suspension type, and axle rating.
