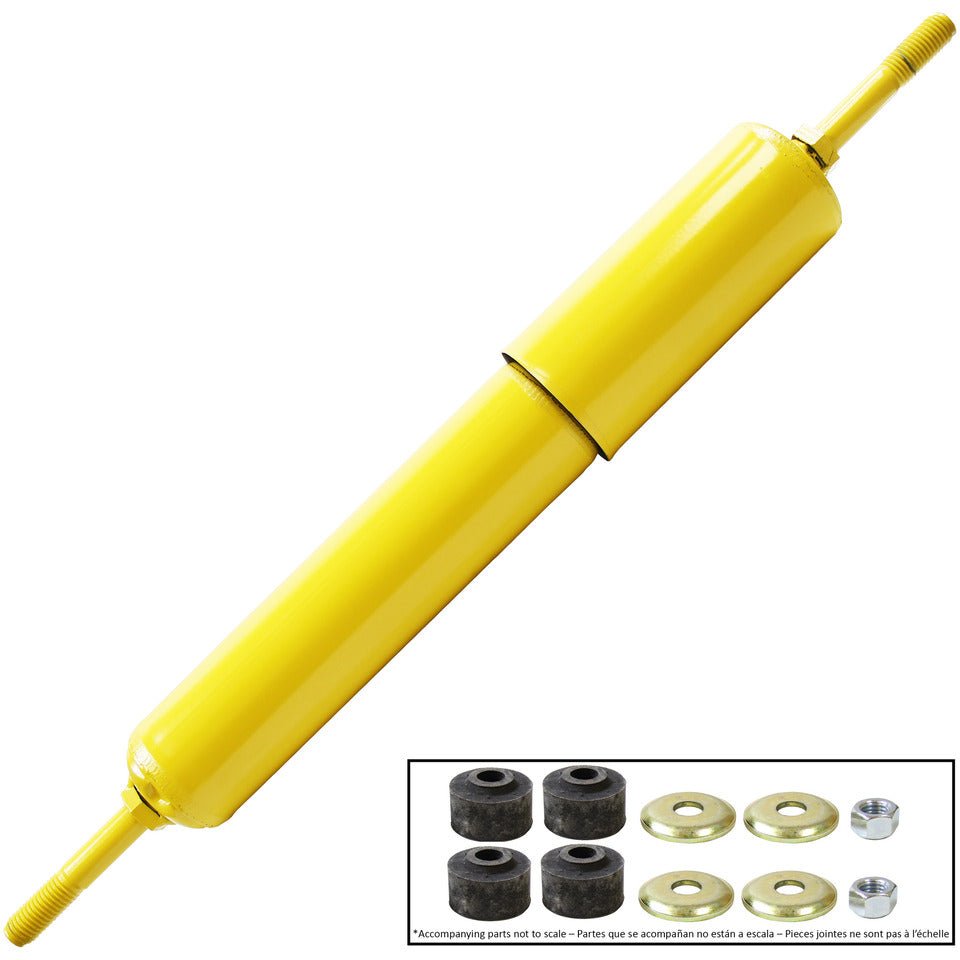

Monroe 65436 Gas Magnum Shock Absorber – Kenworth T800 W900 T600 Rear

The Monroe 65436 Gas Magnum shock absorber is a heavy-duty, nitrogen gas-charged rear shock specifically designed for Kenworth Class 8 trucks with cab-mounted rear suspensions. Featuring a large 1-3/4 inch bore and 2-3/8 inch reserve tube, this compact shock delivers superior damping control for demanding over-the-road and vocational applications. Monroe's 10-stage valving is tuned specifically for Kenworth truck suspensions, providing consistent performance under heavy loads and extreme conditions.

Signs You Need New Rear Shock Absorbers

• Excessive bouncing or floating sensation over bumps
• Rear-end squatting during acceleration or when loaded
• Vehicle swaying or poor handling in crosswinds
• Uneven or cupped tire wear patterns on drive axle
• Oil leaking from shock body or seals
• Visible damage to shock body, bushings, or mounts
• Driver fatigue from harsh ride quality
• Excessive cab vibration at highway speeds

Specifications

Cross References

This shock absorber replaces or is equivalent to the following part numbers:

• Kenworth: 665903, 665944, 70701, 481700000493
• Peterbilt: 665944PLUS
• Paccar: 665918
• Freightliner: 1617144000, 1617361000, 1618103000, 1619391000
• Gabriel: 85900, 665903
• Meritor: M85900
• Sachs: 311633, 315402, 315404, 315553, 481700000477, 481700131919
• Volvo/White/GMC: SA5900, RCSA5900
• International/Navistar: AMS650436
• Mack: 650436MT
• Neway: 57365436
• Monroe (Alternate): 650436
• NAPA: 65436
• Haldex: SA65436
• Alliance: ABPN32G900047, ABPN32O900047
• Automann: A85900
• Dayton Parts: 44185900, M65436
• Gold: 8160118
• Bulldog HD: HD12150077
• FCS: F343376

Vehicle Applications

This rear shock absorber fits the following trucks:

• Kenworth K100 – 1981-1985
• Kenworth K100E – 1985-2003, 2005-2006
• Kenworth K300 – 1993-2005
• Kenworth T300 – 1995-2008
• Kenworth T400 – 1982, 1984, 1989-1999
• Kenworth T600A – 1986-2008
• Kenworth T800 – 1987-2020
• Kenworth W900 – 1981-2020
• Kenworth C500 – 2010-2016
• Freightliner XC (Motorhome Chassis) – 2001-2005

Gas Magnum 65 Features

Monroe Gas Magnum 65 shocks are the first gas-charged, large bore shocks specifically designed for heavy-duty commercial vehicle suspensions. The nitrogen gas charge provides fast response essential for today's heavy truck suspension systems, maintaining tire-to-road contact for improved ride and handling by reducing aeration and shock fade. Key features include:

• 10-Stage Valving: Tuned specifically to each vehicle application for optimal damping control
• Large Bore Design: 1-3/4" bore provides more efficient damping control
• Increased Fluid Capacity: 2-3/8" reserve tube holds more fluid for improved performance
• Hydraulic Lockout: Prevents over-extension of the suspension and protects seal assembly
• PTFE-Coated Bearing: Reduces friction between rod and guide for longer service life
• Nitrocarburized Piston Rod: Provides durability and corrosion resistance
• 360° Arc Welds: Up to 15,000 lbs tensile strength for maximum durability
• All-Weather Fluid: Special additives assist with extreme temperatures and reduce oil breakdown

Verify your suspension configuration and OEM part number before ordering. Different Monroe part numbers may be required depending on your specific truck model and suspension type.
