PAI 131656 Oil Pan Gasket – Cummins ISX ISX15 X15

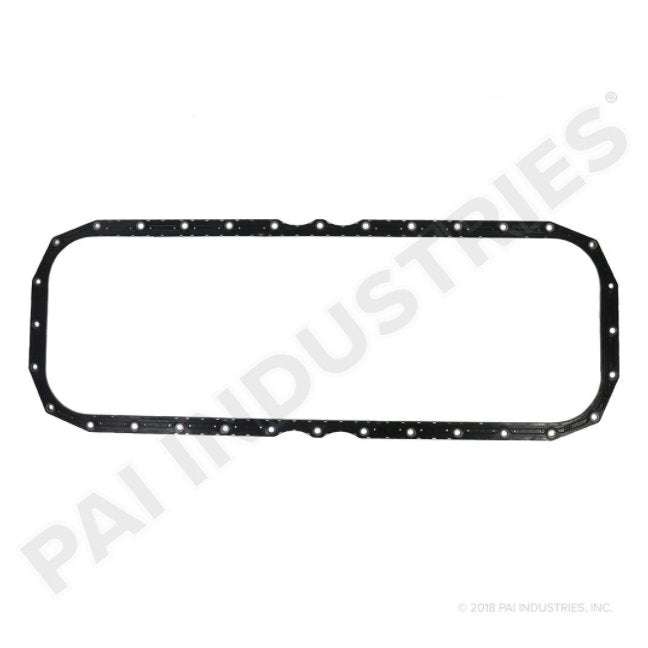

The PAI 131656 is a premium aftermarket oil pan gasket designed for Cummins ISX, ISX15, and X15 heavy-duty diesel engines. This rubber-coated, steel-reinforced gasket provides a reliable seal between the oil pan and engine block to prevent oil leaks. Manufactured to meet or exceed OEM specifications, it's a direct replacement for Cummins part numbers 4026684 and 3679943. Backed by PAI Industries' 2-Year Unlimited Mileage Warranty.

Signs You Need a New Oil Pan Gasket

• Oil leaking from the bottom of the engine near the oil pan flange
• Oil spots or puddles under the truck after parking
• Low oil level warnings requiring frequent top-offs
• Visible oil residue or wet spots around the oil pan perimeter
• Oil dripping onto exhaust components causing smoke or burning smell
• Failed DOT inspection due to excessive oil leaks

Specifications

Cross References

This gasket replaces or is equivalent to the following part numbers:

• Cummins: 4026684, 3679943
• PAI: 131656, 131656E

Note: This gasket is also a component of PAI 131838 Oil Pan Gasket Kit and PAI 132114 Lower Gasket Kit.

Engine Applications

This oil pan gasket fits all Cummins ISX series 15-liter engines:

• Cummins ISX CM570 (Dual Cam, EGR)
• Cummins ISX CM870 (Dual Cam, EGR)
• Cummins ISX CM871 (Dual Cam, DPF)
• Cummins ISX15 CM2250 (Single Cam, SCR)
• Cummins ISX15 CM2350 (Single Cam, SCR)
• Cummins X15 CM2350 (EPA 2017+)
• Cummins X15 CM2450 (EPA 2021+)
• Cummins QSX15 (Industrial/Off-Highway)

Vehicle Applications

This gasket fits Class 8 trucks equipped with Cummins ISX/ISX15/X15 engines:

• Freightliner: Cascadia, Coronado, 122SD, 114SD (2001+)
• Kenworth: W900, W990, T880, T680, T800, C500 (2001+)
• Peterbilt: 389, 579, 567, 386, 387, 388, 367, 365 (2001+)
• International: LT Series, HX Series, LoneStar, ProStar, 9900i (2001+)
• Volvo: VNL Series, VNX Series (with Cummins power)
• Western Star: 4900 Series, 5700XE (2001+)
• Mack: Pinnacle, Anthem (with Cummins ISX option)

Installation Notes

Proper oil pan gasket installation is critical for a leak-free seal. Before installation, thoroughly clean the oil pan rail and engine block mating surfaces to remove all old gasket material, oil, and debris. Inspect the oil pan flange for warping or damage—a warped pan will not seal properly even with a new gasket. Apply a thin bead of RTV sealant at the corners where the front cover and rear seal housing meet the block (per Cummins service recommendations). Install the gasket dry—do not apply sealant to the gasket surface. Torque oil pan bolts in the proper sequence to Cummins specifications (typically 18-22 lb-ft for steel pans). Allow RTV to cure before adding oil and starting the engine. After installation, check for leaks at operating temperature.

Verify your engine serial number and ECM code (CM570, CM870, CM871, CM2250, CM2350, etc.) before ordering to confirm fitment.
