PAI 141287E Oil Pan Excel – Cummins 4B 4BT 3.9L, 10 Quart Front Sump

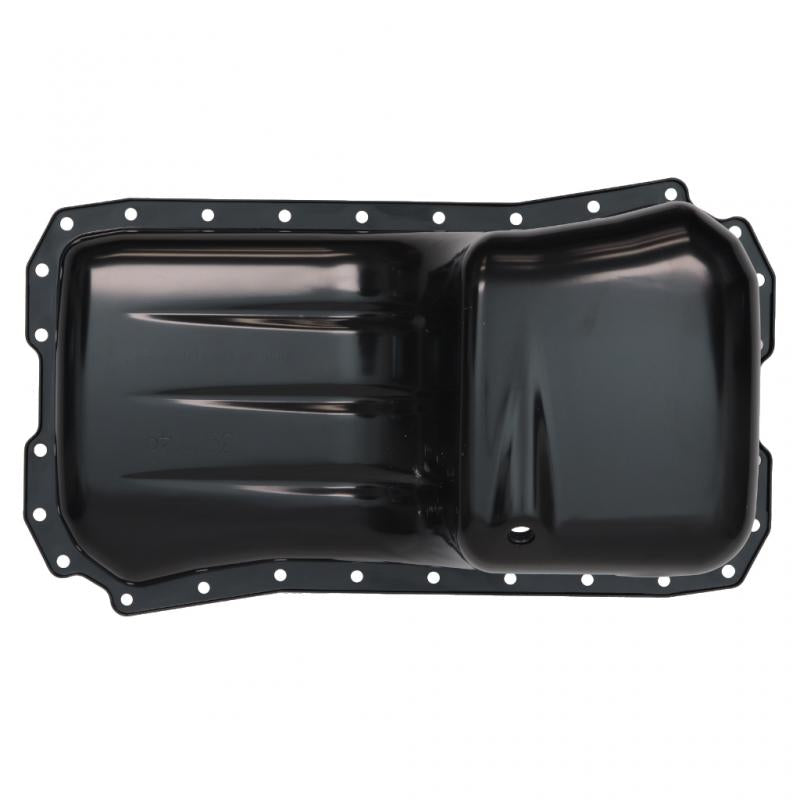

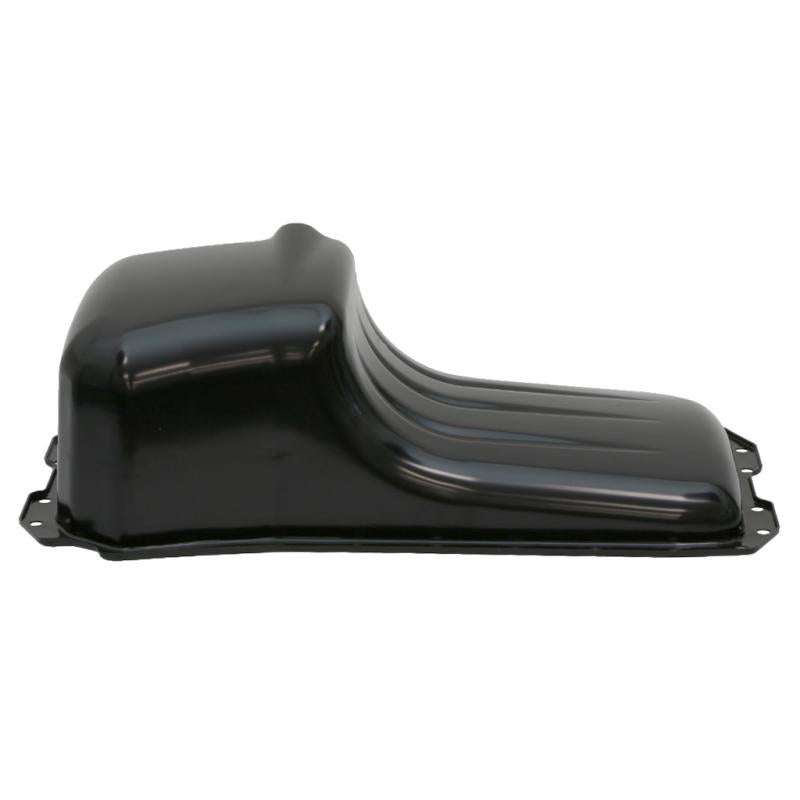

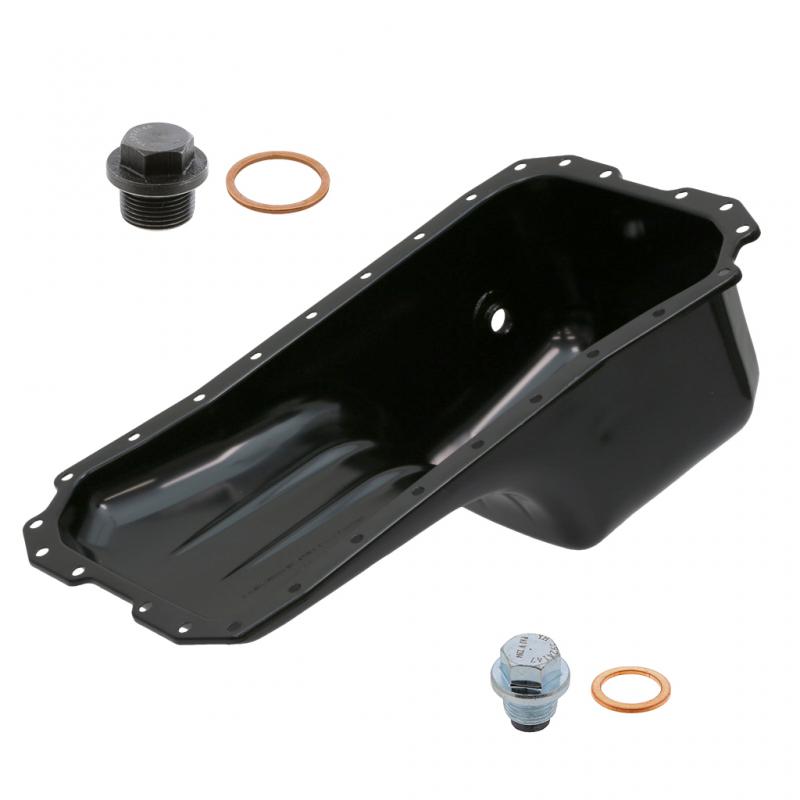

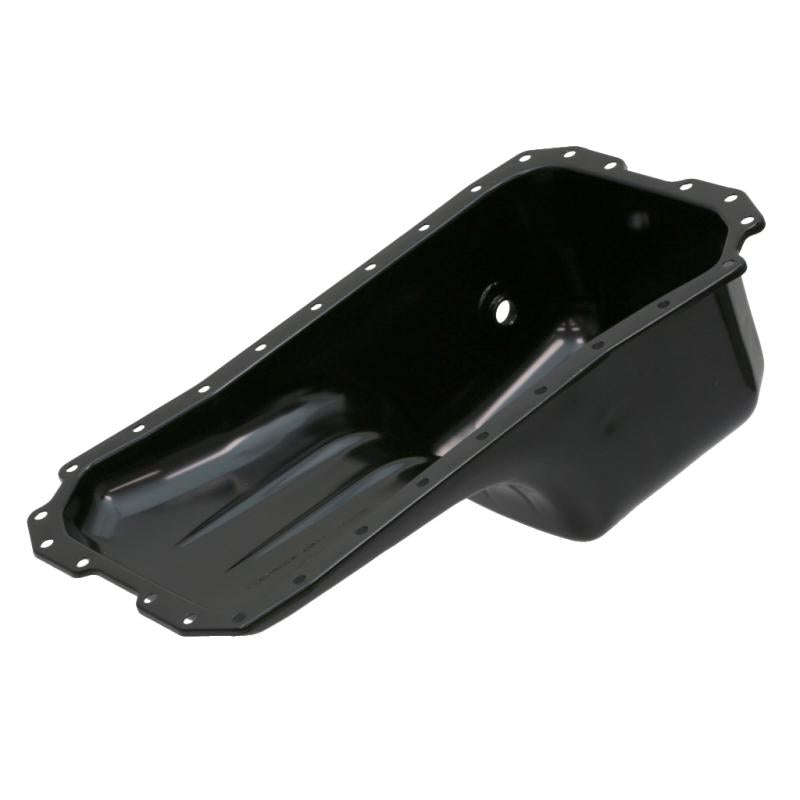

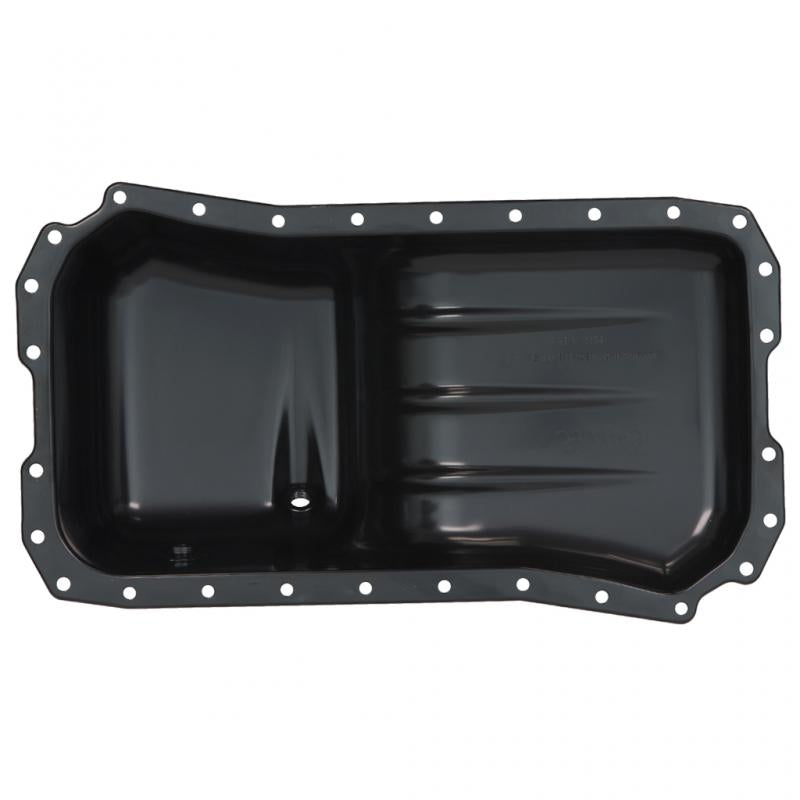

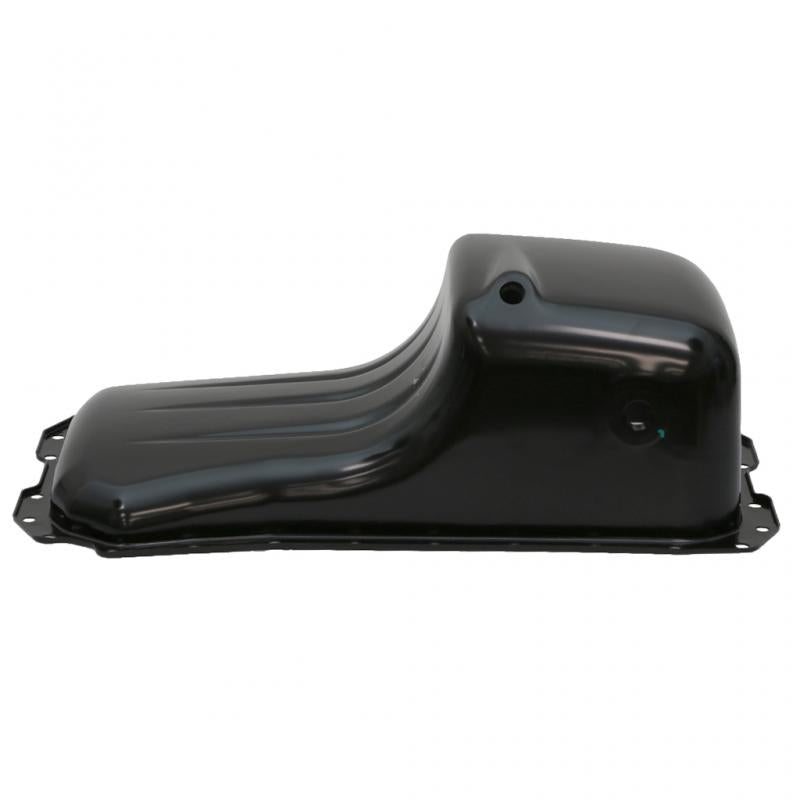

Quality replacement oil pan from the PAI Excel line. The 141287E is a black-finished steel front-sump pan with 10 quart capacity for Cummins 4B and 4BT 3.9L engines, replacing Cummins 3901049. It ships with the M18 x 1.5 drain plug installed and includes an oil level sensor port.

Signs You Need a New Oil Pan

• Oil dripping or pooling from the lowest point of the engine, heaviest right after shutdown
• Visible impact damage — a dent, crease or gouge from road debris or bottoming out
• Stripped or leaking drain plug threads that a new sealing washer will not stop
• Rust-through, pinholes or weeping at the lowest seam or drain boss
• Pan flange no longer flat, with elongated bolt holes, so a fresh gasket leaks again within days

Specifications

Cross References

This part replaces or is equivalent to the following part numbers:

• Cummins: 3901049
• World American: WA902-12-4821

Applications

This oil pan fits Cummins engines found in:

• Cummins 4B and 4BT 3.9L industrial and on-highway applications

Verify fitment with your engine serial number and sump configuration before ordering. This is the PAI Excel economy version with a 1 year warranty and NO gasket — the matching gasket is PAI 131403, Cummins 3911535, and must be ordered separately. PAI 141287 is the same pan in the Genuine PAI line with a 2 year warranty.
