PAI 141283 Oil Pan for Cummins ISX Oil Pan Replaces Cummins 3687414

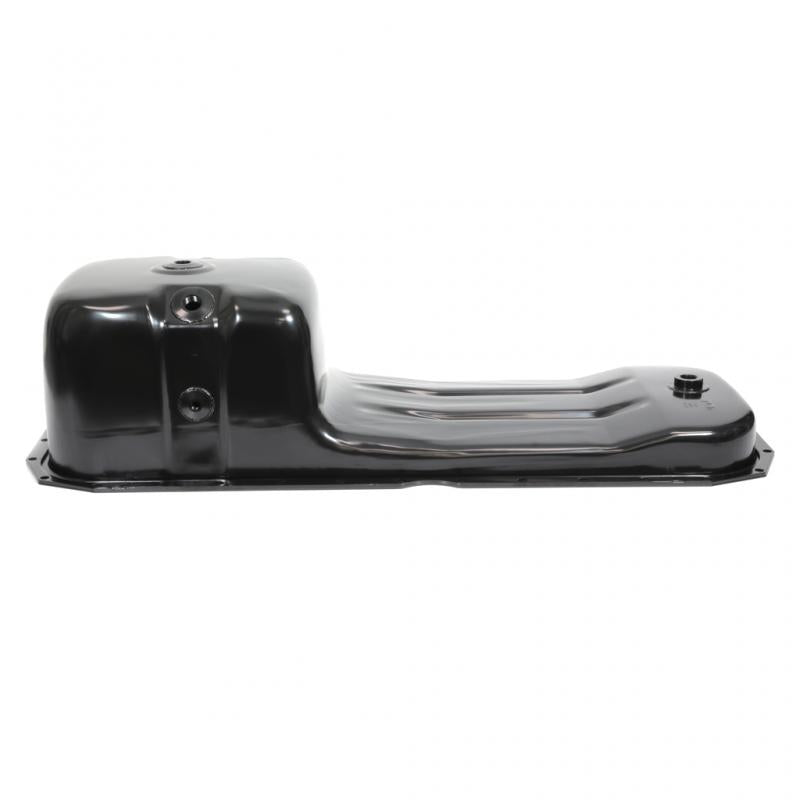

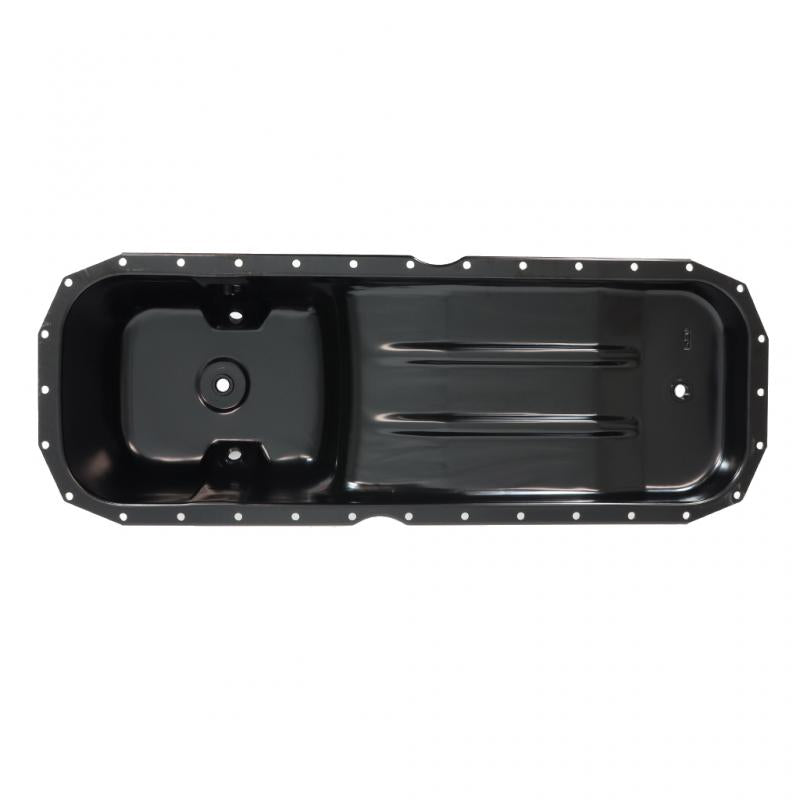

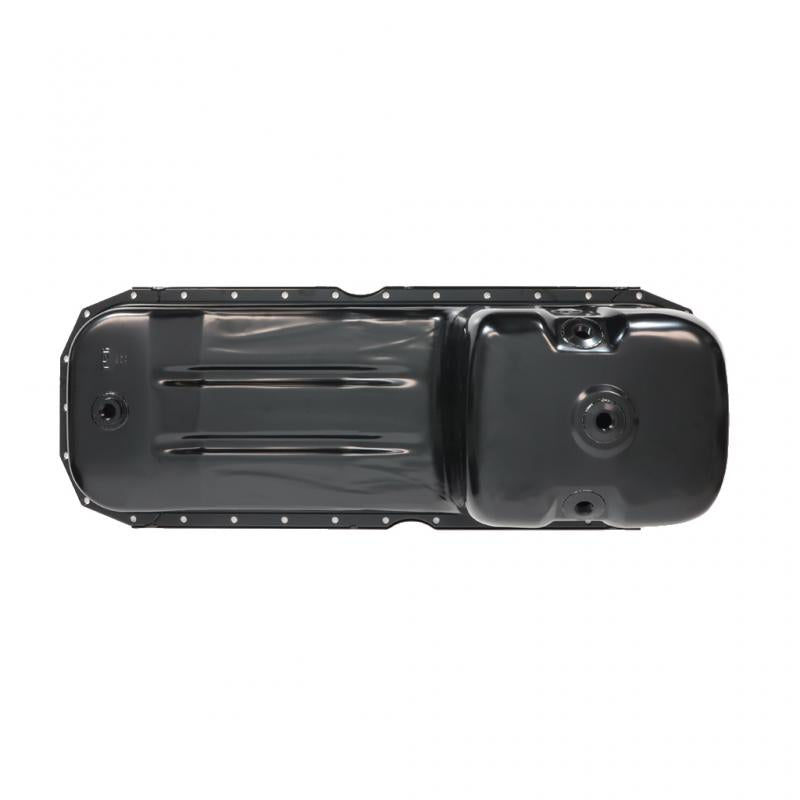

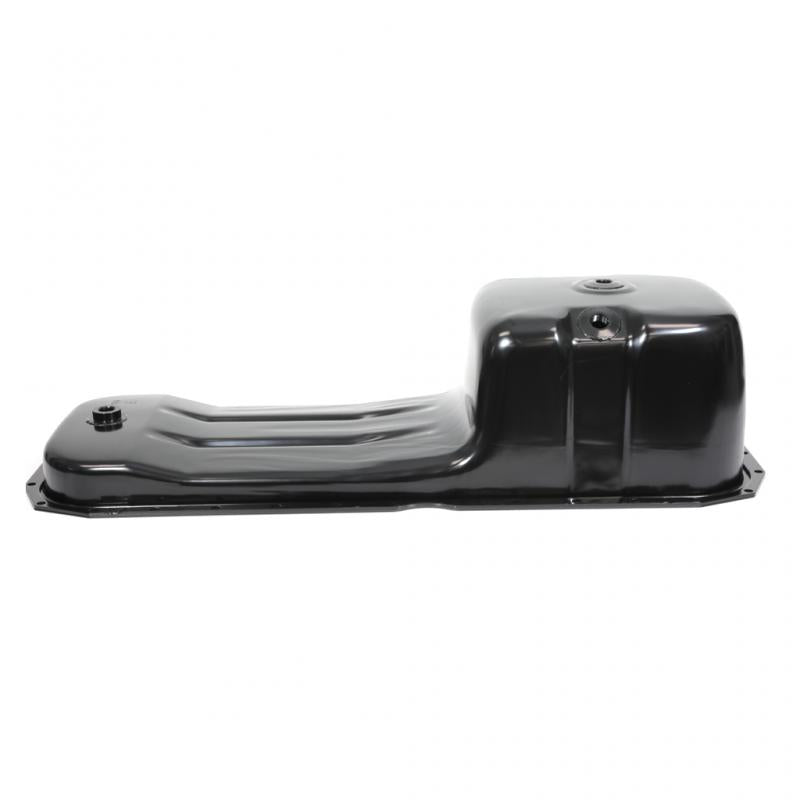

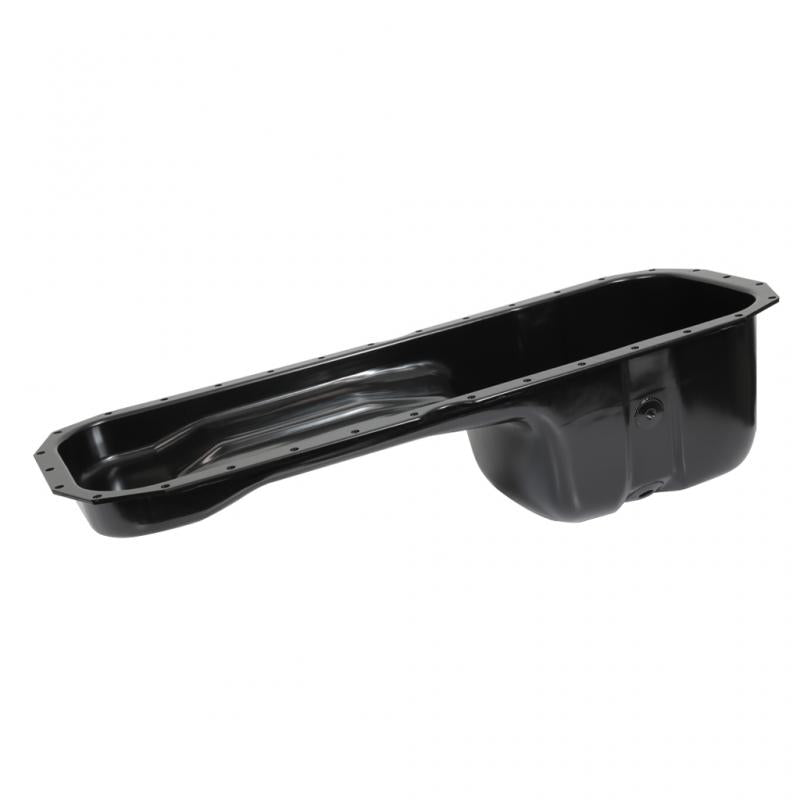

PAI 141283 is a 48-quart steel oil pan kit for Cummins ISX 15.0L engines, replacing Cummins OE pan 3690567 (and superseded numbers 3679945, 3680530, 3687414, 4952540) along with pan gasket 4026684. The pan accepts both front and rear sump configurations and ships as a complete assembly with gasket kit, plug kit, drain plug, and installation guide.

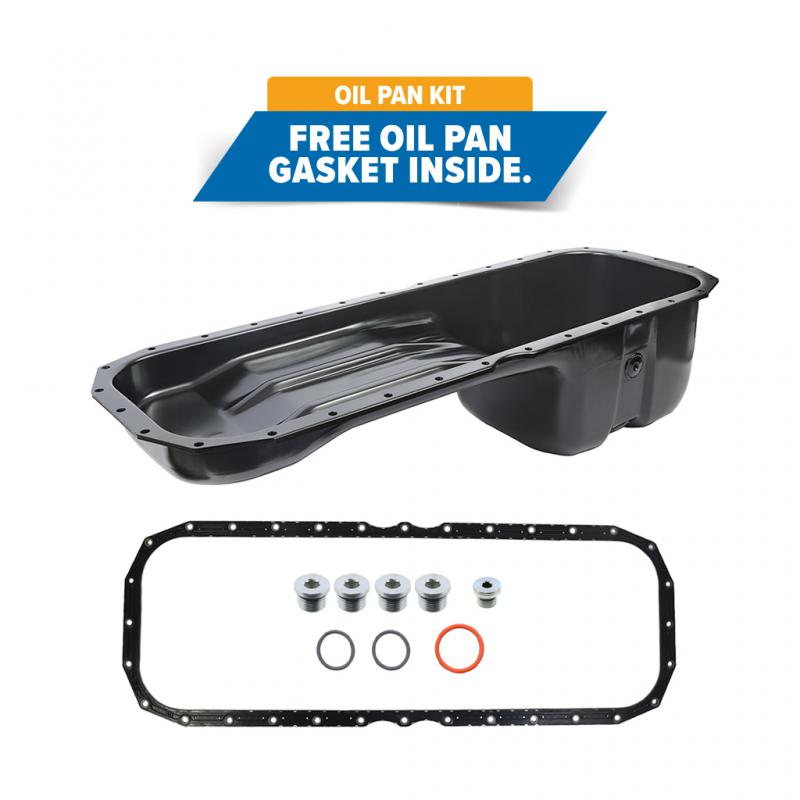

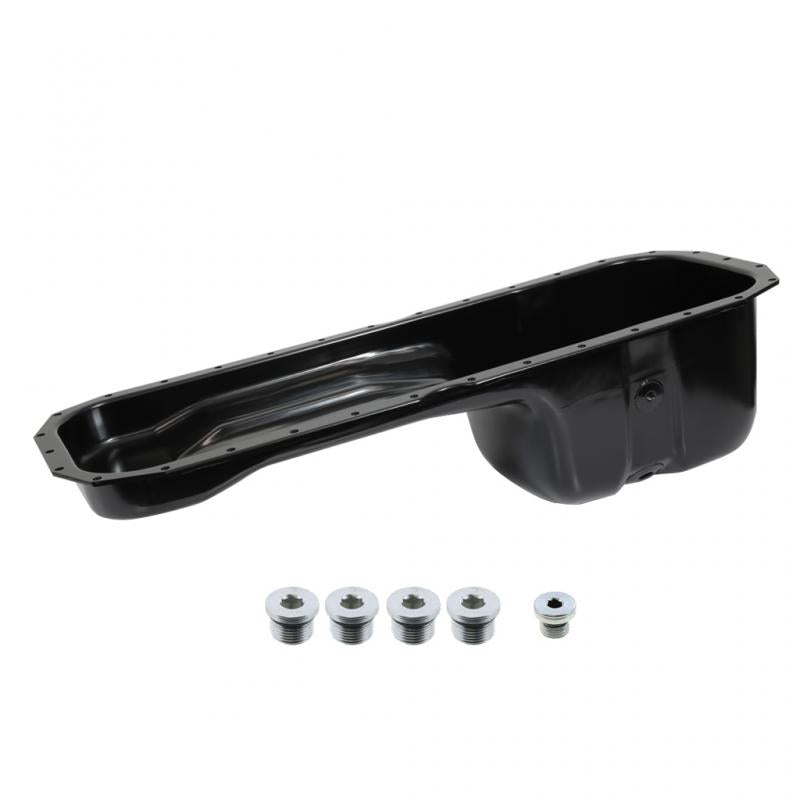

Kit Includes

• Oil Pan — PAI 141283-100 (OE Cummins 3690570), qty 1

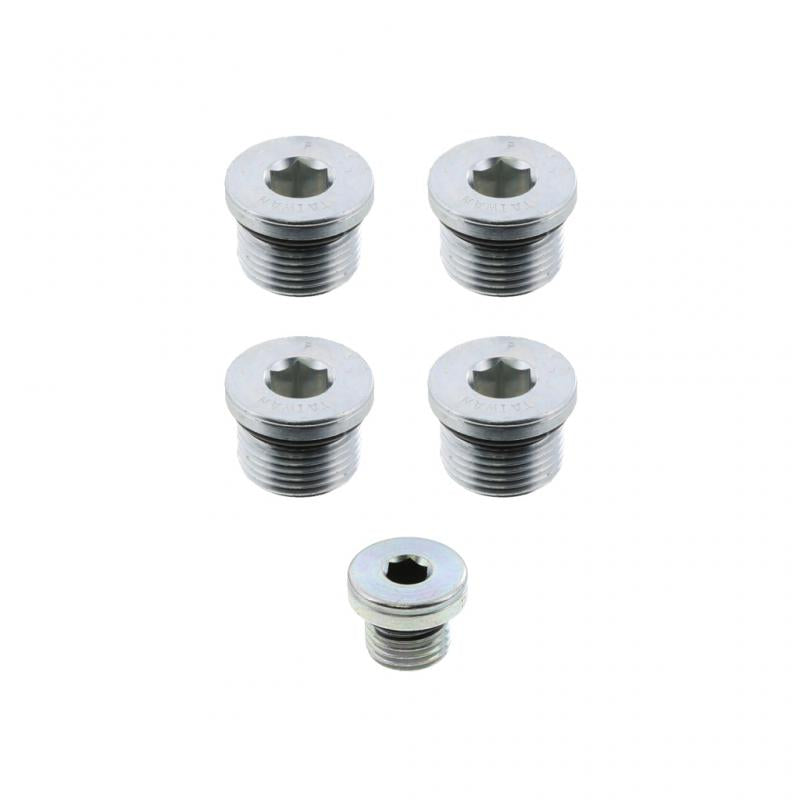

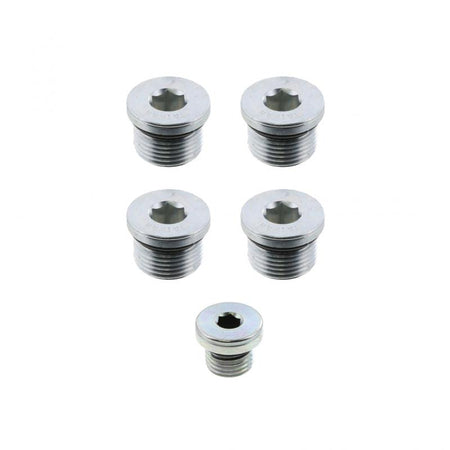

• Plug Kit — PAI 050588, qty 1
  • O-ring plug — PAI 050580 (OE Cummins 3678611), qty 4
  • Plug — PAI 050581 (OE Cummins 3678605), qty 1
  • O-ring — PAI 121366 (OE Cummins 3678606), qty 1
  • Plug — PAI 050572 (OE Cummins 3680420), qty 1
• Gasket Kit — PAI 131838, qty 1
  • Oil pan gasket — PAI 131656 (OE Cummins 4026684), qty 1
  • O-ring — PAI 121308 (OE Cummins 3678756), qty 1
  • O-ring — PAI 121366 (OE Cummins 3678606), qty 1
• Installation guide and gasket label

Specifications

Cross References

This oil pan kit replaces or is equivalent to the following part numbers:

• Cummins (oil pan): 3690567, 3690570, 3679945, 3680530, 3687414, 4952540
• Cummins (gasket): 4026684

Applications

This oil pan kit fits the following Cummins engine family:

• Cummins ISX 15.0L (2002–2017, including ISX CM870, CM871, CM2250, CM2350)

Representative trucks using ISX engines:

• Freightliner Cascadia, Columbia, Coronado, Classic XL
• Kenworth T680, T880, T800, W900
• Peterbilt 579, 389, 388, 386, 367
• Volvo VNL, VNX, VHD (with Cummins option)
• International LT, ProStar, LoneStar (with Cummins option)
• Western Star 4900, 5700XE

Verify your engine serial number and existing oil pan configuration before ordering. The 141283 supports both front- and rear-sump installations on ISX engines using OE pan 3690567.
