PAI 180923 Accessory Drive Installation Kit – Cummins 855 Big Cam / N14

Accessory-drive installation kit for Cummins 855 (NH/NT/NTA/NTC) Big Cam I-IV engines and early N14 builds with the small (1.5 in) accessory-drive shaft. The PAI 180923 ships with the shaft seal, wear sleeve, mounting and air-compressor gaskets, drive nut, washer, groove pin, and keyway seal needed for a complete professional reinstall after PT pump, air compressor, or accessory-drive service.

Signs You Need an Accessory Drive Installation Kit

• Oil leaking from the front of the engine around the accessory drive pulley
• Oil accumulation on belts and front engine accessories
• Worn or damaged wear sleeve on the accessory drive shaft
• Accessory drive removal for air compressor, fuel pump, or power steering service
• Engine overhaul or front cover gasket replacement

Specifications

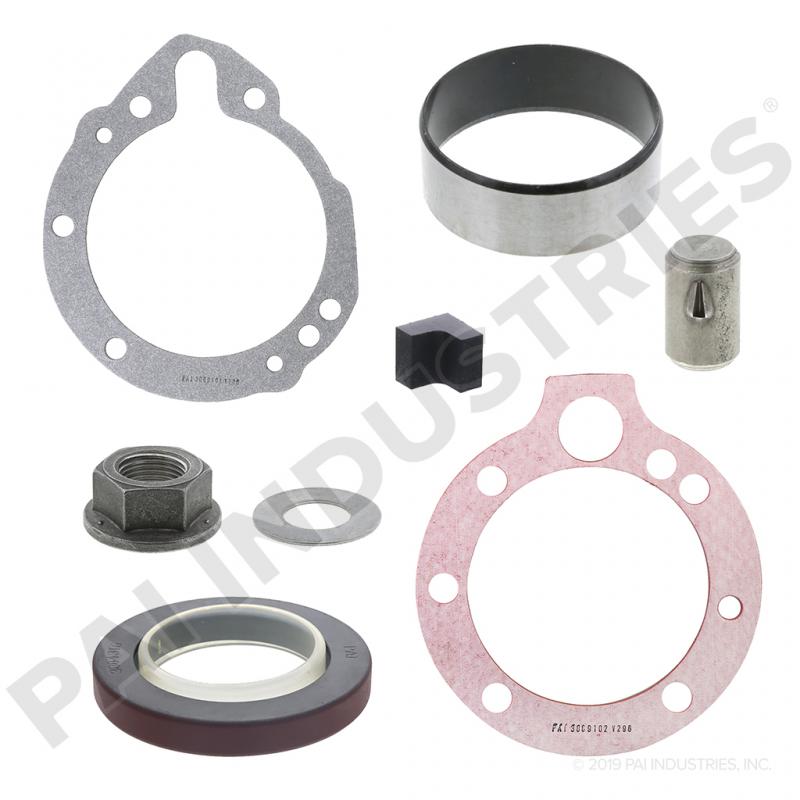

Kit Includes

• Gasket kit — PAI 180923-300 (qty 1)
• Mounting gasket — PAI / Cummins 3069101 (qty 1)
• Air compressor gasket — PAI / Cummins 3069102 (qty 1)
• Accessory drive nut — PAI / Cummins 3012526 (qty 1)
• Flat washer — PAI 193136 (qty 1)
• Groove pin — PAI / Cummins 3034438 (qty 1)
• Keyway seal — PAI / Cummins 3008947 (qty 1)
• Wear ring / sleeve — PAI 190397 (qty 1)
• Accessory drive seal — PAI 136006 / Cummins 3004316 (qty 1)

Cross References

This kit contains components that replace the following Cummins OEM part numbers:

• Cummins: 3004316 (seal), 3069101 (mounting gasket), 3069102 (compressor gasket), 3012526 (nut), 193136 (washer), 3034438 (groove pin), 3008947 (keyway seal), 190397 (wear ring)
• Interstate McBee: Compare to MCB105 (major repair kit)

Applications

This accessory drive installation kit fits the following Cummins engines with the small (1.5 in) shaft accessory drive:

• Cummins 855 NH855, NT855, NTA855, NTC855 (1970s-1990s)
• Cummins Big Cam I, II, III, IV and 88NT (mid-1970s through late 1980s)
• Cummins N14 (very early small-shaft builds only)

Representative vehicles and equipment using these engines:

• Freightliner, Kenworth, Peterbilt, International, Mack on-highway tractors with Cummins 855 / Big Cam
• Steiger, Versatile, Big Bud agricultural tractors with Cummins 855
• Construction, marine, and industrial equipment with NH/NT/NTA 855

Important: This kit is for engines with the small (1.5 in) accessory drive shaft. Later N14 engines use a large-shaft accessory drive and require PAI 180920. Verify your engine configuration before ordering.
