Power Products 950014P Purge Valve Repair Kit – WABCO/Meritor System Saver 1200

The Power Products 950014P is a complete purge valve repair kit designed for WABCO and Meritor System Saver 1200 series air dryers. This kit contains all the components needed to rebuild a leaking or malfunctioning purge valve, restoring proper air dryer function and eliminating moisture contamination in your truck's air brake system. A direct replacement for Meritor R950014 and WABCO 4324139292, this kit is an economical alternative to replacing the entire air dryer assembly.

Signs You Need a New Purge Valve Kit

• Continuous air leak from the air dryer purge valve exhaust after system reaches cut-out pressure
• Air compressor cycles rapidly every 10-30 seconds instead of normal intervals
• Purge valve "popping" or intermittent sticking during normal operation
• System won't build full air pressure (stays below 100 PSI)
• Excessive moisture or water accumulation in air tanks
• Audible hissing from purge valve area when truck is parked
• Loss of turbocharger boost during compressor unload cycle
• Air dryer not purging completely at governor cut-out

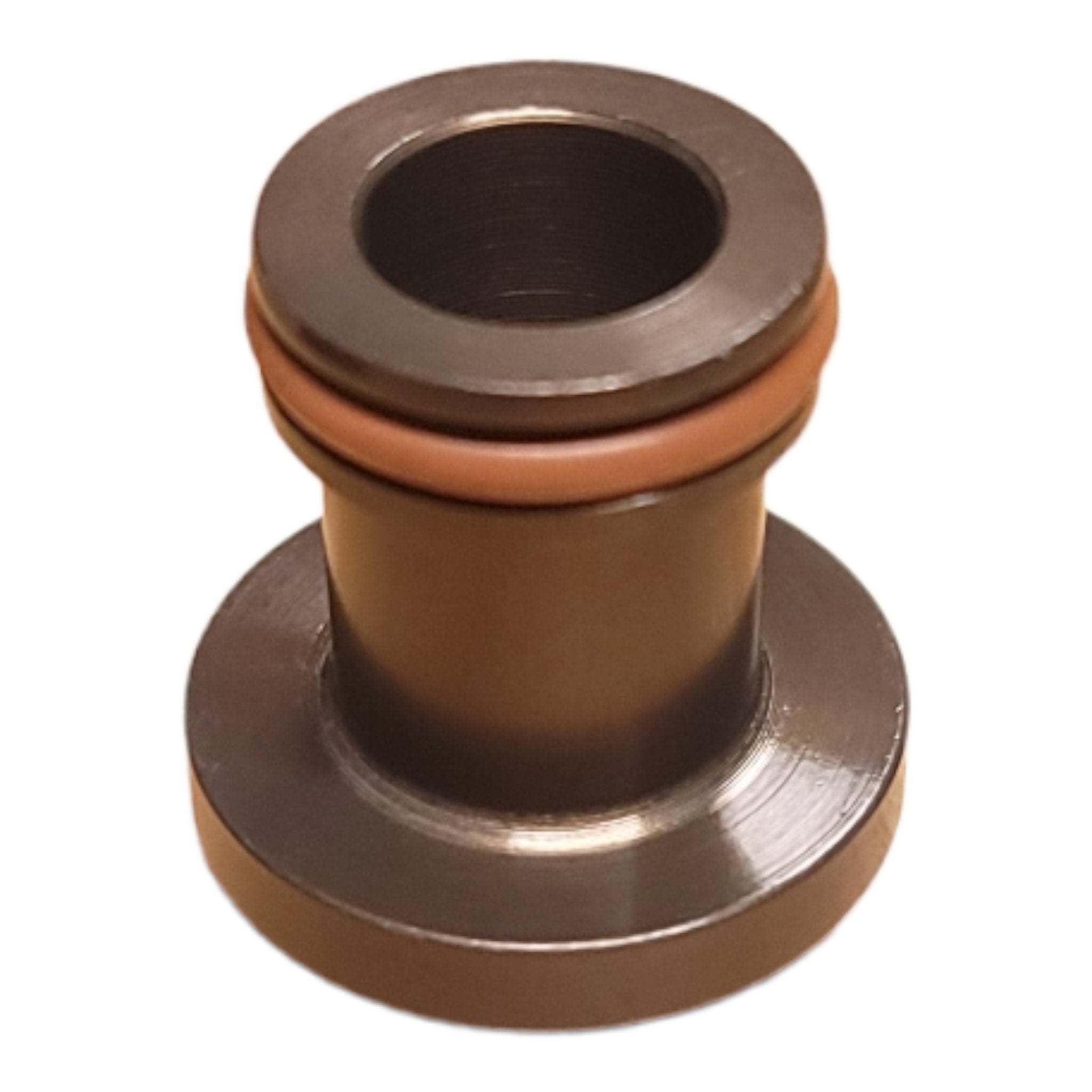

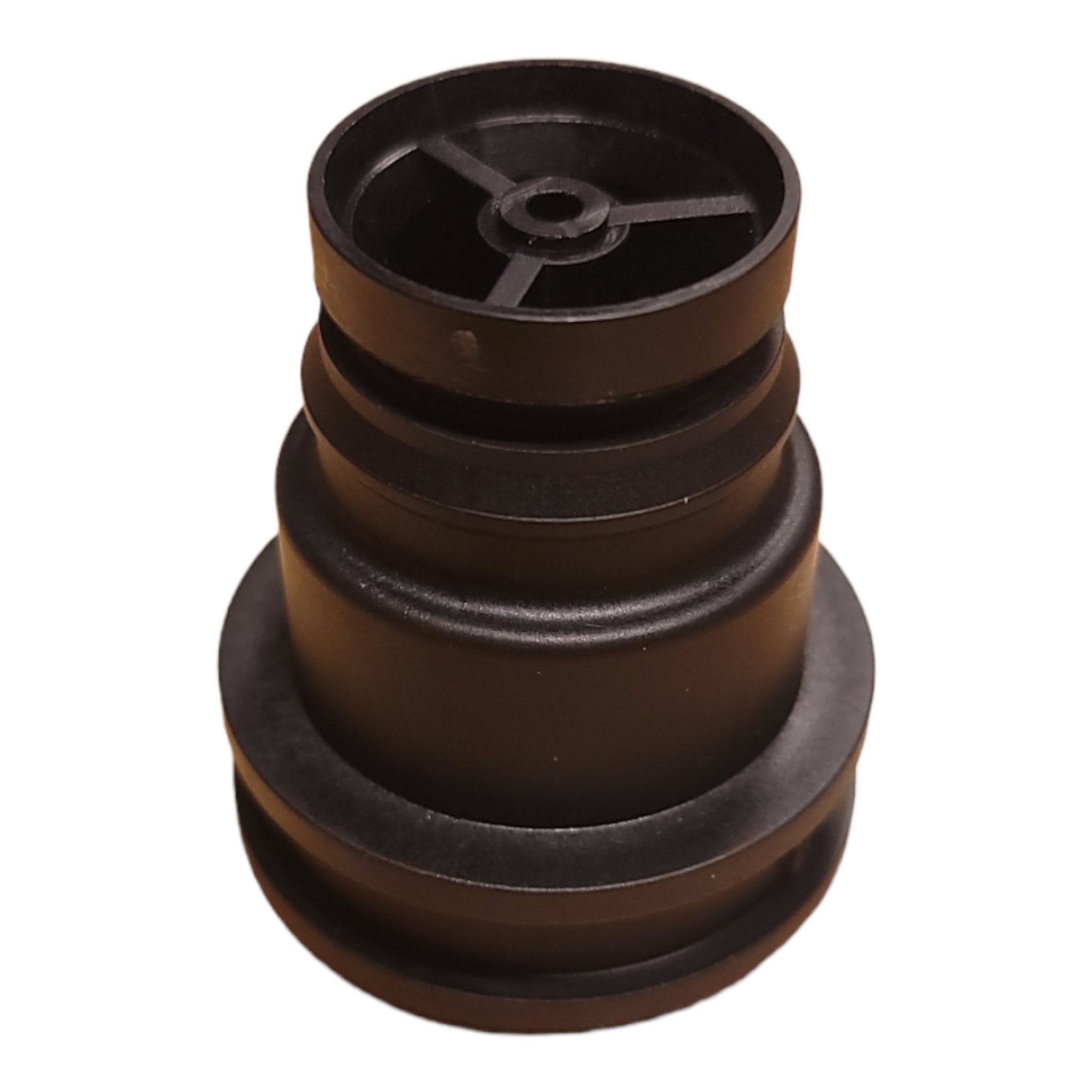

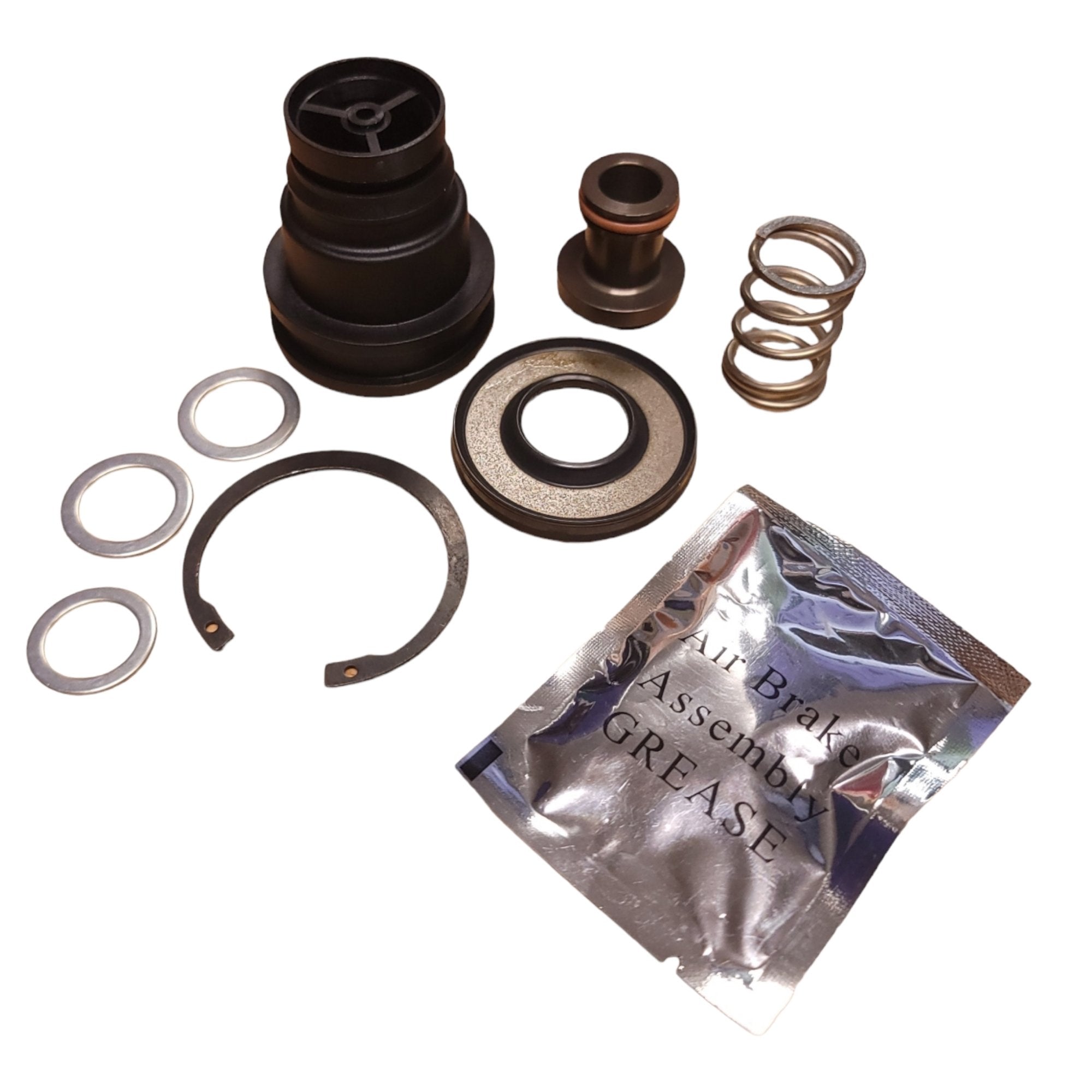

Kit Contents

Cross References

This part replaces or is equivalent to the following part numbers:

• Meritor WABCO: R950014, 4324139292, 432 413 929 2
• Volvo: 3918353
• Automann: 170.950014
• World American: WAR950014
• Newstar: S-18750
• TDA: TDAR950014
• Ancra: AV9514, AV950014
• ATP: AT950014

Applications

This purge valve kit fits WABCO/Meritor System Saver 1200 series air dryers found on:

• Freightliner: Cascadia, Columbia, Century, Coronado, M2, FLD, Classic
• Kenworth: T680, T880, T800, W900, T660, T370, T270, C500
• Peterbilt: 579, 389, 388, 387, 386, 384, 379, 378, 367, 365
• Volvo: VNL, VNR, VNM, VHD
• Mack: Anthem, Pinnacle, Granite, CXU, CHU, GU
• International: ProStar, LoneStar, LT, 9900, 9400, 9200
• Western Star: 4900, 5700, 4700 series
• Motorhomes and buses equipped with WABCO System Saver air dryers

How the Purge Valve Works

The purge valve is a spring-loaded spool valve that opens when the air governor signals compressor unload at cut-out pressure (typically 120-135 PSI). When activated, it rapidly exhausts air from the discharge line and back-flushes the desiccant cartridge, expelling accumulated moisture and contaminants. A worn or damaged purge valve fails to seal properly, allowing continuous air leakage that causes rapid compressor cycling, premature compressor wear, and moisture contamination throughout the air system.

Installation Tips

Before installing this kit, drain all air tanks and verify that the air compressor and governor are functioning correctly. If shims are included, install them above and below the spring as specified. Do not grease the rubber diaphragm or valve seat. After installation, perform a complete leak test and verify proper purge cycle operation. For best results, replace the purge valve kit whenever replacing the desiccant cartridge as part of routine preventive maintenance.

Verify your air dryer model before ordering. This kit fits System Saver 1200 series dryers. For System Saver Twin dryers, a different kit is required.
