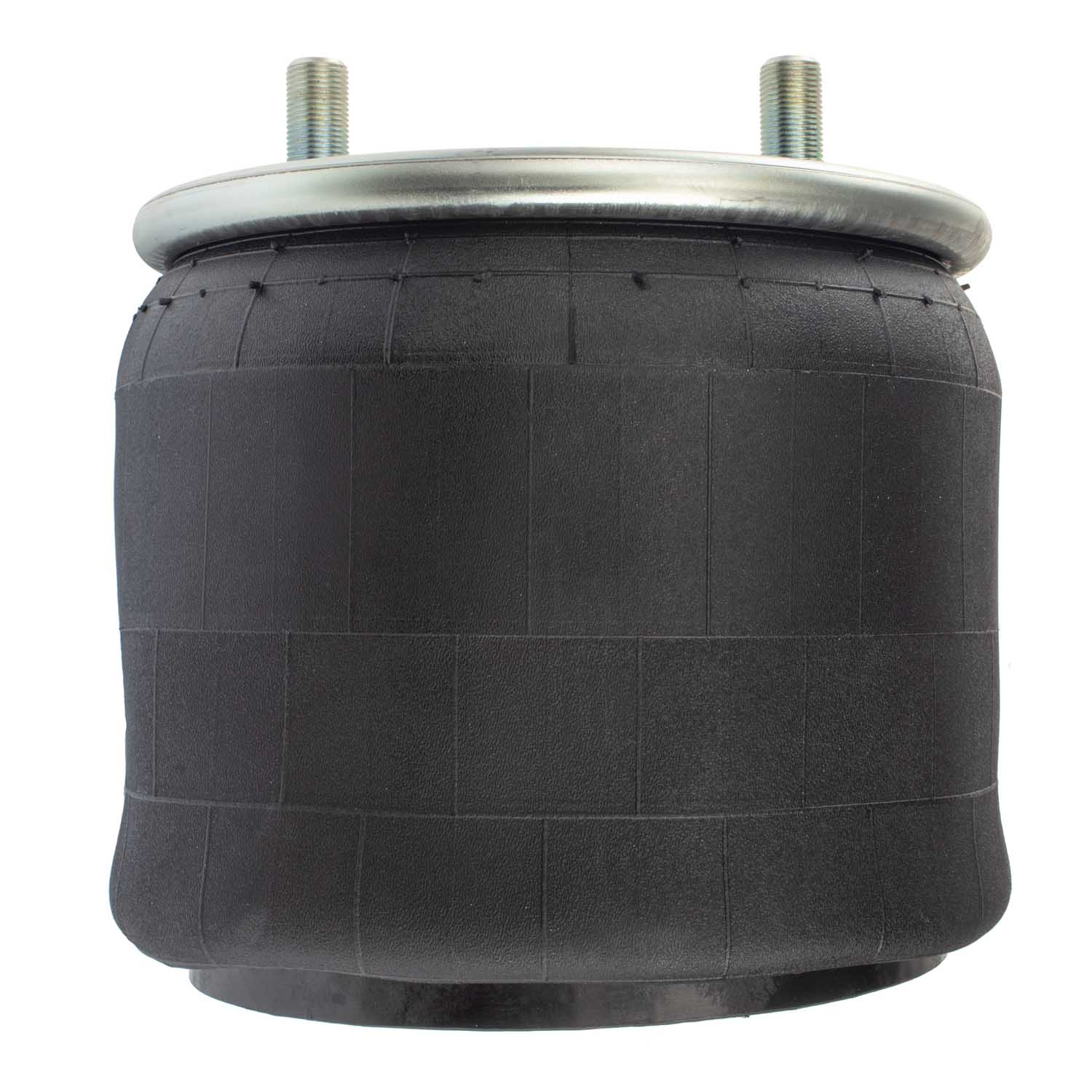

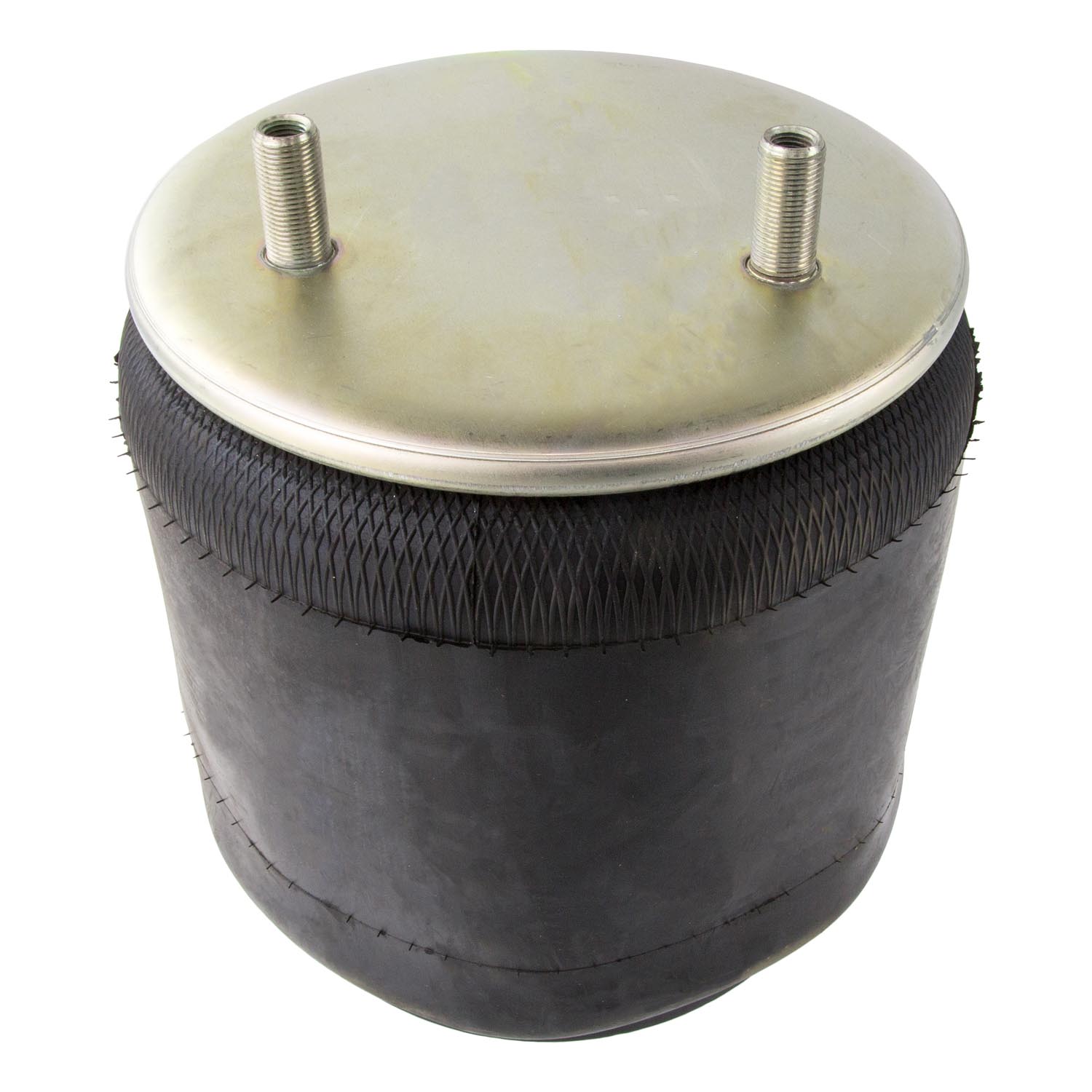

World American Air Spring WA01-8708C
Model/Style: Rolling Lobe
Bottom Plate Alignment: Parallel
Bottom Plate Center to Center Diameter: 2.25 (Inch)
Bottom Plate Diameter: 8.82 (Inch)
Bottom Plate Hole Quantity: 1
Bottom Plate Type: A
Design Height: 11 (Inch)
Load Rating at 100 PSI: 8450 (Pound)
Load Rating at 80 PSI: 6760 (Pound)
Maximum Diameter: 13.7 (Inch)
Maximum Height: 21 (Inch)
Minimum Height: 7.5 (Inch)
Natural Frequency: 75
Spring Type: Rolling Lobe
Top Plate Center to Center Diameter: 5.5 (Inch)
Top Plate Diameter: 10.2 (Inch)
Top Plate Hole Quantity: 2
Cross Reference:
- Automann:
AB1DK25E-8708
- Batco: 10-98708
- Continental-ContiTech: 10 10-16 S 526
- Continental-ContiTech: 101016S526
- Continental-ContiTech: 64638
- ContiTech: AS8708
- Dayton Parts: 352-8708
- Euclid: E-FS8708
- Firestone: 8708
- Firestone: W01-358-8708
- Goodyear: 1R13-128
- Goodyear: 1R13-177
- HDValue: HDV8708
- Hendrickson: S21966
- Hendrickson: 28929
- Meritor: FS8708
- Paccar Parts: AS87080
- Triangle Air Springs: 8526
- Triangle Air Springs: AS-8526
