World American WA01-8813C │ Air Spring Replacement For Paccar C81-1012
World American WA01-8813C │ Air Spring Replacement For Paccar C81-1012
Where to Buy
Verify compatibility with your vehicle or equipment before ordering. Prices and availability may vary.
Affiliate Disclosure
Some links above are affiliate links — we may earn a small commission at no additional cost to you. This helps support our site.

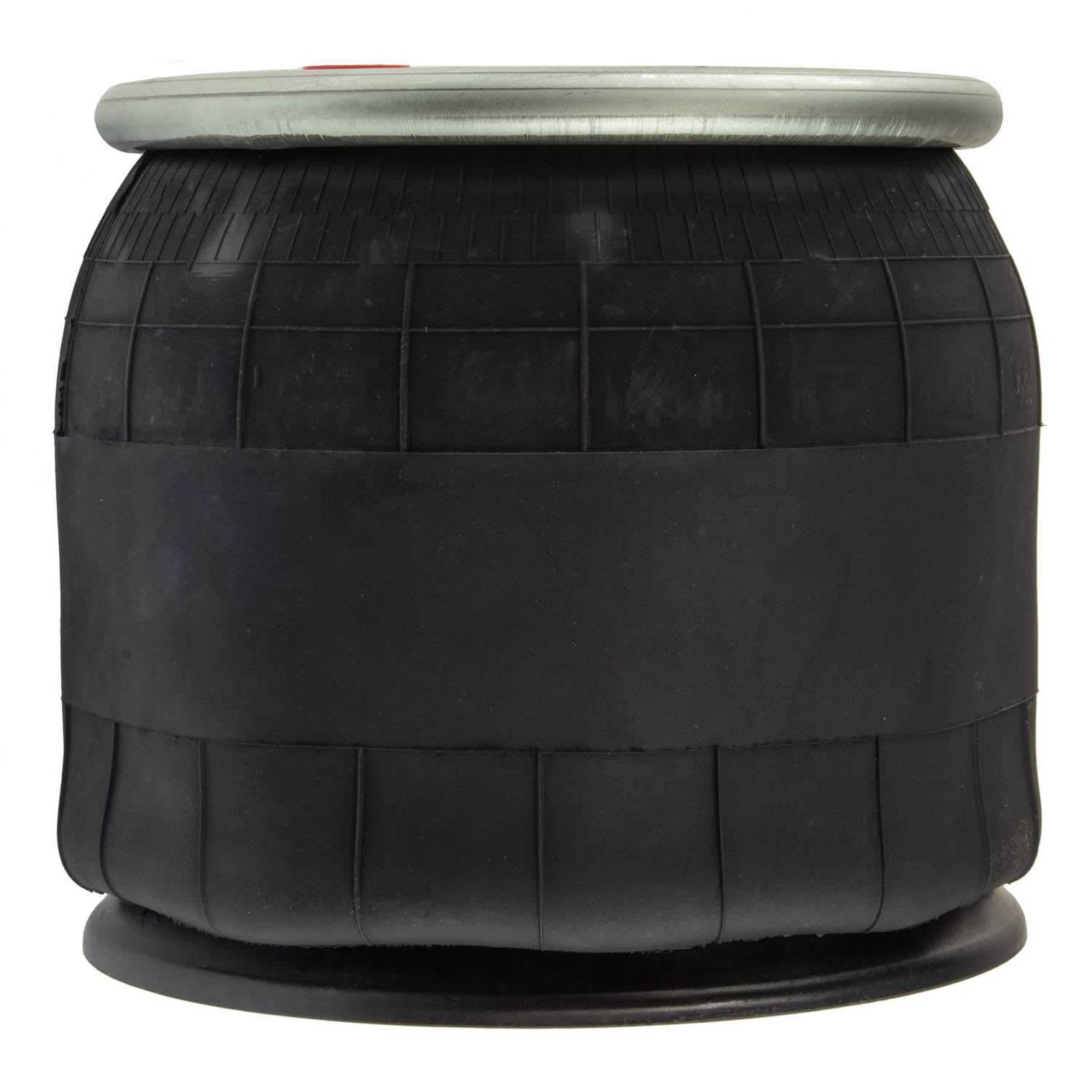

The World American WA01-8813C is a rolling-lobe air spring for the Kenworth Airglide 380 and Peterbilt Flex Air cab and chassis suspensions. It is an aftermarket replacement for Paccar C81-1012, Paccar C81-1003, and Peterbilt C81-6000. The spring also crosses Firestone W01-358-8813 and ContiTech AS8813 (9 10-14 P 577).
Specifications
| Manufacturer | World American |
|---|---|
| Part Number | WA01-8813C |
| Part Type | Air Spring (Rolling Lobe) |
| Design Height | 11.5 in |
| Min / Max Height | 7.1 in / 18.9 in |
| Maximum Diameter | 12.6 in |
| Load Rating @ 80 psi | 5,710 lb |
| Load Rating @ 100 psi | 7,160 lb |
| Top Plate | 9 in dia, 2 holes, 6.2 in C-to-C |
| Bottom Plate | 9.53 in dia, 1 hole, 2.25 in C-to-C, parallel alignment |
| Natural Frequency | 71 Hz |
Cross References
This part replaces or is equivalent to the following part numbers:
- Paccar Parts: C81-1003, C81-1012
- Peterbilt: C81-6000
- Firestone: W01-358-8813, 8812, 8813, 8814
- ContiTech (Continental): AS8813, 9 10-14 P 577, 65990
- Meritor: FS8813
- Euclid: E-FS8813
- HDValue: HDV8813
- Also known as: AB1DK23I-8813
Applications
This air spring fits the following truck cab and chassis suspensions:
- Kenworth Airglide 380 cab suspension
- Peterbilt Flex Air cab and chassis suspension
Representative vehicles using these suspensions:
- Kenworth W900, T800, T660, T600 (with Airglide 380)
- Peterbilt 379, 378, 386, 389 (with Flex Air)
Verify your existing air spring part number and suspension model before ordering.
