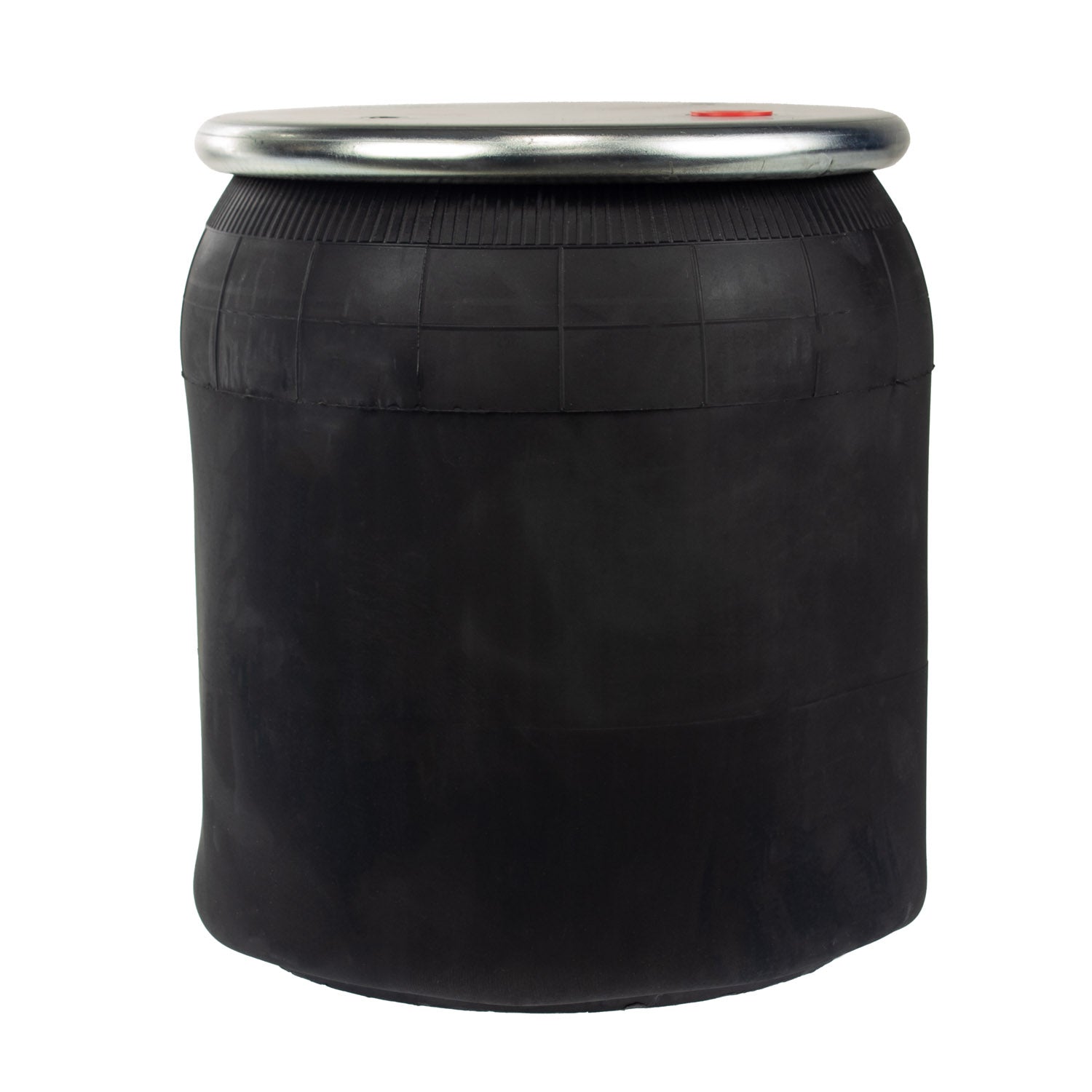

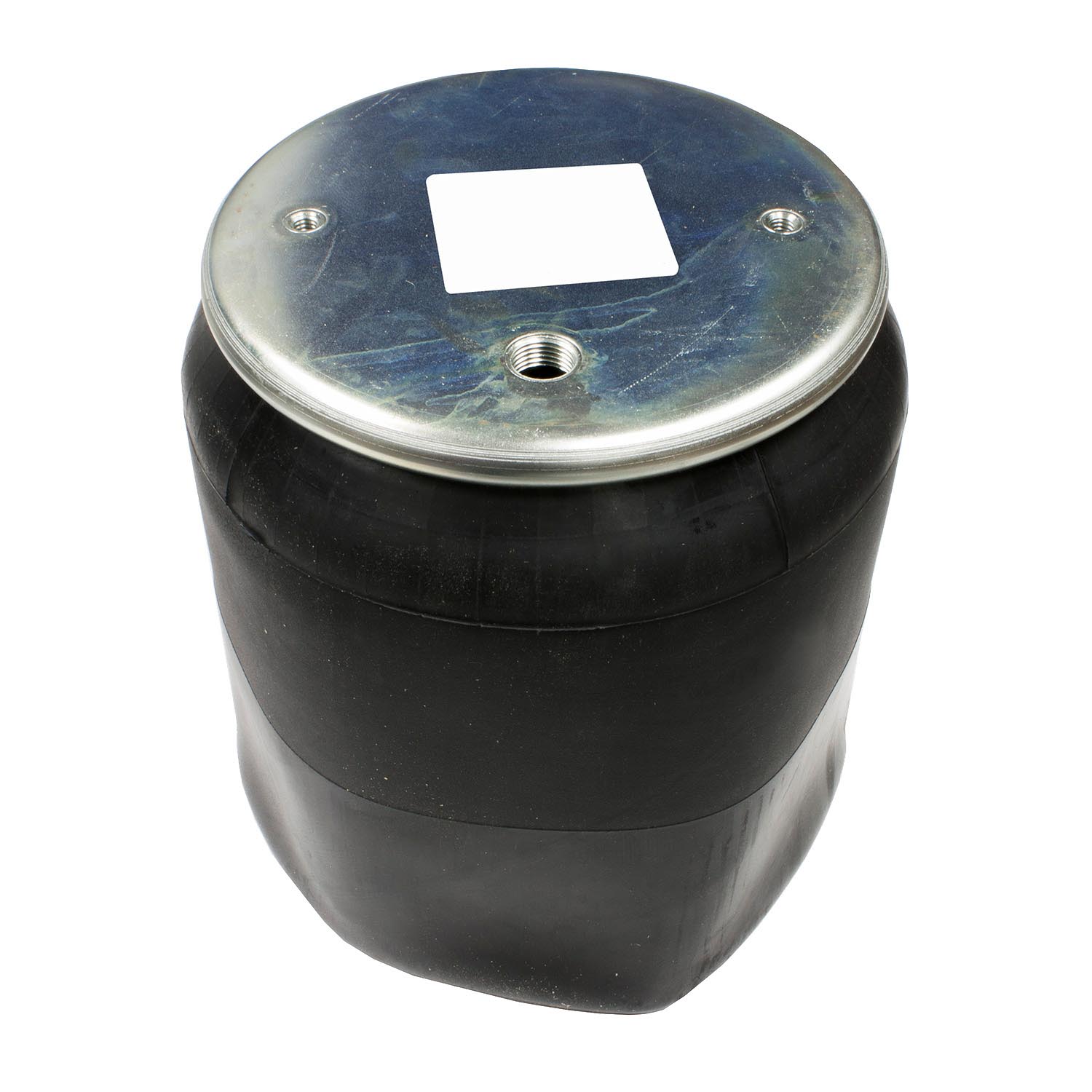

World American Air Spring WA01-8864C
Specifications:
Model/Style: Rolling Lobe
Bottom Plate Alignment: Parallel
Bottom Plate Center to Center Diameter: 2.25 (Inch)
Bottom Plate Diameter: 7.88 (Inch)
Bottom Plate Hole Quantity: 1
Bottom Plate Type: A
Design Height: 16 (Inch)
Load Rating at 100 PSI: 7070 (Pound)
Load Rating at 80 PSI: 5640 (Pound)
Maximum Diameter: 12.6 (Inch)
Maximum Height: 25.2 (Inch)
Minimum Height: 7.8 (Inch)
Natural Frequency: 65
Spring Type: Rolling Lobe
Top Plate Center to Center Diameter: 6.2 (Inch)
Top Plate Diameter: 9 (Inch)
Top Plate Hole Quantity: 2
Cross Reference:
Automann: AB1DK23L-8864
Continental-ContiTech: 66666
Continental-ContiTech: 9019P898
ContiTech: AS8864
Dayton Parts: 352-8864
Euclid: E-FS8864
Firestone: W01-358-8864
Firestone: 8864
Firestone: 8865
Goodyear: 1R12-1097
HDValue: HDV8864
Holland: G2298864200
Meritor: FS8865
Meritor: FS8864
Paccar Parts: AS88640
Peterbilt: 03-08716
Peterbilt: C81-1013
Peterbilt: C81-1011
Triangle Air Springs: AS-8864
Triangle Air Springs: 8898
Triangle Air Springs: AS-8898
Sell Pack Quantity: 1
