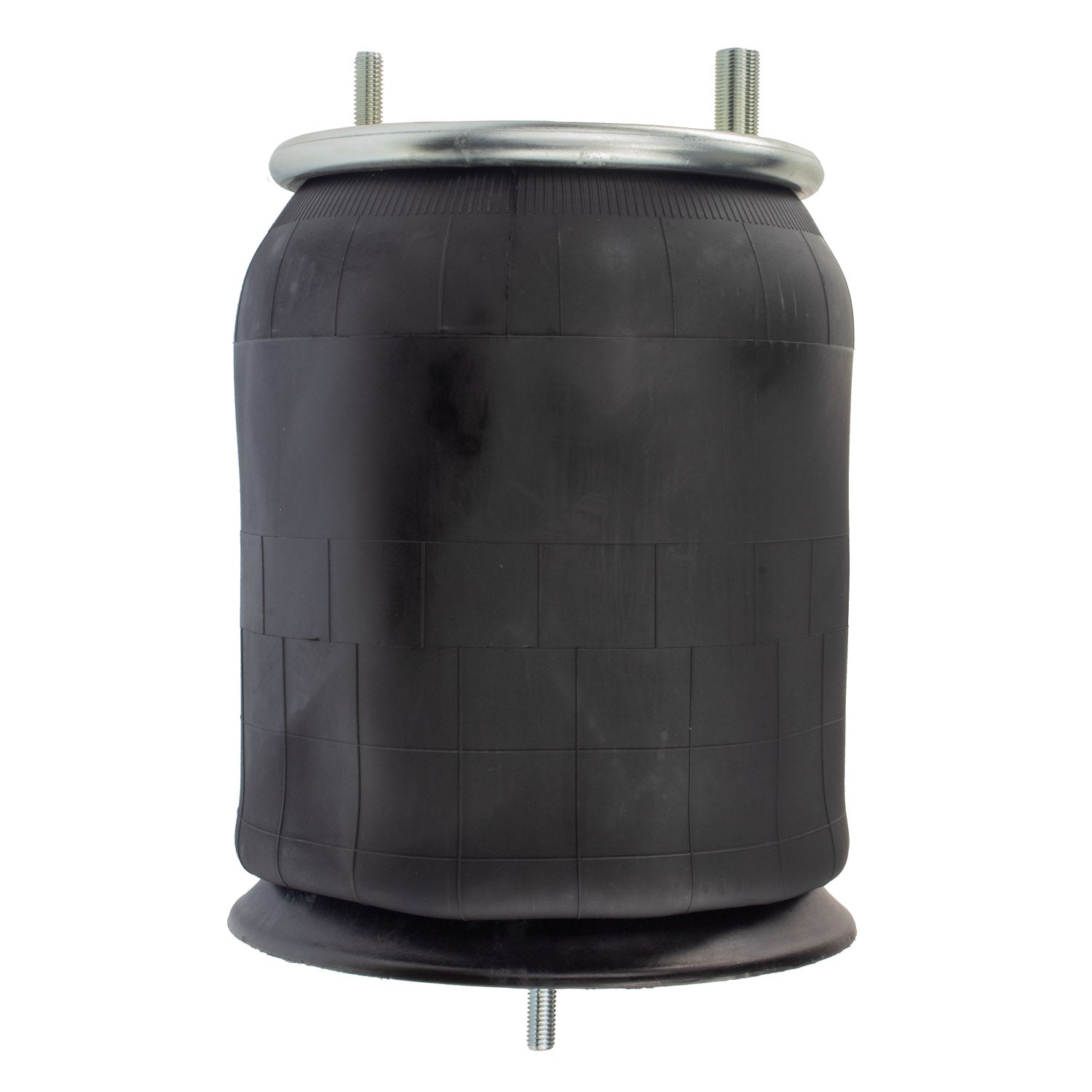

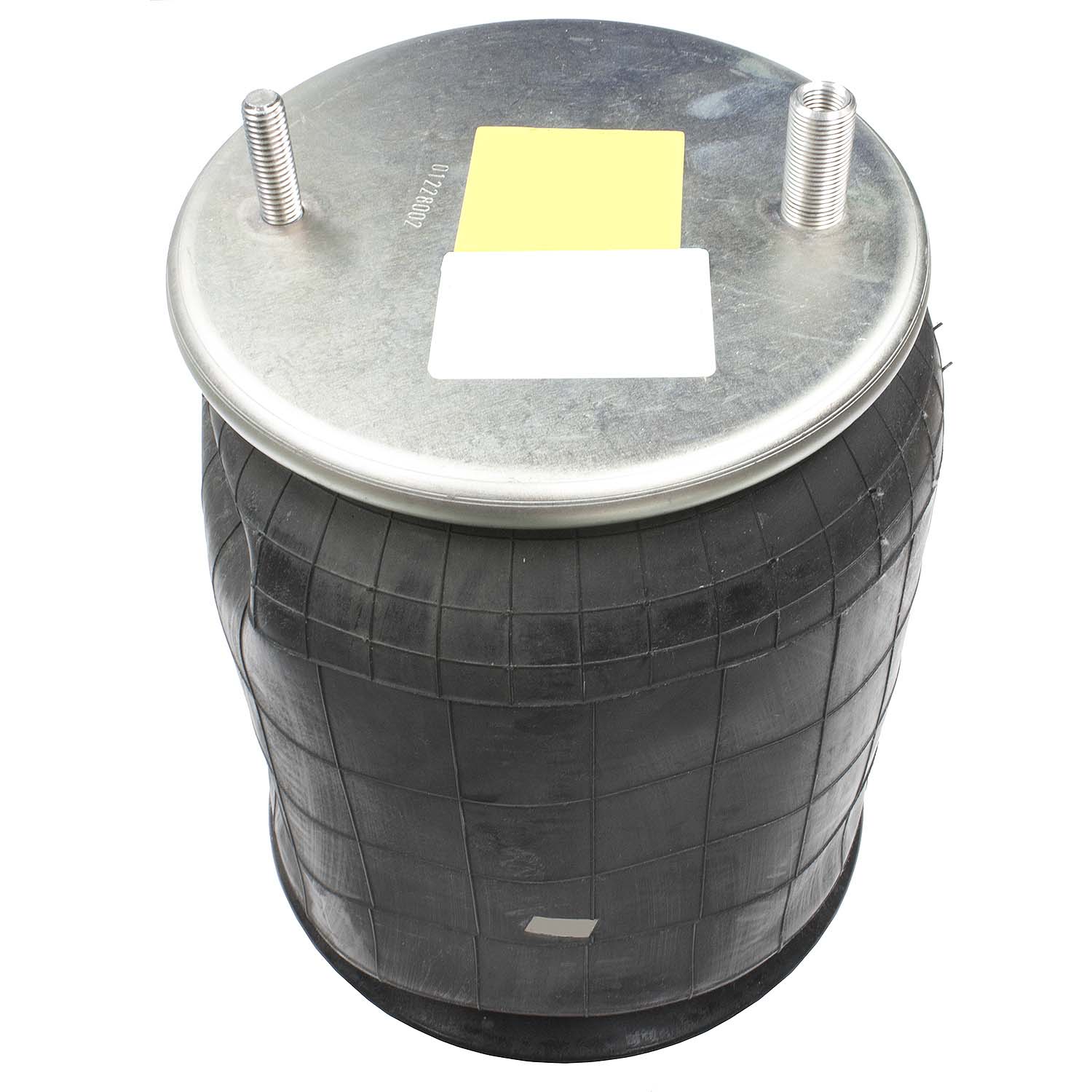

Watson & Chalin AS-0057 Trailer Air Spring Replacement | WA01-9370C

Details:

World American WA01-9370C air spring replacement for Watson & Chalin AS-0057.

Specifications:

• Part Type - Trailer
• Model/Style - Rolling Lobe
• Bottom Plate Alignment - Parallel
• Bottom Plate Center to Center Diameter - 2.25 (Inch)
• Bottom Plate Diameter - 10.31 (Inch)
• Bottom Plate Hole Quantity - 1
• Bottom Plate Type - A
• Design Height - 18 (Inch)
• Load Rating at 100 PSI - 7000 (Pound)
• Load Rating at 80 PSI - 5500 (Pound)
• Maximum Diameter - 12.6 (Inch)
• Maximum Height - 28.5 (Inch)
• Minimum Height - 9.8 (Inch)
• Natural Frequency - 55
• Spring Type - Rolling Lobe
• Top Plate Center to Center Diameter - 6.2 (Inch)
• Top Plate Diameter - 9 (Inch)
• Top Plate Hole Quantity - 2
• Warranty - 3 Years

Cross References:

• Automann  AB1DK23N-9370
• Batco 10-99370
• Continental-ContiTech 9 10-21 P 448
• Continental-ContiTech 64383
• Continental-ContiTech 91021P448
• ContiTech AS9370
• Dayton Parts 352-9370
• Euclid E-FS9370
• Firestone W01-358-9370
• Firestone 9370
• Goodyear 1R12-440
• Goodyear 1R12-580
• HDValue HDV9370
• Meritor FS9370
• Meritor RFS9370
• Paccar Parts AS93700
• Ridewell Corp 1003589370C
• Triangle Air Springs 8448
• Triangle Air Springs AS-8448
• Watson & Chalin AS-0057
• World American WA01-9370
