Kenworth Airglide 100 Suspension Air Spring | Replaces Good Year 1R11-028

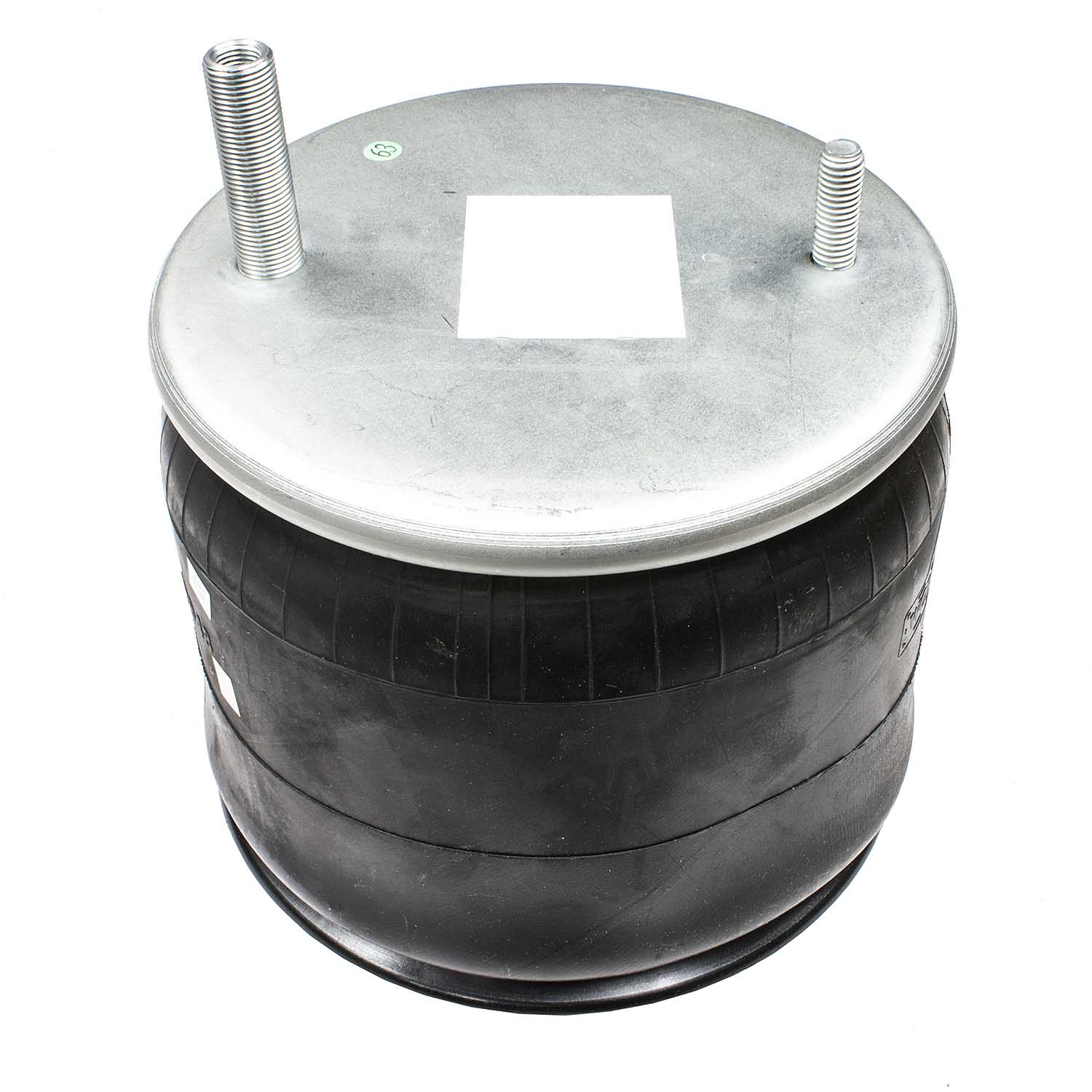

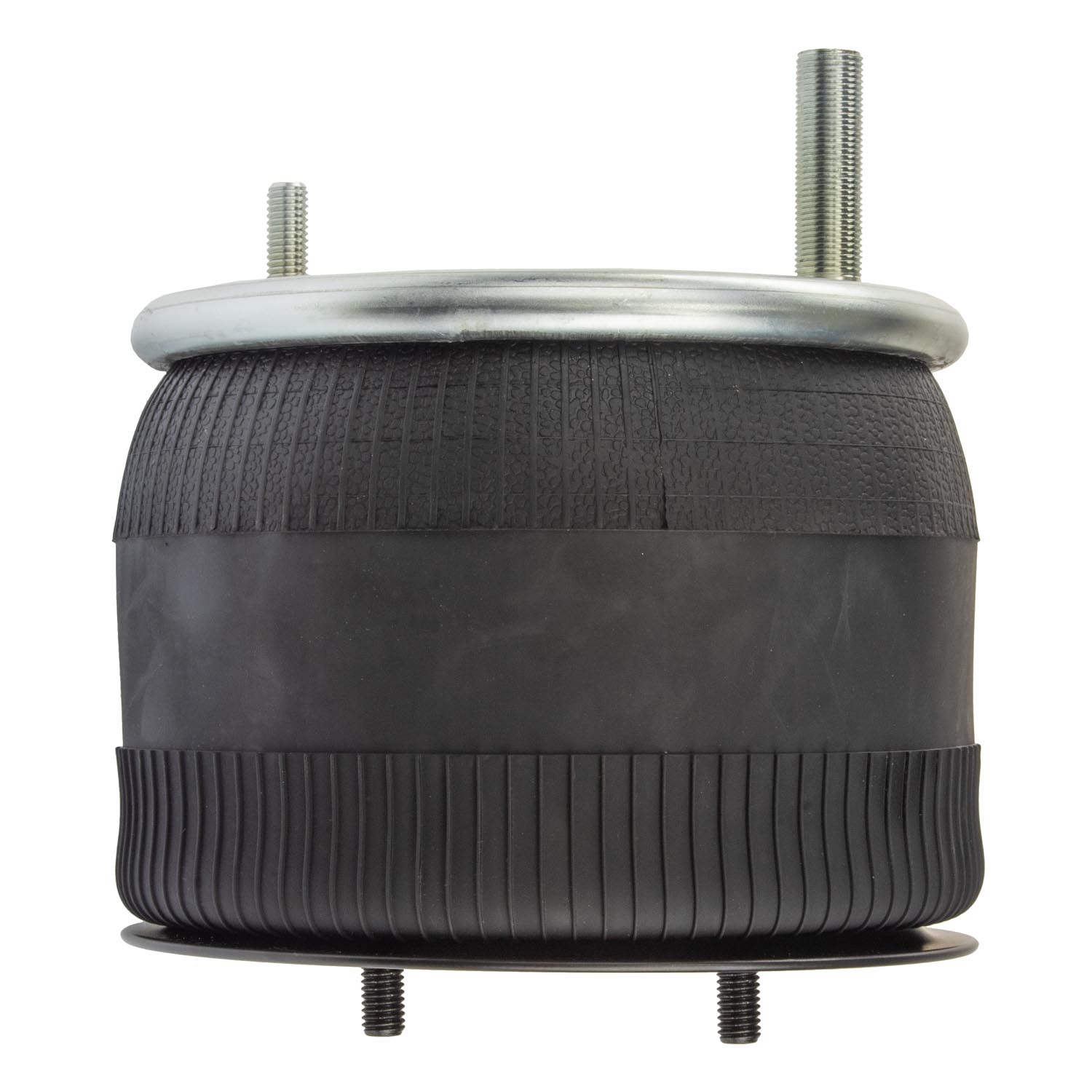

World American WA01-9422C is a rolling-lobe drive-axle air spring that replaces Goodyear 1R11-028, Firestone W01-358-9422, and Kenworth K303-6 / K303-14 / K303-15 on Kenworth Airglide 100 (AG100) tractor and trailer suspensions. Designed for the AG100 axle-mount that uses the integrated piston rather than a separate bracket, the bag carries 6,060 lb at 100 psi with an 8" design height and a parallel two-bolt top and bottom plate.

Signs You Need a New Air Spring

• Truck riding lower on one side of the drive axle or sagging at rest
• Excessive bounce, harsh impacts, or porpoising at highway speed
• Air compressor cycling more frequently to hold ride height
• Visible cracking, ozone checking, dry rot, or audible air leak from the bellows

Specifications

Cross References

This drive axle air spring replaces or is equivalent to the following part numbers:

• Kenworth / Paccar: K303-6, K303-14, K303-15, AS94220
• Firestone: W01-358-9422, 9422
• Goodyear: 1R11-028
• ContiTech: AS9422, 64255, 9 9-12 P 314
• Hendrickson: S-13032
• Volvo: 3130496
• Navistar: 554762C1
• Holland: 57009422
• Meritor / Euclid: FS9422, RFS9422, E-FS9422
• HD Value: HDV9422
• Triangle: AS-4332, 4332
• Dayton: 352-9422
• Automann: AB1DK20D-9422
• Watson & Chalin: AS-0017
• Ridewell: 1003589422C

Applications

This drive axle air spring fits the following Kenworth Airglide 100 (AG100) chassis applications:

• Kenworth T600, T660, T800, T880, W900, C500 with Airglide 100 drive-axle suspension
• Other on-highway tractors and vocational chassis using the AG100 air-ride drive axle

Verify your suspension model (AG100 vs. AG200/Low-Air-Leaf) before ordering — the WA01-9422C fits the AG100 mount with integrated piston only. Replace drive-axle air springs in pairs to keep the suspension level.
