Kenworth K303-19, K303-22 Air Spring Replacement | WA01-9622C

Details:

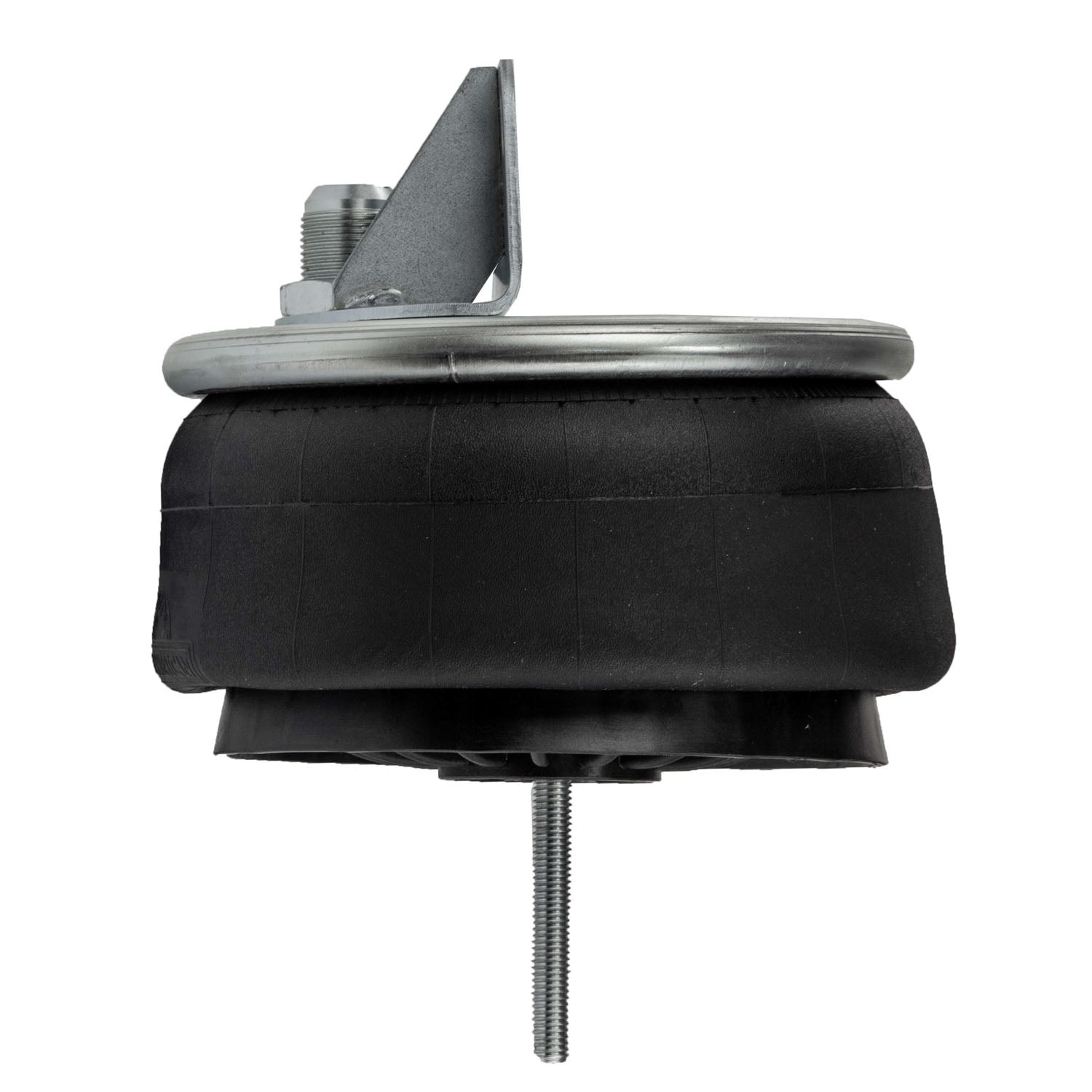

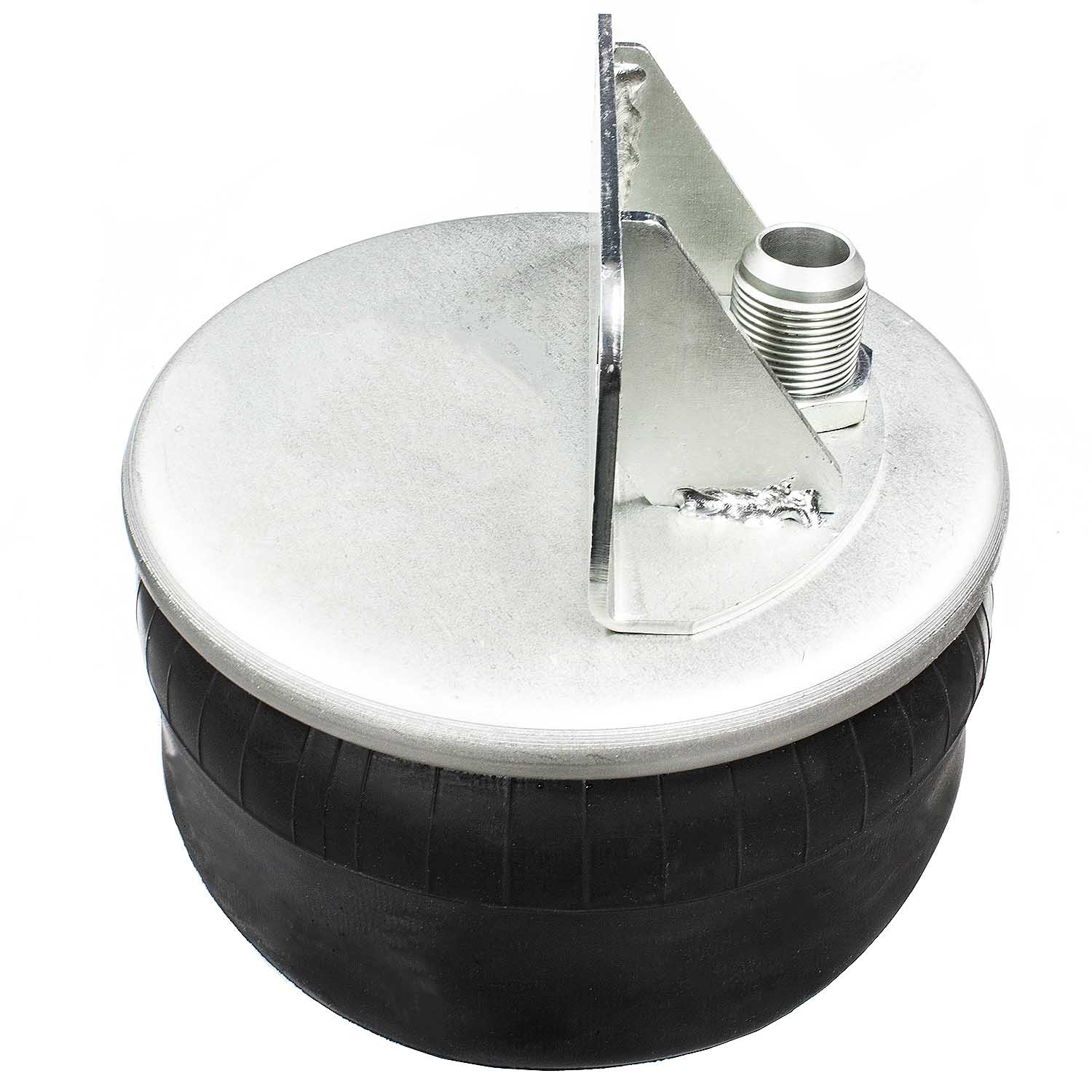

World American Air Spring WA01-9622C is direct fit for Kenworth K303-22.

Specifications:

• Model/Style - Rolling Lobe
• Bottom Plate Alignment - Parallel
• Bottom Plate Diameter - 8.82 (Inch)
• Bottom Plate Hole Quantity - 1
• Bottom Plate Type - P
• Design Height - 7 (Inch)
• Load Rating at 100 PSI - 6280 (Pound)
• Load Rating at 80 PSI - 5020 (Pound)
• Maximum Diameter - 11.5
• Maximum Height - 11.4 (Inch)
• Minimum Height - 3.9 (Inch)
• Natural Frequency - 95
• Spring Type - Rolling Lobe
• Top Plate Center to Center Diameter - 2.24 (Inch)
• Top Plate Diameter - 9 (Inch)
• Warranty - 3 Years

Cross References:

• Automann  AB1DK20G-9622
• Batco 10-99622
• Continental-ContiTech 68359
• Continental-ContiTech 9 9-9 S 537
• ContiTech AS9622
• Euclid E-FS9622
• Firestone 9622
• Firestone W01-358-9622
• Goodyear 1R11-221
• HDValue HDV9622
• Kenworth K303-19
• Kenworth K303-22
• Meritor FS9622
• Paccar Parts AS96221
• Triangle Air Springs 8537
• Triangle Air Springs AS-8537
• World American WA01-9622
